MIL-DTL-38999
Hermetic Connectors
Sav-Con® Connector Saver • MIL-DTL-38999 Series II Type
Shell Size
08
10
12
14
16
18
20
22
24

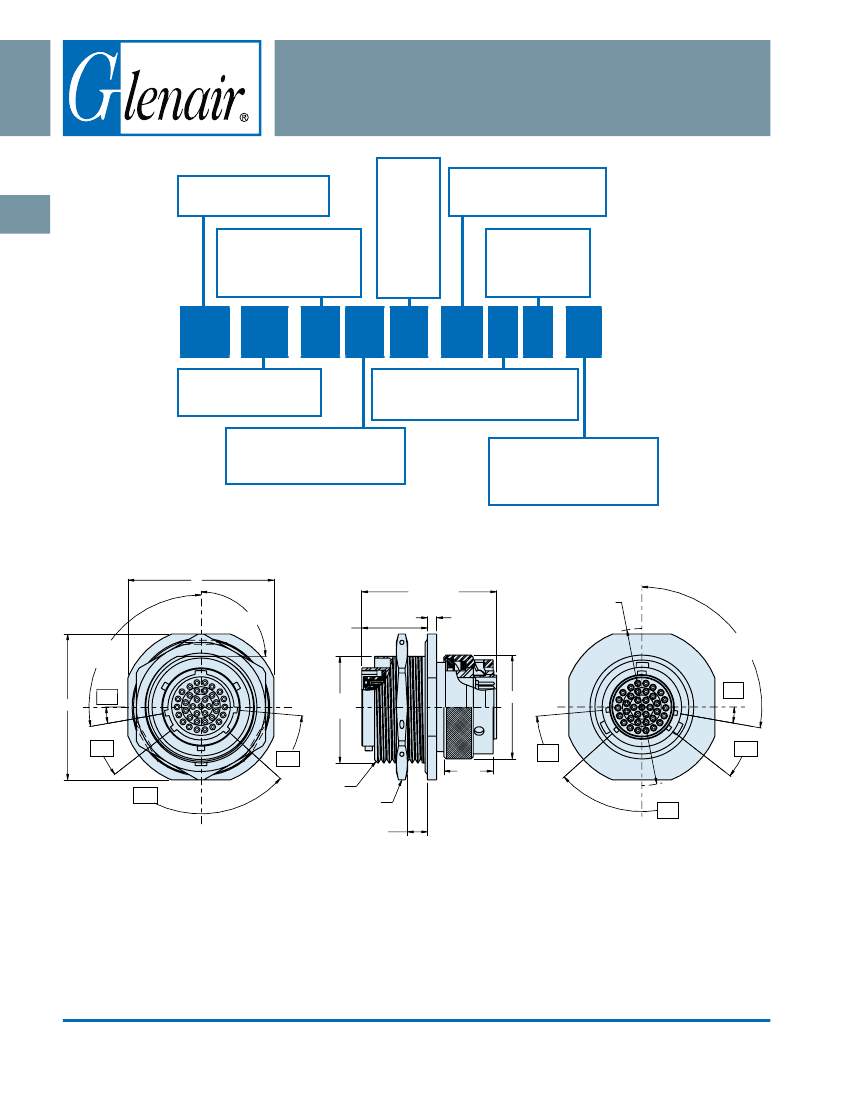

232-103-H9
Jam Nut Mount Hermetic Bulkhead Feed-Thru
B
Connector Series
232
-
D38999 Series II Type
Shell Style
H9
- Jam Nut Mount
Sav-Con® Connector
Saver
Insert Arrangement
Per MIL-DTL-38999 Series II
MIL-STD-1560
Broach
Polarization
A, B, C, D
(N = Normal)
232
-
103
-
H9 Z1 14
-
35 P N
-
02
Connector Type
103
-
Hermetic Bulkhead
Feed-Thru
Contact Termination
P
- Pin on Plug End, Socket Opposite
S
- Socket on Plug End, Pin Opposite
Panel Accomodation
01
- .062″ (Min) .125″ (Max)
02
- .062″ (Min) .250″ (Max)
03
- .062″ (Min) .500″ (Max)
Connector Material and Finish
Z1
- CRES, Passivated
ZL
- CRES, Nickel Finish
C
90°
Specify Per
Table V
C
10°
H Per
Table III
J Per
Table III
F
ØB
Specify Per
Table V
ØE
10°
D
Flat
ZR°
YR°
A Thread
MS3186 Type
Hex Nut
G Per
Table III
XR°
ZP°
.592
(15.04)
Max
XP°
YP°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-40
E-Mail: sales@glenair.com
Sav-Con® Connector Saver • MIL-DTL-38999 Series II Type
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
8
10
12
14
16
18
20
22
24
A THREAD
CLASS 2A
.875-20 UNEF
1.000-20 UNEF
1.125-18 UNEF
1.250-18 UNEF
1.375-18 UNEF
1.500-18 UNEF
1.625-18 UNEF
1.750-18 UNS
1.875-16 UN
B
DIA
1.391/1.359
(35.33/34.52)
1.516/1.484
(38.51/37.69)
1.641/1.609
(41.68/40.87)
1.766/1.734
(44.86/44.04)
1.954/1.922
(49.63/48.82)
2.032/2.000
(51.61/50.80)
2.157/2.125
(54.79/53.98)
2.281/2.249
(57.94/57.12)
2.406/2.374
(61.11/60.30)
232-103-H9
Jam Nut Mount Hermetic Bulkhead Feed-Thru
C
A/F
1.266/1.234
(27.38/26.57)
1.391/1.359
(35.33/34.52)
1.516/1.484
(38.51/37.69)
1.641/1.609
(41.68/40.87)
1.797/1.765
(45.64/44.83)
1.906/1.874
(48.41/47.60)
2.032/2.000
(51.61/50.80)
2.156/2.124
(54.76/53.95)
2.281/2.249
(57.94/57.12)
D
FLAT
.818/.811
(16.64/20.60)
.942/.935
(19.18/23.75)
1.066/1.059
(27.08/26.90)
1.191/1.184
(30.25/30.07)
1.321/1.314
(33.55/33.38)
1.441/1.434
(36.60/36.42)
1.566/1.559
(39.78/39.60)
1.691/1.684
(42.95/42.77)
1.816/1.809
(46.13/45.95)
E DIA
MAX
.750 (19.05)
.859 (21.82)
1.031 (26.19)
1.156 (29.36)
1.281 (32.54)
1.406 (35.71)
1.531 (38.89)
1.641 (41.68)
1.766 (44.86)
F
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
.105/.084
(2.67/2.13)
K
DIA
.895/.885
(22.73/22.48)
1.020/1.010
(25.91/25.65)
1.145/1.135
(29.08/28.83)
1.270/1.260
(32.26/32.00)
1.395/1.385
(35.43/35.18)
1.520/1.510
(38.61/38.35)
1.645/1.635
(41.78/41.53)
1.770/1.760
(44.96/44.70)
1.895/1.885
(48.13/47.88)
N
.830/.820
(21.08/20.83)
.955/.945
(24.26/24.00)
1.085/1.075
(27.56/27.31)
1.210/1.200
(30.73/30.48)
1.335/1.325
(33.91/33.66)
1.460/1.450
(37.08/36.83)
1.585/1.575
(40.26/40.01)
1.709/1.699
(43.41/43.15)
1.855/1.825
(47.12/46.36)
TABLE IV: MASTER KEY/KEYWAY POSITIONS
SHELL
SIZE
8
10
12
14
16
18
20
22
24
XP
XR
28°
28°
28°
28°
28°
28°
28°
28°
28°
YP
YR
100°
100°
100°
100°
100°
100°
100°
100°
100°
ZP
ZR
37°
37°
37°
37°
37°
37°
37°
37°
37°
N
100°
100°
100°
100°
100°
100°
100°
100°
100°
A
82°
86°
80°
79°
82°
82°
82°
85°
85°
B
––
72°
68°
66°
70°
70°
70°
74°
74°
C
––
D
118°
N
128° 114°
132° 120°
134° 121°
130° 118°
130° 118°
130° 118°
126° 115°
126° 115°
ØK
TABLE III: DWV
VOLTAGE LEVELS
SERVICE
RATING
M
I
II
N
VOLTAGE
AC RMS 60HZ
1300 VAC
1800 VAC
2300 VAC
1000 VAC
Recommended
Panel Cut-out
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
TABLE II: DIMENSIONS
SYM
01
02
03
G
H
J
.062-.125
.469 MAX 1.300 MAX
(1.57-3.18) (11.91 MAX) (33.02 MAX)
.062-.250
.600 MAX 1.425 MAX
(1.57-6.35) (15.24 MAX) (36.20 MAX)
.062-.500
.850 MAX 1.675 MAX
(1.57-12.7) (21.59 MAX) (42.55 MAX)
Required Leak Rate
1 x 10
-10
cc Helium per second
1 x 10
-9
cc Helium per second
1 x 10
-8
cc Helium per second
APPLICATION NOTES
1.
Material/finish:
Shell, jam-nut, coupling nut – 300 Series CRES/see
P/N development.
Contacts, pin – Nickel-iron alloy/Gold plate.
Contacts, socket – Copper alloy/Gold plate.
Insulator, pin – Vitreous glass/N.A.
Insulator, sockets – Hi-grade rigid dielectric/N.A.
Grounding springs – Copper alloy/Gold plate.
O-Rings and seals – Fluorosilicone blend/N/A.
2.
3.
Assembly identified with manufacturer's name and part number, space permitting.
Test requirements:
D.W.V. – Per Table IV
I.R. – 5 GigOhms @ 500 VDC
Hermeticity – <1 x 10^
-7
sccHe/sec @ 1 ATM differential.
Metric dimensions (mm) are indicated in parentheses.
4.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-41
E-Mail: sales@glenair.com
