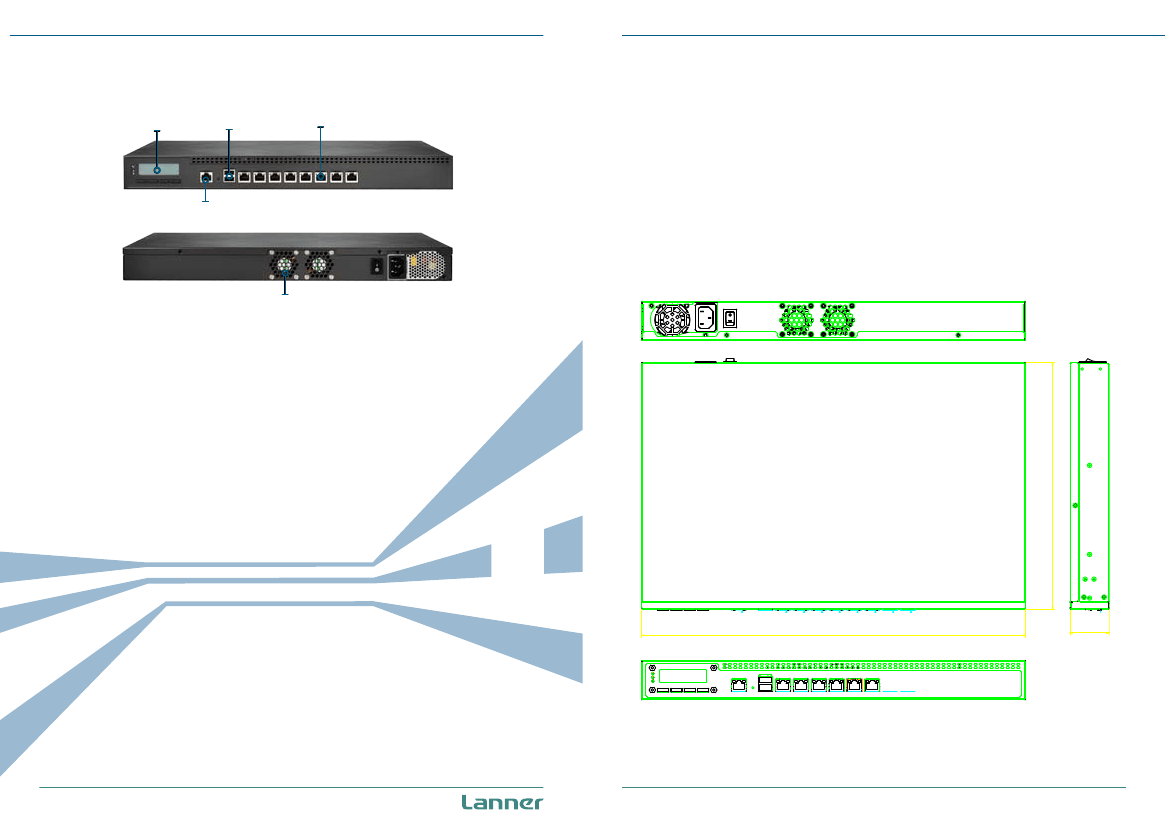

FW-7568
LCD Module
2 x USB
Rackmount 1U Firewall Appliance with
Low Power Consumption and Dual Core
Intel Atom Processor D525
6x or 8x GbE RJ45
Two Pairs of Generation 3
Bypass
Each pair of Generation 3 bypass
ports can be programmed to turn
on and off. They also allow data
packet through when the
appliance is powering on and off.
Console Port
Dimensions: 431 x 44 x 276 mm
2 x Cooling Fans
Features
Dual Core Pineview Intel Atom
The FW-7568 utilizes the dual
core Intel Atom D525 code
named Pineview. This 1.8GHz
processor utilizes less electricity
while providing sufficient
processing power.
Up to 8 GbE Networking Ports
The FW-7568 is designed to be
deployed as a low cost barebone
firewall network solution for
smaller networks. It comes with
either 6 or 8 Gigabit Ethernet
ports, both options include two
pairs of ports for supporting ab-
normal state bypass.
Expansion
To increase customizablility, the
FW-7568 comes with two SATA
connection for HDD drives and
one CompactFlash socket. The
additional mini-PCIe expansion
slot is capable of 3G or WiFi con-
nection.
Smaller Form Factor
While the FW-7568 is still a 1U
appliance, its small form factor
means that it can fit conven-
iently into any network rack or
be placed on most desk or table
tops. Lanner engineers designed
the system off a smaller moth-
erboard in order to accomadate
more users.
276.7
431
44
connect@lannerinc.com
www.lannerinc.com
Specifications are subject to change without notice
Specifications
Form Factor
Platform
BIOS
System
Memory
OS Support
Storage
Technology
Max. Capacity
Socket
HDD Bays
CompactFlash
Ethernet Ports
Bypass
Controllers
Processor Options
Chipset
1U Rackmount
Intel® Atom Dual Core D525 onboard
ICH8M
AMI BIOS 16Mbit SPI Flash ROM
DDR3 800 MHz
Optional 512MB or 1GB onboard
4GB
1 x 204P SODIMM
Windows 2000, 2003, XP, 7. Linux kernel 2.4 or up
2 x 2.5” or 1 x 3.5”
1 x Type II CompactFlash
6 x or 8 x GbE RJ45
2 pairs G3 (SKU A & C)
6 x Intel 82574L, 2 x Intel 82541P1 (SKU A&B)
6 x Intel 82574L (SKU C&D)
N/A
N/A
N/A
1 x reset button (Software reset by default)
1 x RJ45
2 x USB 2.0
N/A
1 x Mini-PCIe slot
N/A
Passive CPU heatsink
2 x cooling fans with smart fan control
Ordering Information
FW-7568A
FW-7568B
FW-7568C
FW-7568D
Intel Pineview D-525 CPU, 8 x GbE ports
with 2 pairs of G3 Bypass
Intel Pineview D-525 CPU, 8 x GbE ports
without Bypass
Intel Pineview D-525 CPU, 6 x GbE ports
with 2 pairs of G3 Bypass
Intel Pineview D-525 CPU, 6 x GbE ports
without Bypass
Networking
Ethernet Modules
Management Port
Security Acceleration
Reset Button
Console
I/O Interface
USB
IPMI via OPMA slot
PCIe
Expansion
PCI
Processor
Cooling
System
Temperature, ambient
0 ~ 40º C / -20~70º C
operating / storage
Environmental
Humidity (RH), ambient
Parameters
operating / ambient
5~95%, non-condensing
non-operating
LCD Module
2 x 20 characters
Yes
Miscellaneous
Watchdog
Internal RTC with Li
Yes
Battery
Dimensions (WxHxD) 431 x 44 x 276 mm
Physical
Dimensions
Weight
6 kg
Type / Watts
1U ATX SPS / 100W or 150W
Power
Input
AC 100~240V @50~60 Hz
Approvals and Compliance
CE emission, FCC Class A, RoHS, UL
