Data Sheet test
PCDS_LHMS_LHMS_O220E_XX.X_MM
Description
Duplex patch cord, E2000 simplex to E2000 simplex, MM, duplex fig.8 2x2.0mm_XX.X_orange, OM2
Features
- Automatic metal shutter in connector for dust portection and laser safety
- One-piece design for easy termination
- Colour coding of connector
- Mechanical coding of connector
- Ideal for HighPower applications
- Switchable duplex clips
Features
Technical Data
General Data
Description
General Typ
Operation temperature
Polarity
UL Rating
RoHS compliant 2001/65/EU
REACH compliant
Values
Duplex FLSH patch cord
-25 up to 70°C
A-B / B-A straight polarity (standard)
UL 94 V-0
Yes
Yes
Connector left
Description
Connector typ
Polish
Color Housing
Color Boot
Design connector acc. To
Performance class H+S
Insertion loss 97% dB / mean dB
Return Loss
Durability
Tensil load
Tensil load acc. To GR-326-COR
Values
FLSH simplex
UPC
Beige
Black / Red
IEC 61754-15, TIA 604-16
M
0.25 / 0.12
>35dB
1000
2 x 100 N
Fullfiled
Connector right
Description
Connector typ
Polish
Color Housing
Color Boot
Design connector acc. To
Performance class H+S
Insertion loss 97% dB / mean dB
Return Loss
Durability
Values
FLSH simplex
UPC
Beige
Black / Red
IEC 61754-15, TIA 604-16
M
0.25 / 0.12
>35dB
1000
Document: DOC-0000751838 AM / PDO D / date of publication: 05.09.2019 17:19:54 / uncontrolled copy
Page 1/2
Data Sheet test
PCDS_LHMS_LHMS_O220E_XX.X_MM
Tensil load
Tensil load acc. To GR-326-COR
2 x 100 N
Fullfiled
Cable
Description
Cable typ
Fiber count
Fiber
Fiber typ
Outer diameter
Outer jacket material
Values
Duplex Cable Figure 8
2
2 x 0.9 mm
G50/125-OM2 G.651
2 mm
Jacket material according to UL 94V-0

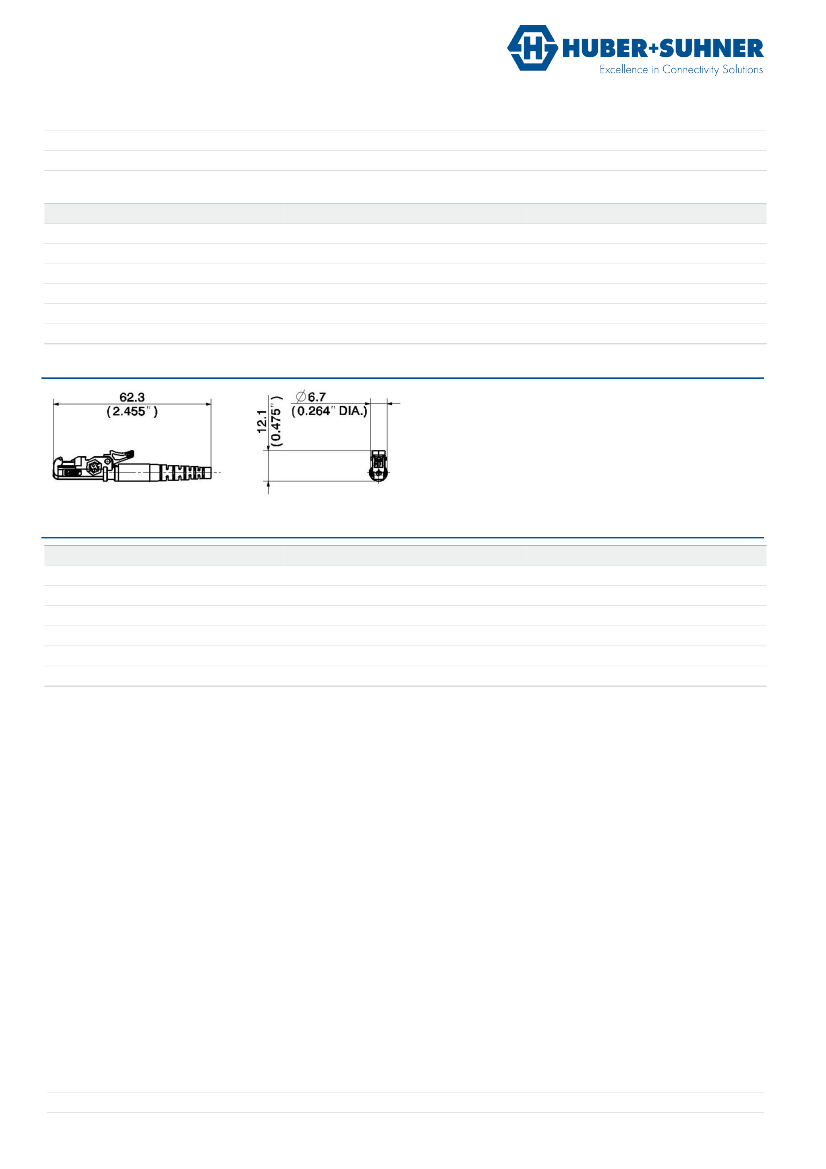

Technical Drawing
Ordering information
Meter (m)
1
2
3
5
7
10
Item number
85031467
85031468
85031469
85031470
85031471
85031472
Description
PCDS_LHMS_LHMS_O220E_01.0_MM
PCDS_LHMS_LHMS_O220E_02.0_MM
PCDS_LHMS_LHMS_O220E_03.0_MM
PCDS_LHMS_LHMS_O220E_05.0_MM
PCDS_LHMS_LHMS_O220E_07.0_MM
PCDS_LHMS_LHMS_O220E_10.0_MM
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000751838 AM / PDO D / date of publication: 05.09.2019 17:19:54 / uncontrolled copy
Page 2/2
