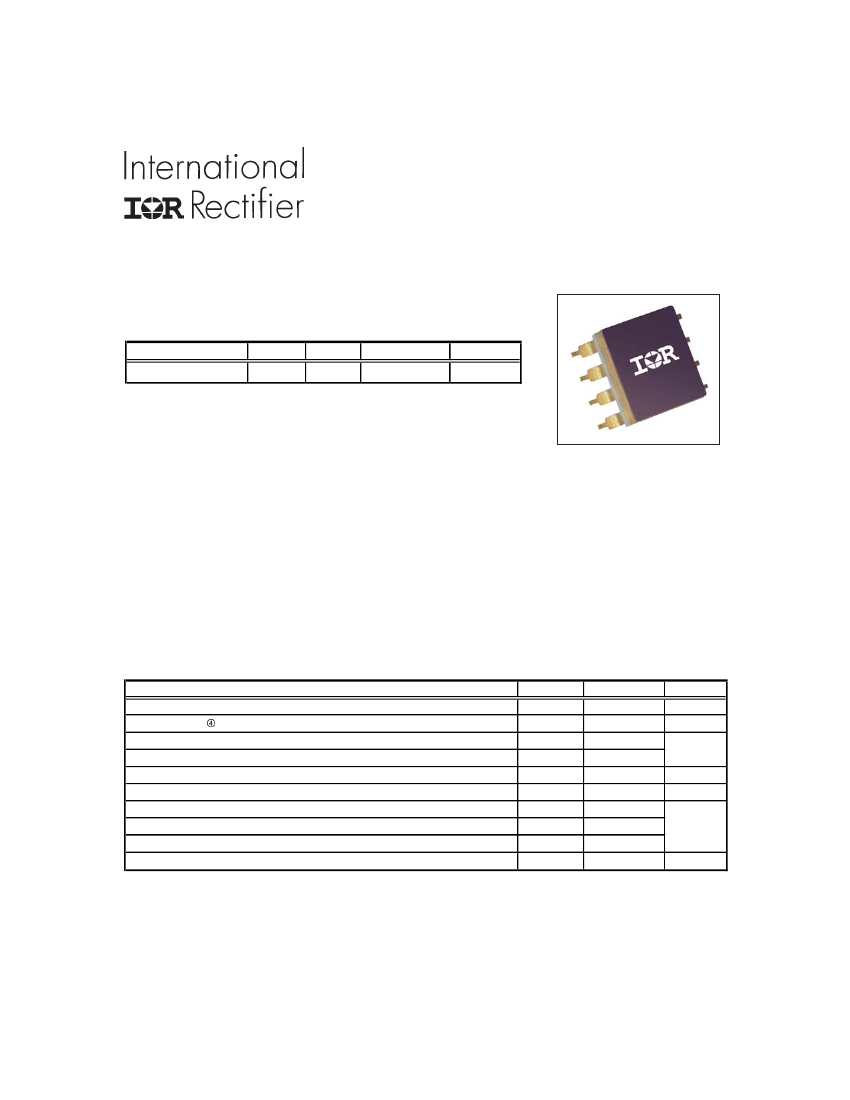

PD-97578B

Radiation Hardended, 100V,

Dual 1.0A, Solid State Relay

Product Summary

Part Number

RDHA701CD10A2NX

Voltage Current Configuration Rad Level

100V

1.0A

Dual DC

100K

Description

The RDHA701CD10A2NX is a radiation hardened

dual Solid State Relay in a hermatic package. It is

configured as dual single pole single throw (SPST)

normally open relay. This device is characterized

for 100KRad (Si) total ionizing dose. The output

MOSFET utilizes International Rectifier’s R5

Technology.

Features:

Total Dose Capability to 100KRad (Si)

Optically Coupled

1000V

Input-to-Output, Channel-to-Channel,

and Pin-to-Case Isolation

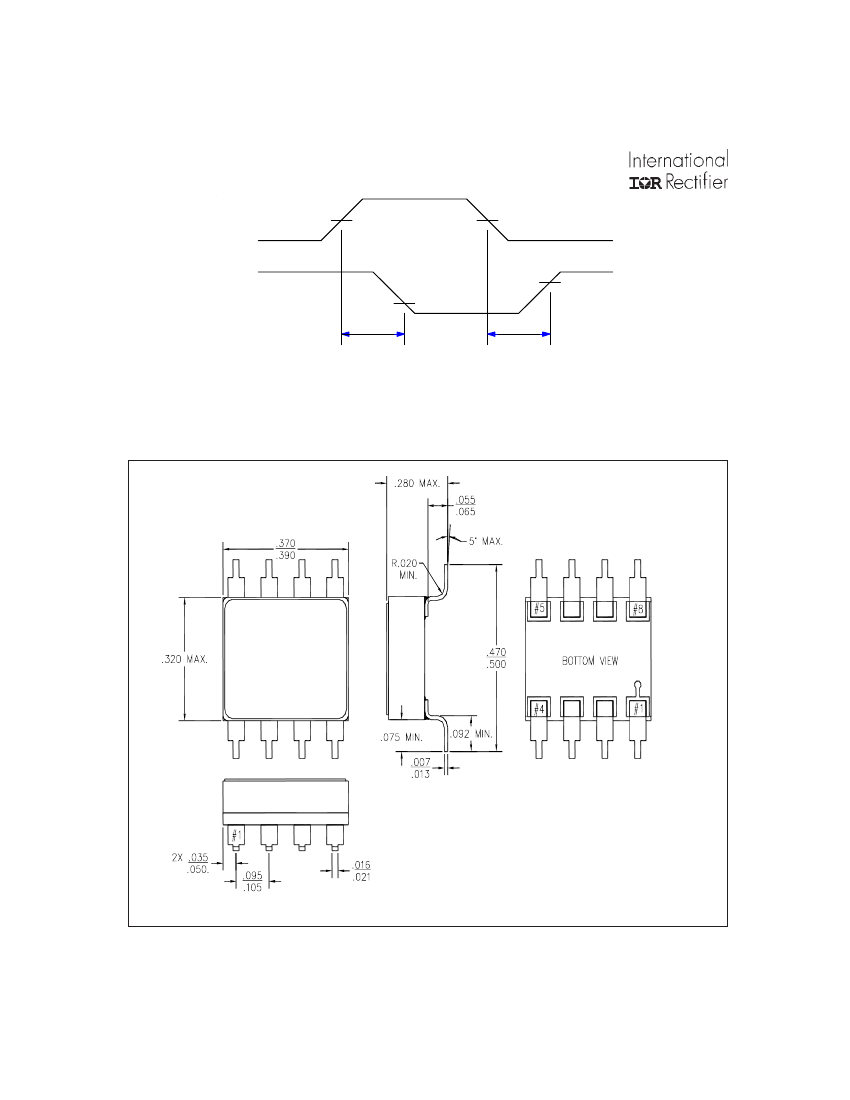

Hermetically Sealed Ceramic Package

Absolute Maximum Ratings @ Tj = 25°C

(unless otherwise specified)

Parameter

Output Withstand Voltage

Output Current

Symbol

O (OFF)

F pk

DISS

Value

100

1.0

100

5.0

1.0

-55 to +125

-65 to +150

300

0.8 (typ)

Units

°C

Input Forward Current

Peak Input Forward Current (t

≤1.0ms)

Peak Input Reverse Voltage (t

≤1.0ms)

Power Dissipation

Operating Temperature Range

Storage Temperature Range

Lead Temperature (soldering

≤

10sec)

Weight

For notes, please refer to page 2

www.irf.com

05/18/12
