Ceramic DUPLEXER IDD18520
1855 MHz / 1760 MHz
Features
Ceramic Duplexer
Usable bandwidth 10 MHz each Rx. And Tx. band
No matching / Antenna & Transmitter & Receiver Impedance 50Ω
Surface Mounted Module Package ( 17mm
×
8.5mm
×
5.2mm )

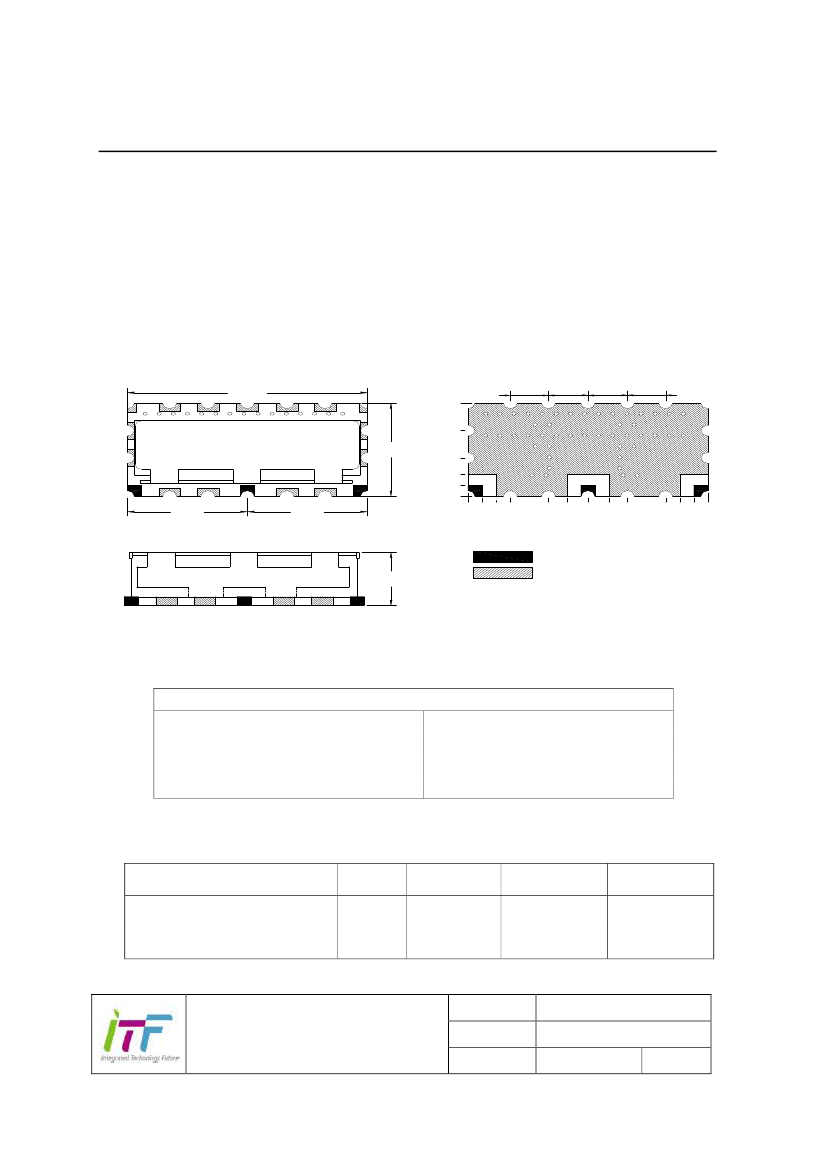

Package Dimension
T O P V IE W
1 7 .0 0
8 .5 0
R F D e v ic e s ,In c
B O T T O M V IE W
2 .7 0
2 .8 0
2 .8 0
2 .7 0
R M D 4 I1 8 5 5 B 1 7 6 0 B 1 0 P C
1855
ANT
1760
PART NO.
6 .0 0
8 .5 0
3 .5 0
2 .0 0
1 .0 0
0 .0 0
0.00
1.00
2.00
3.00
5.70
7.00
8.50
10.00
11.30
14.00
15.00
16.00
17.00
8 .5 0
8 .5 0
F R O N T V IE W
I/O P O R T
5 .2 M A X .
GROUND
T O L E R A N C E :
±
0 .2 0
U N IT : m m
Pin Configuration
Description
RX (1755 ~ 1765MHz)
ANT
TX (1850 ~ 1860MHz)
Function
RECEIVER
ANTENNA
TRANSMITTER
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Electrostatics Sensitive Device (ESD)
Unit
°C
°C
Minimum
-40
-40
Typical
25
-
Maximum
+85
+85
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD18520
2014-8-27
AS01
1/2
Ceramic DUPLEXER IDD18520
1855 MHz / 1760 MHz
Specification
Fo = 1760 MHz / 1855 MHz
ANT to Rx
Insertion loss (1765 MHz +/-5 MHz)
Amplitude Ripple (1765 MHz +/-5 MHz)
Return Loss (1765 MHz +/-5 MHz)
Input power (1765 MHz +/-5 MHz)
dB
dB
dB
Watt
Minimum
-
-
17
Typical
1.8
0.4
20
Maximum
2.0
0.6
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
1850 ~ 1860 MHz
dB
45
48
-
Tx to ANT
Insertion loss (1855 MHz +/-5 MHz)
Amplitude Ripple (1855 MHz +/-5 MHz)
Return Loss (1855 MHz +/-5 MHz)
Input power (1855 MHz +/-5 MHz)
dB
dB
dB
Watt
Minimum
-
-
17
Typical
1.8
0.4
20
Maximum
2.0
0.6
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
1755 ~ 1765 MHz
dB
45
48
-
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 3 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured absolute to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD18520
2014-8-27
AS01
2/2
