Ceramic Bandpass Filter IFD20030
Features
Ceramic bandpass filter
50Ω single-ended operation
Surface Mounted Module Package (25.4mm
×
11mm
×
4.9mm )

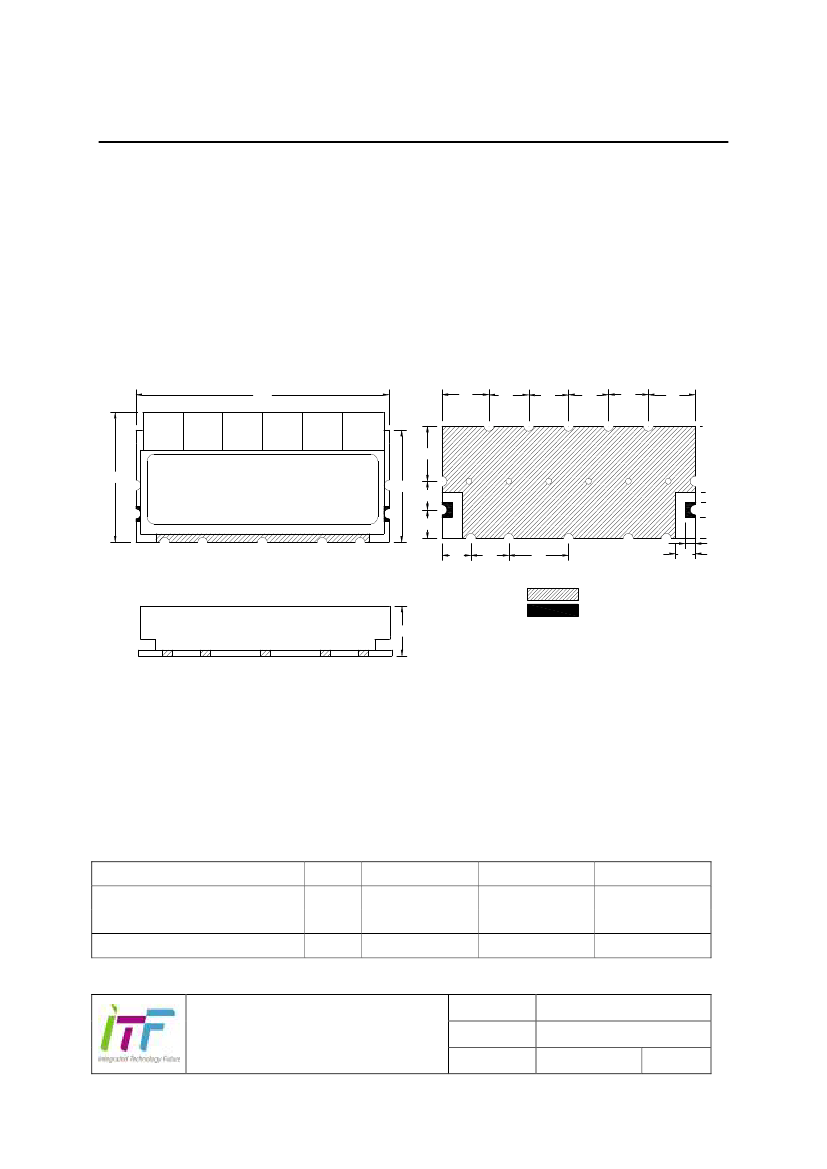

Package Dimensions
TOP VIEW
25.4
4.7
4.0
BOTTOM VIEW
4.0
4.0
4.0
4.7
11.00
5.4
12.7
FRONT VIEW
4.9
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-30
-40
-
Typical
25
25
-
Maximum
70
85
2
