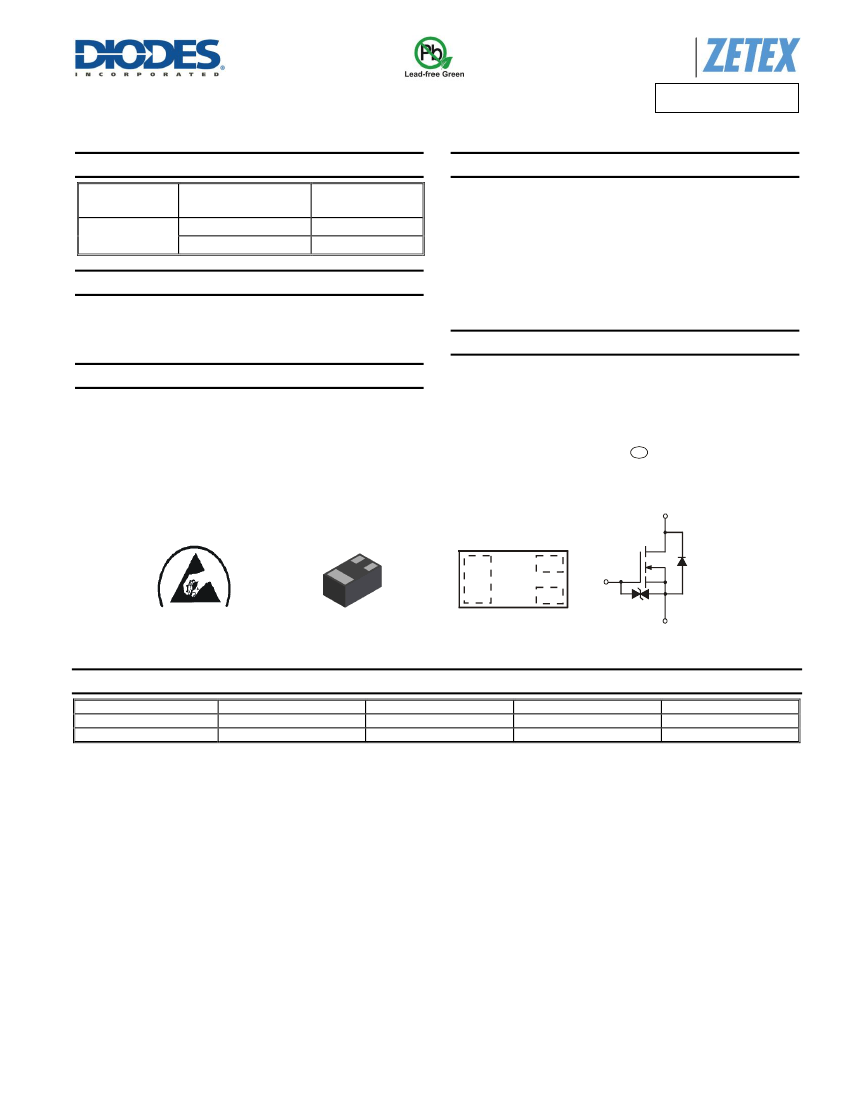

Halogen and Antimony Free. “Green” Device (Note 3)
ESD Protected Gate 2kV
Qualified to AEC-Q101 Standards for High Reliability
Description
This MOSFET is designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Mechanical Data
Case: X2-DFN1006-3
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe; Solderable
per MIL-STD-202, Method 208
e4
Weight: 0.001 grams (Approximate)
Applications
Load Switch
Portable Applications
Power Management Functions
Drain
X2-DFN1006-3
S
D
G
ESD PROTECTED TO 2kV
Gate
Body
Diode
Bottom View
Top View
Gate
Protection
Diode
Source
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMN3730UFB4-7
DMN3730UFB4-7B
Notes:

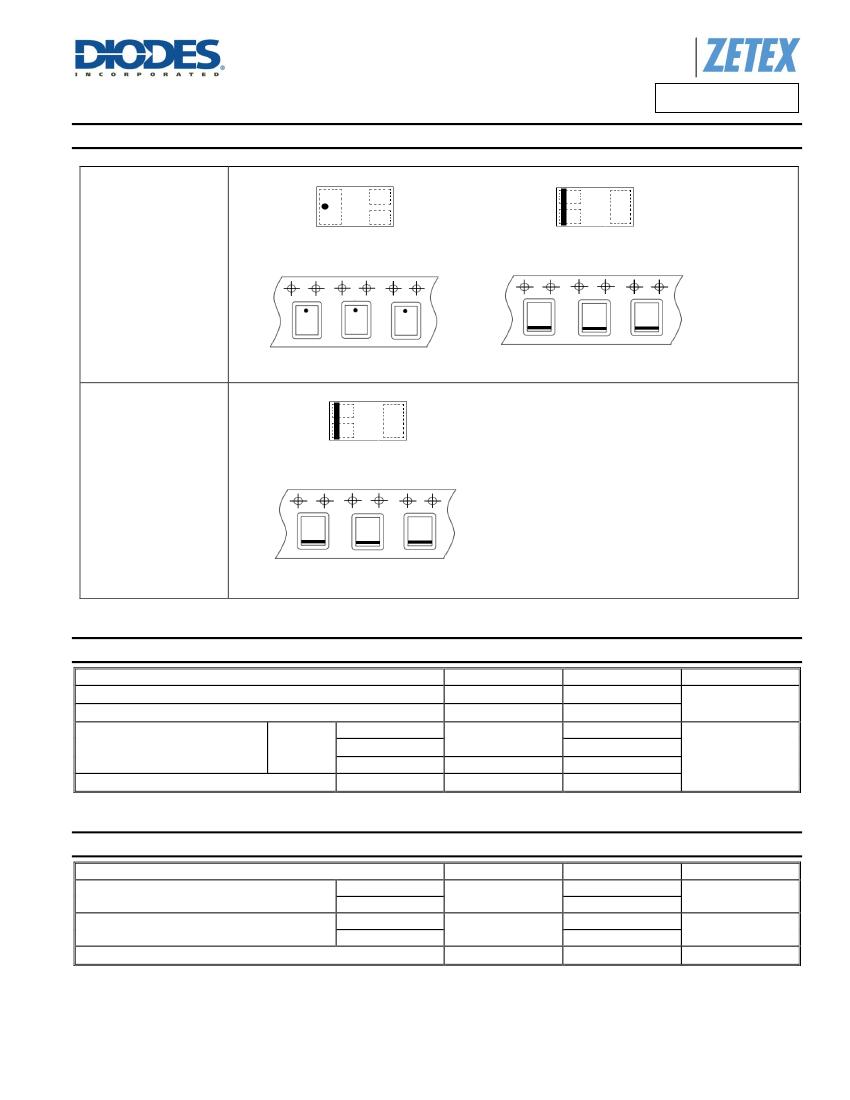

Marking
NF
NF
Reel size (inches)
7
7
Tape width (mm)
8
8
Quantity per reel
3,000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
