Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
Case: TO252 (DPAK)
Case Material: Molded Plastic, "Green" Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per
MIL-STD-202, Method 208
Weight: 0.34 grams (approximate)
TO252
(DPAK)
Top View

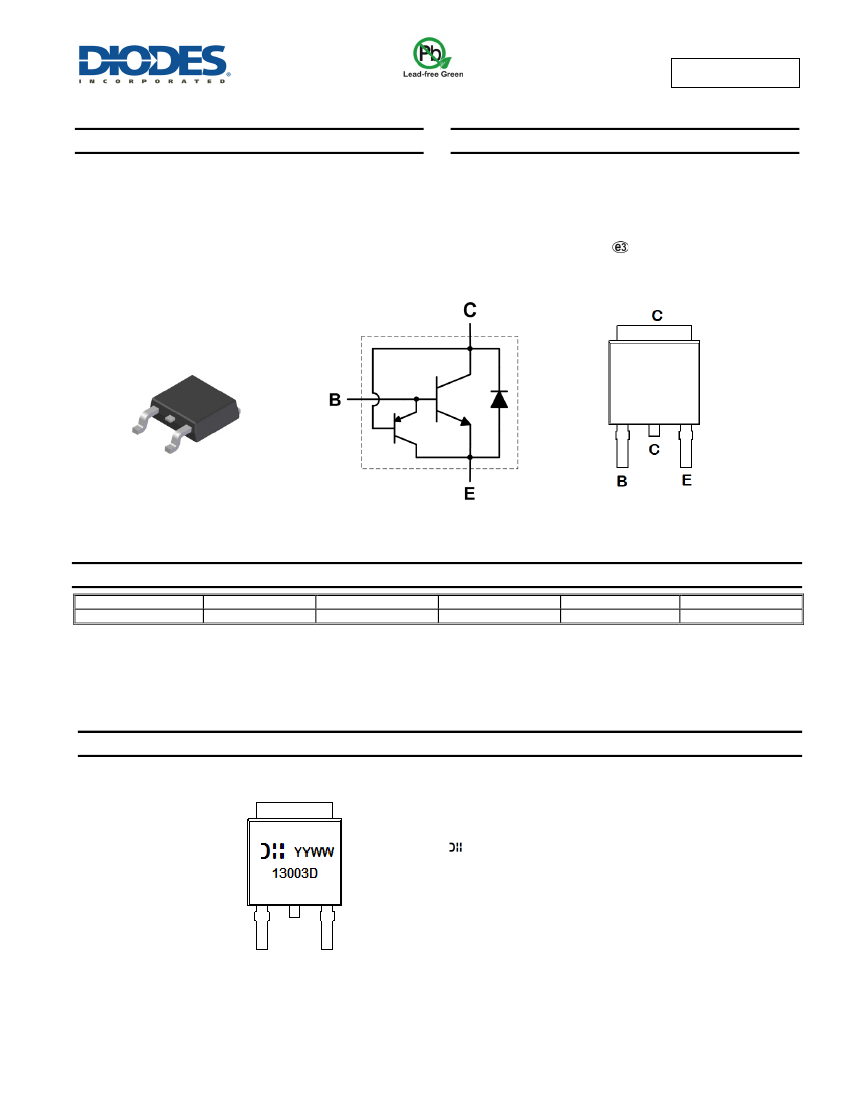

Device Schematic
Top View
Pin-Out
Ordering Information
(Note 4)
Product

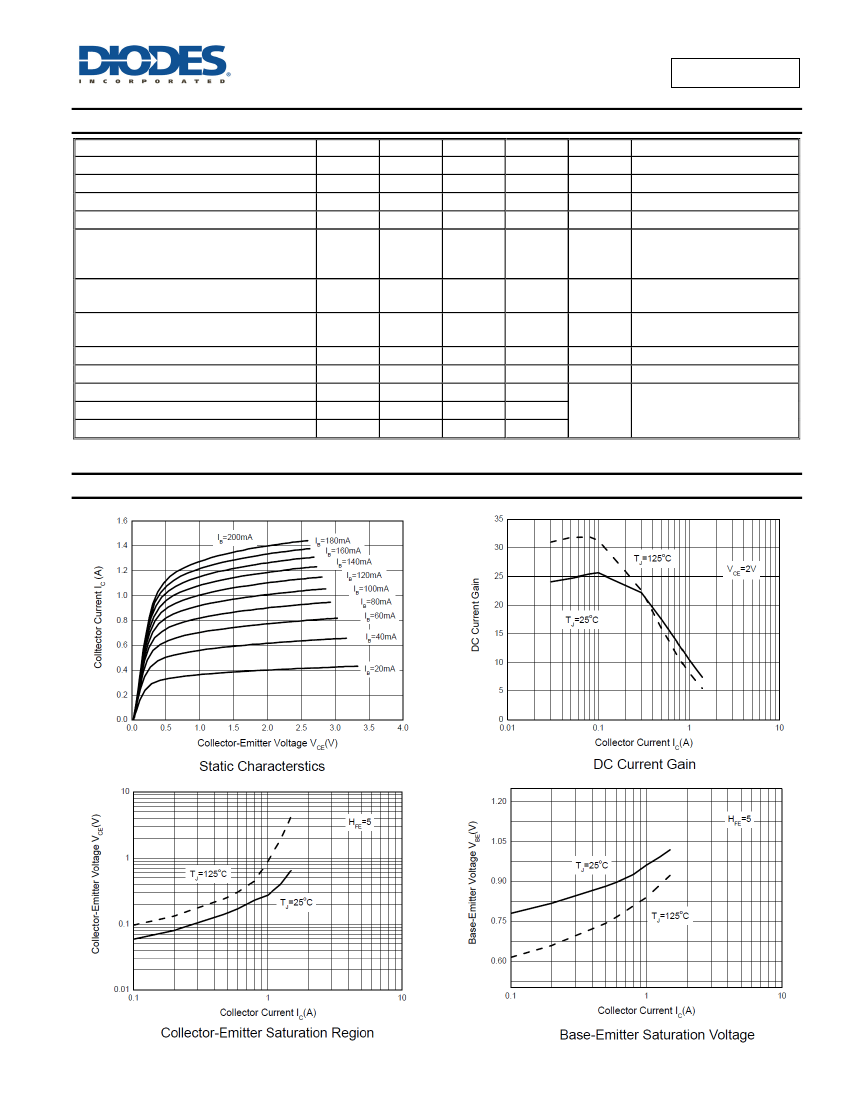

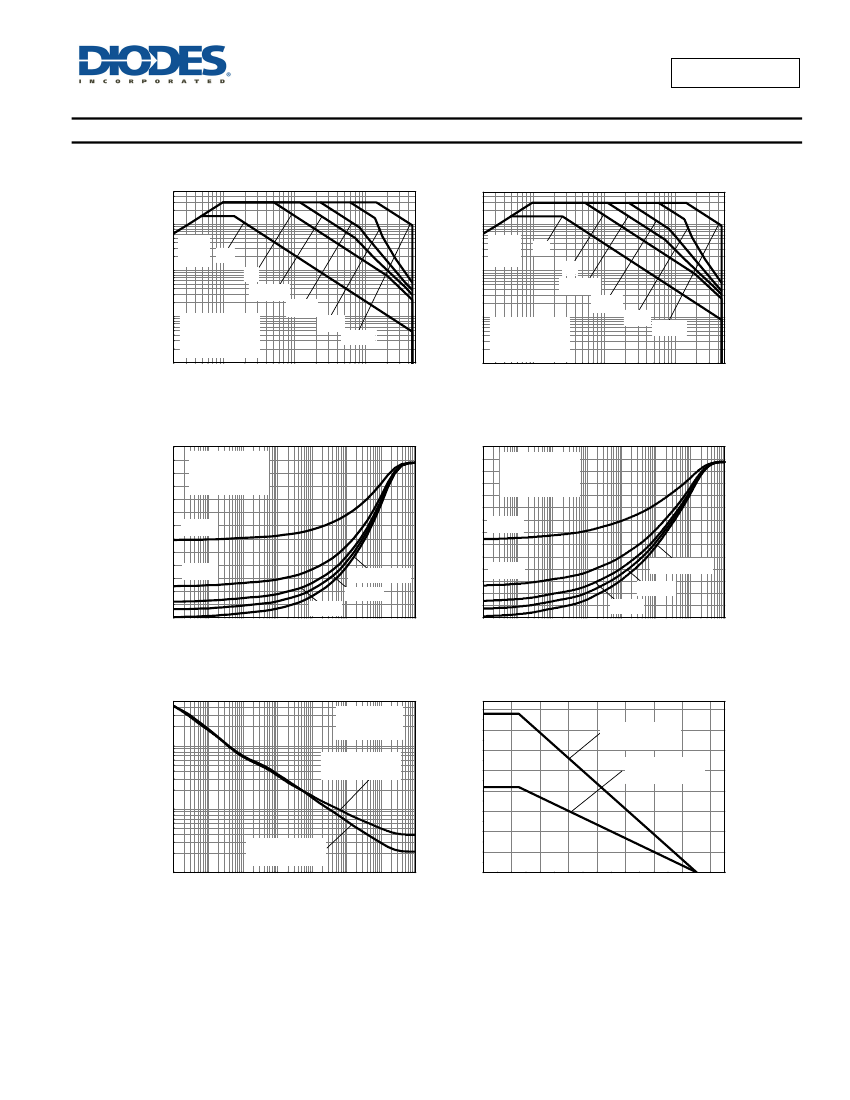

DXT13003DK-13
Notes:
Compliance
Standard
Marking
13003D
Reel size (inches)
13
Tape width (mm)
16
Quantity per reel
2,500
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
E
b3
L3
A
c2
D
A2
H
E1
L4
A1
L
e
2X b2
3X b
a
TO252
Dim Min Max Typ
A
2.19 2.39 2.29
A1
0.00 0.13 0.08
A2
0.97 1.17 1.07
b
0.64 0.88 0.783
b2
0.76 1.14 0.95
b3
5.21 5.46 5.33
c2
0.45 0.58 0.531
D
6.00 6.20 6.10
D1
5.21
−
−
e
2.286
−
−
E
6.45 6.70 6.58
E1
4.32
−
−
H
9.40 10.41 9.91
L
1.40 1.78 1.59
L3
0.88 1.27 1.08
L4
0.64 1.02 0.83
a
0°
10°
−
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X2
Y2
C
Y1
Z
Dimensions
Z
X1
X2
Y1
Y2
C
E1
Value (in mm)
11.6
1.5
7.0
2.5
7.0
6.9
2.3
X1
E1
Note:
For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between
