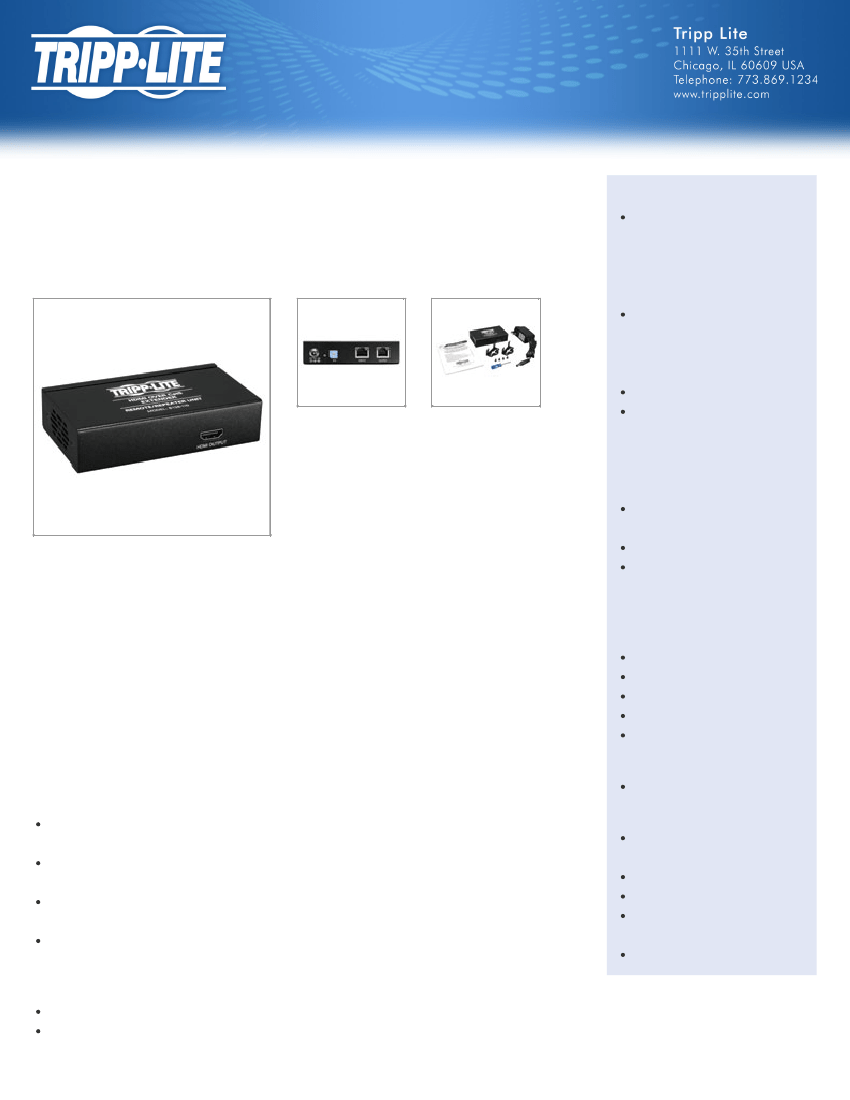

HDMI over Cat5/Cat6 Active Extender, Box-Style
Remote Repeater for Video and Audio, 1920x1200 at
60Hz/1080p
MODEL NUMBER:
B126-110
Highlights
Insert into your Tripp Lite
B126-Series HDMI over Cat5
installation to increase the
extension distance and/or add
additional monitors
Supports computer video
resolutions up to 1920 x 1200,
and HD resolutions up to 1080p
(60Hz)
HDCP and 3D compatible
Compatible with both stereo
audio and 7.1 channel surround
sound audio
(7.1 channel
surround sound signal will be
Multi-Channel or PCM)
Supports 24-bit True Color (8-bits
per channel)
Mounting hardware included
Description
The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to
increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution,
use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel),
HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio
(7.1 channel surround sound signal
will be Multi-Channel or PCM).
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
Applications
Retail video Displays
School, Church
Conference rooms
Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a
B126-1A1
extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI
cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6
cable to the
B126-1A1
receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit
using Tripp Lite P568-Series HDMI cable (not included).
Manufacturing Plant
More...
System Requirements
HDMI video source and Displays
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4
displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain
(3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain
(3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3
repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..
Package Includes
B126-110 HDMI over Cat5 Active
Extender remote/Repeater
External AC Power Adapter
Mounting Hardware
Screwdriver for Equalization
Adjustment
User manual
Features
Insert into your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors
Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
1/3
24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz)
signal can be extended up to 500 ft..
A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz)
signal can be extended up to 700 ft..
A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended
up to 400 ft..
Features a built-in Equalization control for adjustment of the video image
Supports 24-bit True Color (8-bits per channel)
Compatible with both stereo audio and 7.1 channel surround sound audio
(7.1 channel surround sound signal will be Multi-Channel or PCM).
HDCP compatible
Mounting hardware is included that allows the B126-110 to be rackmounted, wallmounted or pole mounted
Compatible with all operating systems
Plug and play; No drivers required
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
General Info
RoHS
Y
OVERVIEW
Chromebook Compatible
Display Style
Model Type
Cable Types
Yes
Splitter
HDMI
CAT5/CAT5E
PHYSICAL
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Included Mounting Accessories
Color
1.50
0.68
1.0" x 4.50" x 2.50"
2.54 x 11.43 x 6.35
Yes
Black
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
0 to 40 C (32 to 104 F)
-20 to 60 C (-4 to 140 F)
2/3
Embedded System
