Data Sheet
Features
•
•
•
•
•
•
•
•
•
For UMTS band applications
Usable bandwidth 60 MHz
Low loss
High attenuation
Single-ended operation
Ceramic chip-scale Package (CSP)
Small Size
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Part Number 856661
1950 MHz SAW Filter
Pb
Package

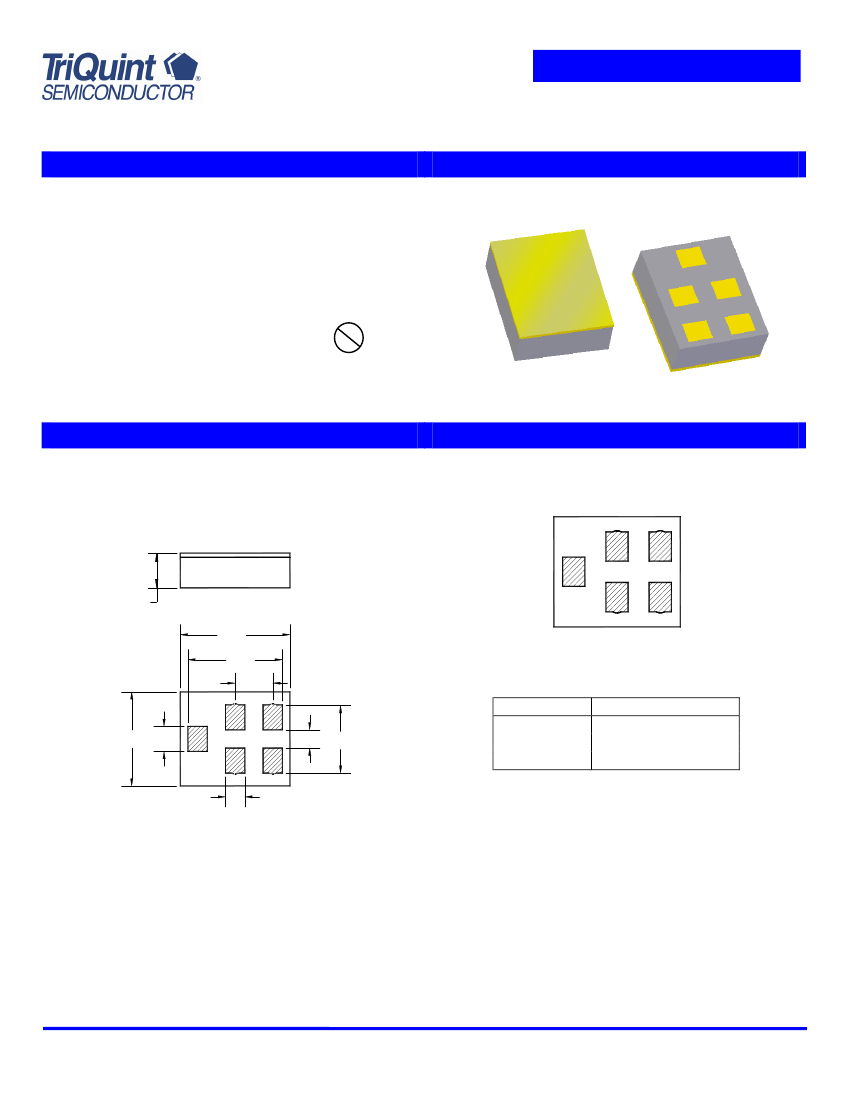

Surface Mount 1.40 x 1.20 x 0.46 mm
CSP-5AT
Pin Configuration
Bottom View
2
3
1
0.46 NOM.
0.50 MAX.
1.40
1.25
0.50
5
4
1.20 0.325
0.25
0.90
Single-ended Configuration
Pin No.
Description
1
Input
4
Output
2,3,5
Gound
0.25
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
02/08
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-20 to +85
°C
Part Number 856661
1950 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
1920 – 1980 MHz
Passband Flatness (in any 5MHz band)
Passband Flatness (full range)
Absolute Attenuation
(5)
860 – 895 MHz
921 – 960 MHz
1575.4 – 1575.5 MHz
1730 – 1790 MHz
1805 – 1880 MHz
2110 – 2170 MHz
2400 – 3483.5 MHz
2620 – 2690 MHz
3840 – 3960 MHz
5760 – 5940 MHz
Input/Output Return Loss
1920 – 1980 MHz
Source Impedance (single-ended)
(6)
Load Impedance (single-ended)
(6)
Notes:
Minimum
-
-
-
-
20
10
29
30
27
32
30
20
15
10
10
-
-
Typical
(4)
1950
2.3
0.4
0.9
29
28
33
38
31
35
38
37
31
24
13
50
40+j20
Maximum
-
3.1
0.6
1.4
-
-
-
-
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to 0dB
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
1
4
40+j20
Ω
50
Ω
Single-ended
Input
50
Ω
2,3,5
40+j20
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev -
02/08
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 856661
1950 MHz SAW Filter

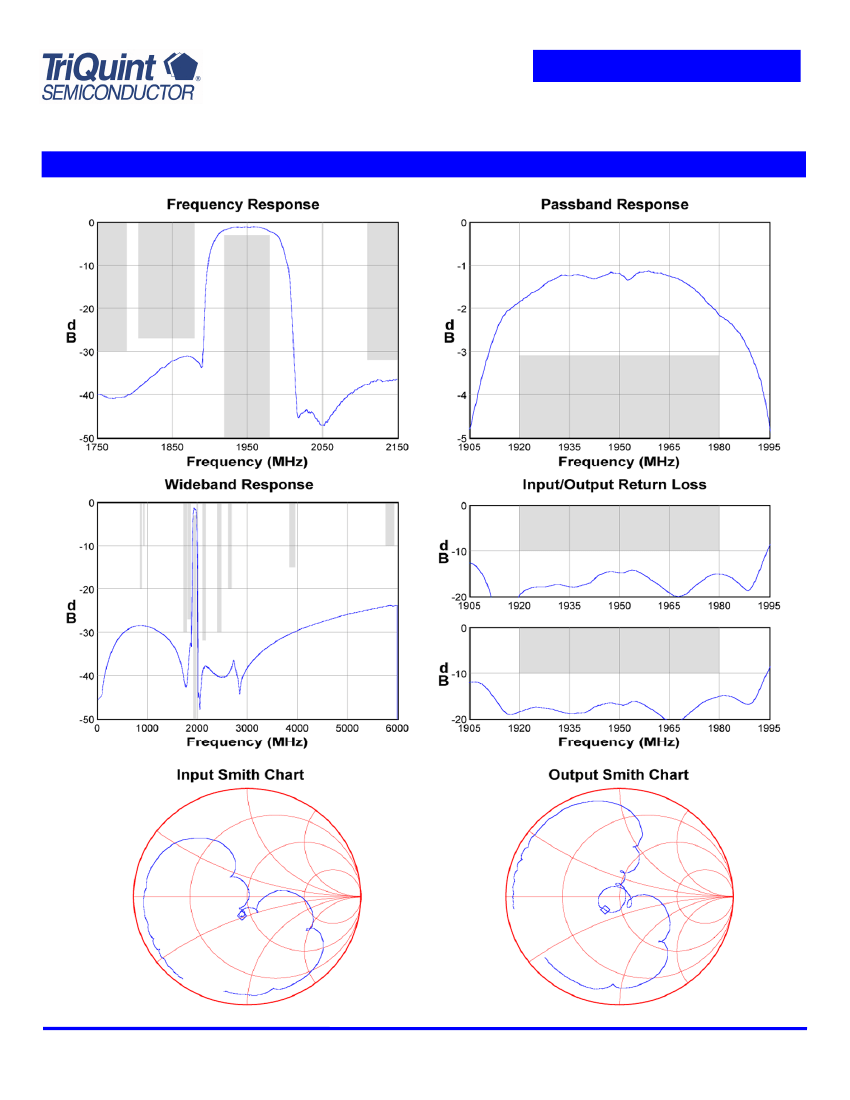

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev -
02/08
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
1
4
Part Number 856661
1950 MHz SAW Filter
Matching Schematics
50
Ω
Single-ended
Input
50
Ω
2,3,5
40+j20
Ω
40+j20
Ω
Single-ended
Output

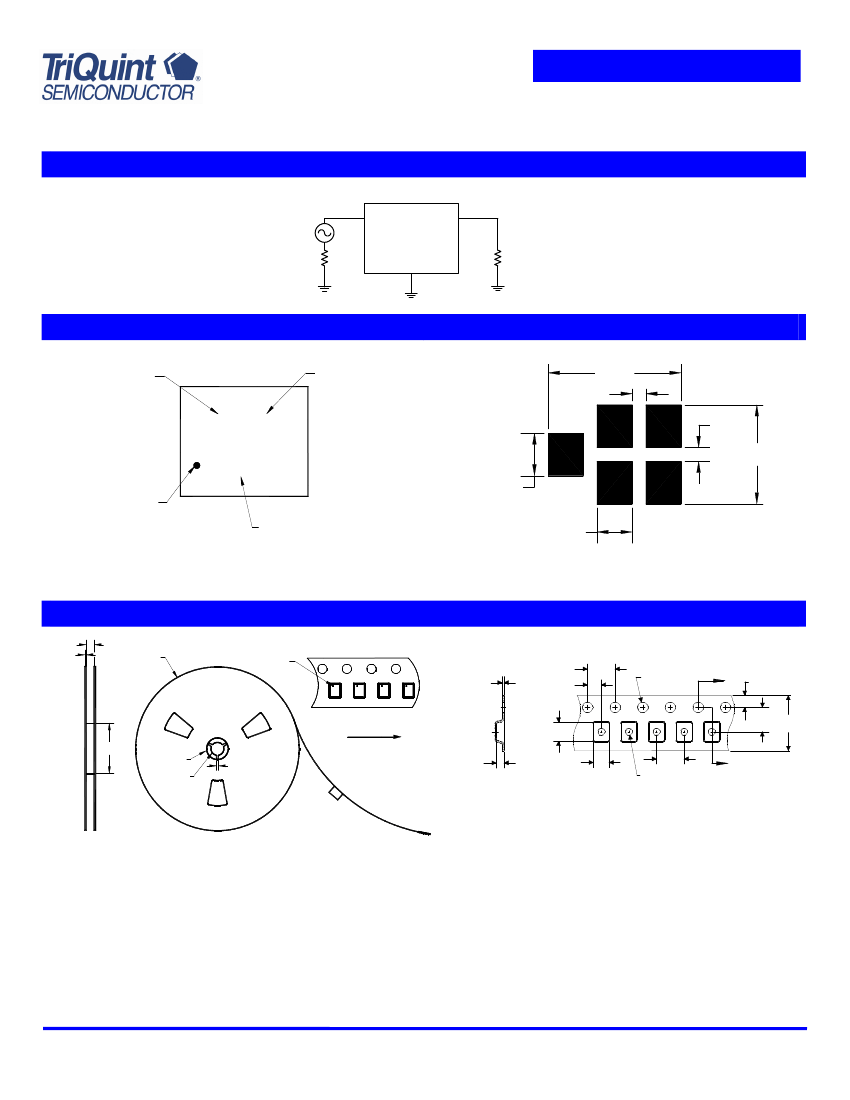

Marking
Marking
code
MFG site
PCB Footprint
1.35
0.15
AP M
WWY
0.425
ID dot
Date code
0.15
1.00
0.35
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
8.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
1.73
3.5 8.0
Ø102
Ø20.2
Ø13.0
Direction of travel
2.0
0.65
Section A-A
1.47
4.0
Ø1.0
A
Dimensions shown are nominal in millimeters
Packaging quantity: 10000 units/reel
Subject to change or obsolescence without notice
Rev -
02/08
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling
Part Number 856661
1950 MHz SAW Filter
Symbol
T
T
stg
P
max
Minimum
-20
-40
-
Maximum
+85
+85
+10
Unit
C
C
dBm
o
o
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
