YSOTxxCU
TVS Diode Array
APPLICATIONS
◆
Cellular Handsets and Accessories
◆
Portable Electronics
◆
Industrial Controls
◆
Set-Top Box
◆
Instrumentation
◆
Servers, Notebook, and Desktop PC
H
SOT-323
IEC COMPATIBILITY
◆
IEC61000-4-2 (ESD) ±25kV (air), ±15kV (contact)
◆
IEC61000-4-4 (EFT) 40A (5/50ηs)

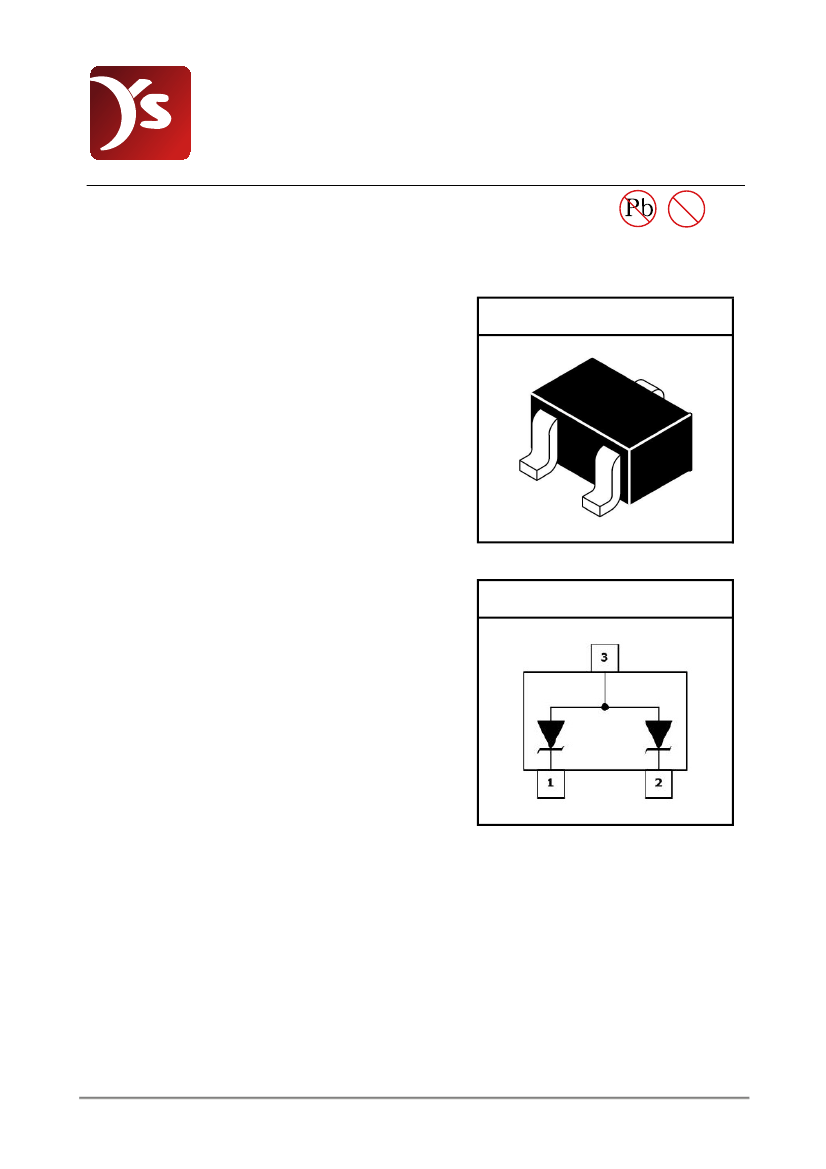

PIN CONFIGURATION
FEATURES
◆
200 Watts Peak Pulse Power per Line (tp=8/20µs)
◆
Protects two I/O lines (unidirection) or one I/O line (bidirection)
◆
Low clamping voltage
◆
Working voltages : 5V, 12V, 15V and 24V
◆
Low leakage current
MECHANICAL CHARACTERISTICS
◆

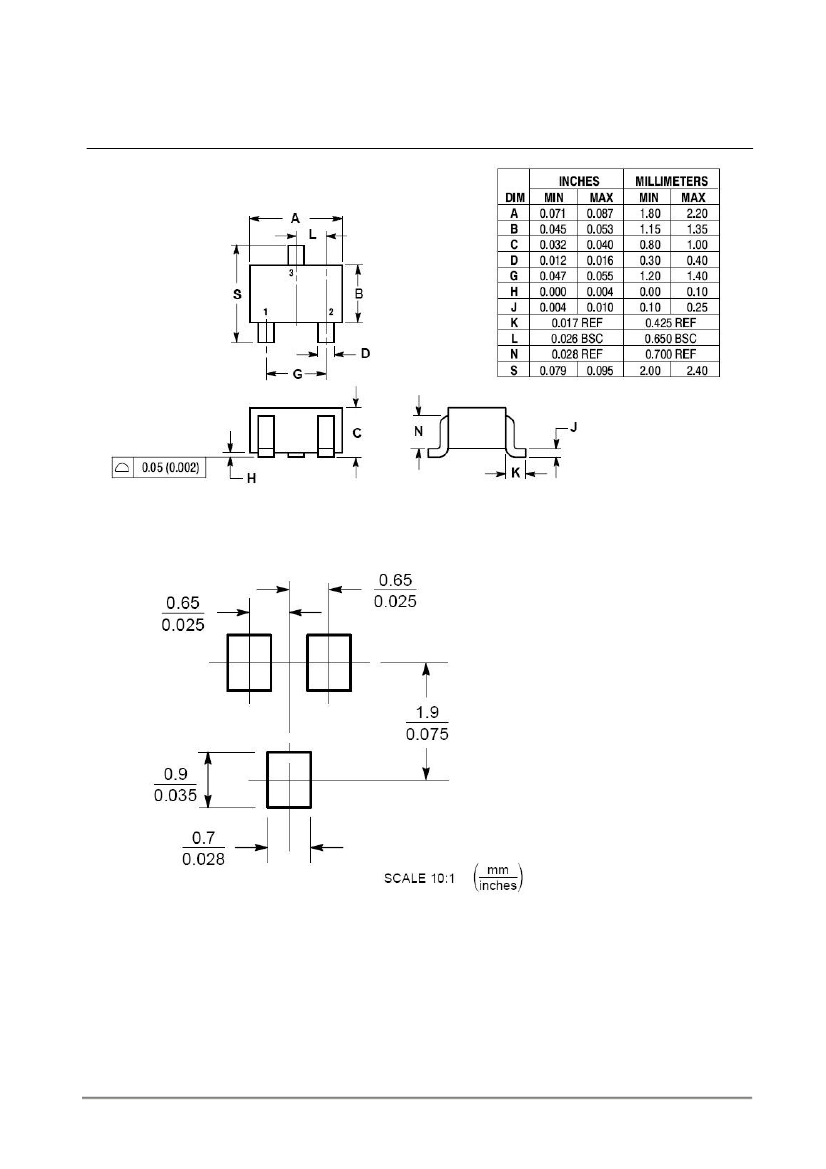

JEDEC SOT-323 Package
◆
Molding Compound Flammability Rating : UL 94V-O
◆
Weight 6 Millgrams (Approximate)
◆
Quantity Per Reel : 3,000pcs
◆
Reel Size : 7 inch
◆
Lead Finish : Lead Free
http://www.yeashin.com
1
REV.02 20121119

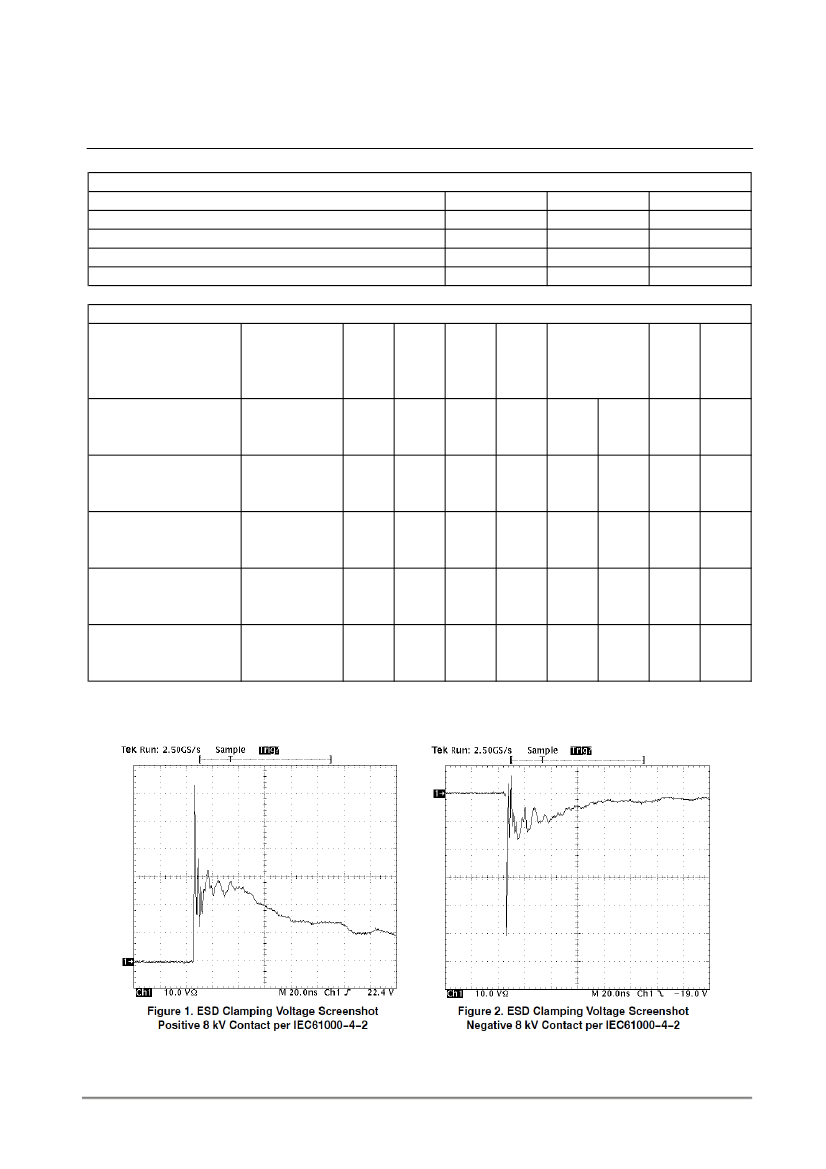

DEVICE CHARACTERISTICS
YSOTxxCU
MAXIMUM RATINGS (@ 25℃ Unless Otherwise Specified)
PARAMETER
Peak Pulse Power (tp=8/20µs waveform)
Lead Soldering Temperature
Operating Temperature Range
Storage Temperature Range
SYMBOL
P
PP
T
L
T
J
T
STG
VALUE
200
260 (10 sec.)
-55 ~ 150
-55 ~ 150
UNITS
Watts
℃
℃
℃
ELECTRICAL CHARACTERISTICS PER LINE (@ 25℃ Unless Otherwise Specified)
DEVICE
MARKING
V
RWM
(V)
V
B
(V)
(mA)
1
I
T
V
C
@1A
(max.) (max.)
9
12
(@A)
17
V
C
I
R
(µA)
C
T
(pF)
PART NUMBER
(max.) (min.)
YSOT03CU
3D
3
3.8
(max.) (max.)
150
200
YSOT05CU
3E
5
6
1
9
17
15
5
110
YSOT12CU
3G
12
13.3
1
17
26
7
1
50
YSOT15CU
3H
15
16.7
1
25
30
6
1
45
YSOT24CU
3K
24
26.6
1
40
48
3
1
30
