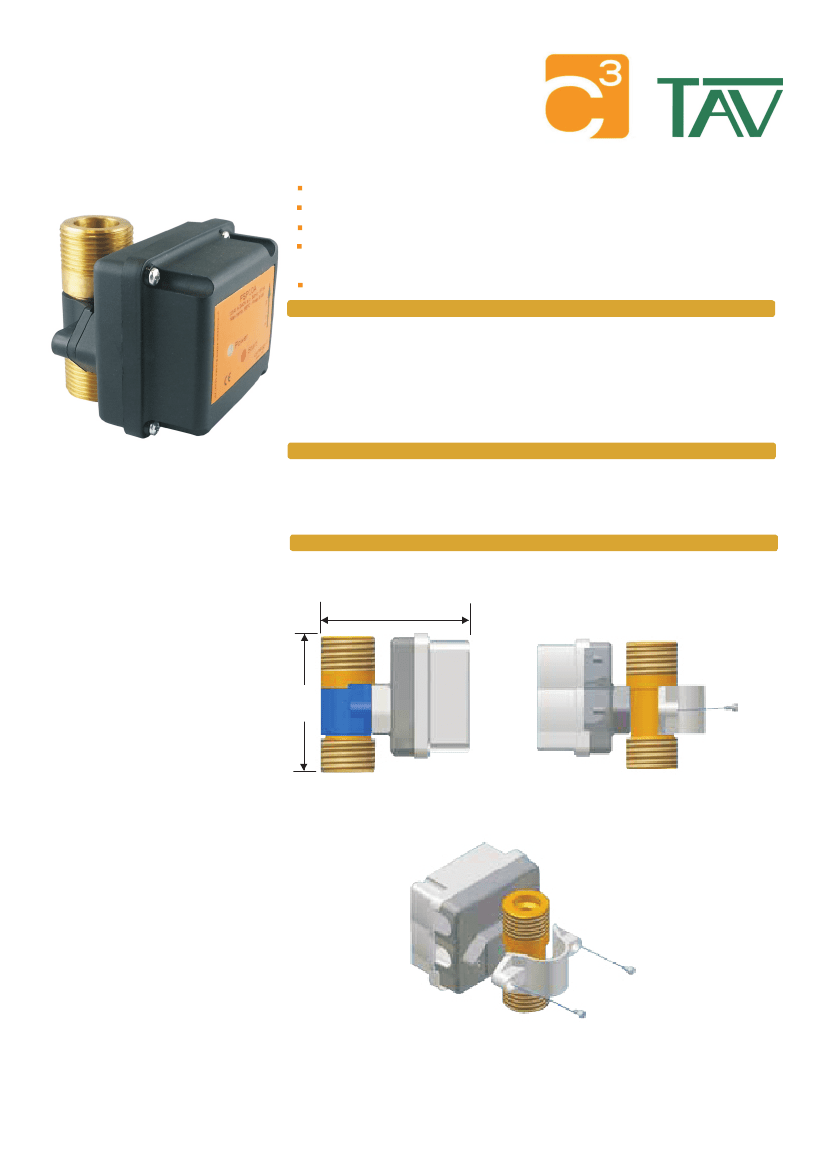

FSV10AR
Inline Flow Switch for G1”pipe
General purpose switch for loads of up to 4A inductive
0.6 l/min or 3.0 l/min turn on flow rate
Automatic shut down on flow stop
Adjustable time delay from 0 to 10 seconds for
pump stop
1”BSP inline pipe connections
Technical Specification
Flow Tube Material
Enclosure material
Enclosure rating
Start up flow rate
Max flow rate
Max Pressure
Max Temperature
Pipe connections
Pump stop delay range
Electrical Specification
Supply Voltage
Switching Voltage Max
Switching Power Max
Switching Current Max
Standard Parts
FSV10AR06
FSV10AR30
FSV10AR06
Brass
Polyamide
IP54
Q. min
Q max
P max
T max
l/min
l/min
bar
°C
BSP
sec
24 or 240
250
1
10 for resistive load
4A for motor load
Max Power
750
750
Max Pump current
4A
4A
0.6
80
8
85
1”
0 - 10
3.0
FSV10AR30
The FSV10AR can be used to control a
pump or some other equipment or process
via a relay output. If used in a pumped
system, the device has to be fitted in the
pipe above the pump.
The FSV10AR output relay is energised
once the flow rate through the device
exceeds 0.6 l/min, or 3 l/min depending on
version.
The turn off time delay is adjustable
between 0 and 10 seconds.
A flow of less than 0.6 l/min , or 3.0 l/min
depending on version, whether due to a
lack of supply (e.g. tank empty) or to a
decrease in demand(e.g. tap closing), will
release the output relay.
Vac
Vac
kW
A
On flow rate
0.6l/min
3.0 l/min
90
82
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2014Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
FSV10AR
Inline Flow Switch for G1”pipe
Installation information
The flow switch must be mounted vertically with the flow
direction upwards. Pipe connection is G1” (1”BSP). The
device relies on the flow of liquid working in opposition to
gravity to operate the relay.
The liquid flow moves a plunger inside the brass flow tube,
when the flow increases beyond the minimum specified level.
A magnet inside the plunger closes a magnetic switch in the
control circuit, so causing this to operate the output relay.
If the flow drops below the specified level and the plunger
has returned to the lower position, the output relay will
remain energised for the time delay set and will then be de-
enrgised.
The output relay will also be energised for the time delay set,
if the unit is disconnected then reconnected to the supply
voltage or the test button is pushed.
The unit can operate on a supply voltage of either 24 or
240Vac.
The output is a SPCO electromechanical relay with contacts
rated to 10A(4) A 250Vac.
Test button
Flow
Direction
Output at Zero Flow
Common
Normally open
Normally closed
Power supply
Neutral
24Vac
240Vac
Spare 240Vac
There is a spare terminal connected to the 240Vac supply
that can be used, if a 240Vac supply is being used, to link to
the common contact of the relay, if a 240Vac output is
required.
Output indicator LED
Delay adjustment
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
ISO
9001
C E R T I F I E D
www.cynergy3.com
© 2012 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
