5103-J61ZBE22 datasheet, PDF - EEWORLD Datasheet

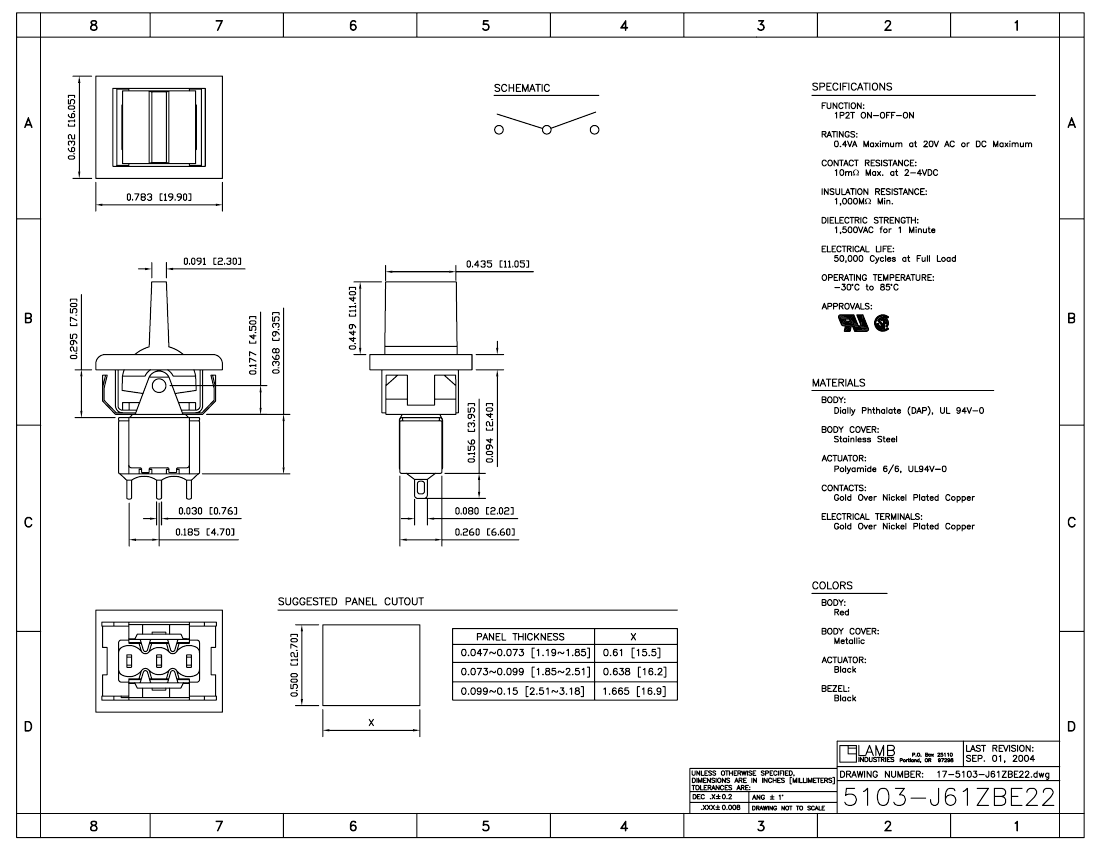

5103-J61ZBE22: DescriptionRocker Switch, SPDT, On-off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size55KB，1 Pages; ManufacturerLamb Industries

Download Datasheet Parametric View All

5103-J61ZBE22 Overview

Rocker Switch, SPDT, On-off-on, Maintained, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Objectid	303936333
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	BLACK
Actuator length	0.839 inch
Actuator material	POLYAMIDE
Actuator type	ROCKER
Other features	APPROVALS:UL, CSA
Body color	RED
body height	9.3472 mm
center contact material	COPPER
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-OFF-ON
Contact resistance	0.01 mΩ
Dielectric withstand voltage	1500VAC V
Electrical life	50000 Cycle(s)
End contact material	COPPER
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	5000
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	MAINTAINED
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.156 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
