EPZ3003G_15: DescriptionPower Choke; File Size35KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet View All

EPZ3003G_15 Overview

Power Choke

Preview

Download Datasheet

View All

Power Choke

ELECTRONICS INC.

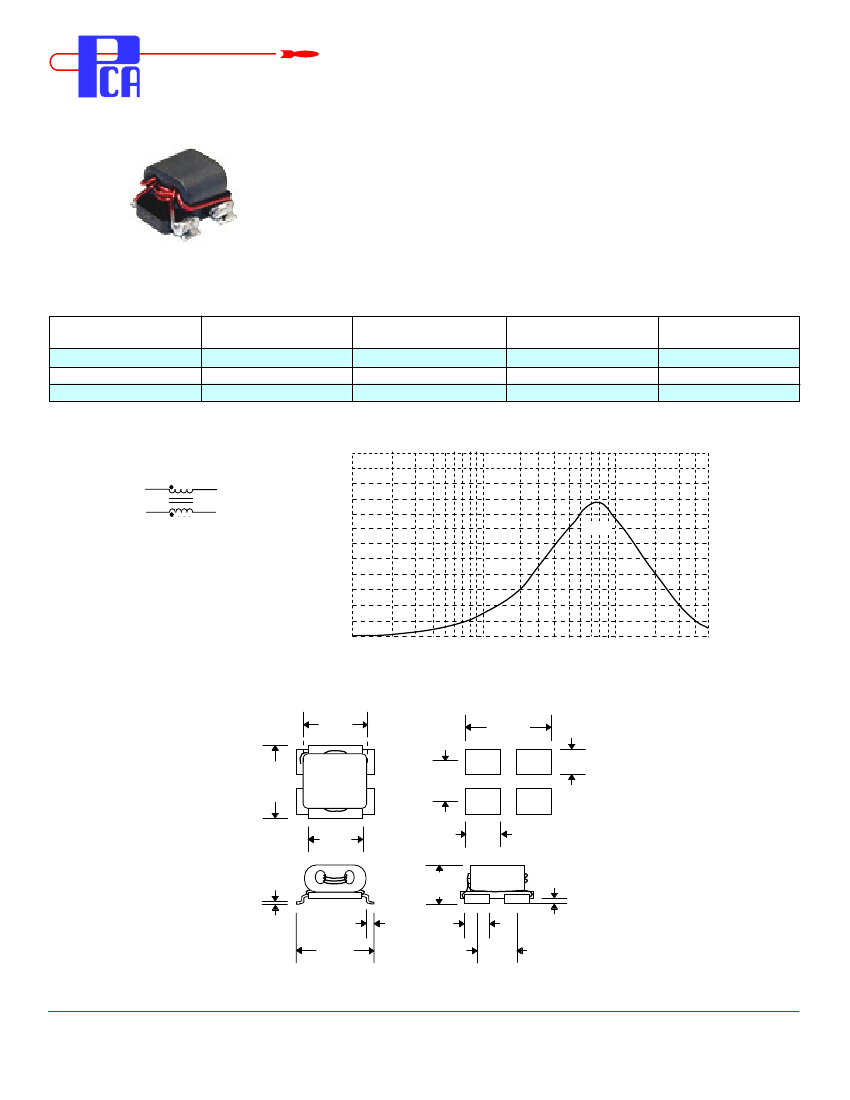

EPZ3003G

• Noise Suppression Choke

• 5 A Max. Rated Current

• 250 Vrms Isolation

Electrical Parameters @ 25° C

Inductance

(µH ± 30%)

Impedance

(Ω Min. )

@100 MHz

1.5

Pins 1-4, 2-3

600

Pins 1-4, 2-3

11

Pins 1-4, 2-3

1:1

Pins 1-4 : 2-3

80

DCR

(mΩ Max.)

Turns Ratio

SRF

(MHz Typ. )

Schematic

1.2KΩ

1

2

4

3

1KΩ

800Ω

Impedance Curve

Typ.

600Ω

400Ω

200Ω

0

1.0

MHz

10

MHz

Frequency

100

MHz

500

MHz

Package

.275

(6.99)

1

4

1

.435

(11.00)

4

.364

(9.25)

2

3

.200

(5.08)

2

3

.138

(3.50)

Mark on Bottom:

PCA

EPZ3003G

D.C.

.205

(5.20)

.010

(.254)

.234

(5.94)

.035

(.889)

.344

(8.74)

.129

(3.27)

.177

(4.50)

.010/.015

(.254/.381)

.200

(5.08)

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSZ3003G

Rev. 1

7/29/03

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
