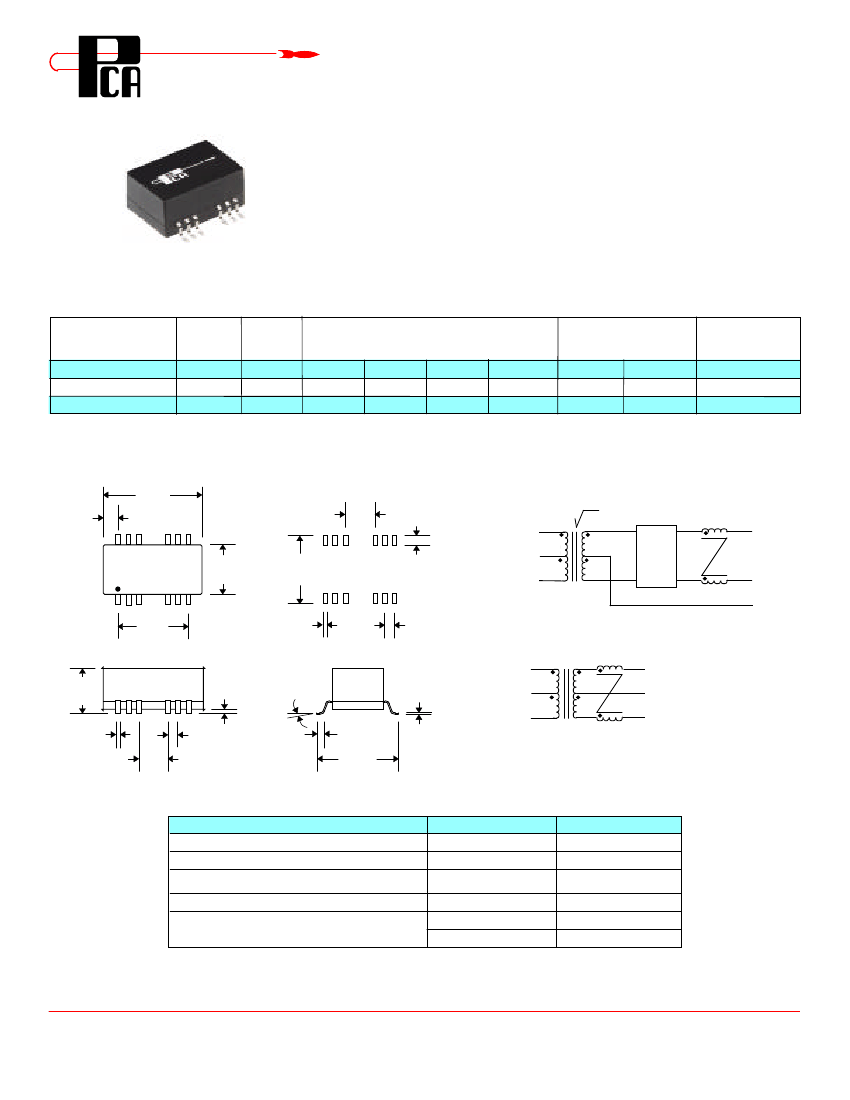

10Base-T Interface Module

ELECTRONICS INC.

EPE6166CSE & EPE6166CSE-RC

• Robust construction allows for toughest reflow processing

• Complies with or exceeds IEEE 802.3, 10Base-T Standards

• Manufactured in compliance with UL1950/UL1459

• Add “-RC” after part number for RoHS Compliant

• Operating Temperature : -40°C to +85°C

• Storage Temperature : -55°C to +125°C

• 1500 Vrms Isolation

Electrical Parameters @ 25° C

OCL

(µH Min.)

@ 100 KHz, 20 mVrms

Cable Side

160

Insertion

Loss

(dB Max.)

1-10 MHz

Xmit

-1

Return

Loss

(dB Min.)

5-10 MHz

Xmit

-15

Attenuation

(dB Min.)

@ 20 MHz @ 25 MHz @ 30 MHz

Xmit

-5

Xmit

-14

Xmit

-24

@ 40 MHz

Xmit

-30

Common Mode

Rejection

(dB Min.)

10-30 MHz

Xmit/Rcv

-40

30-100 MHz

Xmit/Rcv

-30

Crosstalk

(dB Min.)

1-10 MHz

Between Channels

-30

• Cut-off Frequency :

17 MHz ± 1, Ref. @ 5 MHz •

Cable Side Impedance

: 100

Ω

•

Package

.540

(13.72)

.095

(2.41)

PCA

EPE6166CSE(-RC)

Date Code

Schematic

.055

(1.40)

Suggested

Solder Pad

Layout

Chip

Side

LPF

Transmit

Cable

Side

.150

(3.81)

.270

(6.86)

.420

(10.67)

.350

(8.89)

.010/.015

(.254/.381)

.030

(.762)

.050

(1.27)

Receive

1:1

Cable

15 Side

.240

(6.10)

.016/.022

(.406/.559)

.150

(3.81)

0°-8°

.008/.012

(.203/.305)

Chip 2

Side

.050

(1.27)

.035

(.889)

.370

(9.40)

Notes :

1. Lead Finish

2. Peak Temperature Rating

3. Moisture Sensitive Levels

4. Weight

5. Packaging Information

(Tube)

(Tape & Reel)

EPE6166CSE

SnPb

225°C

(168 Hours,

≤30°C/60%RH)

EPE6166CSE-RC

Hot Tin Dip (Sn)

†

245°C

(72 Hours,

≤30°C/60%RH)

MSL = 3

MSL = 4

1.13 grams

34 pieces/tube

500 pieces/13” reel

1.13 grams

34 pieces/tube

500 pieces/13” reel

†

Lead Material : Ni Barrier over Cu

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSE6166CSE & -RC

Rev. A6

10/16/07 JDG

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
