Voltage Detector IC Series
Standard CMOS
Voltage Detector IC
BD48xxx series
BD49xxx series
●Key
Specifications
Detection voltage:
●General
Description
ROHM’s BD48xxx and BD49xxx series are highly
accurate, low-current Voltage Detector IC series. The
family includes BD48xxx devices with N-channel open
drain output and BD49xxx devices with CMOS output.
The devices are available for specific detection voltages
ranging from 2.3V to 6.0V in increments of 0.1V.
2.3V to 6.0V (Typ.),
0.1V steps
High accuracy detection voltage:
±1.0%
Ultra-low current consumption:
0.9µA (Typ.)
Operating temperature range:
●Package
SSOP5:
●Features
High accuracy detection
Ultra-low current consumption
Two output types (Nch open drain and CMOS output)
Wide Operating temperature range
Very small and low height package
Package SSOP5 is similar to SOT-23-5 (JEDEC)
Package SSOP3 is similar to SOT-23-3 (JEDEC)
SSOP3:
VSOF5:
-40°C to +105°C
2.90mm x 2.80mm x 1.25mm
2.92mm x 2.80mm x 1.25mm
1.60 mm x 1.60mm x 0.60mm
●Applications
Circuits using microcontrollers or logic circuits that
require a reset.
●Typical
Application Circuit
V
DD1
R
L
BD48xxx
R
ST
Micro
controller
BD49xxx
R
ST
Micro
controller
V
DD2
V
DD1
C
L
(
Capacitor for
noise filtering
）
C
L
(
Capacitor for
noise filtering
）
GND
(Open Drain Output type）
BD48xxx series
GND
(CMOS Output type）
BD49xxx series
○Product
structure：Silicon monolithic integrated circuit
○This
product is not designed for protection against radioactive rays
.
www.rohm.com
TSZ02201-0R7R0G300030-1-2
© 2013 ROHM Co., Ltd. All rights reserved.
1/15
TSZ22111・14・001
22.May.2013.Rev.008
BD48xxx series
BD49xxx series
Datasheet
●Connection
Diagram
N.C.

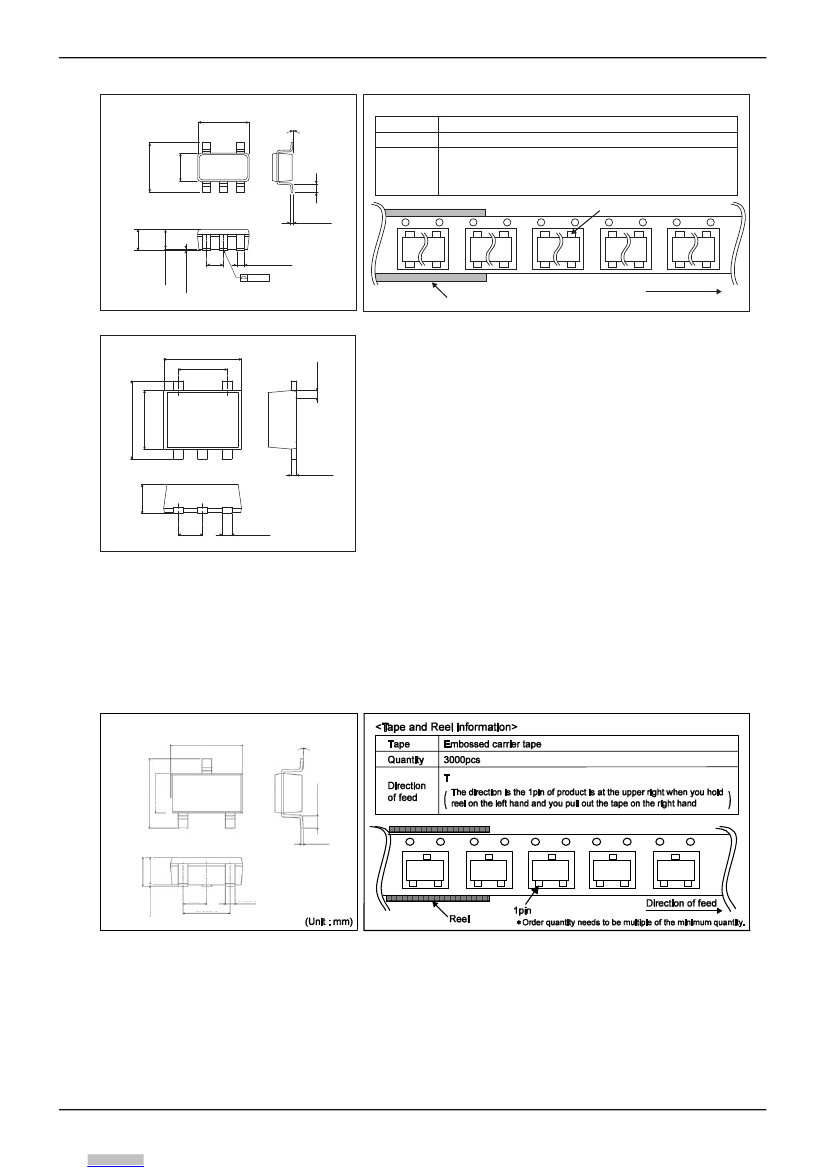

SSOP5
N.C.
VSOF5
V
DD
5
GND
4
Marking
V
OUT
V
DD
GND
TOP VIEW
Lot. No
Marking
V
OUT
1 2 3
SUB N.C
Lot. No
TOP VIEW
●Pin
Descriptions
SSOP5
PIN No.
1
2
3
4
5
Symbol
V
OUT
V
DD
GND
N.C.
N.C.
Function
Reset Output
Power Supply Voltage
GND
Unconnected Terminal
Unconnected Terminal
PIN No.
1
2
3
4
5
Symbol
V
OUT
SUB
N.C.
GND
V
DD
VSOF5
Function
Reset Output
Substrate*
Unconnected Terminal
GND
Power Supply Voltage
*Connect the substrate to GND.
SSOP3(1pin GND)
SSOP3(3pin GND)
GND
V
DD
3
3
2
Marking
1
GND
●Pin
Descriptions
PIN No.
1
2
3
SSOP3-1
Symbol
GND
V
OUT
V
DD
2
V
OUT
Lot. No
Marking
1
2
Lot. No
TOP VIEW
V
OUT
V
DD
TOP VIEW
SSOP3-2
Symbol
V
OUT
V
DD
GND
Function
GND
Reset Output
PIN No.
1
2
3
Function
Reset Output
Power Supply Voltage
GND
Power Supply Voltage
Ordering Information
B
Part
Number
D
x
x
x
Package1
x
x
x
-
T
R
Output Type
48 : Open Drain
49 : CMOS
Reset Voltage Value
Package2
23 : 2.3V
0.1V step
60 : 6.0V
Package1
E
K
L
Blank
Blank
Package2
G
G
G
FVE
G
Package name
SSOP5
SSOP3(1pin GND)
SSOP3(3pin GND)
VSOF5
SSOP5
Packaging and
forming specification
Embossed tape and reel
TR :The pin number 1is
the upper right
:SSOP5
:VSOF5
TL :The pin number 1is
the upper left
:SSOP3-1
:SSOP3-2
Note: When ordering new SSOP5, select “E” for Package 1 and “G” for Package 2.
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/15
TSZ02201-0R7R0G300030-1-2
22.May.2013.Rev.008
BD48xxx series
SSOP5
