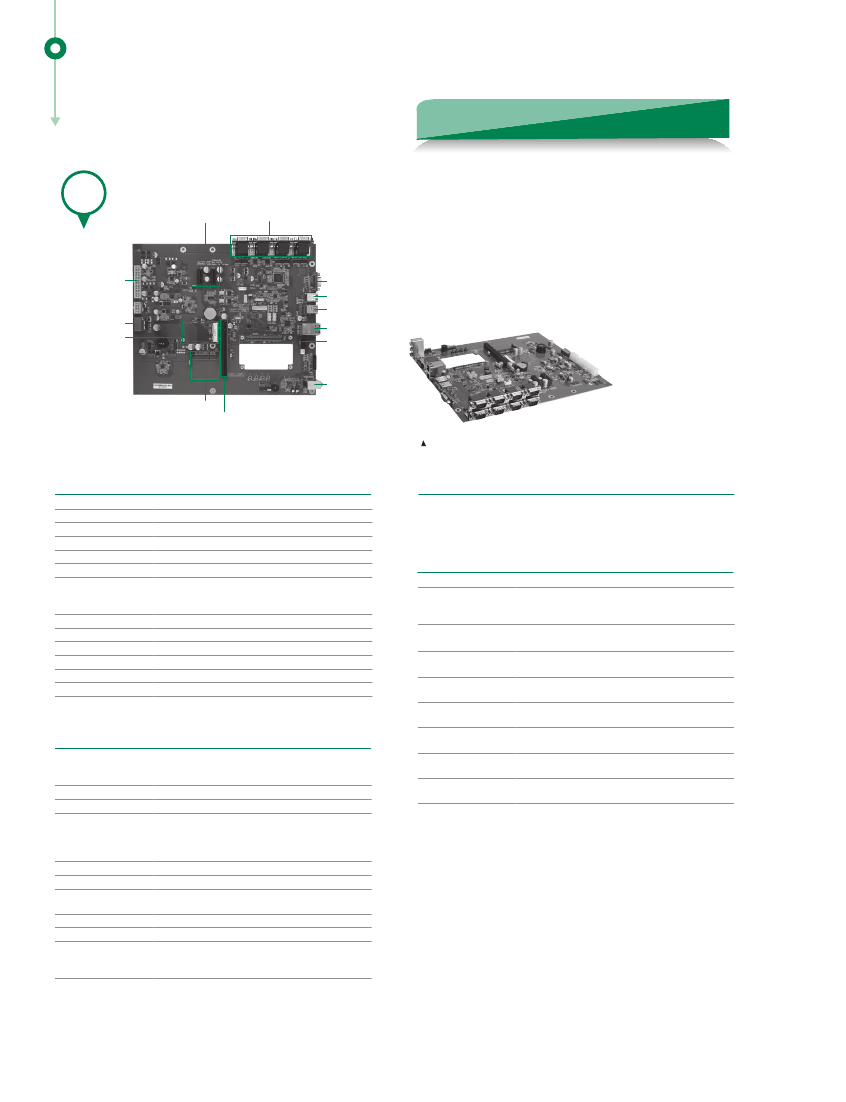

CEB94008
COM Express Type 10 Development
Baseboard
Features
●
COM Express Type 10 Baseboard
●
One SATA-300 and CFast
●
One Mini PCI Express Card Slot
●
USB 3.0 supported
●
Port 80 display for debugging
NEW
PCIe x1
COM 1~8
ATX power
connector
DC Power connector
PCI Express Mini Card
VGA
USB 2.0
USB 3.0
Ethernet 1/2
SATA
Audio
CFast
DDI Slot
Side view
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
COM Express Type 10 module
On the module
On the module
On the module
1 x CFast
255 levels, 1~255 sec.
2 x PCIe x1 slots
1 x PCI Express Mini card slot
1 x DDI display card slot
Lithium 3V/220mAH
TBD
244 x 291 mm
2.0 mm
-40ºC ~ +85ºC, operation
10% ~ 95% relative humidity, non-condensing
Packing List
Quick installation guide, user’s manual/utility CD
Ordering Information
Standard
CEB94008
(P/N:E394008100)
COM Express type 10 evaluation baseboard with PCI Express
mini card, 2 10/100/1000Mbps Ethernet, LVDS/VGA and
multiple I/O features
Battery Lithium
Power Requirements
Size
Board Thickness
Temperature
Operation Humidity
I/O
MIO
2 x TX/RX UARTs (from CPU module)
2 x RS-232/422/485
4 x RS-232
1 x SATA connector
N/A
1 port as 10/100/1000Mbps supports Wake-on-LAN, RPL/
PXE Boot ROM with Intel
®
i210
1 RJ-45 which10/100/1000Mbps signals routed from CPU
module
HD audio with Line-in/Line-out/MIC-in
8 x USB 2.0 ports and 1 x USB 3.0 ports
Dual 7 segments port 80 display for convenient debugging
purpose through LPC interface
Yes
4 channels IN & 4 channels OUT
1 x LVDS 18/24-bit single channel
1 x VGA
1 x DDI display slot
SATA
Hardware Monitoring
Ethernet
Compliant Modules
CEM840-E3845-4G
(P/N:E38D840102)
CEM840-E3827-4G
(P/N:E38D840100)
CEM840-E3815-4G
(P/N:E38D840107)
CEM840-E3845-2G
(P/N:E38D840108)
CEM840-E3827-2G
(P/N:E38D840106)
CEM840-E3815-2G
(P/N:E38D840101)
COM Express type 10 mini module with Intel
®
E3845, 4 GB,
DP/LVDS, 10/100/1000Mbps Ethernet and USB 3.0
COM Express type 10 mini module with Intel
®
E3827, 4 GB,
DP/LVDS, 10/100/1000Mbps Ethernet and USB 3.0
COM Express type 10 mini module with Intel
®
E3815, 4 GB,
DP/LVDS, 10/100/1000Mbps Ethernet and USB 3.0
COM Express type 10 mini module with Intel
®
E3845, 2 GB,
DP/LVDS, 10/100/1000Mbps Ethernet and USB 3.0
COM Express type 10 mini module with Intel
®
E3827, 2 GB,
DP/LVDS, 10/100/1000Mbps Ethernet and USB 3.0
COM Express type 10 mini module with Intel
®
E3815, 2 GB,
DP/LVDS, 10/100/1000Mbps Ethernet and USB 3.0
Audio
USB
Port 80 Display
SMBus
Digital I/O
Display
75
* All specifications and photos are subject to change without notice.
