CSS0528P Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. A
A. Electrical Specifications:
P/N
CSS0528P-2R5N
CSS0528P-3R0N
CSS0528P-4R2N
CSS0528P-5R3N
CSS0528P-6R2N
CSS0528P-8R2N
CSS0528P-100N
CSS0528P-120N
CSS0528P-150N
CSS0528P-180N
CSS0528P-220N
CSS0528P-270N
CSS0528P-330N
CSS0528P-390N
CSS0528P-470N
CSS0528P-560N
CSS0528P-680N
CSS0528P-820N
CSS0528P-101N
Marking
2R5
3R0
4R2
5R3
6R2
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
Inductance
(μH)
2.5
3.0
4.2
5.3
6.2
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Test Freq.
(KHz)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
DCR Max.
(mΩ)
18
24
31
38
45
53
65
76
103
110
122
175
189
212
250
305
355
463
520
Rated Current
(A)
2.60
2.40
2.20
1.90
1.80
1.60
1.30
1.20
1.10
1.00
0.90
0.85
0.75
0.70
0.62
0.58
0.52
0.46
0.42

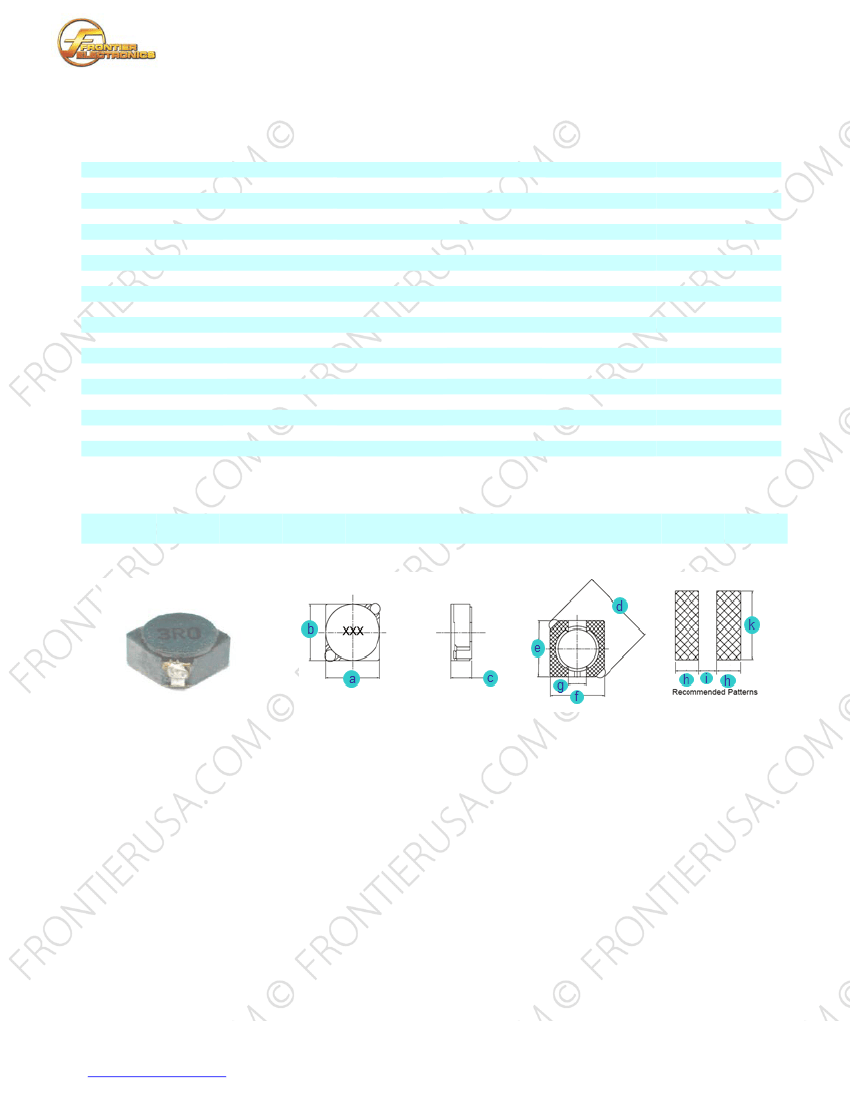

B. Dimensions: mm (Inch)
Series
CSS0528P
Tol.
a
5.7
(0.224)
±0.3
(0.012)
b
5.7
(0.224)
±0.3
(0.012)
c
3.0
(0.118)
Max.
d
8.2
(0.323)
Max.
e
5.5
(0.217)
Typ.
f
5.5
(0.217)
Typ.
g
2.0
(0.079)
Typ.
h
2.15
(0.085)
Typ.
i
2.0
(0.079)
Typ.
k
6.3
(0.248)
Typ.
C. General Information:
1.
2.
3.
4.
5.
6.
7.
8.
9.
CSS0528P-xxx_, “CSS0528P” = P/N, “xxx” = Inductance, “_” = Tolerance.
Tolerance “_”: N: ± 30%, M: ± 20%, L= ± 15%
Operating temperature range: -30ºC to +100ºC (Including self-generated heat).
Storage temperature: -40ºC to +85ºC.
Inductance measured using the HP4284A and Chroma1320 & 3302.
DCR measured using Chroma 16502 milliohm meter.
Inductance drop no more than 35% of initial value at rated current, temperature rise ∆t < 40ºC
Inductance and Current range: From 2.5µH (2.60A) to 100.0 µH (0.42A).
MSL: Level 1.
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
PDA, LCD, DVD, BRP, HD.
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
CSS0528P Series
SMD WIRE WOUND POWER INDUCTORS (SHIELDED)
Rev. A

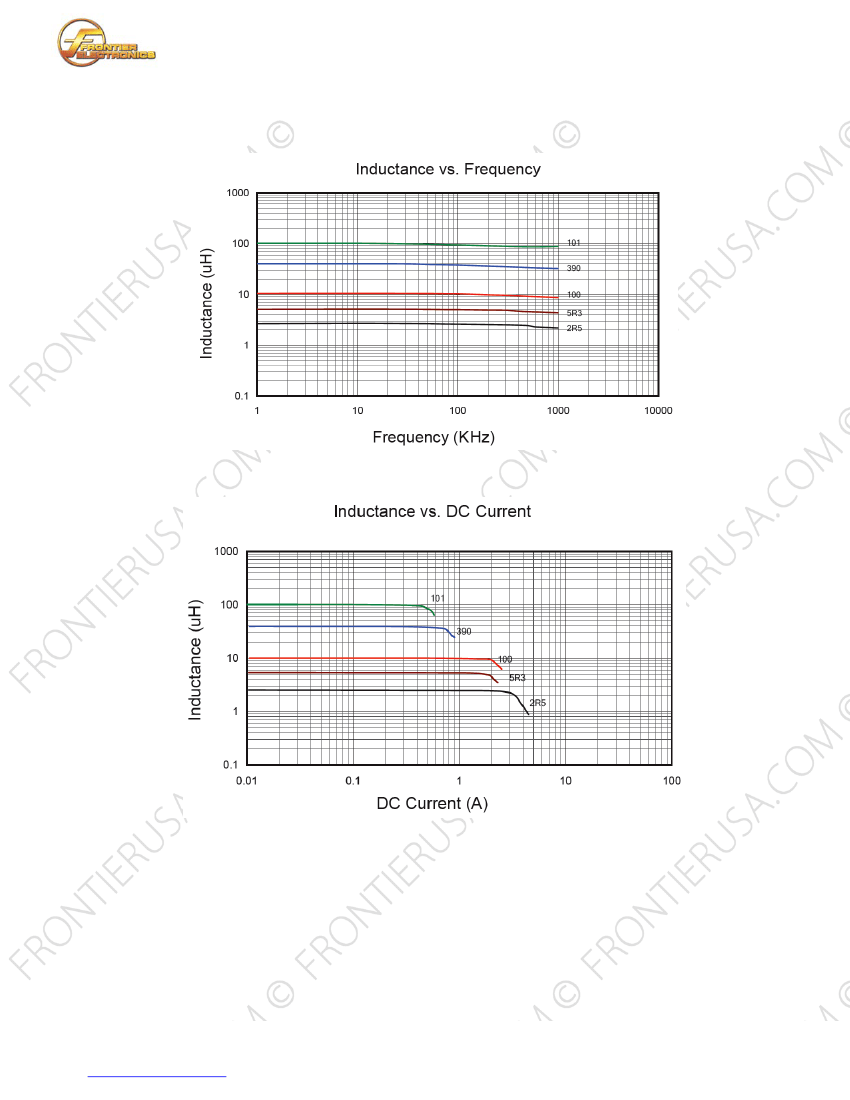

E. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
