0805C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
A. Electrical Specifications:
P/N
L
(nH)
L Test Freq.
(MHz)
Tol.
Q Min.
Q Test Freq.
(MHz)
SRF Min.
(GHz)
DCR Max.
Ω
I rms.
Max.(mA)
Color
code
0805C-2N2_
0805C-2N7_
0805C-2N8_
0805C-2N9_
0805C-3N0_
0805C-3N3_
0805C-5N6_
0805C-6N8_
0805C-7N5_
0805C-8N2_
0805C-10N_
0805C-11N_
0805C-12N_
0805C-15N_
0805C-18N_
0805C-22N_
0805C-24N_
0805C-27N_
0805C-33N_
0805C-36N_
0805C-37N_
0805C-38N_
0805C-39N_
0805C-43N_
0805C-47N_
0805C-56N_
0805C-68N_
0805C-82N_
0805C-91N_
0805C-R10_
0805C-R11_
0805C-R12_
0805C-R15_
0805C-R18_
0805C-R20_
0805C-R22_
0805C-R24_
0805C-R25_
0805C-R27_
0805C-R30_
0805C-R33_
0805C-R36_
0805C-R39_
0805C-R43_
0805C-R47_
0805C-R56_
0805C-R62_
0805C-R68_
0805C-R82_
2.20
2.70
2.80
2.90
3.00
3.30
5.60
6.80
7.50
8.20
10.0
11.0
12.0
15.0
18.0
22.0
24.0
27.0
33.0
36.0
37.0
38.0
39.0
43.0
47.0
56.0
68.0
82.0
91.0
100
110
120
150
180
200
220
240
250
270
300
330
360
390
430
470
560
620
680
820
250
250
250
250
250
250
250
250
250
250
250
700
250
250
250
250
250
250
250
250
350
350
250
200
200
200
200
150
150
150
150
150
100
100
100
100
100
100
100
100
100
100
150
100
50
25
25
25
25
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J
K, J
K, J
K, J
K, J
35
35
80
50
65
50
65
50
50
50
60
45
50
50
50
55
50
55
60
55
40
40
60
60
60
60
60
65
65
65
50
50
50
50
50
50
44
45
48
25
48
35
48
25
33
23
23
23
23
1500
1000
1000
1000
1500
1500
1000
1000
1000
1000
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
250
250
250
250
250
250
250
250
250
250
250
250
100
100
50
50
50
50
3.00
6.00
7.90
4.70
7.90
7.90
5.50
5.50
4.50
4.70
4.20
3.00
4.00
3.40
3.30
2.60
2.00
2.50
2.05
1.70
1.80
1.80
2.00
1.65
1.65
1.55
1.45
1.30
1.20
1.20
1.00
1.10
0.920
0.870
0.860
0.850
0.690
0.660
0.650
0.450
0.600
0.400
0.560
0.400
0.375
0.340
0.220
0.188
0.215
0.08
0.03
0.06
0.05
0.06
0.08
0.08
0.11
0.14
0.12
0.10
0.15
0.15
0.17
0.20
0.22
0.22
0.25
0.27
0.27
0.27
0.27
0.29
0.34
0.31
0.34
0.38
0.42
0.48
0.46
0.48
0.51
0.56
0.64
0.68
0.70
1.00
1.20
1.00
1.40
1.40
0.90
1.50
1.70
1.76
1.90
2.20
2.20
2.35
600
600
800
600
800
600
600
600
600
600
600
600
600
600
600
500
500
500
500
500
500
500
500
500
500
500
500
400
400
400
400
400
400
400
400
400
350
350
350
300
310
300
290
190
250
230
210
190
180
White
Brown
Gray
Blue
White
Black
Violet
Brown
Green
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Violet
Gray
Yellow
Green
Blue
White
Yellow
Black
Brown
Red
Orange
Black
Yellow
Brown
Green
Blue
Violet
Red
Gray
Red
Yellow
White
Gray
Black
Orange
Brown
White
Violet
Orange
Yellow
Green
Brown
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
0805C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A

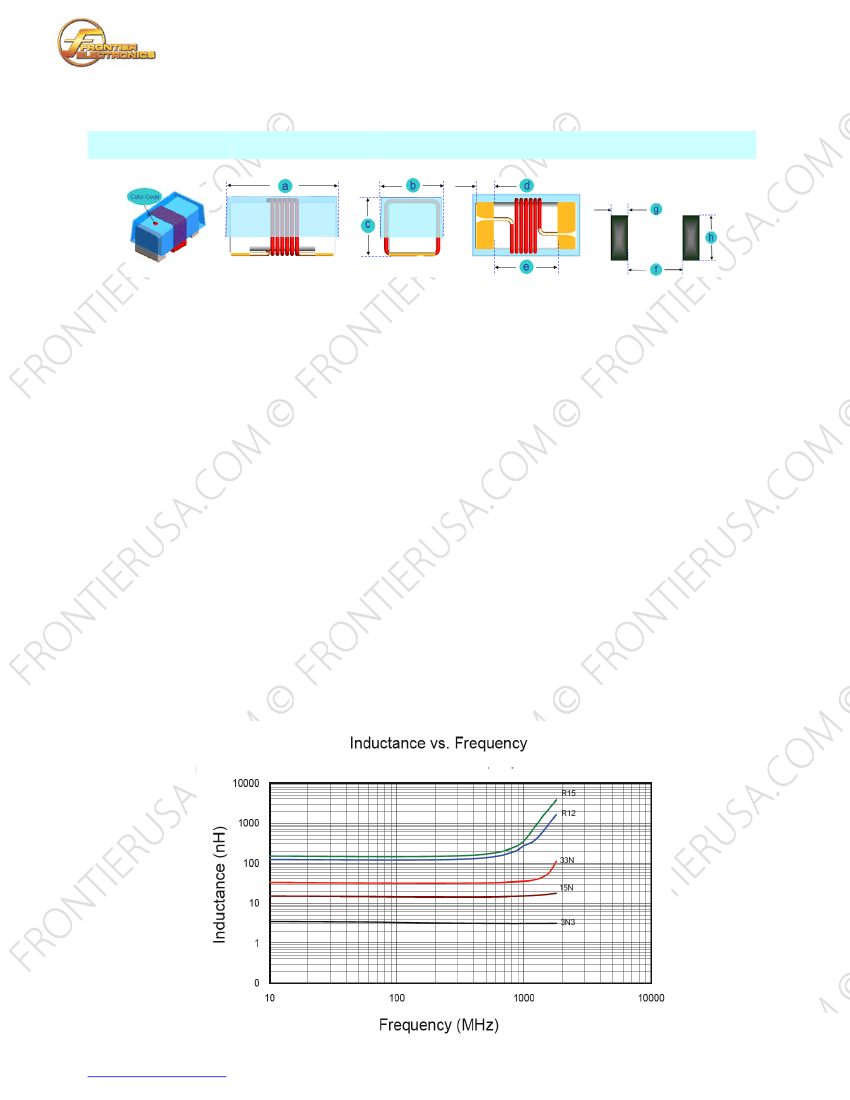

B. Dimensions: mm (Inch)
Series
0805C
Tol.
a
2.29
(0.090)
Max.
b
1.73
(0.068)
Max.
c
1.52
(0.060)
Max.
d
0.51
(0.020)
Typ.
e
1.02
(0.040)
Typ.
f
0.76
(0.030)
Typ.
g
1.02
(0.040)
Typ.
h
1.78
(0.070)
Typ.
C. General Information:
i.
ii.
iii.
iv.
v.
vi.
vii.
viii.
ix.
x.
xi.
xii.
xiii.
xiv.
xv.
P/N: 0805C-xxx_, “0805” = Size Type, “C” = Gold plated pads, “xxx” = Inductance.
Tolerance “_”: K: ± 10%, J: ± 5%, G: ± 2%.
Product material: Ceramic.
0805C has first inductance color code only.
Small and lightweight surface mounting type.
High Q at high frequency & High self-resonance frequency.
For 15ºC Temperature Rise at 25ºC ambient.
Inductance & Q measured with HP4291B Impedance Analyzer.
SRF measured using the HP8720D or HP8753E Network Analyzer.
DCR measured using the 16502 milliohm meter.
Operating temperature: -40ºC to +125ºC.
This series has no color code due to the size is small.
Inductance and Current Range: From 2.2 nH (600mA) to 820 nH (180 mA)
SRF: From 188 MHz to 7900 MHz
MSL: Level 1.
D. Applications:
1.
2.
3.
4.
5.
6.
Game Consoles
Set Top Boxes
Cables Modems
Computers
Mobile Communication Devices (Cell Phones, Radios, etc.)
RF Filters

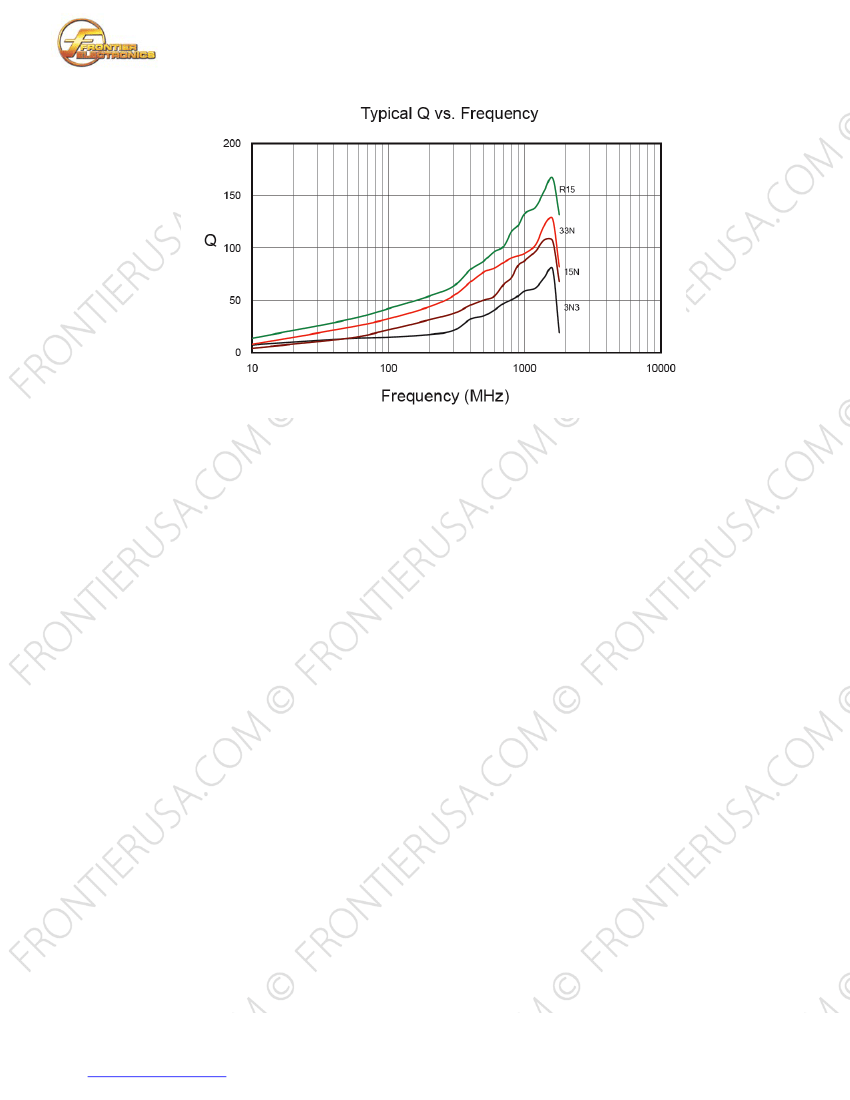

E. Characteristics Curve:
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
0805C Series – SMD WIRE WOUND CERAMIC CHIP INDUCTORS
Rev. A
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
3
of
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
