T1N500 datasheet, PDF - EEWORLD Datasheet

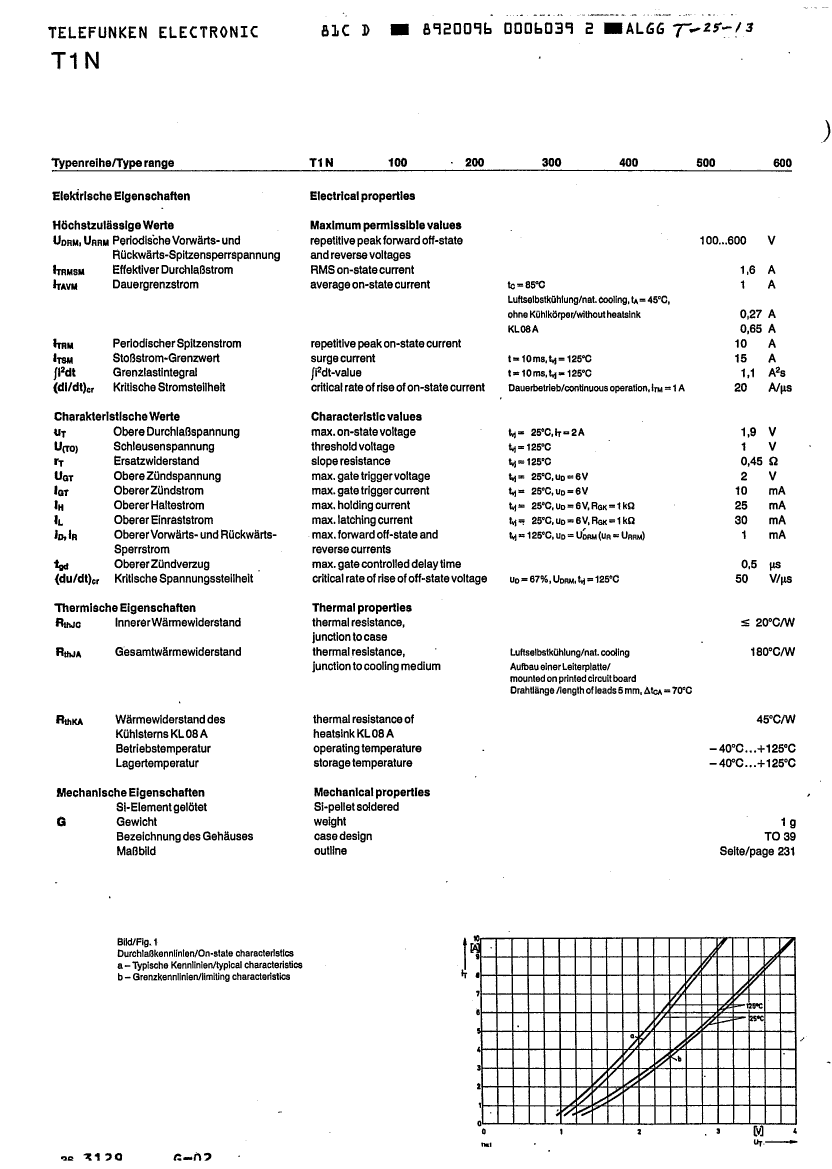

T1N500: DescriptionSilicon Controlled Rectifier, 1000mA I(T), 500V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size223KB，2 Pages; ManufacturerTelefunken Semiconductor GmbH & Co Kg

Download Datasheet Parametric Compare View All

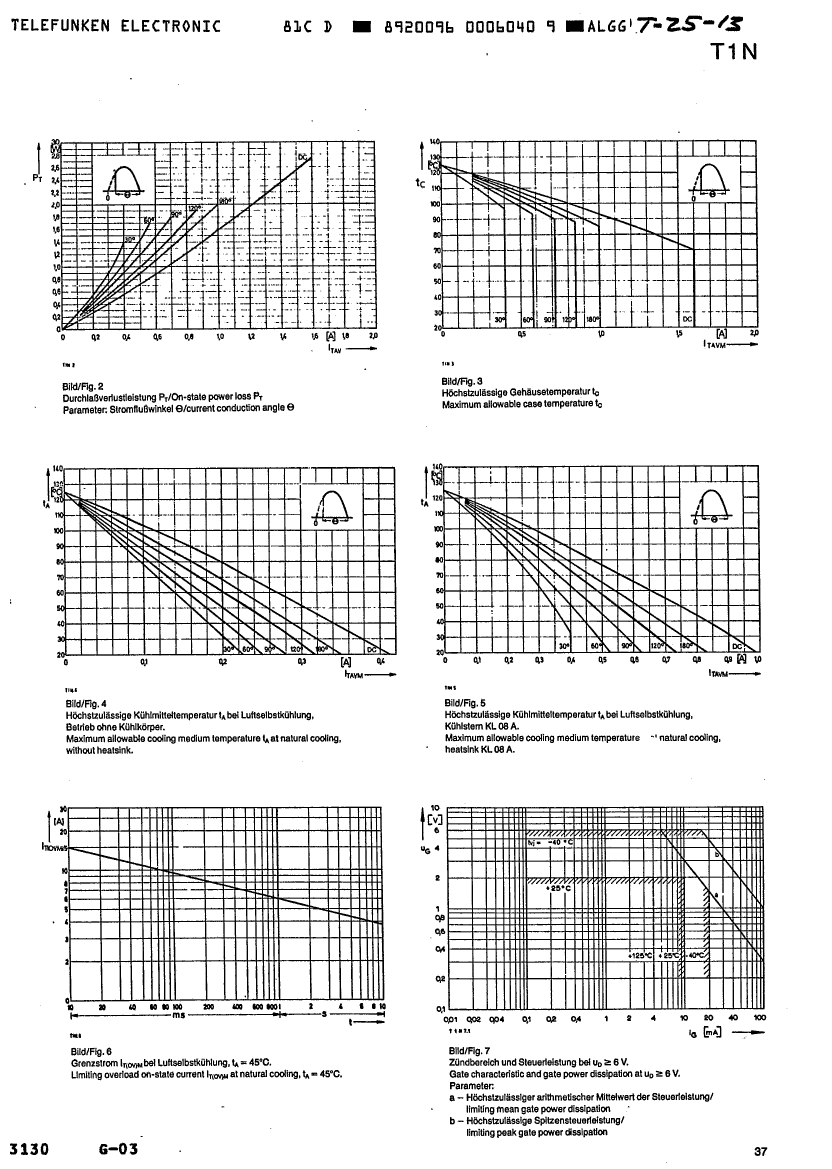

T1N500 Overview

Silicon Controlled Rectifier, 1000mA I(T), 500V V(DRM),

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101738077
Reach Compliance Code	unknown
ECCN code	EAR99
Nominal circuit commutation break time	25 µs
Critical rise rate of minimum off-state voltage	10 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	25 mA
JESD-609 code	e0
Maximum leakage current	1 mA
On-state non-repetitive peak current	15 A
Maximum on-state voltage	1.9 V
Maximum on-state current	1000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR

	T1N500	T1N200	T1N600
Description	Silicon Controlled Rectifier, 1000mA I(T), 500V V(DRM),	Silicon Controlled Rectifier, 1000mA I(T), 200V V(DRM),	Silicon Controlled Rectifier, 1600mA I(T), 600V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible
Objectid	101738077	101738074	101738078
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Nominal circuit commutation break time	25 µs	25 µs	25 µs
Critical rise rate of minimum off-state voltage	10 V/us	10 V/us	10 V/us
Maximum DC gate trigger current	10 mA	10 mA	10 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V
Maximum holding current	25 mA	25 mA	25 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	1 mA	1 mA	1 mA
On-state non-repetitive peak current	15 A	15 A	15 A
Maximum on-state voltage	1.9 V	1.9 V	1.9 V
Maximum on-state current	1000 A	1000 A	1600 A
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C
Off-state repetitive peak voltage	500 V	200 V	600 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SCR	SCR	SCR
