ST111120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > ST111120

Preview

ST111120: DescriptionALL DIMENSIONS IN MM [INCH]; File Size182KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

ST111120 Overview

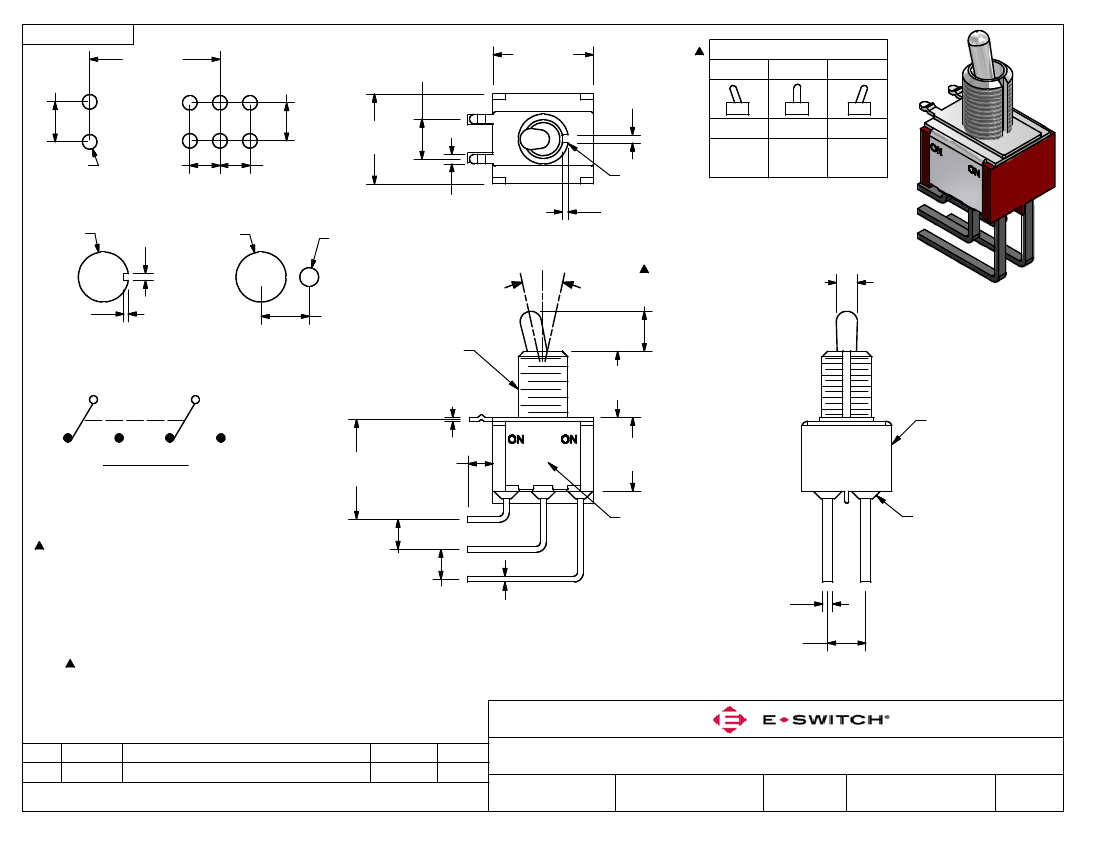

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

5.08

[.200 in]

16.51

[.650 in]

4.83

[.190 in]

5.08

[.200 in]

12.70

[.500 in]

1.02

[.040 in]

11.43

[.450 in]

1.85

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

2-3, 5-6

KEYWAY

1.22

[.048 in]

.71

[.028 in]

NONE

OPEN

2-1, 5-4

[.073 in]

3.81

[.150 in]

3.81

[.150 in]

PCB MOUNTING

6.35

[.250 in]

.85

[.033 in]

6.35

2.38

[.250 in]

[.094 in]

POS. 1

POS. 3

5.08

[.200 in]

2.67

[.105 in]

.55

[.022 in]

WITHOUT LOCKRING

WITH LOCKRING

6.10

[.240 in]

PANEL MOUNTING

1/4-40 UNS-2A

.50

[.020 in]

8.39

[.330 in]

100DP1T2B1M71QE

(T111120)

CIRCUIT: DPDT

12.70

[.500 in]

3.18

[.125 in]

9.39

[.370 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 5 AMPS @ 120VAC OR 28VDC

2 AMPS @ 250VAC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. CONTACT RESISTANCE: 10 m

Ω

MAX (INITIAL)

10. OPERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

13. HARDWARE TO BE SHIPPED BULK:

T100011 - LOCK WASHER (1)

T100015 - LOCK RING (1)

T100000 - HEX NUT (2)

REV

20958

PCR NO

RELEASED FOR PRODUCTION

DESCRIPTION

3.81

[.150 in]

3.81

[.150 in]

.76

[.030 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

EPOXY SEAL

1.27

[.050 in]

4.83

[.190 in]

1/9/13

DATE

EBP

TITLE

100DP1T2B1M71QEH

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SCALE

1/9/2013

EBP

ST111120
