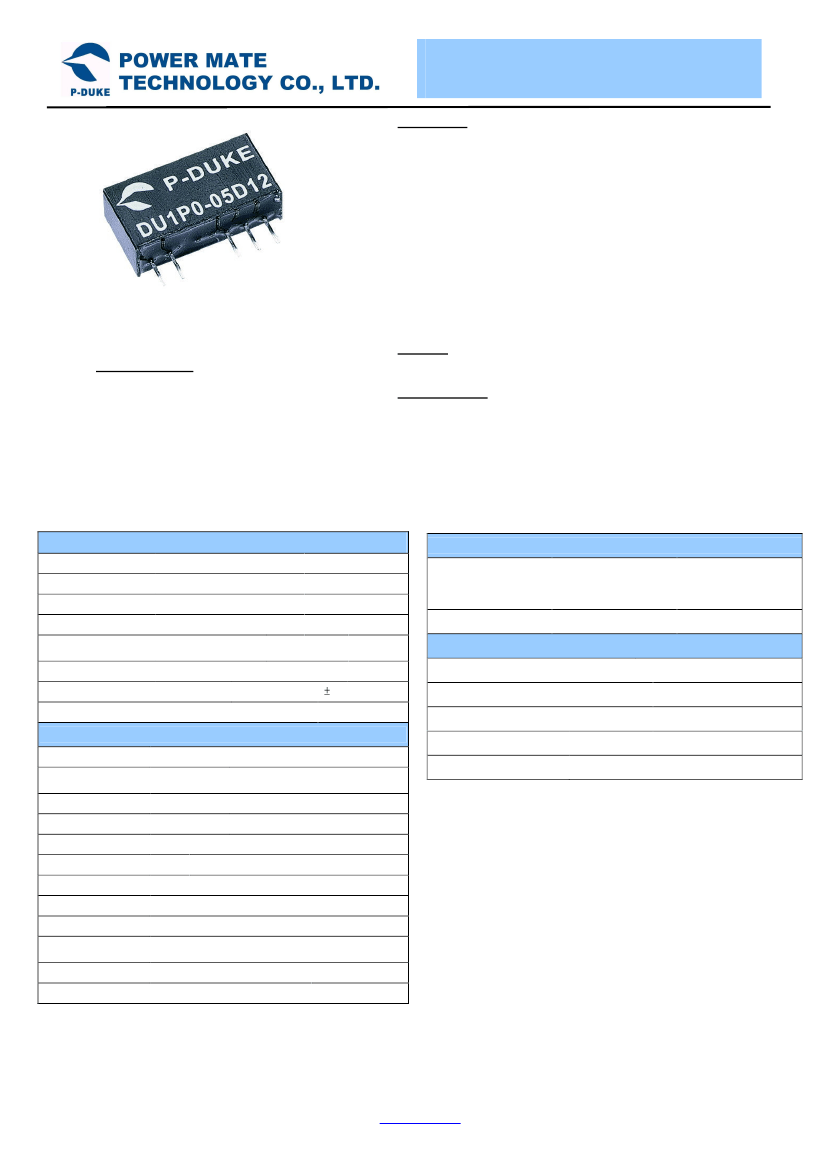

DU1P0 SERIES
1 WATTS
DC-DC CONVERTER
FEATURES
•
1 WATT UNREGULATED OUTPUT POWER
•
OUTPUT CURRENT UP TO 0.2A
•
SINGLE -IN-LINE PACKAGE (SIP)
•
HIGH EFFICIENCY FOR LOW POWER APPLICATION
•
INPUT RANGE FROM 4.5VDC TO 5.5VDC, 10.8VDC TO 13.2 VDC,
13.5VDC TO 16.5VDC AND 21.6VDC TO 26.4VDC
•
UL 94-V0 NON-CONDUCTED CASE
•
INTERNAL INPUT & OUTPUT FILTER
•
INPUT TO OUTPUT ISOLATION UP:3kVDC, MIN.
•
SUFFIX-N ISOLATION LEVEL REINFORCE
•
UL60950-1, EN60950-1, & IEC60950-1 SAFETY APPROVALS
•
CE MARKED
•
COMPLIANT TO RoHS II & REACH
OPTION
APPLICATIONS
Wireless Network
Telecom/Datacom
Industry Control System
Measurement Equipment
Semiconductor Equipment
3kVDC ISOLATION
DESCRIPTION
The DU1P0 series are the standard building blocks for on-board
distributed power systems. They are ideally suited to provide single and
dual supplies on primarily digital boards with added benefit of galvanic
isolation to reduce switching noise.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load (Note 5)
Line regulation
Load regulation
Ripple and noise
Temperature coefficient
Short circuit protection (Note 6)
LL to HL at Full Load
20% to 100% FL
20MHz bandwidth
5V output
others
All specifications are typical at nominal input, full load and 25ºC otherwise noted
INPUT SPECIFICATIONS
1 Watt, max.
± 5%
10% of FL
1.3% / 1% of Vin
± 10%
± 8%
See table
0.1% / ºC, max.
1 Sec, max.
Input filter
Input voltage range
5VDC nominal input
12VDC nominal input
15VDC nominal input
24VDC nominal input
4.5 ~ 5.5VDC
10.8 ~ 13.2VDC
13.5 ~ 16.5VDC
21.6 ~ 26.4VDC
C type
ENVIRONMENTAL SPECIFICATIONS
Operating ambient temperature
Storage temperature range
Thermal shock
Vibration
-25ºC ~ +85ºC
(with derating)
-55ºC ~ +125ºC
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Safety approvals
Case material
Base material
Potting material
Dimensions
Weight
MTBF (Note 1)
MIL-HDBK-217F
Input to Output
500VDC
See table
Standard 1000VDC, min. 1minute
Suffix-N 3000VDC, min. 1minute
10 ohms, min.
30pF, max.
60kHz, min.
IEC60950-1, UL60950-1, & EN60950-1
Non-conductive black plastic
None
Epoxy (UL94 V-0)
0.77 X 0.24 X 0.40 Inch
(19.6 X 6.1 X 10.2 mm)
2.0g (0.071oz)
2.019 x 10
7
hrs
9
Page 1 of 2
±
Relative humidity
www.pduke.com
2014/4/30
DU1P0 SERIES
1 WATTS
DC-DC CONVERTER
Model
Number
DU1P0-05S05
DU1P0-05S12
DU1P0-05S15
DU1P0-05D05
DU1P0-05D12
DU1P0-05D15
DU1P0-12S05
DU1P0-12S12
DU1P0-12S15
DU1P0-12D05
DU1P0-12D12
DU1P0-12D15
DU1P0-15S05
DU1P0-15S12
DU1P0-15S15
DU1P0-15D05
DU1P0-15D12
DU1P0-15D15
DU1P0-24S05
DU1P0-24S12
DU1P0-24S15
DU1P0-24D05
DU1P0-24D12
DU1P0-24D15
Input
Range
4.5 ~ 5.5 VDC
4.5 ~ 5.5 VDC
4.5 ~ 5.5 VDC
4.5 ~ 5.5 VDC
4.5 ~ 5.5 VDC
4.5 ~ 5.5 VDC
10.8 ~ 13.2 VDC
10.8 ~ 13.2 VDC
10.8 ~ 13.2 VDC
10.8 ~ 13.2 VDC
10.8 ~ 13.2 VDC
10.8 ~ 13.2 VDC
13.5 ~ 16.5 VDC
13.5 ~ 16.5 VDC
13.5 ~ 16.5 VDC
13.5 ~ 16.5 VDC
13.5 ~ 16.5 VDC
13.5 ~ 16.5 VDC
21.6 ~ 26.4 VDC
21.6 ~ 26.4 VDC
21.6 ~ 26.4 VDC
21.6 ~ 26.4 VDC
21.6 ~ 26.4 VDC
21.6 ~ 26.4 VDC
Output
Voltage
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
5 VDC
12 VDC
15 VDC
± 5 VDC
± 12 VDC
± 15 VDC
Output Current
Min. load
20mA
8.3mA
6.7mA
± 10mA
± 4.2mA
± 3.3mA
20mA
8.3mA
6.7mA
± 10mA
± 4.2mA
± 3.3mA
20mA
8.3mA
6.7mA
± 10mA
± 4.2mA
± 3.3mA
20mA
8.3mA
6.7mA
± 10mA
± 4.2mA
± 3.3mA
Output
Full load Ripple & Noise
200mA
83mA
67mA
± 100mA
± 42mA
± 33mA
200mA
83mA
67mA
± 100mA
± 42mA
± 33mA
200mA
83mA
67mA
± 100mA
± 42mA
± 33mA
200mA
83mA
67mA
± 100mA
± 42mA
± 33mA
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
(3)
No load
Input Current
42mA
32mA
35mA
40mA
35mA
40mA
17mA
17mA
18mA
18mA
18mA
18mA
20mA
18mA
18mA
18mA
16mA
16mA
12mA
12mA
10mA
12mA
10mA
10mA
(2)
Eff
(%)
77
82
81
78
82
81
77
82
79
77
81
82
73
79
80
75
80
80
72
78
78
75
78
79
(3)
Capacitor
Load
(4)
max
330µF
330µF
330µF
±150µF
±150µF
±150µF
330µF
330µF
330µF
±150µF
±150µF
±150µF
330µF
330µF
330µF
±150µF
±150µF
±150µF
330µF
330µF
330µF
±150µF
±150µF
±150µF
Note
1.
2.
3.
4.
5.
MIL-HDBK-217F @Ta=25 ºC, Full load.
Typical value at nominal input voltage and no load.
Typical value at nominal input voltage and full load.
Test by minimum Vin and constant resistive load.
The output requires a minimum loading on the output to maintain specified regulation.
Operation under no-load condition will not damage these devices, however they may not meet all
listed specification.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.
Page 2 of 2
：
：
：
：
PIN
1
2
4
5
6
PIN
1
2
5
6
7

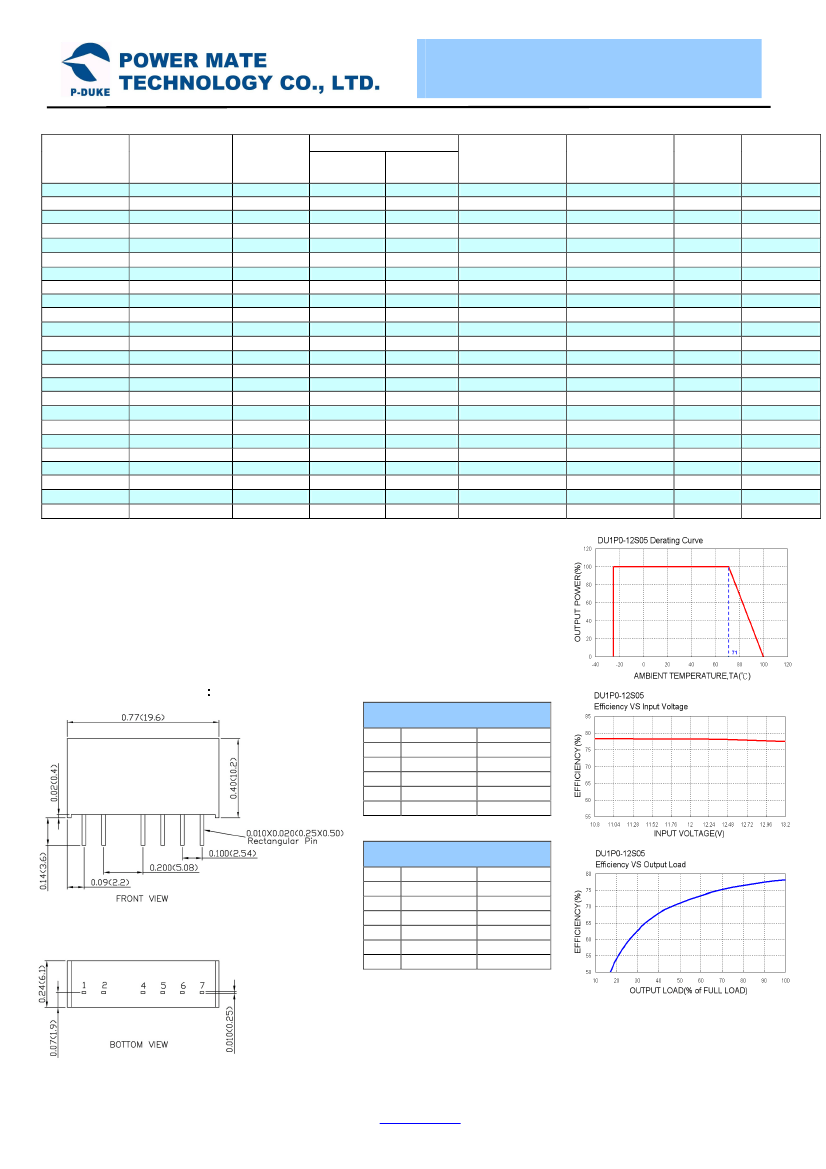

MECHANICAL DRAWING
STANDARD
SINGLE
+INPUT
-INPUT
-OUTPUT
NC
+OUTPUT
DUAL
+INPUT
-INPUT
-OUTPUT
COMMON
+OUTPUT
“SUFFIX-N” Models
SINGLE
+INPUT
-INPUT
-OUTPUT
NC
+OUTPUT
DUAL
+INPUT
-INPUT
-OUTPUT
COMMON
+OUTPUT
1. All dimensions in Inch (mm)
Tolerance: X.XX±0.02 (X.X±0.5)
X.XXX±0.01 (X.XX±0.25)
2. Pin pitch tolerance ±0.01 (0.25)
3. Pin dimension tolerance ±0.004 (0.1)
