EQVE12C1C1H-112.640M

REGULATORY COMPLIANCE

2011/65 +

2015/863

(Data Sheet downloaded on Aug 31, 2020)

191 SVHC

ITEM DESCRIPTION

Voltage Controlled Quartz Crystal Clock Oscillators VCXO LVDS (DS) 2.5Vdc 6 Pad 5.0mm x 7.0mm Ceramic Surface Mount

(SMD) 112.640MHz ±50ppm -40°C to +85°C

ELECTRICAL SPECIFICATIONS

Nominal Frequency

Frequency Tolerance/Stability

Aging at 25°C

Operating Temperature Range

Supply Voltage

Input Current

Output Voltage Logic High (Voh)

Output Voltage Logic Low (Vol)

Differential Output Error (dVod)

Differential Output Voltage (Vod)

Offset Voltage (Vos)

Rise/Fall Time

Duty Cycle

Offset Error (dVos)

Load Drive Capability

Output Logic Type

Absolute Pull Range

112.640MHz

±50ppm Maximum (Inclusive of all conditions: Calibration Tolerance (at 25°C), Frequency Stability over the Operating

Temperature Range, Supply Voltage Change and Output Load Change)

±2ppm Maximum First Year, ±10ppm/10 Years Maximum

-40°C to +85°C

2.5Vdc ±5%

25mA Maximum

1.425Vdc Typical

1.075Vdc Typical

50mVdc Maximum

200mVdc Minimum, 350mVdc Typical, 454mVdc Maximum

1.125V Minimum, 1.250V Typical, 1.375V Maximum

500pSec Maximum (Measured at 20% to 80% of Waveform)

50 ±10(%) (Measured at 50% of Waveform)

50mVdc Maximum

100 Ohms Between Output and Complementary Output

LVDS

±30ppm Minimum (Inclusive of all conditions: Calibration Tolerance (at 25°C), Frequency Stability over the Operating

Temperature Range, Supply Voltage Change, Output Load Change, Shock, Vibration, and 10 Year Aging over the

Control Voltage (Vc))

0.2Vdc to 2.3Vdc (Test Condition for APR)

0.0Vdc to Vdd +0.25Vdc

5% Typical, 10% Maximum

Positive Tranfer Characteristic

10kHz Minimum (Measured at -3dB, Vc = 1.25Vdc)

500kOhms Minimum

10µA Maximum

-57dBc/Hz at 10Hz offset; -86dBc/Hz at 100Hz offset; -114dBc/Hz at 1kHz offset; -121dBc/Hz at 10kHz offset; -

122dBc/Hz at 100kHz offset; -141dBc/Hz at 1MHz offset; -151dBc/Hz at 10MHz offset; -153dBc/Hz at 20MHz offset (All

Values are Typical)

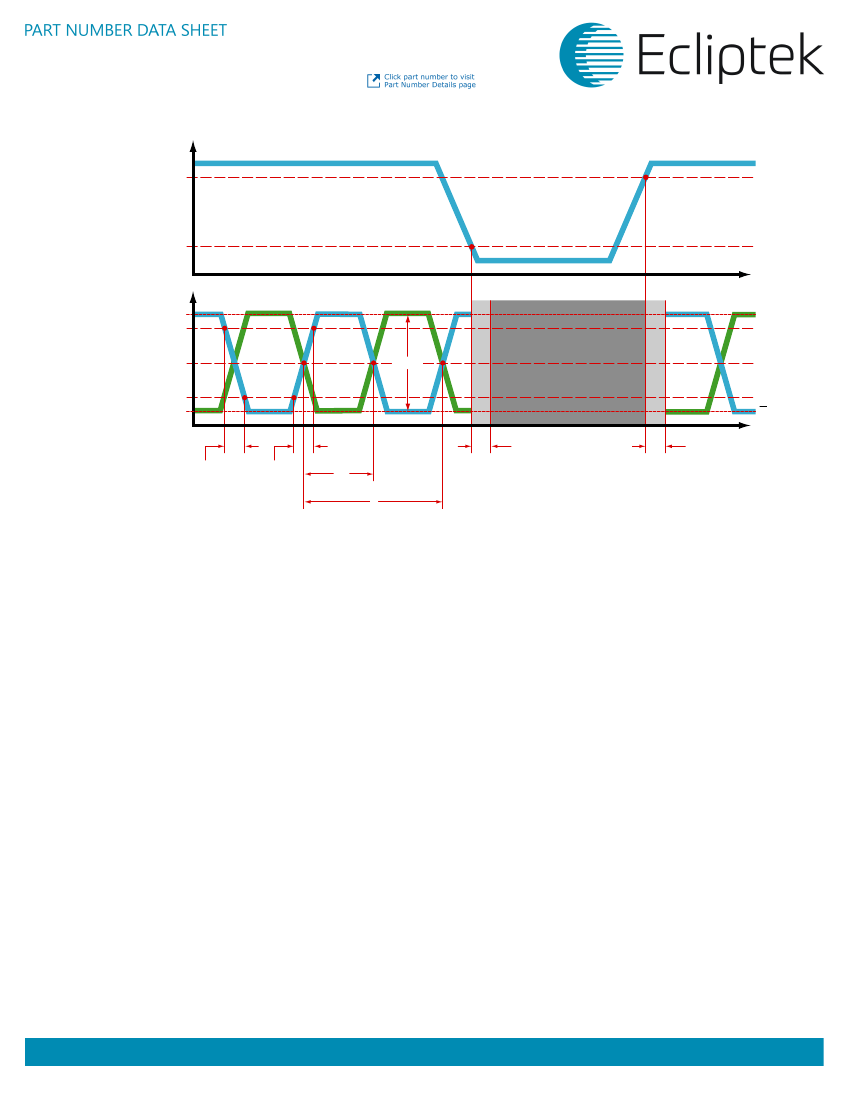

Output Enable (OE)

90% of Vdd Minimum or No Connect to Enable Output and Complementary Output

10% of Vdd Maximum to Disable Output and Complementary Output (High Impedance)

100nSec Maximum

50nSec Maximum

15mA Maximum (Without Load (Pin 2 = Ground))

1.3pSec Maximum (Fj=12kHz to 20MHz (Random))

0.2pSec Typical

Control Voltage

Control Voltage Range

Linearity

Transfer Function

Modulation Bandwidth

Input Impedance

Input Leakage Current

Phase Noise

Output Control Function

Output Control Input Voltage Logic

High (Vih)

Output Control Input Voltage Logic

Low (Vil)

Output Enable Time

Output Disable Time

Output Enable Current

RMS Phase Jitter

Period Jitter (Deterministic)

www.ecliptek.com | Specification Subject to Change Without Notice | Revision B 01/18/2019 | Page 1 of 7

Ecliptek, LLC

5458 Louie Lane, Reno, NV 89511

1-800-ECLIPTEK or 714.433.1200
