QBHP687-IWH-XX
0.5W High Power LED
---------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek High Power Series
0.5W High Power LED
Part No.: QBHP687-IWH-XX
XX = WW/NW/CW
Product: QBHP687-IWH-XX
Date: November 05, 2013
Version# 2.3
Page 1 of 10
QBHP687-IWH-XX
0.5W High Power LED
---------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (T=25
o
C) .......................................................................................... 4
Absolute Maximum Rating .................................................................................................................... 4
Correlated Color Temperature and Chromaticity Correlation ................................................................ 5
Characteristic Curves ............................................................................................................................ 6
Solder Profile ........................................................................................................................................ 7
Packing ................................................................................................................................................. 8
Labeling ................................................................................................................................................ 9
Ordering Information ............................................................................................................................. 9
Revision History .................................................................................................................................. 10
Disclaimer ........................................................................................................................................... 10
Product: QBHP687-IWH-XX
Date: November 05, 2013
Version# 2.3
Page 2 of 10
QBHP687-IWH-XX
0.5W High Power LED
---------------------------------------------------------------------------------------------------------------------------------------
Introduction
Features:
Diffused lens
Package in tape and reel
0.5W High Power
Low thermal resistance
Super high flux and luminance
InGaN White
CRI 80
Description:
This low profile 0.5W high bright LED has a height
profile of 0.77mm. It is ideal for indoor lighting and
general use.
Application:
Architectural lighting
Household appliances
General lighting
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

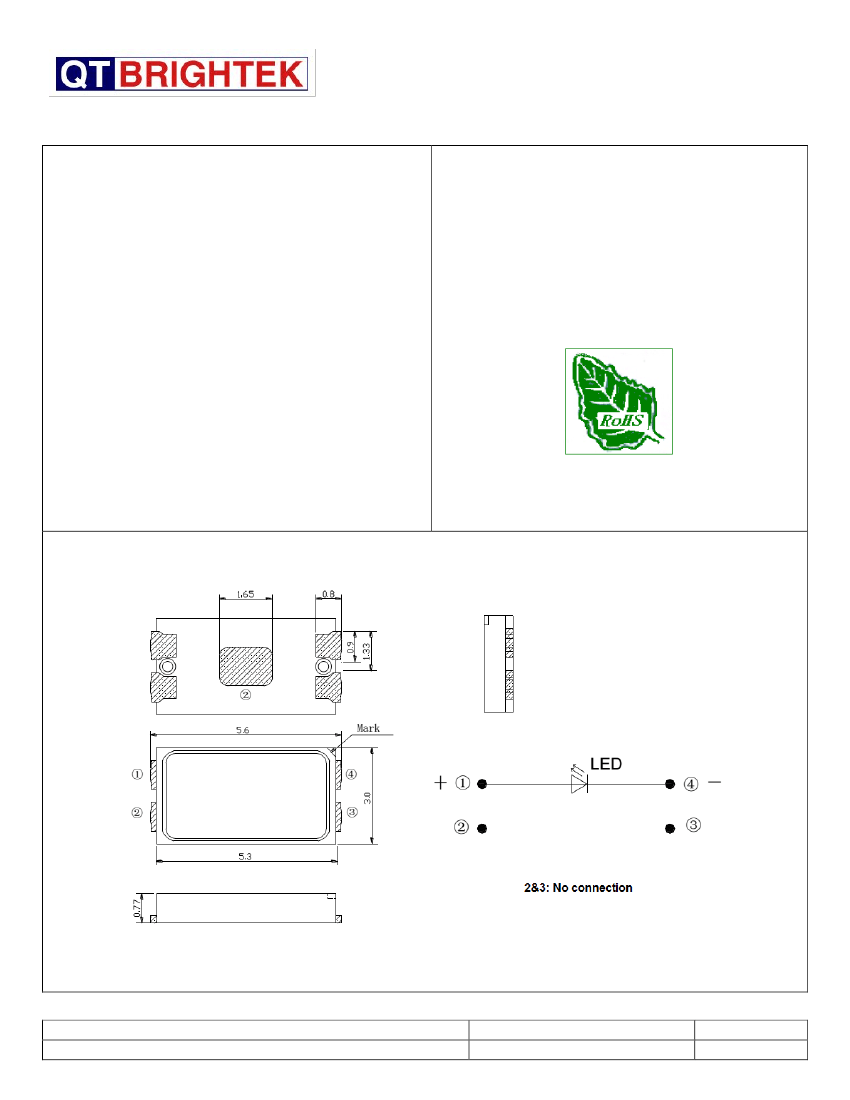

Outline Dimensions:
Units: mm / tolerance = +/-0.2mm
Product: QBHP687-IWH-XX
Date: November 05, 2013
Version# 2.3
Page 3 of 10
QBHP687-IWH-XX
0.5W High Power LED
---------------------------------------------------------------------------------------------------------------------------------------
Electrical / Optical Characteristic (T=25
o
C)
Product Number
QBHP687-IWH-WW
QBHP687-IWH-NW
QBHP687-IWH-CW
Color
Warm White
Natural White
Cool White
I
F
(mA)
150
150
150
V
F
(V)
Typ. Max.
3.3
3.6
3.3
3.3
3.6
3.6
CCT (K)
Min.
Typ. Max.
2760
3000 3260
3640
5300
4000
6020
4240
7050
Φv(lm)
Min. Typ.
42
44
42
42
50
50
Absolute Maximum Rating
Material
P
d
(mW)
I
F
(mA)
I
FP
(mA)*
V
R
(V)
5
T
OP
(
o
C)
-30 to +85
T
ST
(
o
C)
-40 to +100
T
SOL
(
o
C)**
260
InGaN
580
180
300
*Duty 1/10 @ 1KHz
**IR Reflow for no more than 10 sec @ 260
o
C
Forward Voltage V
F
@ I
F
=150mA
Bin
H
J
K
M
Min.
2.8
3.0
3.2
3.4
Max.
3.0
3.2
3.4
3.6
Unit
V
Luminous Flux Φ
v
@ I
F
=150mA
Bin
L1
L2
L3
Min.
42
52
64
Max.
52
64
80
Unit
lm
Note:
Tolerance of measurement of forward voltage: ±0.1V
Tolerance of measurement of luminous flux: ±10%
Correlated Color Temperature (CCT) @ I
F
=150mA
Bin
RN
RL
RM
RR
Min.
2760
3640
5300
6020
Max.
3260
4240
6020
7050
Unit
K
Product: QBHP687-IWH-XX
Date: November 05, 2013
Version# 2.3
Page 4 of 10
QBHP687-IWH-XX
0.5W High Power LED
---------------------------------------------------------------------------------------------------------------------------------------

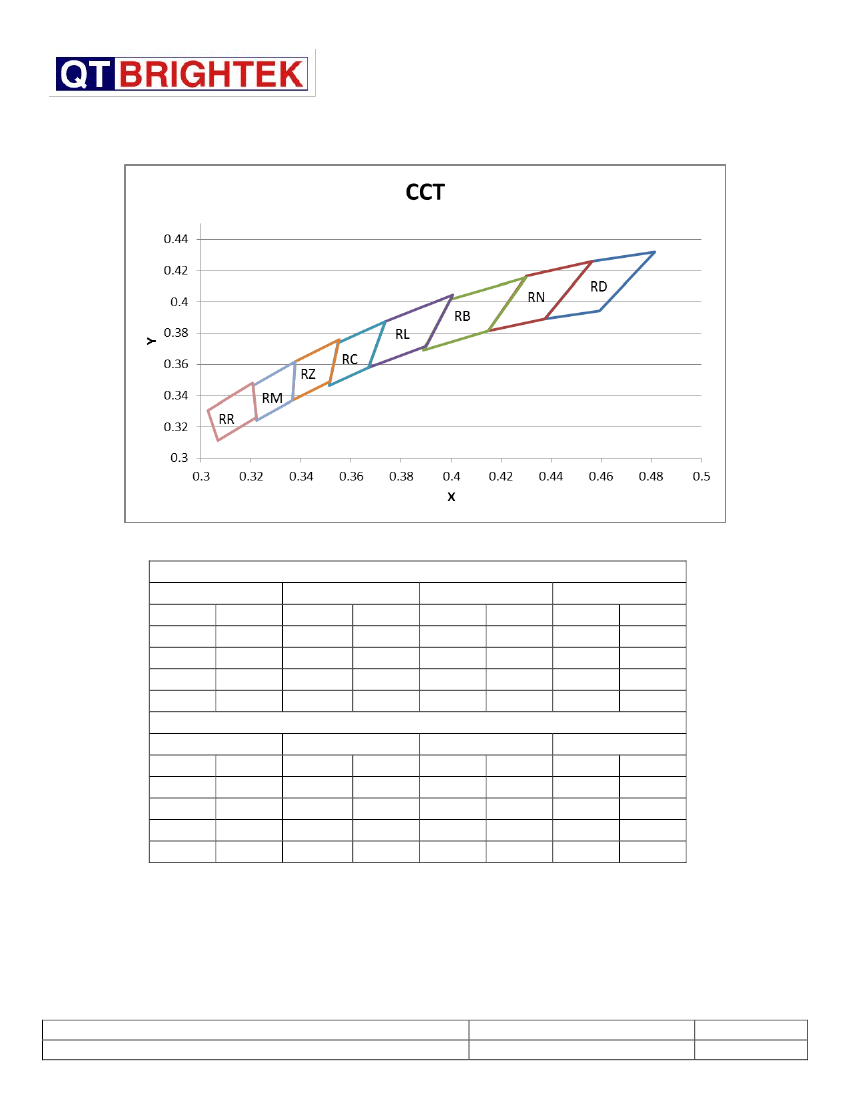

Correlated Color Temperature and Chromaticity Correlation
RD
0.4813 0.4319
0.4562 0.426
0.4373 0.3893
0.4593 0.3944
0.4813 0.4319
RC
0.3736 0.3874
0.3548 0.3736
0.3512 0.3465
0.367 0.3578
0.3736 0.3874
Color Ranks @ I
F
=150mA
RN
RB
0.4562
0.426 0.4299 0.4156
0.4299 0.4165 0.3996 0.4015
0.4147 0.3814 0.3889 0.369
0.4373 0.3893 0.4147 0.3814
0.4562
0.426 0.4299 0.4156
RZ
0.3551
0.376
0.3376 0.3616
0.3366 0.3369
0.3515 0.3487
0.3551
0.376
RM
0.3376 0.3616
0.3207 0.3462
0.3222 0.3243
0.3366 0.3369
0.3376 0.3616
RL
0.4006 0.4044
0.3736 0.3874
0.367 0.3578
0.3898 0.3716
0.4006 0.4044
RR
0.3205 0.3481
0.3028 0.3304
0.3068 0.3113
0.3221 0.3261
0.3205 0.3481
Note:
Tolerance of measurement of Color Coordinates: ±0.01
Product: QBHP687-IWH-XX
Date: November 05, 2013
Version# 2.3
Page 5 of 10
