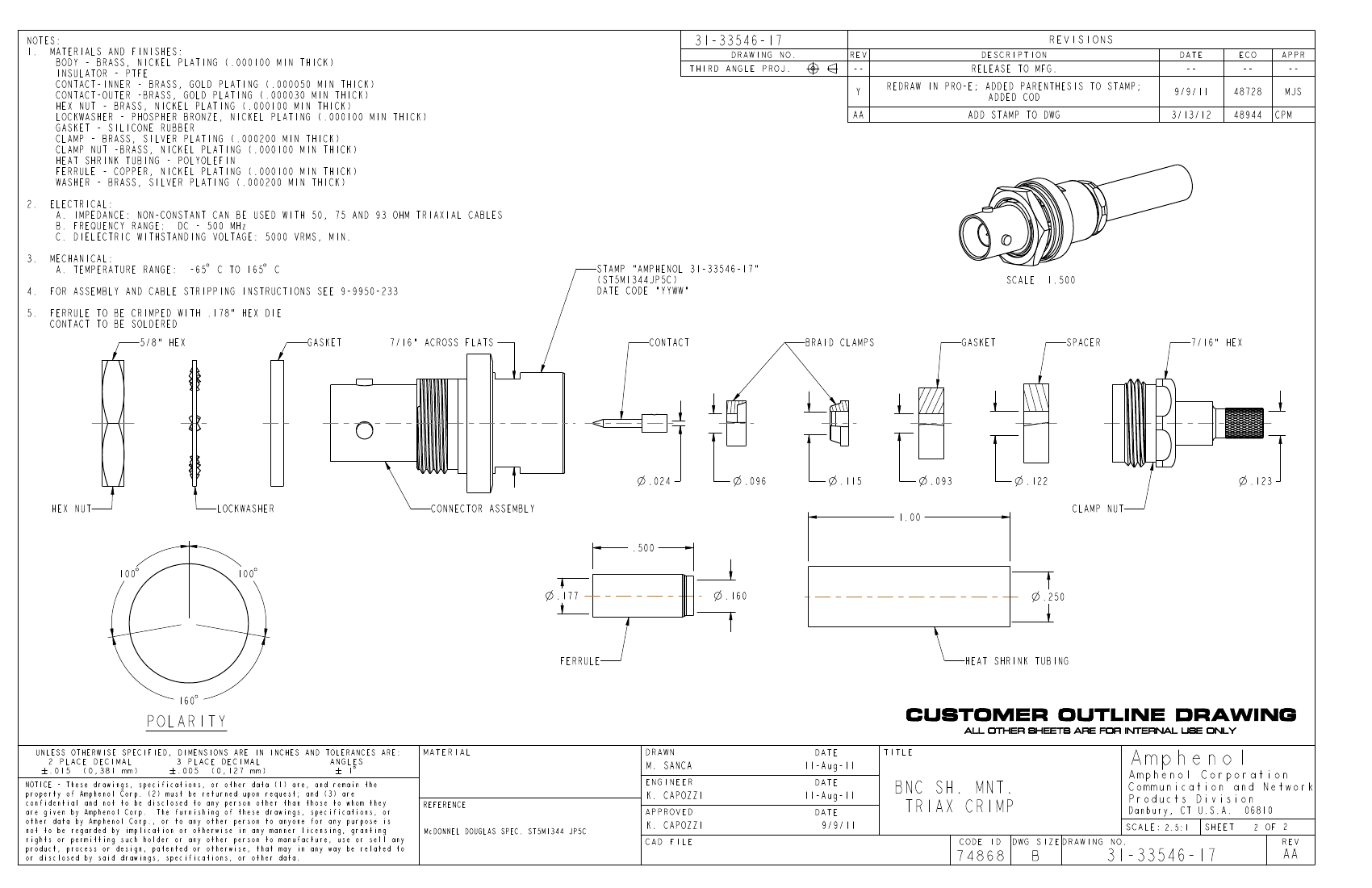

NOTES:
1. MATERIALS AND FINISHES:
BODY - BRASS, NICKEL PLATING (.000100 MIN THICK)
INSULATOR - PTFE
CONTACT-INNER - BRASS, GOLD PLATING (.000050 MIN THICK)
CONTACT-OUTER -BRASS, GOLD PLATING (.000030 MIN THICK)
HEX NUT - BRASS, NICKEL PLATING (.000100 MIN THICK)
LOCKWASHER - PHOSPHER BRONZE, NICKEL PLATING (.000100 MIN THICK)
GASKET - SILICONE RUBBER
CLAMP - BRASS, SILVER PLATING (.000200 MIN THICK)
CLAMP NUT -BRASS, NICKEL PLATING (.000100 MIN THICK)
HEAT SHRINK TUBING - POLYOLEFIN
FERRULE - COPPER, NICKEL PLATING (.000100 MIN THICK)
WASHER - BRASS, SILVER PLATING (.000200 MIN THICK)
2.
ELECTRICAL:
A. IMPEDANCE: NON-CONSTANT CAN BE USED WITH 50, 75 AND 93 OHM TRIAXIAL
B. FREQUENCY RANGE: DC - 500 MHz
C. DIELECTRIC WITHSTANDING VOLTAGE: 5000 VRMS, MIN.
MECHANICAL:
A. TEMPERATURE RANGE:
-65
$C TO 165 $C
CABLES
31-33546-17
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
--
Y
AA
RELEASE TO MFG.
REDRAW IN PRO-E; ADDED PARENTHESIS TO STAMP;
ADDED COD
ADD STAMP TO DWG
DESCRIPTION
DATE
--
ECO
--
APPR
--
9/9/11
3/13/12
48728
48944
MJS
CPM
3.
4.
5.
FOR ASSEMBLY AND CABLE STRIPPING INSTRUCTIONS SEE 9-9950-233
FERRULE TO BE CRIMPED WITH .178" HEX DIE
CONTACT TO BE SOLDERED
5/8" HEX
GASKET
7/16" ACROSS FLATS
STAMP "AMPHENOL 31-33546-17"
(ST5M1344JP5C)
DATE CODE "YYWW"
SCALE
1.500
CONTACT
BRAID CLAMPS
GASKET
SPACER
7/16" HEX
.024
HEX NUT
LOCKWASHER
CONNECTOR ASSEMBLY
.500
100 $
100 $
.177
.096
.115
1.00
.093
.122
CLAMP NUT
.123
.160
.250
FERRULE
HEAT SHRINK TUBING
160 $
POLARITY
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
M. SANCA
11-Aug-11
11-Aug-11
DATE
DATE
DATE
TITLE
ENGINEER
REFERENCE
McDONNEL DOUGLAS SPEC. ST5M1344 JP5C
K. CAPOZZI
K. CAPOZZI
APPROVED
CAD FILE
9/9/11
BNC SH. MNT.
TRIAX CRIMP
74868
CODE ID
Amphenol Corporation
Communication and Network
Products Division
Danbury, CT U.S.A.
SCALE: 2.5:1
DWG SIZE DRAWING NO.
Amphenol
SHEET
06810
2 OF 2
REV
B
31-33546-17
