ZIP1X24-014B-S datasheet, PDF - EEWORLD Datasheet

ZIP1X24-014B-S: DescriptionIC Socket, ZIP24, 24 Contact(s), 2.54mm Term Pitch , 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size327KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

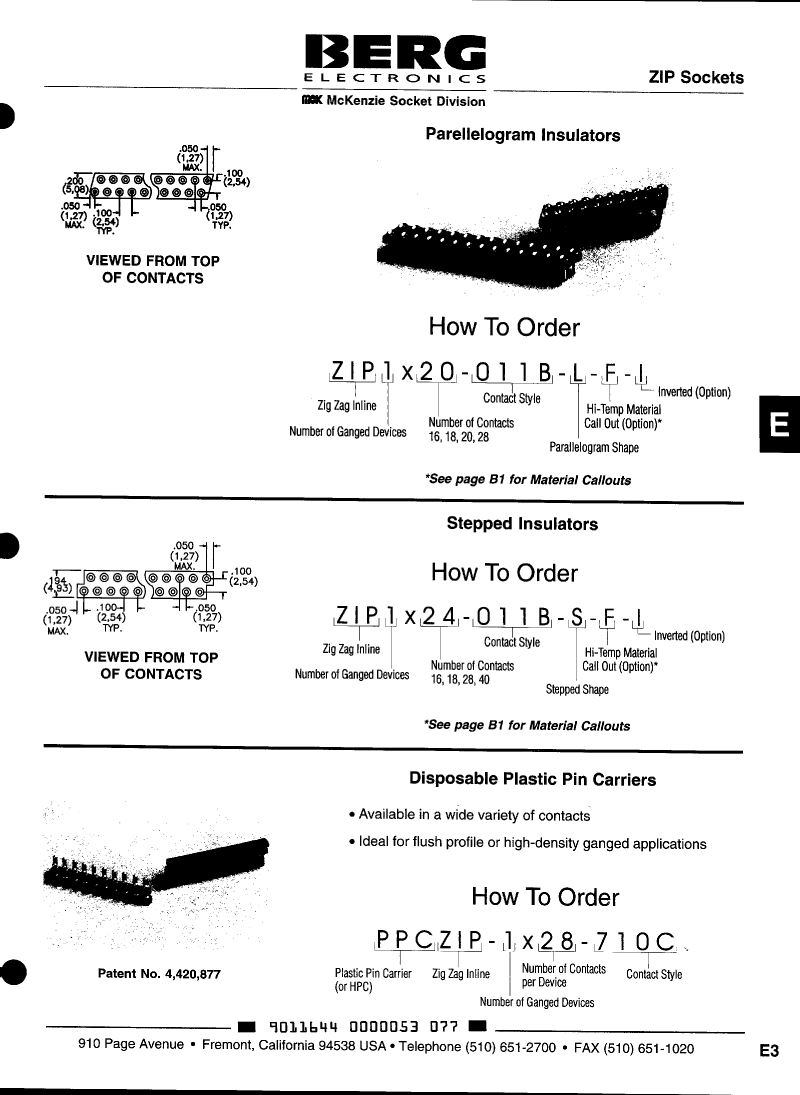

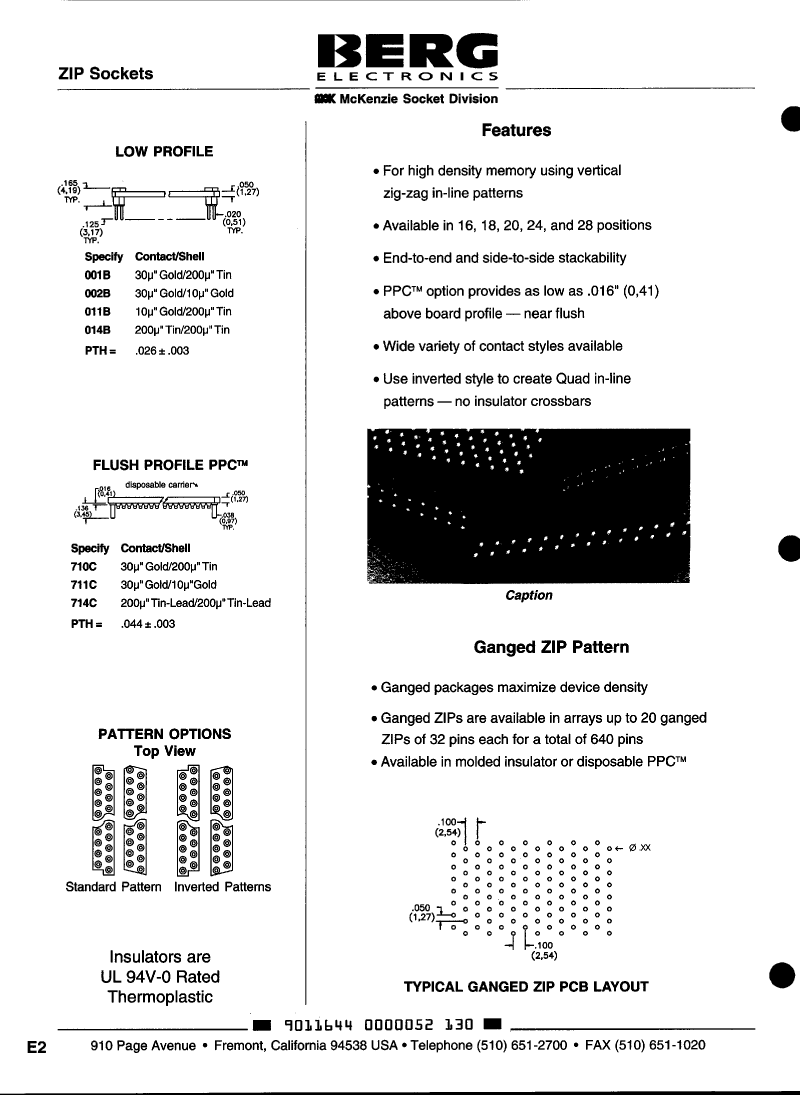

ZIP1X24-014B-S Overview

IC Socket, ZIP24, 24 Contact(s), 2.54mm Term Pitch , 0.1inch Row Spacing, Solder

Parameter Name	Attribute value
Objectid	302701965
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
body width	0.194 inch
subject depth	0.165 inch
body length	1.25 inch
Contact structure	STAGGERED
Contact to complete cooperation	SN ON NI
Contact completed and terminated	GOLD

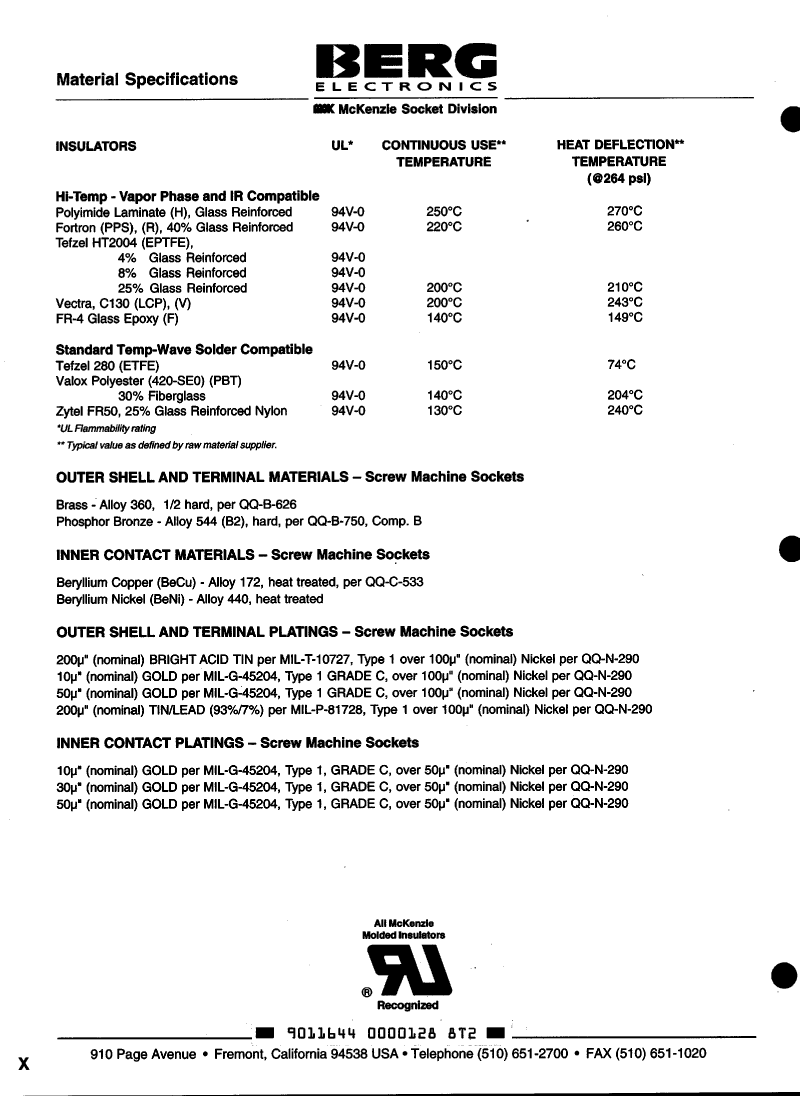

Contact material	BE-CU
Contact style	RND PIN-SKT

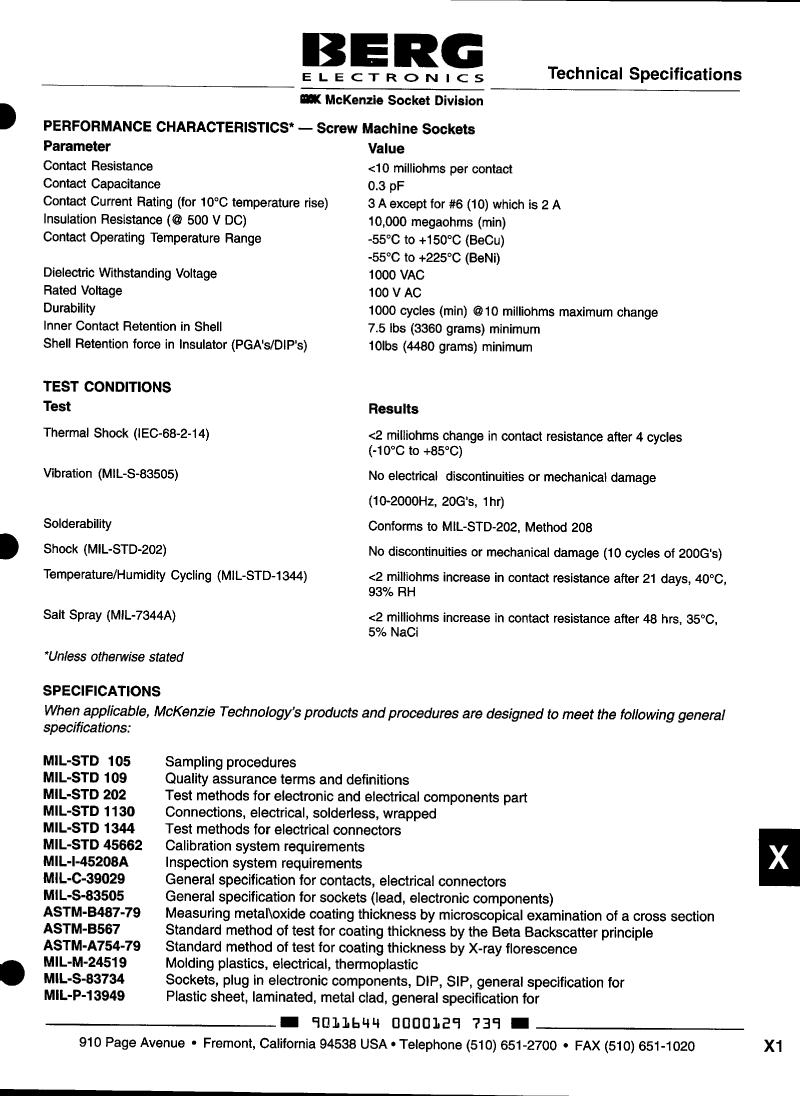

current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	ZIP24
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC
Insulation resistance	10000000000 Ω
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	24
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

	ZIP1X24-014B-S	ZIP1X24-011B-S	ZIP1X24-002B-S
Description	IC Socket, ZIP24, 24 Contact(s), 2.54mm Term Pitch , 0.1inch Row Spacing, Solder	IC Socket, ZIP24, 24 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder,	IC Socket, ZIP24, 24 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder,
Objectid	302701965	302701964	302701963
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
YTEOL	6.5	6.5	6.5
body width	0.194 inch	0.194 inch	0.194 inch
subject depth	0.165 inch	0.165 inch	0.165 inch
body length	1.25 inch	1.25 inch	1.25 inch
Contact to complete cooperation	SN ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD
Contact material	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	ZIP24	ZIP24	ZIP24
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Shell material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	24	24	24
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	0.1 mm	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Manufacturer's serial number	-	ZIP	ZIP
