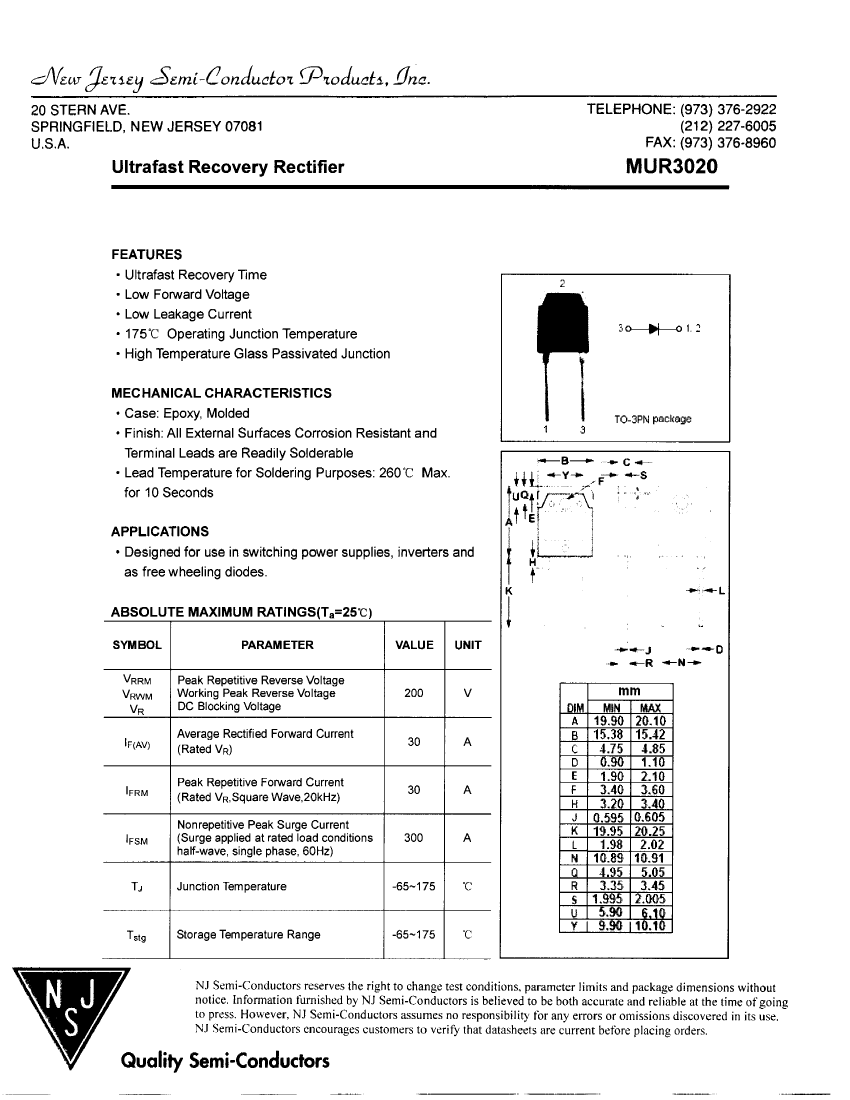

Ultrafast Recovery Rectifier
MUR3020
FEATURES
•
•
•
•
•
uiuarasi recovery iirne
Low Forward Voltage
Low Leakage Current
175°C Operating Junction Temperature
High Temperature Glass Passivated Junction
2
!
I
3o
'
3
?*»
— B —
-
w—o 1.
2
MECHANICAL CHARACTERISTICS
• Case: Epoxy, Molded
• Finish: All External Surfaces Corrosion Resistant and
Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260 °C Max.
for 10 Seconds
APPLICATIONS
• Designed for use in switching power supplies, inverters and
as free wheeling diodes.
ABSOLUTE MAXIMUM RATINGS(T
a
=25'C)
SYMBOL
VRRM
VRWM
VR
lF(AV)
TO-3PN package
» C
/
j
,
It
;
t"
PARAMETER
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
(Rated V
R
)
Peak Repetitive Forward Current
(Rated V
R
, Square Wave,20kHz)
Nonrepetitive Peak Surge Current
(Surge applied at rated load conditions
half-wave, single phase, 60Hz)
Junction Temperature
VALUE
UNIT
+.
«-R -*-
200
V
vr°
mm
WIN
DIM
A
19.90
B
15.38
C
4.75
30
A
n
IFRM
30
A
IFSM
300
A
Tj
-65-175
•c
'C
E
F
K
J
K
L
N
Q
R
S
M
Tstg
Storage Temperature Range
-65-175
Y
0.90
1.90
3.40
3.20
0.595
19.95
1.98
10.89
4.95
3.35
1.995
5.90
9.90
MAX
20.10
15.42
4.85
1.10
2.10
3.60
3,40
0.605
20.25
2.02
10.91
5.05
3.45
2.005
U.10
10.10
NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without
notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable at the time of going
to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.
NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.
Qualify Semi-Conductors

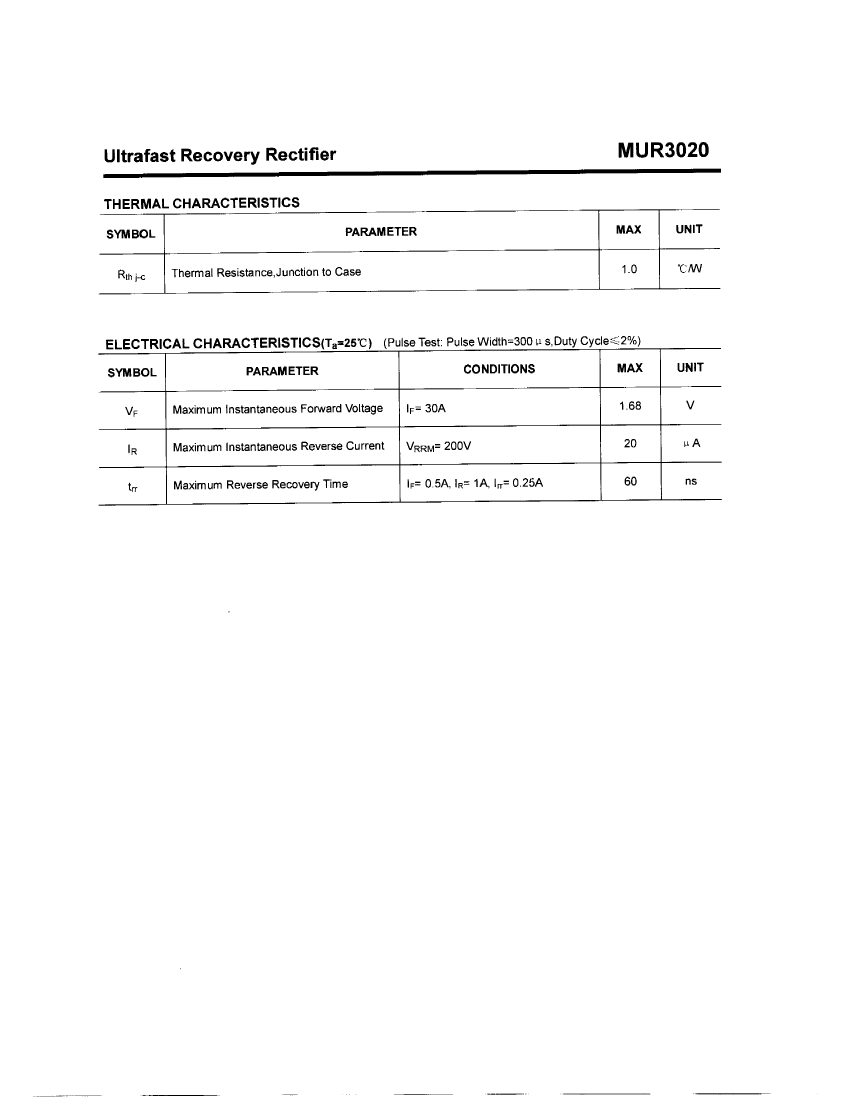

Ultrafast Recovery Rectifier
THERMAL CHARACTERISTICS
SYMBOL
PARAMETER
Thermal Resistance, Junction to Case
MUR3020
MAX
1.0
UNIT
Rth j-c
•c/w
ELECTRICALCHARACTERISTICS(T
a
=25t:)
(PulseTest: Pulse Width^300 us, DutyCycle<2%)
SYMBOL
V
F
IR
trr
PARAMETER
Maximum Instantaneous Forward Voltage
Maximum Instantaneous Reverse Current
Maximum Reverse Recovery Time
I
F
= 30A
CONDITIONS
MAX
1.68
20
60
UNIT
V
uA
ns
V
RRM
= 200V
I
F
= 0.5A, I
R
= 1A, !„= 0.25A
