246BBXP-010-120VAC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> 246BBXP-010-120VAC

246BBXP-010-120VAC: DescriptionMulti-Delay Relay, DPDT, Momentary, 4250mW (Coil), 10A (Contact), 28VDC (Contact), 1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Socket Mount; CategoryMechanical and electronic products relay; File Size110KB，2 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

246BBXP-010-120VAC Overview

Multi-Delay Relay, DPDT, Momentary, 4250mW (Coil), 10A (Contact), 28VDC (Contact), 1s Adj Min, 10s Adj Max, AC Input, AC/DC Output, Socket Mount

246BBXP-010-120VAC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RELAY FUNCTION 4PDT AND 6PST ALSO AVAILABLE
Maximum adjustable time delay	10 s
Minimum adjustable time delay	1 s
Coil current (AC) maximum value	0.035 A
Coil power	4250 mW
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	10A@120VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	246
Installation features	SOCKET MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	MULTI-DELAY RELAY
surface mount	NO
Termination type	SNAP-ON
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

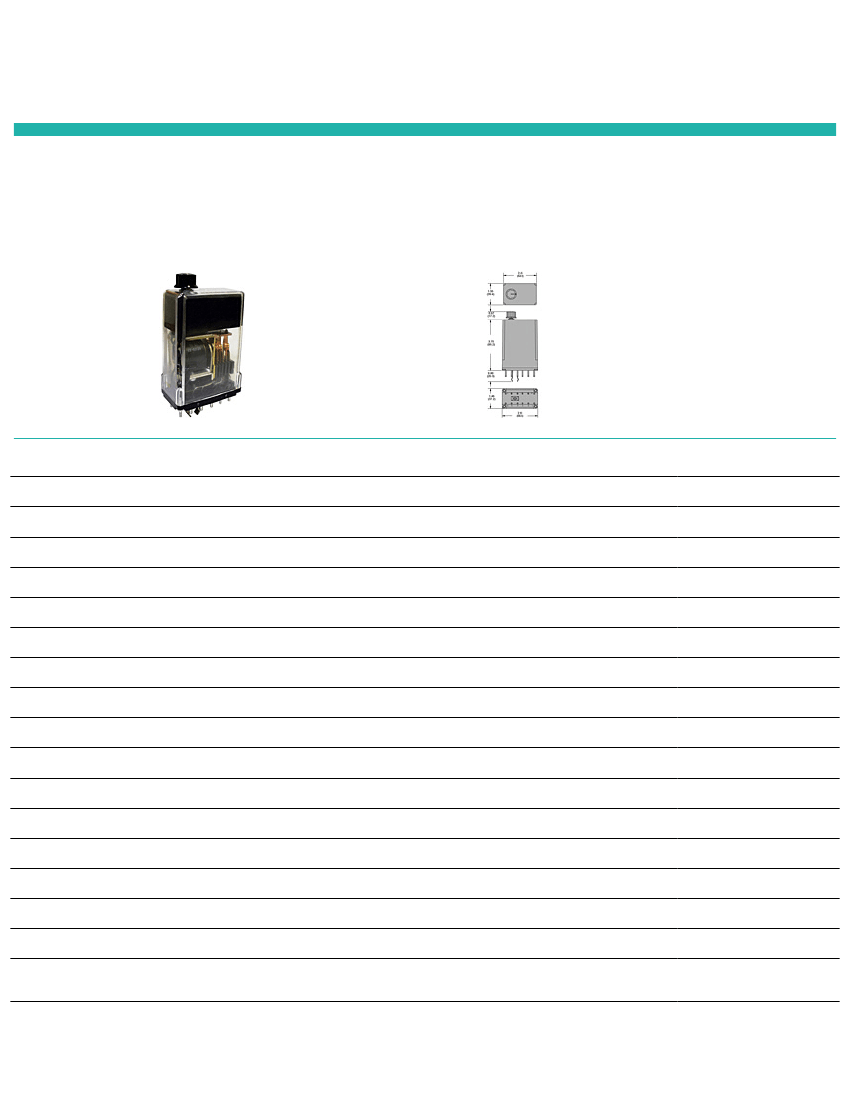

246/247 Series - Timer Delay Relays

Rugged, industrial time delay versions of the popular 219 series. Contacts can be configured up to four pole double throw or six pole single throw. Time ranges are

adjustable over a 1:10 range. Knob adjustment and integral hold down clip are standard. A large option list makes this product easily customized for special

applications.

For Additional Configuration please contact the manufacturer.

Results 1 - 20 of 20

Item #

246ABAP-010-120VAC

246ABAP-010-24VDC

246ABAP-010-115-125VDC

246ABAP-060-120VAC

246BBXP-001-120VAC

246BBXP-001-115-125VDC

246BBXP-010-120VAC

246BBXP-030-115-125VDC

246BBXP-180-115-125VDC

246XBXP-010-240VAC

246XBXP-010-115-125VDC

246XBXP-030-120VAC

246XBXP-060-120VAC

246XBXP-180-120VAC

246XBXP-180-115-125VDC

246XBXP-300-120VAC

246XBXPL-002-125VDC

Contact Arrangement

ABA (1 form A &2 form C &1

form B)

ABA (1 form A &2 form C &1

form B)

ABA (1 form A &2 form C &1

form B)

ABA (1 form A &2 form C &1

form B)

BBX (2 form A &2 form C) 246

only

BBX (2 form A &2 form C) 246

only

BBX (2 form A &2 form C) 246

only

BBX (2 form A &2 form C) 246

only

BBX (2 form A &2 form C) 246

only

XBX (DPDT) - (2 form C)

Mounting Options

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Plug in with polycarbonate

cover

Indicator Lamp

Timing Range

1.0 - 10 s

6.0 - 60 s

0.1 - 1.0 s

1.0 - 10 s

N/A

18 - 180 s

1.0 - 10 s

N/A

6.0 - 60 s

18 - 180 s

30 - 300 s

0.2 - 2.0 s

Operating Voltage

120 VAC

24 VDC

115-125 VDC

120 VAC

115-125 VDC

120 VAC

115-125 VDC

240 VAC

115-125 VDC

120 VAC

115-125 VDC

120 VAC

125 VDC
