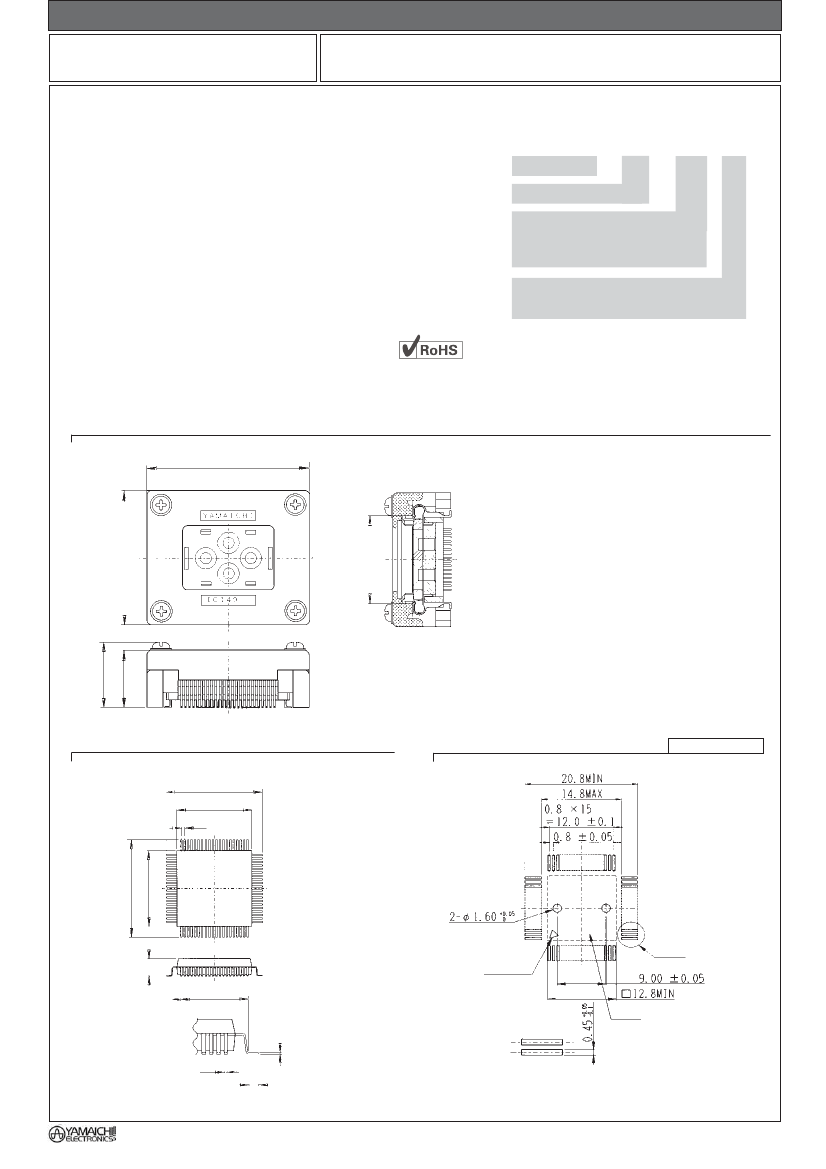

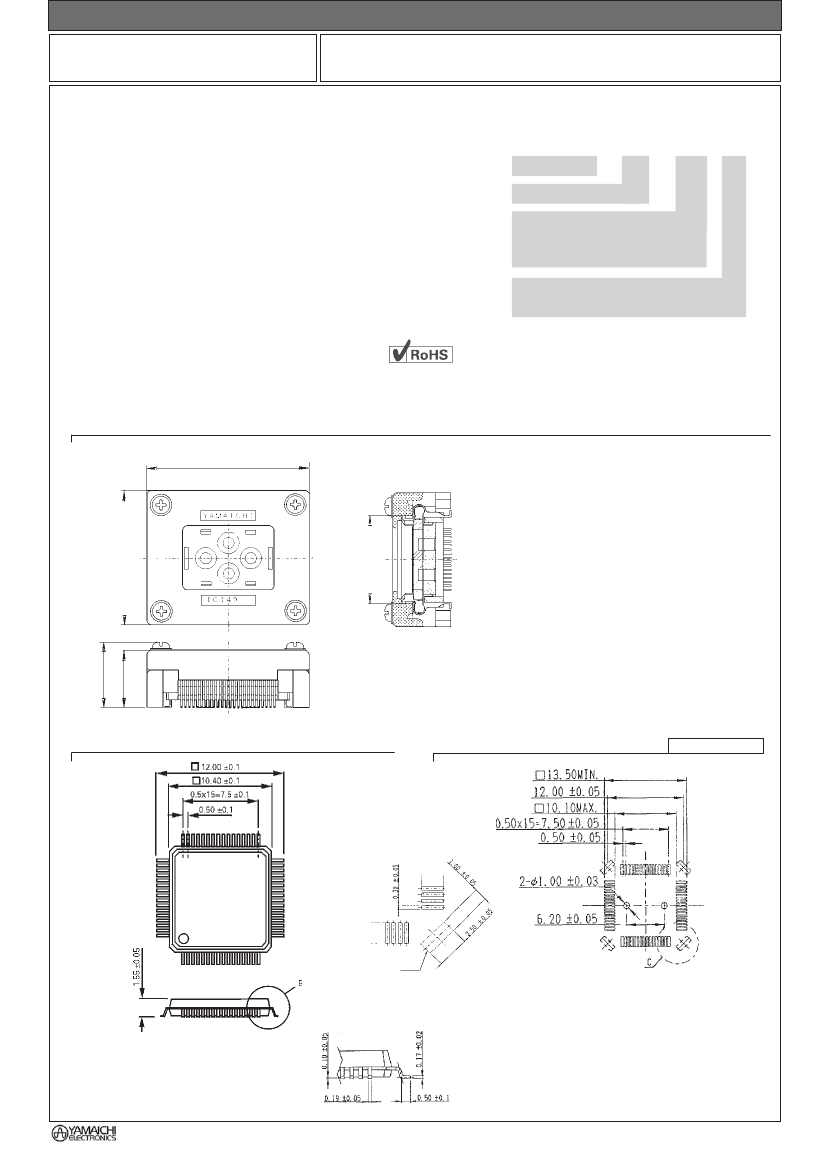

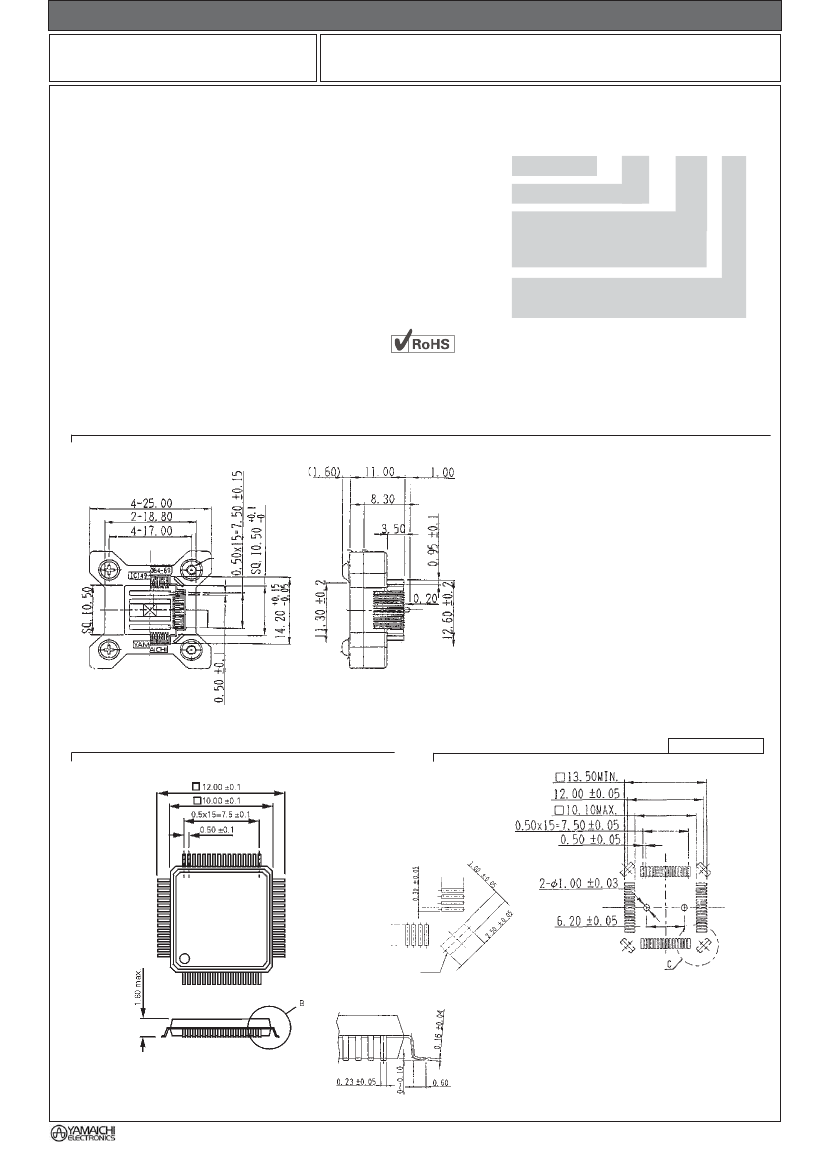

IC149 Series
(SMT)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Solvent Durability:
Allowable Torque (max.):
QFP/TQFP - 64 Pins
(10x10)
0.5mm pitch
Part Number
(Details)
500MΩ at 150V DC
100V
eff
to 700V
eff
for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
Freon
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
IC149
Series No.
-
064 - *69 - B5
No. of Contact Pins
Positioning Pins:
0 = Without Pins
1 = With Pins
Contact Plating:
Materials and Finish
Housing: Polyphenylenesulfide (PPS) glass filled UL94V-0
Contact: Beryllium Copper (BeCu)
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni = B5
B5 = Au over Ni
Compatible Emulation-Adapter
Not available
Outline Socket Dimensions
(Reference Only)
Remarks
1.
Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
2.
This Socket is not for automatic production. It is particulary suitable
for the development of software stored in ROM and for testing LSI-IC's.
3.
Careful attention must be taken when fixing the Socket, since it is
entirely made from thermoplastic material. If the max. torque is
exceeded, the Socket will be damaged beyond repair.
4.
If using the Socket with an Adapter, please use the gold-plated
Socket version.
IC - Dimensions
Socket PCB-Layout
Top View from Socket
Detail C
10mm x 10mm
N1
Detail B
Notes
N1:
Metal soldering Tab Clip. Socket may be stabilized by soldering
(Reflow) in these 4 areas.
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
CLICK HERE TO GO BACK TO PART NUMBER OVERVIEW
IC149 Series
(SMT)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Solvent Durability:
Allowable Torque (max.):
QFP/TQFP - 64 Pins
(16x16)
0.5mm pitch
Part Number
(Details)
500MΩ at 150V DC
100V
eff
to 700V
eff
for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
Freon
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
IC149
Series No.
-
064 - *75 - B5
No. of Contact Pins
Positioning Pins:
0 = Without Pins
1 = With Pins
Contact Plating:
Materials and Finish
Housing: Polyphenylenesulfide (PPS) glass filled UL94V-0
Contact: Beryllium Copper (BeCu)
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni = B5
B5 = Au over Ni
Compatible Emulation-Adapter
ICP-064-6
Outline Socket Dimensions
(Reference Only)
25.00
Remarks
10.70 x 10.70
1.
Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
2.
This Socket is not for automatic production. It is particulary suitable
for the development of software stored in ROM and for testing LSI-IC's.
3.
Careful attention must be taken when fixing the Socket, since it is
entirely made from thermoplastic material. If the max. torque is
exceeded, the Socket will be damaged beyond repair.
4.
If using the Socket with an Adapter, please use the gold-plated
Socket version.
IC - Dimensions
13.200
14.80
25.00
Socket PCB-Layout
Top View from Socket
Detail C
10.4mm x 10.4mm
N1
Detail B
Notes
N1:
Metal soldering Tab Clip. Socket may be stabilized by soldering
(Reflow) in these 4 areas.
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
CLICK HERE TO GO BACK TO PART NUMBER OVERVIEW

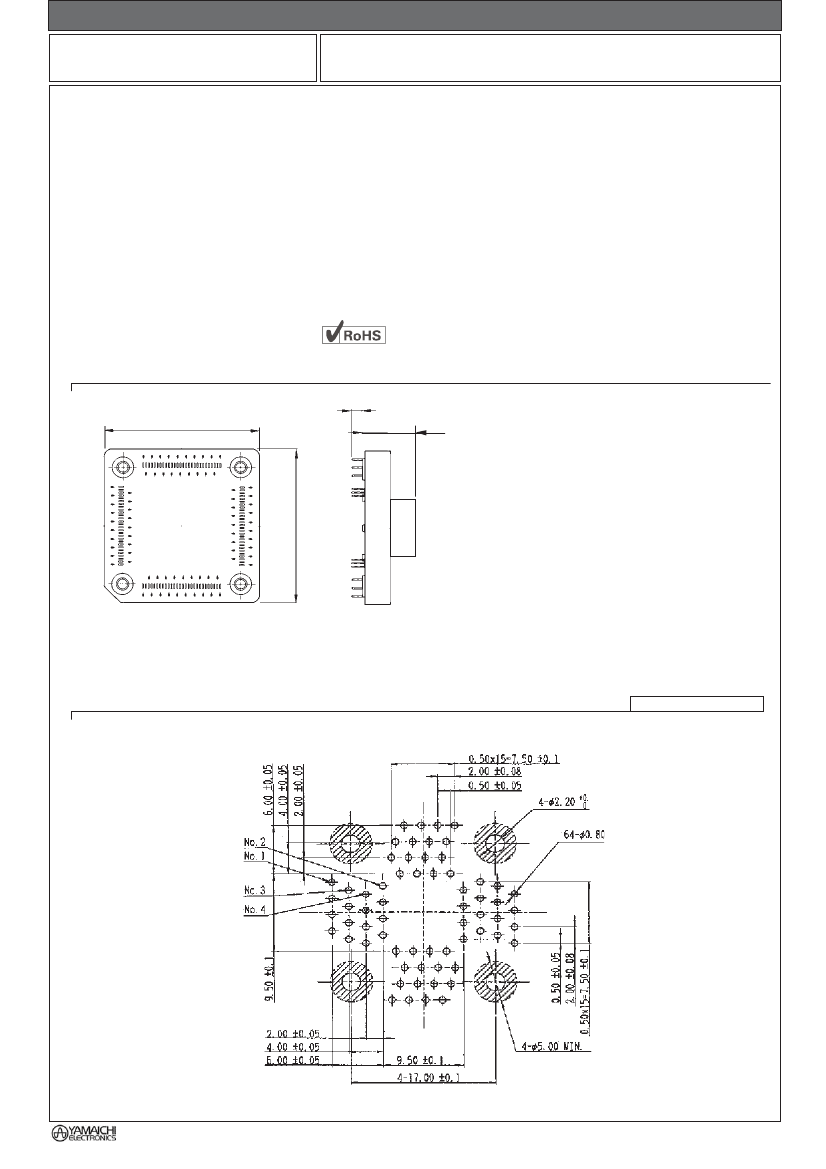

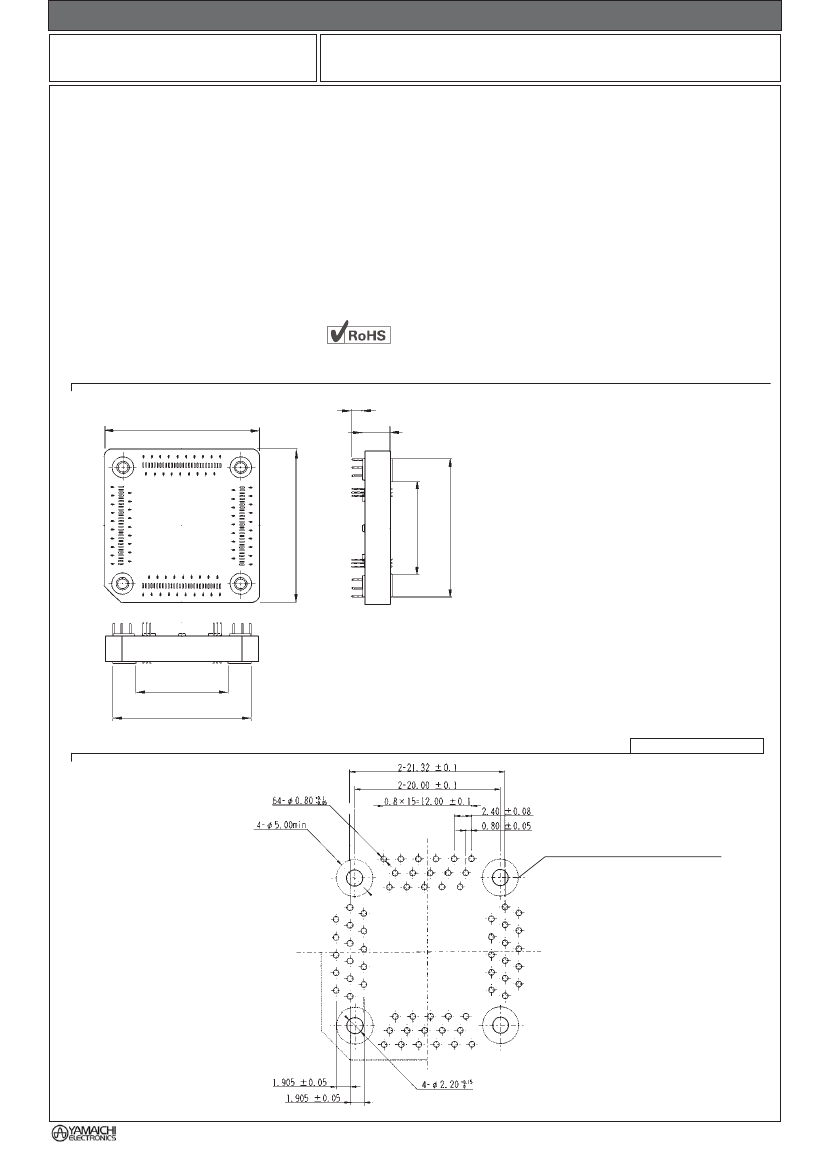

IC149 / ICP Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Allowable Torque (max.):
Emulation-Adapter (64 pins)
Adapter Part Number
500MΩ at 150V DC
700V AC for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
ICP-064-6
Compatible Socket (Part No.)
IC149-64-075-B5
(w/o pos. pins)
IC149-64-175-B5
(with pos. pins)
Materials and Finish
Housing: PTES, glass filled UL94V-0
Contact: Phosphor Bronze
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni
Outline Adapter Dimensions
(Reference Only)
2.4
25.00
8.08
Remarks
1. Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
25.00
2.
Careful attention must be taken when fixing the Adapter,
since it is made from thermoplastic material.
By exceeding the maximum torque a perfect performance can
no longer be guaranteed.
17.00
Adapter PCB-Layout (IC149-64-*08-B5)
25.53
Top View from Soldering Side
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
CLICK HERE TO GO BACK TO PART NUMBER OVERVIEW
IC149 Series
(SMT)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Solvent Durability:
Allowable Torque (max.):
QFP/TQFP - 64 Pins
(16x16)
0.8mm pitch
Part Number
(Details)
500MΩ at 150V DC
100V
eff
to 700V
eff
for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
Freon
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
IC149
Series No.
-
064 - *08 - B5
No. of Contact Pins
Positioning Pins:
0 = Without Pins
1 = With Pins
Contact Plating:
Materials and Finish
Housing: Polyphenylenesulfide (PPS) glass filled UL94V-0
Contact: Beryllium Copper (BeCu)
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni = B5
B5 =Au over Ni
Compatible Emulation-Adapter
ICP-064-2
Outline Socket Dimensions
(Reference Only)
26.00
Remarks
1.
Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
16.40 x 16.40
26.00
2.
This Socket is not for automatic production. It is particulary suitable
for the development of software stored in ROM and for testing LSI-IC's.
3.
Careful attention must be taken when fixing the Socket, since it is
entirely made from thermoplastic material. If the max. torque is
exceeded, the Socket will be damaged beyond repair.
4.
If using the Socket with an Adapter, please use the gold-plated
Socket version.
10.10
IC - Dimensions
8.50
Socket PCB-Layout
Top View from Socket
17.2
14.0
0.8
17.2
14.0
14mm
x 14mm
N3
Detail E
2.15
15.6 • 15.6
Detail E
N4
Coding
0.15
0.35
Notes
N3:
These holes are only necessary for use with positioning pins.
N4:
The Socket may be glued to the PC Board within this area.
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE -- DIMENSIONS IN MILLIMETER
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE
DIMENSIONS IN MILLIMETER
CLICK HERE TO GO BACK TO PART NUMBER OVERVIEW
IC149 / ICP Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Operating Temp. Range:
Reflow-soldering Temp.:
Mating Cycles:
Allowable Torque (max.):
Emulation-Adapter (64 pins)
Adapter Part Number
500MΩ at 150V DC
700V AC for 1 minute
30mΩ max. at 10mA and 20mV
-25°C to +85°C
220°C for 60 seconds
20 insertions maximum
- for 1-time screw connection
= max 0.147 Nm
- for repetitive screw connection = min 0.078 Nm
max 0.098 Nm
ICP-064-2
Compatible Socket (Part No.)
IC149-64-008-B5
(w/o pos. pins)
IC149-64-108-B5
(with pos. pins)
Materials and Finish
Housing: PTES, glass filled UL94V-0
Contact: Phosphor Bronze
Plating: Au 0.3µm min. over 2.5 ~ 4.5µm Ni
Outline Adapter Dimensions
(Reference Only)
2.4
28.00
6.20
Remarks
1. Ensure a clean contact area. Fluxes, dust and other impurifications
may cause corrosion and contact problems.
28.00
2.
Careful attention must be taken when fixing the Adapter,
since it is made from thermoplastic material.
By exceeding the maximum torque a perfect performance can
no longer be guaranteed.
15.00
15.00
25.53
Adapter PCB-Layout (IC149-64-*08-B5)
25.53
Top View from Soldering Side
Note:
No conduits within this hatched area.
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
