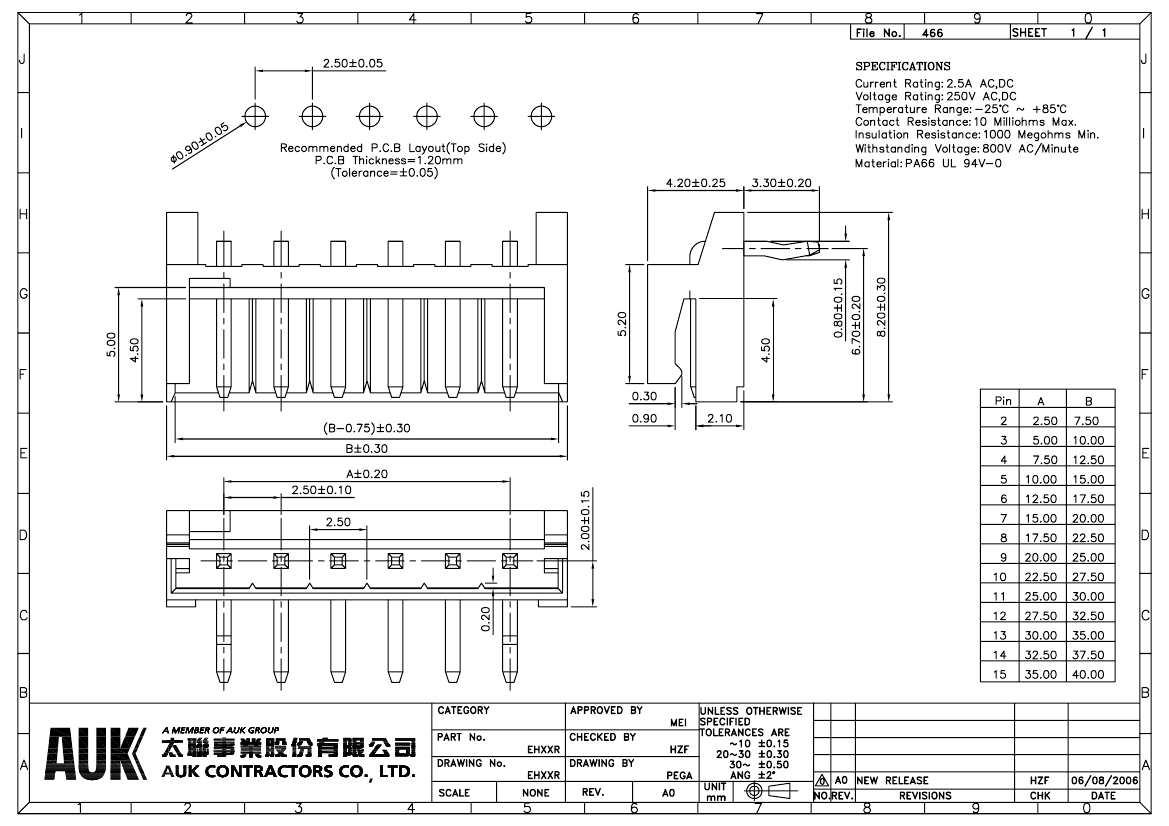

EH02R: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size218KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

EH02R Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

EH02R Parametric

Parameter Name	Attribute value
Objectid	304402989
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.165 inch
subject depth	0.323 inch
body length	0.295 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	EH
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	2

Preview

Download Datasheet

View All

EH02R Related Products

	EH02R	EH04R	EH15R	EH05R	EH06R	EH11R
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
subject depth	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch
body length	0.295 inch	0.492 inch	1.575 inch	0.591 inch	0.689 inch	1.181 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	EH	EH	EH	EH	EH	EH
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A	2.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	2	4	15	5	6	11
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
