Power Transformers
P o w e r Tr a n s f o r m e r s
PC Mount: Split Pack
::
D e s c r i p t i o n
™
Class B
UL Recognized
UL File E53148

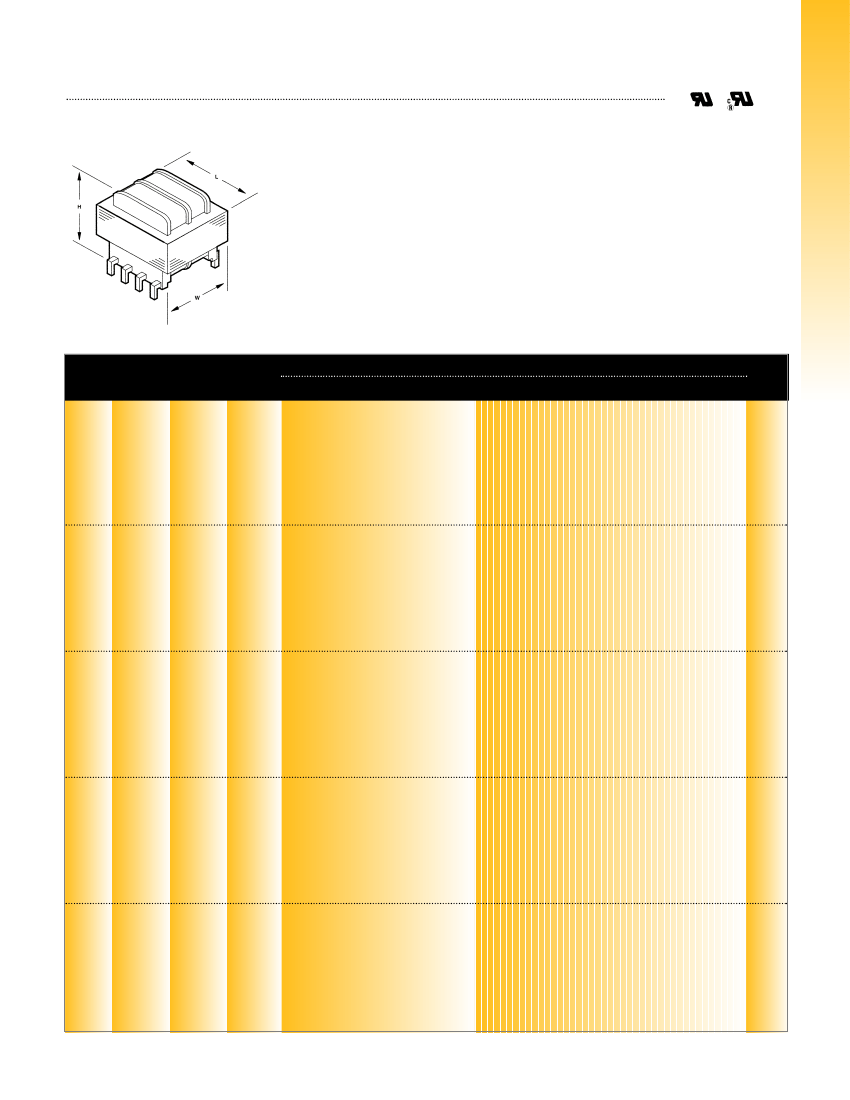

The Triad Split Pack split bobbin transformer is an extremely versatile tool for PC board applications. Split
Pack transformers are nonconcentrically wound -- with primaries and secondaries side-by-side. Unlike the
secondary-on-top-of-primary designs of standard PC board transformers, the split bobbin winding and low
capacitive coupling eliminate costly electrostatic shielding. It is offered in a dual secondary configuration
with either single or dual primaries.
::
S p e c i f i c a t i o n s
Primary:
115 V, 50/60 Hz
|
VA Ranges:
1.1 to 36.0
Secondary:
Series - 10 to 120 V; Parallel - 5 to 60 V
::
S p l i t P a c k
Single
Primary
6 Pin
F10-110
F12-090
F16-070
F20-055
F24-045
F28-040
F36-030
F48-023
F56-020
F120-010
F10-250
F12-200
F16-150
F20-120
F24-100
F28-85
F36-65
F48-050
F56-045
F120-020
F10-600
F12-500
F16-400
F20-300
F24-250
F28-200
F36-170
F48-125
F56-110
F120-050
F10-1200
F12-1000
F16-800
F20-600
F24-500
F28-420
F36-350
F48-250
F56-220
F120-100
F10-2000
F12-1600
F16-1250
F20-1000
F24-800
F28-700
F36-550
F48-400
F56-350
F120-160
Dual
Primary
8 Pin
FS10-110
FS12-090
FS16-070
FS20-055
FS24-045
FS28-040
FS36-030
FS48-023
FS56-020
FS120-01
FS10-250
FS12-200
FS16-150
FS20-120
FS24-100
FS28-85
FS36-65
FS48-050
FS56-045
FS120-02
FS10-600
FS12-500
FS16-400
FS20-300
FS24-250
FS28-200
FS36-170
FS48-125
FS56-110
FS120-05
FS10-1200
FS12-1000
FS16-800
FS20-600
FS24-500
FS28-420
FS36-350
FS48-250
FS56-220
FS120-100
FS10-2000
FS12-1600
FS16-1250
FS20-1000
FS24-800
FS28-700
FS36-550
FS48-400
FS56-350
FS120-160
Secondary
VA
Series
10.0V CT @ 0.11A
12.6V CT @ 0.09A
16.0V CT @ 0.07A
20.0V CT @ 0.055A
24.0V CT @ 0.045A
28.0V CT @ 0.040A
36.0V CT @ 0.03A
48.0V CT @ 0.023A
56.0V CT @ 0.02A
120.0V CT @ 0.01A
10.0V CT @ 0.25A
12.6V CT @ 0.2A
16.0V CT @ 0.15A
20.0V CT @ 0.12A
24.0V CT @ 0.1A
28.0V CT @ 0.085A
36.0V CT @ 0.065A
48.0V CT @ 0.05A
56.0V CT @ 0.045A
120.0V CT @ 0.02A
10.0V CT @ 0.6A
12.6V CT @ 0.5A
16.0V CT @ 0.4A
20.0V CT @ 0.3A
24.0V CT @ 0.25A
28.0V CT @ 0.2A
36.0V CT @ 0.17A
48.0V CT @ 0.125A
56.0V CT @ 0.11A
120.0V CT @ 0.05A
10.0V CT @ 1.2A
12.6V CT @ 1.0A
16.0V CT @ 0.8A
20.0V CT @ 0.6A
24.0V CT @ 0.5A
28.0V CT @ 0.42A
36.0V CT @ 0.35A
48.0V CT @ 0.25A
56.0V CT @ 0.22A
120.0V CT @ 0.1A
10.0V CT @ 2.0A
12.6V CT @ 1.6A
16.0V CT @ 1.25A
20.0V CT @ 1.0A
24.0V CT @ 0.8A
28.0V CT @ 0.7A
36.0V CT @ 0.55A
48.0V CT @ 0.4A
56.0V CT @ 0.35A
120.0V CT @ 0.16A
Parallel
5.0V @ 0.22A
6.3V @ 0.18A
8.0V @ 0.14A
10.0V @ 0.11A
12.0V @ 0.09A
14.0V @ 0.08A
18.0V @ 0.06A
24.0V @ 0.046A
28.0V @ 0.04A
60.0V @ 0.02A
5.0V @ 0.5A
6.3V @ 0.4A
8.0V @ 0.3A
10.0V @ 0.24A
12.0V @ 0.2A
14.0V @ 0.17A
18.0V @ 0.13A
24.0V @ 0.1A
28.0V @ 0.09A
60.0V @ 0.04A
5.0V @ 1.2A
6.3V @ 1.0A
8.0V @ 0.8A
10.0V @ 0.6A
12.0V @ 0.5A
14.0V @ 0.4A
18.0V @ 0.34A
24.0V @ 0.25A
28.0V @ 0.22A
60.0V @ 0.1A
5.0V @ 2.4A
6.3V @ 2.0A
8.0V @ 1.6A
10.0V @ 1.2A
12.0V @ 1.0A
14.0V @ 0.84A
18.0V @ 0.7A
24.0V @ 0.5A
28.0V @ 0.44A
60.0V @ 0.2A
5.0V @ 4.0A
6.3V @ 3.2A
8.0V @ 2.5A
10.0V @ 2.0A
12.0V @ 1.6A
14.0V @ 1.4A
18.0V @ 1.1A
24.0V @ 0.8A
28.0V @ 0.7A
60.0V @ 0.32A
H
W
L
Dimensions
ML
A
B
C
Wt.
Lbs.
Section
A
1.1
15
/
16
1
1
/
8
1
3
/
8
•
0.250
0.250
1.20
0.17
B
2.5
1
3
/
16
1
1
/
8
1
3
/
8
•
0.250
0.250
1.20
0.25
C
6.0
1
5
/
16
1
5
/
16
1
5
/
8
1
1
/
16
0.250
0.350
1.280
0.44
D
12.0
1
7
/
16
1
9
/
16
1
7
/
8
1
1
/
4
0.30
0.40
1.410
0.70
E
20.0
1
7
/
16
1
7
/
8
2
1
/
4
1
1
/
2
0.30
0.40
1.60
0.80
CT = Center Tap
www.TriadMagnetics.com
|
22520 B Temescal Canyon Road, Corona, CA 92883
|
Phone 951-277-0757
|
FAX 951-277-2757
4 8
|
Power Transformers
P o w e r Tr a n s f o r m e r s
PC Mount: Split Pack
Single
Primary
6 Pin
F10-3600
F12-2850
F16-2250
F20-1800
F24-1500
F28-1300
F36-1000
F48-750
F56-650
F120-300
Dual
Primary
8 Pin
FS10-3600
FS12-2850
FS16-2250
FS20-1800
FS24-1500
FS28-1300
FS36-1000
FS48-750
FS56-650
FS120-300
Secondary
VA
Series
10.0V CT @ 3.6A
12.6V CT @ 2.85A
16.0V CT @ 2.25A
20.0V CT @ 1.8A
24.0V CT @ 1.5A
28.0V CT @ 1.3A
36.0V CT @ 1.0A
48.0V CT @ 0.75A
56.0V CT @ 0.65A
120.0V CT @ 0.3A
Parallel
5.0V @ 7.2A
6.3V @ 5.7A
8.0V @ 4.5A
10.0V @ 3.6A
12.0V @ 3.0A
14.0V @ 2.6A
18.0V @ 2.0A
24.0V @ 1.5A
28.0V @ 1.3A
60.0V @ 0.6A
H
W
L
™
Dimensions
ML
A
B
C
Wt.
Lbs.
Section
A
36.0
1
9
/
16
2
3
/
16
2
5
/
8
*
0.40
0.40
1.850
1.1
* 36 VA size has 4 mtg. holes on 2
3
⁄
16
x 1
3
⁄
4
centers. CT = Center Tap
::

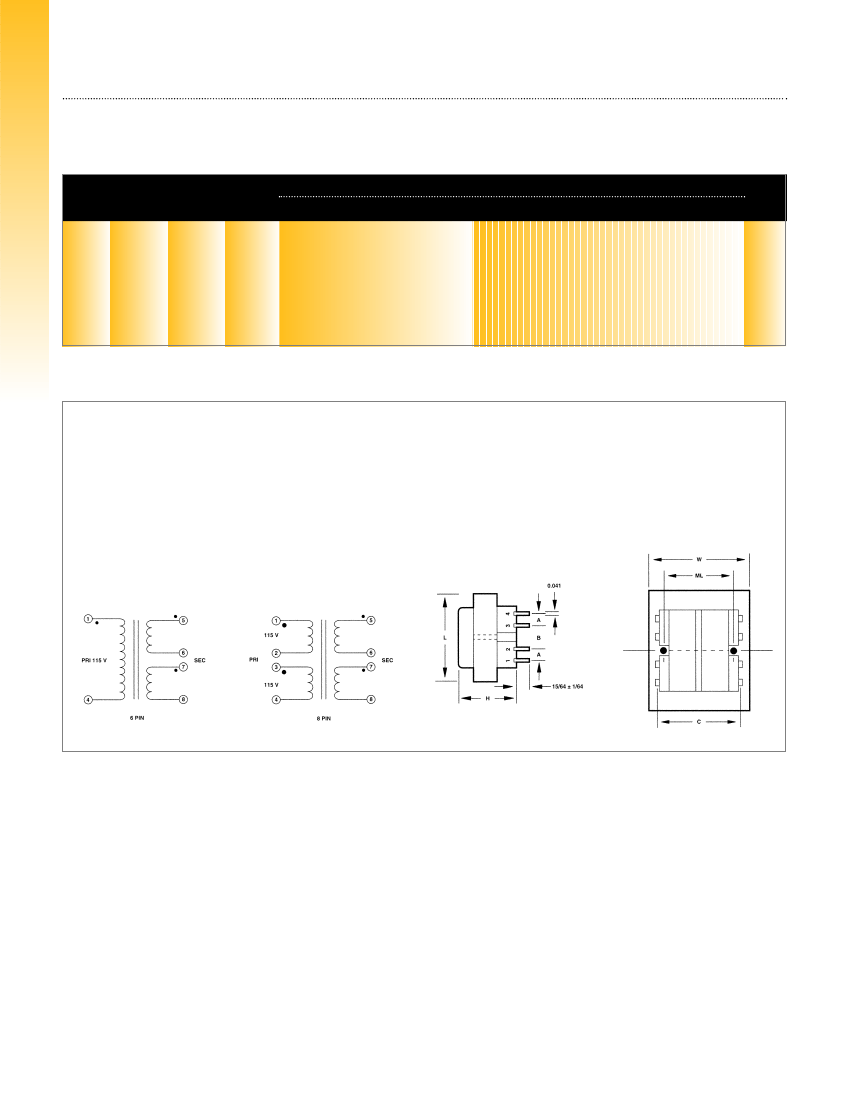

O u t l i n e D i m e n s i o n s
Te c h n i c a l N o t e s
1.
Hi-pot tested at 2,500 VRMS.
2.
PC terminal pin spacing for accurate placement.
3.
115 V connect primary in parallel.
230 V connect primary in series.
4. Series Connections:
Primary
- Input 1 & 4
Connect 2 & 3
Secondary
- Input 5 & 8
Connect 6 & 7
5. Parallel Connections:
Primary
- Input 1 & 2
Connect 1 & 3. 2 & 4
Secondary
- Input 5 & 8
Connect 5 & 7, 6 & 8
6.
For single primary, omit pins 2 and 3.
