BR24C08-RMN6TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR24C08-RMN6TP

BR24C08-RMN6TP: Description1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8; Categorystorage storage; File Size319KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR24C08-RMN6TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR24C08-RMN6TP	-	-	View	Buy Now

BR24C08-RMN6TP Overview

1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8

BR24C08-RMN6TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DMMR
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	8192 bit
Memory IC Type	EEPROM
memory width	1
Number of functions	1
Number of terminals	8
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX1
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum standby current	3e-7 A
Maximum slew rate	0.0008 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
write protect	HARDWARE
Base Number Matches	1

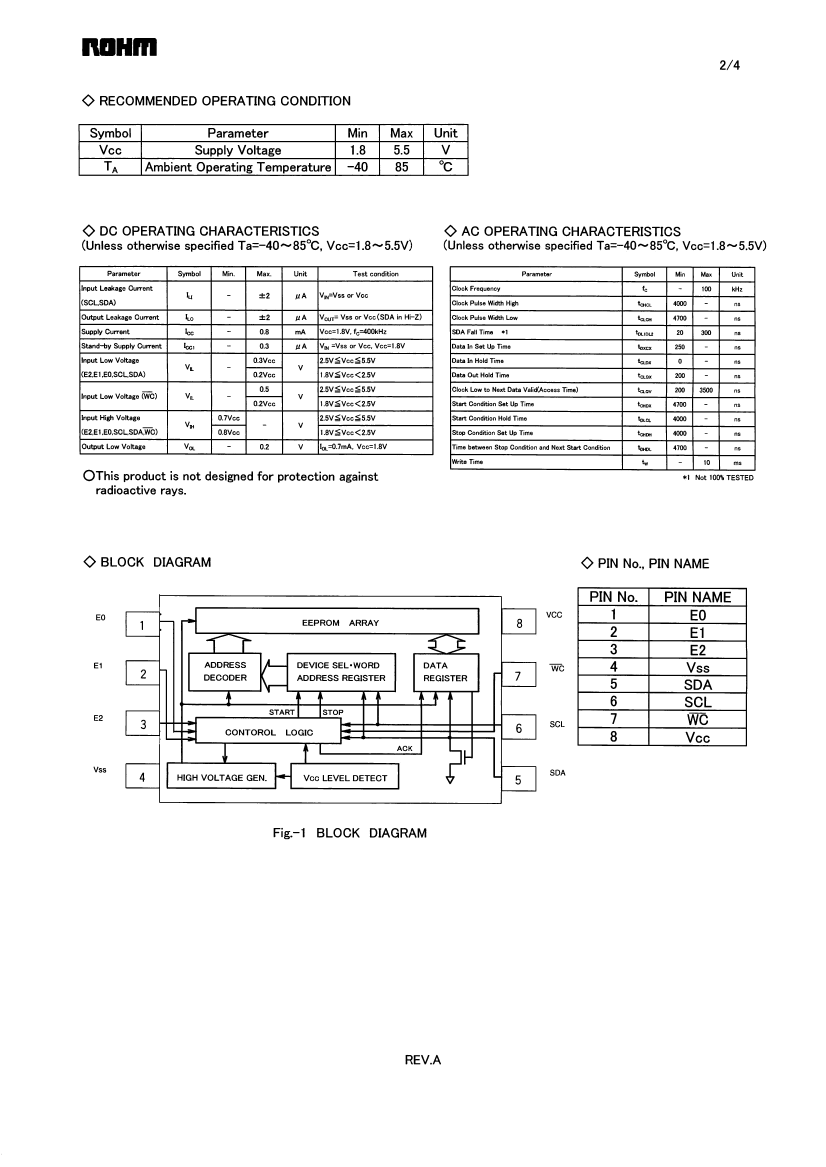

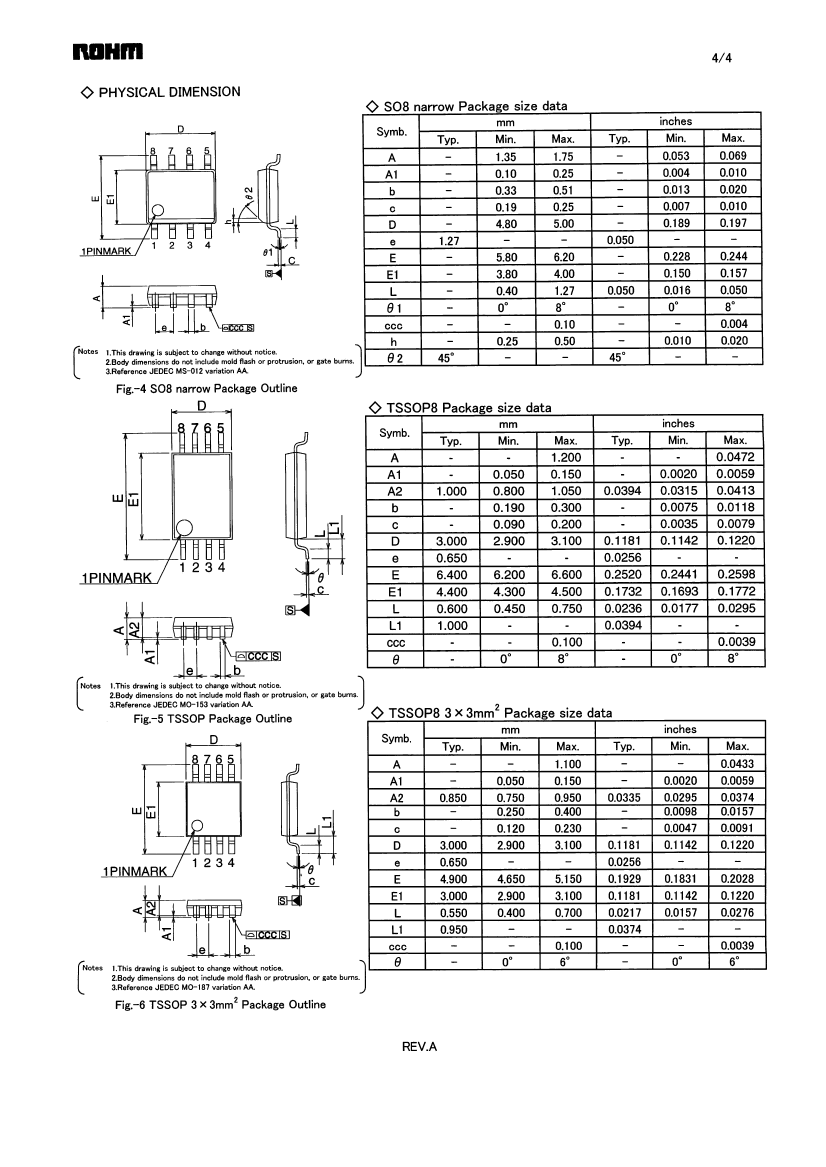

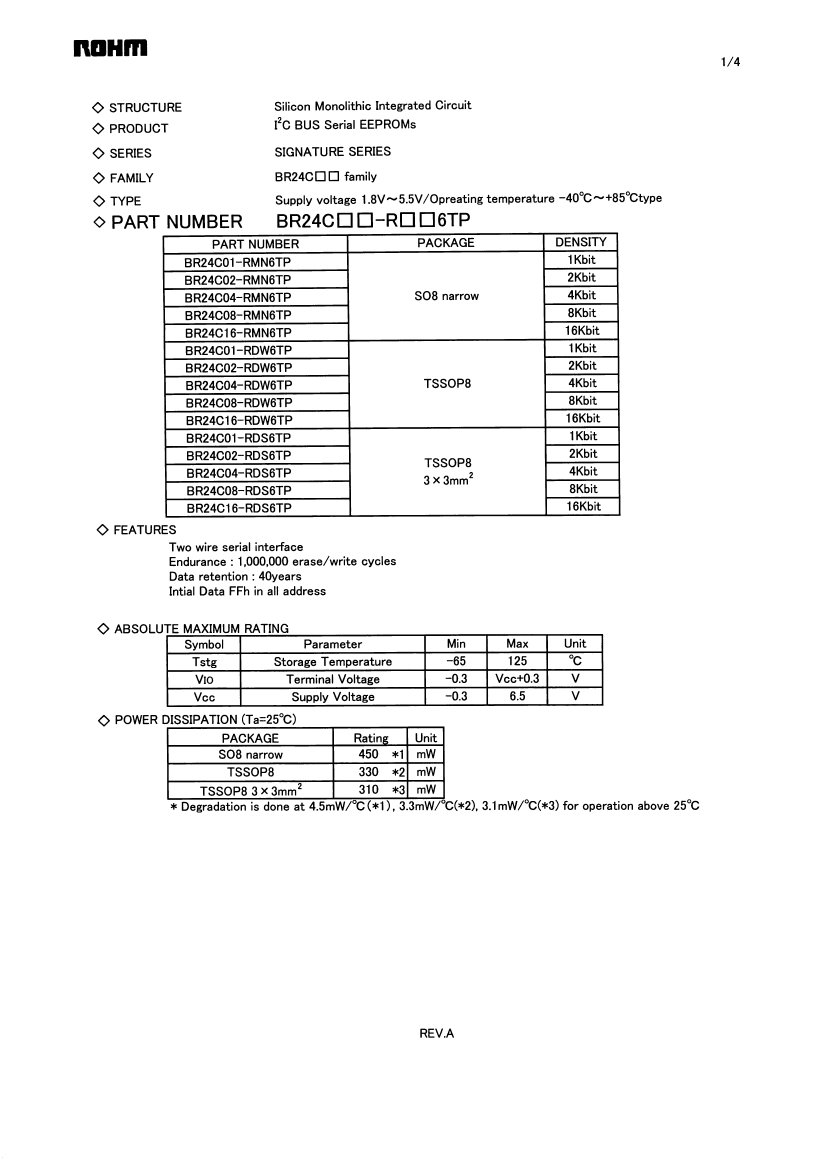

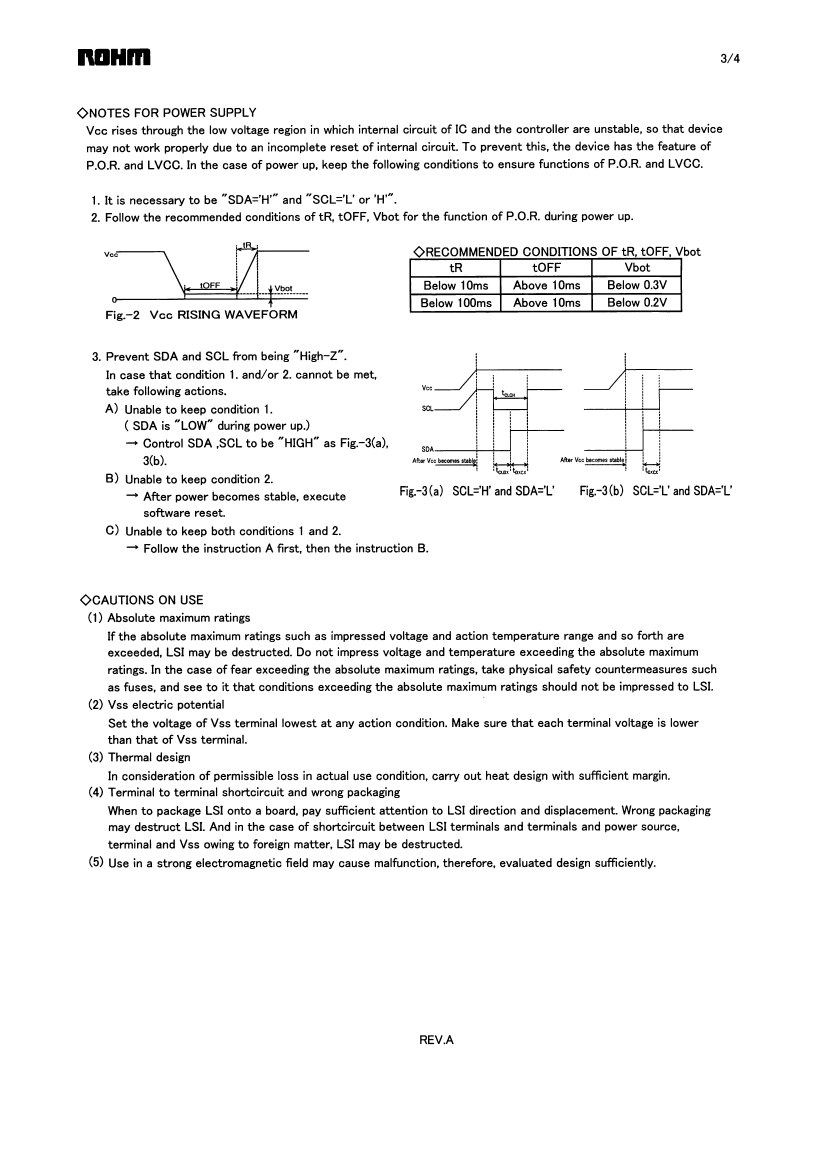

Preview

Download Datasheet

View All

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1

BR24C08-RMN6TP Related Products

	BR24C08-RMN6TP	BR24C01-RMN6TP	BR24C04-RMN6TP	BR24CXX-RXX6TP	BR24C01-RDS6TP	BR24C01-RDW6TP	BR24C04-RDS6TP	BR24C04-RDW6TP	BR24C08-RDW6TP	BR24C08-RDS6TP
Description	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8	1K X 1 I2C/2-WIRE SERIAL EEPROM, PDSO8
memory width	1	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 Cel	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 Cel	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	8KX1	1KX1	4KX1	1K X 1	1KX1	1KX1	4KX1	4KX1	8KX1	8KX1
surface mount	YES	YES	YES	Yes	YES	YES	YES	YES	YES	YES
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	-	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP
package instruction	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	-	TSSOP, TSSOP8,.19	TSSOP, TSSOP8,.25	TSSOP, TSSOP8,.19	TSSOP, TSSOP8,.25	TSSOP, TSSOP8,.25	TSSOP, TSSOP8,.19
Contacts	8	8	8	-	8	8	8	8	8	8
Reach Compliance Code	unknown	compli	unknow	-	compli	compli	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Data retention time - minimum	40	40	40	-	40	40	40	40	40	40
Durability	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	-	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles
I2C control byte	1010DMMR	1010DDDR	1010DDMR	-	1010DDDR	1010DDDR	1010DDMR	1010DDMR	1010DMMR	1010DMMR
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	-	S-PDSO-G8	R-PDSO-G8	S-PDSO-G8	R-PDSO-G8	R-PDSO-G8	S-PDSO-G8
length	4.9 mm	4.9 mm	4.9 mm	-	3 mm	4.4 mm	3 mm	4.4 mm	4.4 mm	3 mm
memory density	8192 bit	1024 bi	4096 bi	-	1024 bi	1024 bi	4096 bi	4096 bi	8192 bit	8192 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	-	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
word count	8192 words	1024 words	4096 words	-	1024 words	1024 words	4096 words	4096 words	8192 words	8192 words
character code	8000	1000	4000	-	1000	1000	4000	4000	8000	8000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	-	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP	TSSOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	-	TSSOP8,.19	TSSOP8,.25	TSSOP8,.19	TSSOP8,.25	TSSOP8,.25	TSSOP8,.19
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	-	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	2/5 V	2/5 V	2/5 V	-	2/5 V	2/5 V	2/5 V	2/5 V	2/5 V	2/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	-	1.1 mm	1.2 mm	1.1 mm	1.2 mm	1.2 mm	1.1 mm
Serial bus type	I2C	I2C	I2C	-	I2C	I2C	I2C	I2C	I2C	I2C
Maximum standby current	3e-7 A	3e-7 A	3e-7 A	-	3e-7 A	3e-7 A	3e-7 A	3e-7 A	3e-7 A	3e-7 A
Maximum slew rate	0.0008 mA	0.0008 mA	0.0008 mA	-	0.0008 mA	0.0008 mA	0.0008 mA	0.0008 mA	0.0008 mA	0.0008 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	-	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	-	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	3.9 mm	3.9 mm	-	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	-	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
write protect	HARDWARE	HARDWARE	HARDWARE	-	HARDWARE	HARDWARE	HARDWARE	HARDWARE	HARDWARE	HARDWARE
