PLCC2 SMD Top View Package LED
SMP2-UWD, WHITE
SMP2-UWD
♦
♦
♦
♦
♦
Industry Standard PLCC2 Footprint
Low Profile Package
High Luminous Intensity
Wide Viewing Angle
High Power Efficiency
Bivar SMP2 LED is offered in an industry standard PLCC2 package with high luminous intensity and wide
viewing angles. The miniature package is ideal for small scale applications such as illumination, general
indication, and backlighting. Low power consumption and excellent long life reliability are suitable for bat-
tery powered equipment. The robust package is ideal for harsh working environments and can be used in
clusters for high luminous applications. Wide variety of color and intensity combinations are available to
meet any illumination needs. Bivar SMP2 LED is packaged in standard tape and reels for pick and place
assemblies.
Part Number
SMP2-UWD
Material
InGaN/GaN
Emitted Color
White
Lumen Typ. mcd
1050
Lens Color
Diffused
Viewing Angle
120°

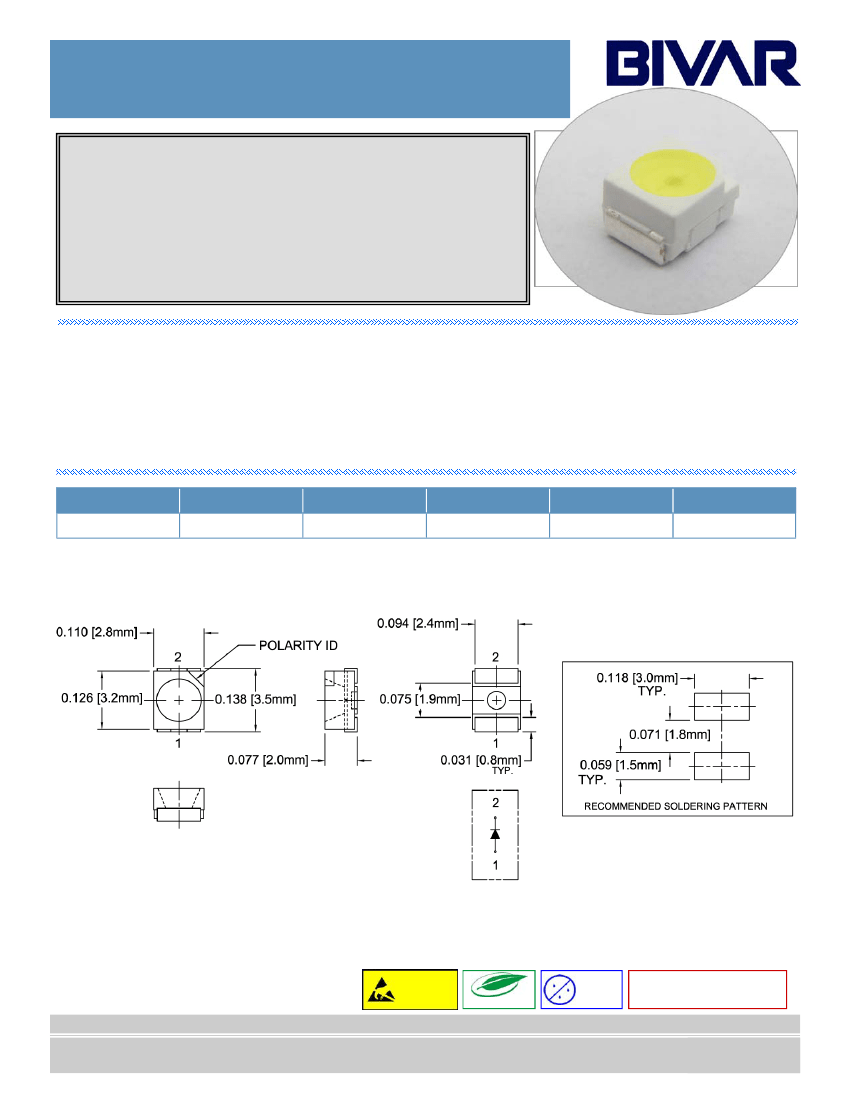

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 4
CAUTION: LOOKING DIRECTLY AT
LED WITHOUT SHIELDED EYES
MAY CAUSE DAMAGE TO RETINA.
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 01/10
Page 1 of 5
PLCC2 SMD Top View Package LED
SMP2-UWD, WHITE
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Continuous Forward Current
Peak Forward Current
1
Reverse Voltage
Derating Linear From 25°C
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 1.6 mm from body )
2
Electrostatic Discharge (HBM)
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
2. Solder time less than 5 seconds at temperature extreme.
80 mW
25 mA
100 mA
5V
0.4 mA/°C
-40 ~ +85°C
-40 ~ +100°C
260°C
2000 V
Electrical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
TYP
White
3.2
MAX
3.6
Recommend
Forward
Current (mA)
TYP
20
Reverse
Current (µA)
V
R
=5V
MAX
10
Chromaticity
Coordinates (XY)
2
TYP
X=0.30 , Y=0.30
Luminous
Intensity (mcd)
3
MIN
900
TYP
1050
Viewing
Angle
2
Ө
½ (deg)
TYP
120
Emitting
Color
Notes: 1. Tolerance of Forward Voltage : ±0.05V.
2. Tolerance of Chromaticity Coordinates : ±0.02.
3. Tolerance of Luminous Intensity : ±15%.
Directivity Radiation
T
A
= 25°C unless otherwise noted

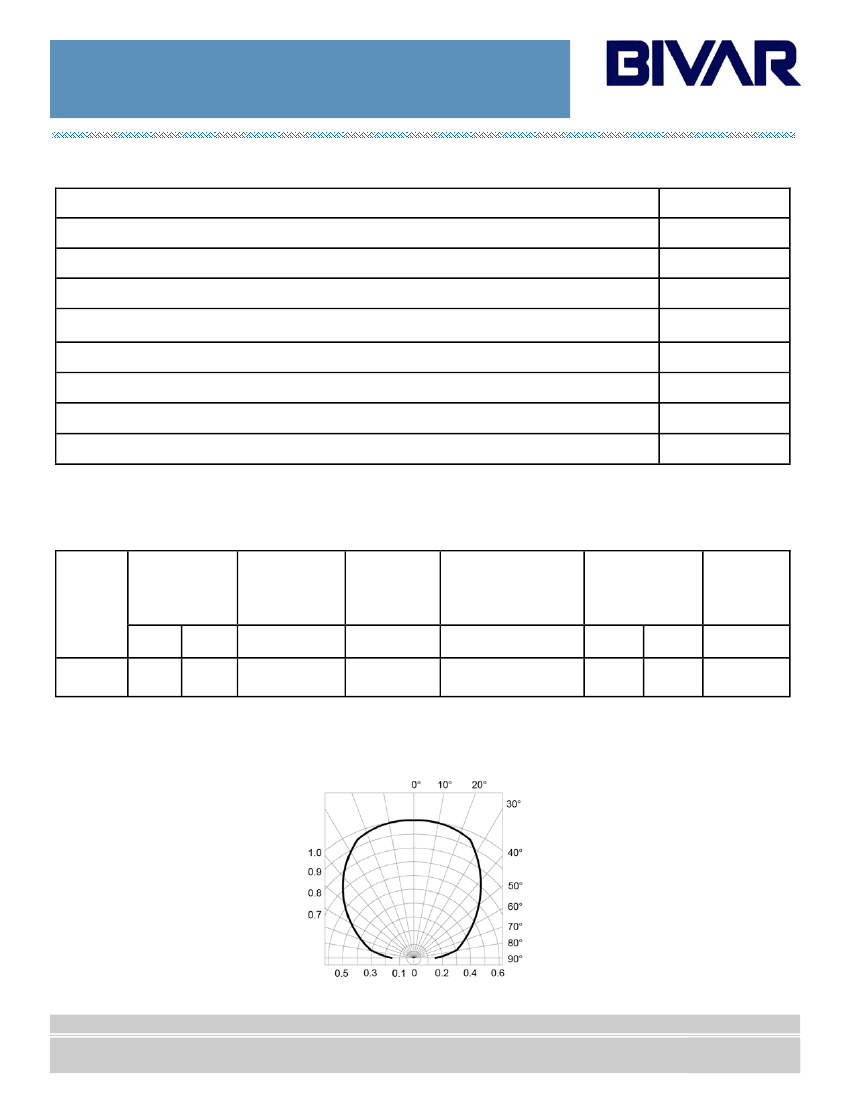

Radiation Diagram
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 01/10
Page 2 of 5
PLCC2 SMD Top View Package LED
SMP2-UWD, WHITE

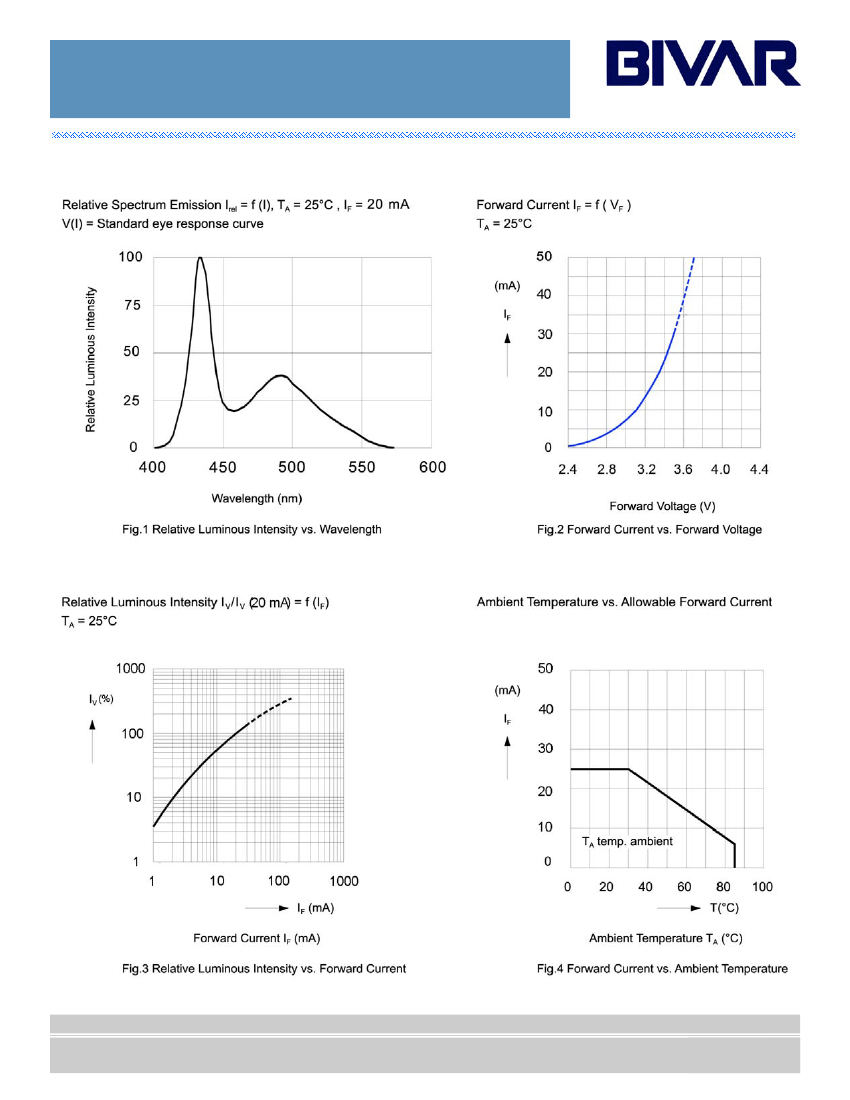

Typical Electrical / Optical Characteristics Curves
T
A
= 25°C unless otherwise noted
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 01/10
Page 3 of 5
PLCC2 SMD Top View Package LED
SMP2-UWD, WHITE

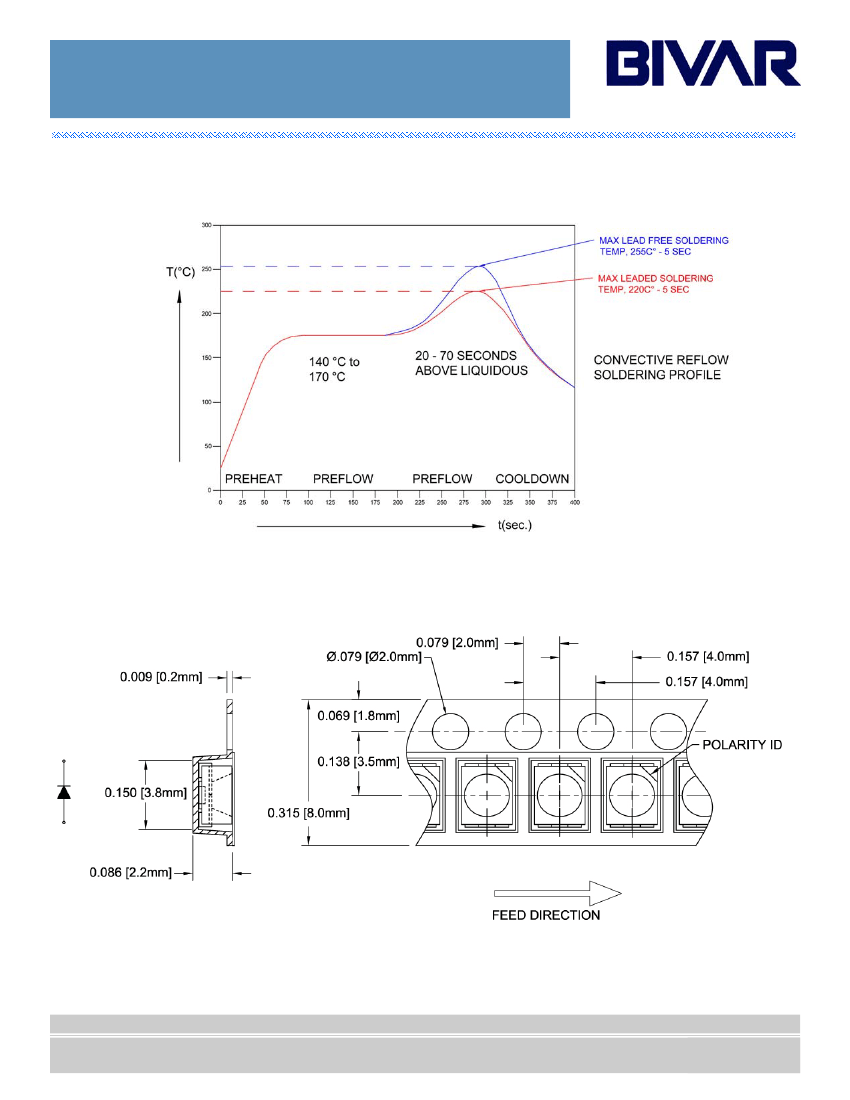

Recommended Soldering Conditions

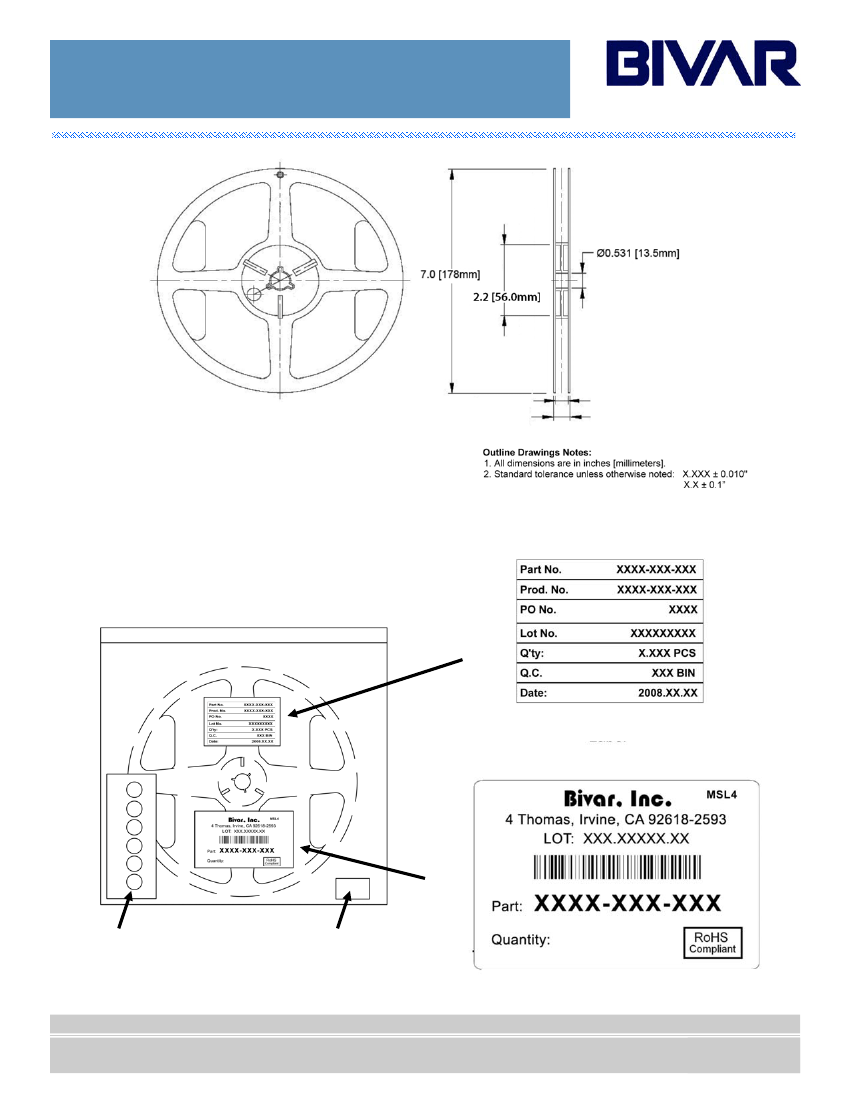

Tape and Reel Dimensions
Note: 2000 pcs/Reel
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 01/10
Page 4 of 5
PLCC2 SMD Top View Package LED
SMP2-UWD, WHITE
0.35 [9.0mm]
0.47 [12.0mm]
Packaging and Labeling Plan
Note: 1 Reel / Bag
Vacuum and Heat Sealed
Clear AntiStatic Poly Bag
Internal Quality Control Label
X.XXX
Humidity Indicator
Card
Desiccant
X.XXX
Bivar Standard Packaging Label
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 01/10
Page 5 of 5
