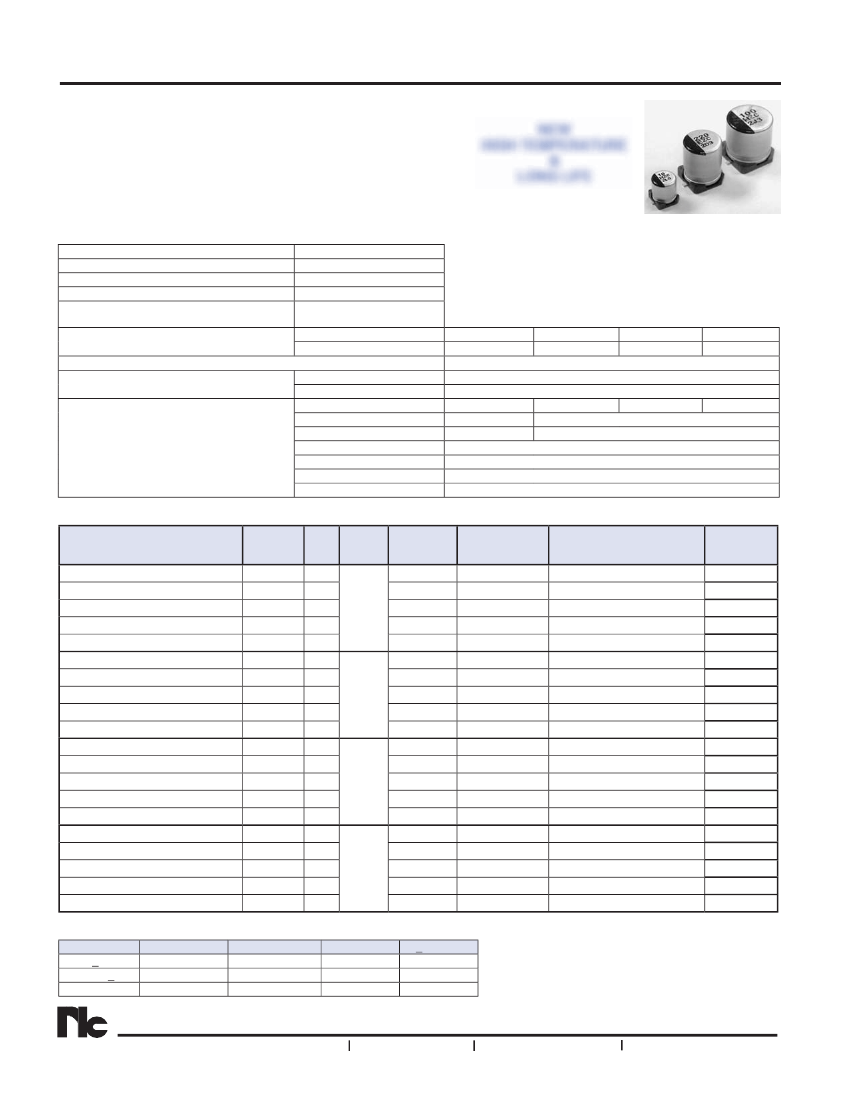

Hybrid Aluminum Electrolytic Capacitors
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• HIGH TEMPERATURE RANGE (+125°C)
NEW
• LONG LIFE (UP to 3,000 HOURS)
HIGH TEMPERATURE
• LOW ESR, HIGH RIPPLE CURRENT & LOW LEAKAGE
&
• 6.3x6.3 ~ 10x12.8mm CASE SIZES
LONG LIFE
• REFLOW SOLDERING RATED TO +260°C (ALL SIZES)
• MEETS THE REQUIREMENTS OF AEC-Q200*
*Contact NIC for supporting test data
CHARACTERISTICS
Rated Voltage Range
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Working and Surge Voltage Ratings
Tan
δ
@ 120Hz/20°C
Low Temperature Stability
Impedance Ratio @ 100KHz
16 ~ 40Vdc
18 ~ 560μF
-55 ~ +125°C
±20% (M)
Less than 0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Z-55°C/Z+25°C
Z+125°C/Z+20°C
W.V. (Ved)
φ6.3
Dia.
φ8
&
φ10
Dia.
Capacitance Change
Tan
δ
ESR
Leakage Current
NSPE-TZ Series
16
20
25
32
0.16
0.75 ~ 1.25
0.75 ~ 1.25
35
44
40
50
Load Life Test @ +125°C
and Rated Voltage
16
1500
2500
35
40
φ6.3X6.3:
1500,
φ6.3X8:
2000
3000
Within ±30% of initial measured value
Less than 200% of specified max. value
Less than 200% of specified max. value
Less than specified max. value
25
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
PART NUMBER
NSPE-TZ820M16V6.3X6.3NBYF
NSPE-TZ121M16V6.3X8NBYF
NSPE-TZ271M16V8X10.8NBYF
NSPE-TZ471M16V10X10.8NBYF
NSPE-TZ561M16V10X12.8NBYF
NSPE-TZ470M25V6.3X6.3NBYF
NSPE-TZ680M25V6.3X8NBYF
NSPE-TZ151M25V8X10.8NBYF
NSPE-TZ271M25V10X10.8NBYF
NSPE-TZ331M25V10X12.8NBYF
NSPE-TZ270M35V6.3X6.3NBYF
NSPE-TZ470M35V6.3X8NBYF
NSPE-TZ101M35V8X10.8NBYF
NSPE-TZ151M35V10X10.8NBYF
NSPE-TZ221M35V10X12.8NBYF
NSPE-TZ180M40V6.3X6.3NBYF
NSPE-TZ270M40V6.3X8NBYF
NSPE-TZ560M40V8X10.8NBYF
NSPE-TZ101M40V10X10.8NBYF
NSPE-TZ121M40V10X12.8NBYF
Case Size
(D X L)
mm
6.3X6.3
6.3X8
8X10.8
10X10.8
10X12.8
6.3X6.3
6.3X8
8X10.8
10X10.8
10X12.8
6.3X6.3
6.3X8
8X10.8
10X10.8
10X12.8
6.3X6.3
6.3X8
8X10.8
10X10.8
10X12.8
Cap. Working Max. Tan
δ
Max. ESR (mΩ)
(μF) Voltage 120Hz/20°C @ 100KHz/20°C
82
120
270
470
560
47
68
150
270
330
27
47
100
150
220
18
27
56
100
120
40
35
25
16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
0.16
38
32
23
18
14
40
35
25
19
14
50
45
28
20
15
55
48
30
21
16
Max. Ripple Current
(mA rms) @ 100KHz/125°C
1320
1440
1970
2620
3030
1260
1380
1880
2500
2890
1070
1280
1780
2440
2800
1050
1230
1710
2360
2700
Load Life
Hours
(+125°C)
1500
1500
2500
2500
2500
1500
2000
3000
3000
3000
1500
2000
3000
3000
3000
1500
2000
3000
3000
3000
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency
C < 4.7
4.7 < C < 33
33 < C
120Hz
0.03
0.05
0.10
1KHz
0.30
0.32
0.35
10KHz
0.65
0.67
0.70
>100KHz
1.00
1.00
1.00
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
Hybrid Aluminum Electrolytic Capacitors
PART NUMBER SYSTEM
NSPE-TZ 101 M 35V 8x10.8 N B Y F
RoHS Compliant
B = Sn-Bi Finish, 13" Reel
LB = Sn-Bi Finish, 15" Reel
Reflow Temp. Code (N=+260°C)
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
fi
rst 2 digits are significant
Third digit is no. of zeros
NSPE-TZ Series
Series
Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certified production site
DIMENSIONS (mm)
Case Size
6.3x6.3
6.3x8
8x10.8
10x10.8
10x12.8
Dφ ±0.5
6.3
6.3
8
10
10
L max.
6.3
8
10.8
10.8
12.8
A, B ±0.2
6.6
6.6
8.3
10.3
10.3
W
0.5 ~ 0.8
0.5 ~ 0.8
0.7 ~ 1.0
1.0 ~ 1.4
1.0 ~ 1.4
I ±0.3
2.5
2.5
2.9
3.2
3.2
P ±0.2
2.2
2.2
3.2
4.6
4.6
Polarity
(Cathode)
Part Marking
Series Code
R
68
25V
Date Code
Capacitance
Voltage Code
Dφ
W
0.3mm max.
+
I
I
-
L
P
B
A
LAND PATTERN DIM. (mm)
Case Dia.
6.3
8
10
a
1.8
2.8
4.3
b
3.6
4.1
4.4
c
1.8
2.1
2.5
+
-
c
b
a
c
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Hybrid Aluminum Electrolytic Capacitors
RECOMMENDED REFLOW SOLDERING PROFILE*
260
230
200
150
100
50
Time (Seconds)
PEAK TEMPERATURE AND DURATION
Diameter
φ6.3
~ 10mm
Peak Temperature
(5 seconds max.)
+260°C
Time above
230°C
40 sec. max.
Time above
Time above
217°C
200°C
80 sec. max. 100 sec. max.
Preheat - +160°C for
120 seconds max.
Peak Temperature
Time Above 230°C (40 seconds max.)
Time Above 217°C (80 seconds max.)
NSPE-TZ Series
Temperature - Deg. C
Time Above 200°C
(100 seconds max.)
*Two reflow passes are permissible with a cool down to room temperature required between
the
fi
rst and second pass. Acceptable soldering methods are IR or IR & heated air.
Capacitors placed on a +250°C hot plate for 30 seconds with their
electrode terminals facing downward will fulfill the following conditions
Resistance to after being cooled to room temperature
Capacitance Change Within ± 10% of the initial measured value
Soldering
Heat
Dissipation Factor
Less than maximum specified value
Leakage Current
Less than maximum specified value
ESR
Less than 130% of maximum specified value
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
Case Size
6.3x6.3
6.3x8
8x10.8
10x10.8
10x12.8
A
±0.5
7.0
7.0
8.7
10.7
10.7
B
±0.5
7.0
7.0
8.7
10.7
10.7
C
±0.3
16.0
16.0
24.0
24.0
24.0
D
±0.1
7.5
7.5
11.5
11.5
11.5
P
±0.1
12.0
12.0
16.0
16.0
16.0
T
±0.2
6.5
8.2
11.1
11.2
13.3
t
max.
0.6
0.6
0.6
0.6
0.6
4 + 0.1
1.5∅ +0.1/-
1.5φ+0.1/-0
-
1.75
±
1.75 + 0.15
t
C
D
Feeding
+
A
P
T
REEL DIMENSIONS (mm)
Case Size
6.3x6.3
6.3x8
8x10.8
10x10.8
10x12.8
W
±1.0
18
18
26
26
26
Qty per Reel
13" (330mm)
15" (380mm)
800
1,000
500
900
300
500
300
500
300
400
2mm ± 0.5mm
φ21mm
± 0.8mm
3mm
φ330mm
± 2.0mm
φ380mm
± 2.0mm
W
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
φ50mm
min.
φ13mm
± 0.5mm
B
SPECIFICATIONS ARE SUBJECT TO CHANGE
3
