A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.

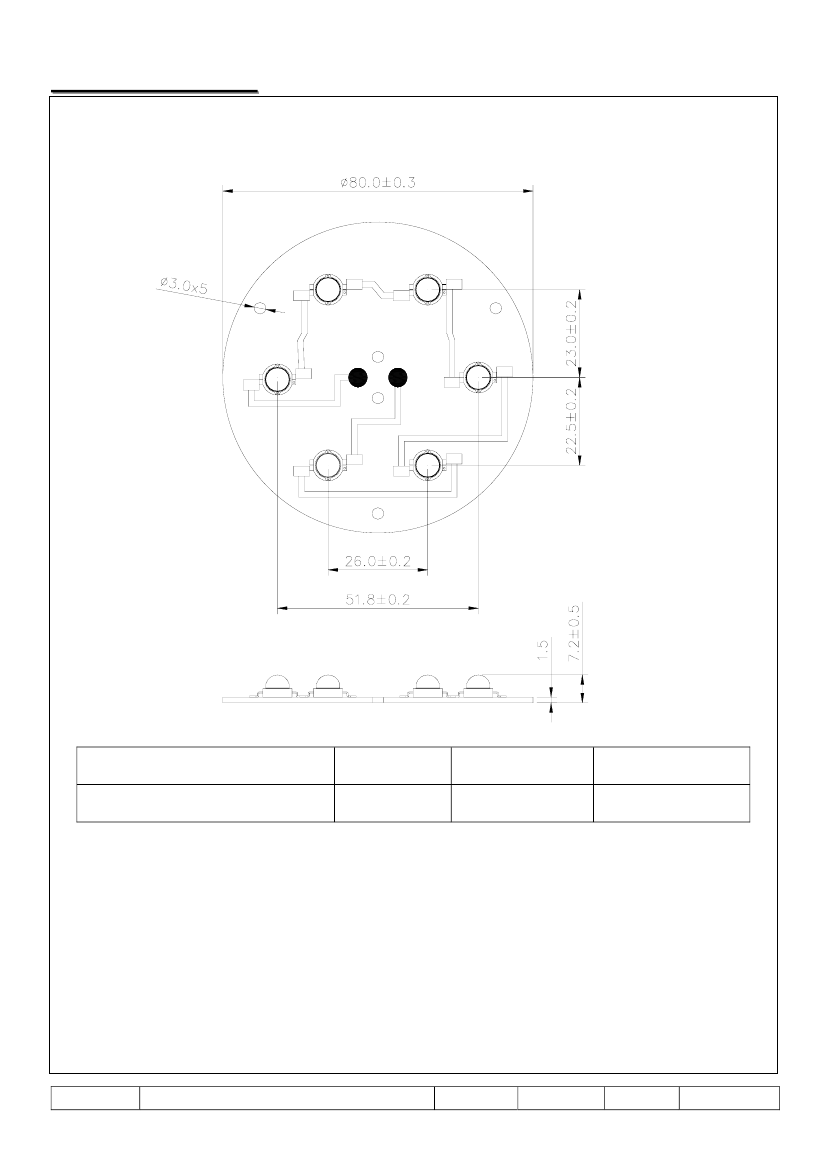

Package Dimension:
EMFA-6-01A
_
+
+
_
_
+
_
+
_
+
_
+
Part NO.
AL-06R6W06WC-A2Y
Notes:
Housing
----
Emitting Color
White
Lens Color
Yellow Diffused
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25mm
(.010”) unless otherwise noted.
3. Protruded resin under flange is 1.0mm(.04”) max.
4. Lead spacing is measured where the leads emerge from the package.
5.
Specifications are subject to change without notice.
6.
This data-sheet only valid for six months.
Part No.
AL-06R6W06WC-A2Y
Spec No.
Page
1
of
6
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Absolute Maximum Ratings at Ta=25℃
Parameter
Forward Current
Peak pulsed forward current
Power Disspation
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Soldering Temperature (Max.)
Symbol
I
F
I
PF
P
D
V
R
Topr
Tstg
Tsol
MAX.
350
500
6
5
-40 to +120
-40 to +120
260 ± 5
Unit
mA
mA
W
V
℃
℃
seconds
Part No.
AL-06R6W06WC-A2Y
Spec No.
Page
2
of
6
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Electrical Optical Characteristics at Ta=25℃
Parameter
Luminous Flux
Forward Voltage
Color Temperature
Temperature Coefficient of V
F
Termal Resistance Junction to
Board
Viewing Angle
----
2θ1/2
---
---
15
120
---
---
℃/W
Deg
I
F
=350mA
I
F
=350mA
Symbol
Flux
V
F
CCT
△V
F
/△Tj
Min.
330
---
4500
---
Typ.
510
24
6000
-2.0
Max.
---
---
10000
---
Unit
Lm
V
K
Test Condition
I
F
=350mA
I
F
=350mA
I
F
=350mA
mV/℃ I
F
=350mA
Part No.
AL-06R6W06WC-A2Y
Spec No.
Page
3
of
6
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
Reliability test items and conditions :
Sample
Q’ty
30 pcs
NO
1
ITEM
Solder Heat
Test Conditions
Temp：260℃±5℃
-40
℃
30min
5min
Test hours/cycle
5 sec
Ac/Re
0/1
2
Temperature Cycle
-25
℃
-105
℃
30min
-25
℃
5min
5min
100 cycles
30 pcs
0/1
3
Thermal Shock
-40
℃
-105
℃
5min
Temp：85℃
20 cycles
30 pcs
0/1
4
High Temperature Storage
1000 hrs
30 pcs
0/1
5
6
Low Temperature Storage
DC Operating Life
High Temperature／
High Humidity
Temp：-35℃
I
F
=350mA
Ta=60
℃
R.H 90%
1000 hrs
1000 hrs
30 pcs
30 pcs
0/1
0/1
7
1000 hrs
30 pcs
0/1
Part No.
AL-06R6W06WC-A2Y
Spec No.
Page
4
of
6
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.

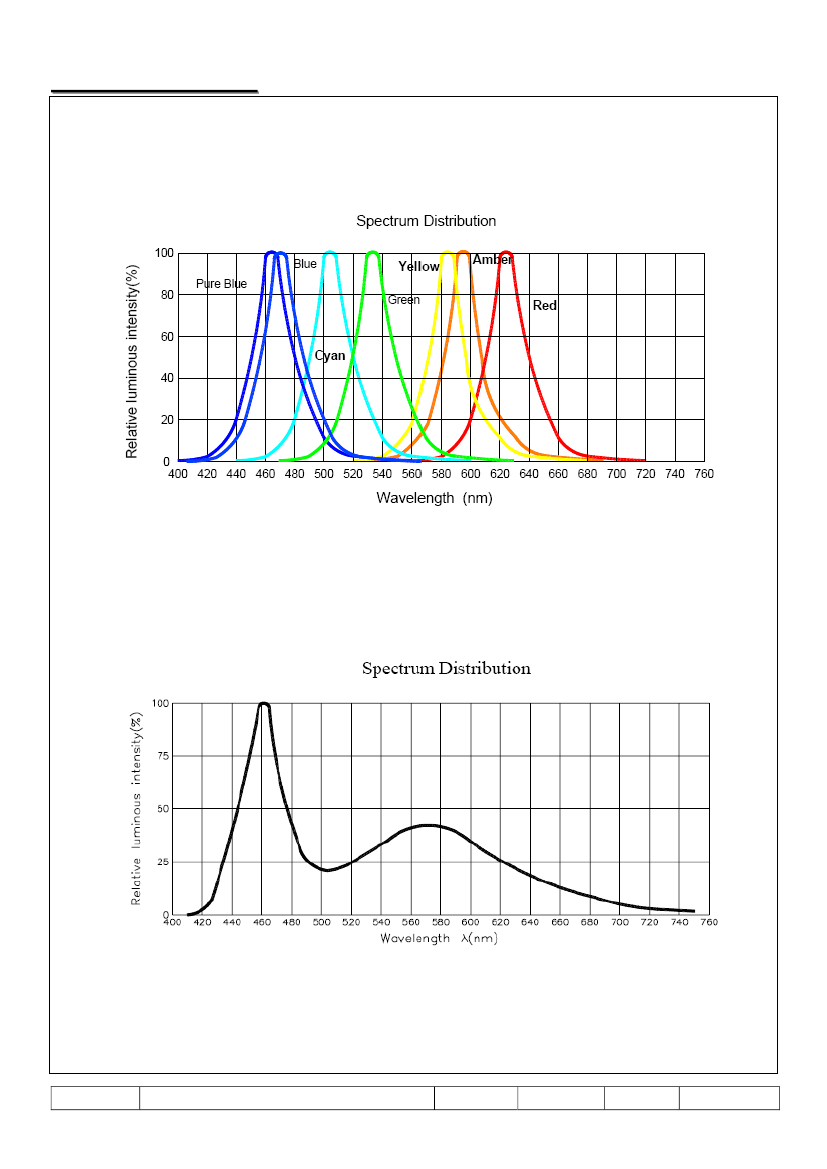

Typical electro-optical characteristics curves :
Part No.
AL-06R6W06WC-A2Y
Spec No.
Page
5
of
6
