Wound Air Core Inductors
FEATURES
• High Q Over Wide Frequency Range
• Available in 0403, 0504, 0703 and 1006 Case Sizes
• Mold Flat Top for Automatic Pick & Place
RoHS
Compliant
NLA Series
includes all homogeneous materials
*See Part Number System for Details
P N b S
f D il
SPECIFICATIONS
NLA Wound Air Core Inductors
Specifications
0403
0504
0703
Inductance Range
2.5 ~ 18.5nH
22 ~ 120nH
17.5 ~ 43nH
Operating Temperature Range
-40°C ~ +125°C
Q-Factor, Self Resonant Frequency,
See Individual
DC Resistance, Rated DC Current
Product Listings
and Inductance Tolerance
1006
90 ~ 538nH

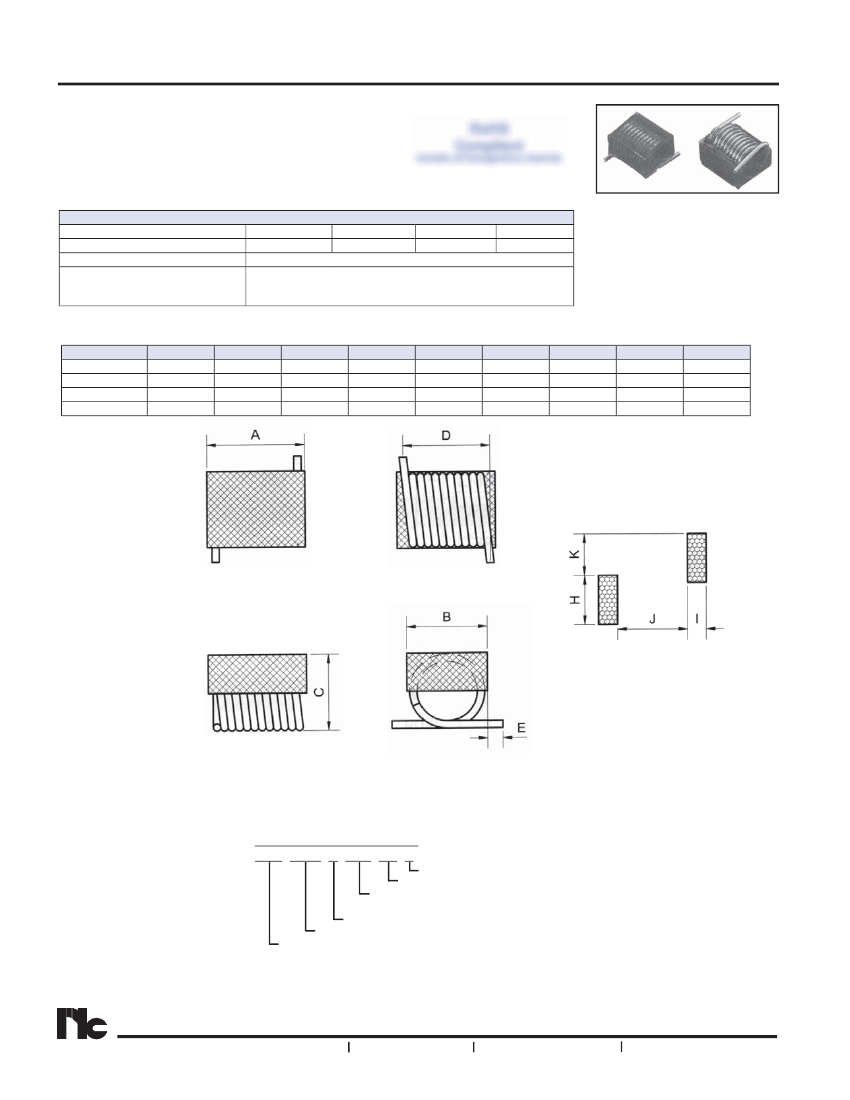

COMPONENT AND LAND PATTERN DIMENSIONS
Series
NLA0403
NLA0504
NLA0703
NLA1006
A
3.68 ref.
4.95 ref.
6.86 ref.
10.55 ref.
B
3.05 ref.
3.81 ref.
3.05 ref.
6.35 ref.
C
3.18 ref.
4.20 ref.
3.18 ref.
5.97 ref.
D
2.92 ± 0.25
4.32 ± 0.39
5.84 ± 0.25
7.98 ± 0.51
E
0.58 ± 0.38
1.53 ± 0.39
0.58 ± 0.38
1.27 ± 0.39
H
3.30
5.16
3.30
4.70
I
1.27
1.48
1.27
2.04
J
1.65
2.85
4.70
5.95
K
2.79
2.62
2.79
2.42

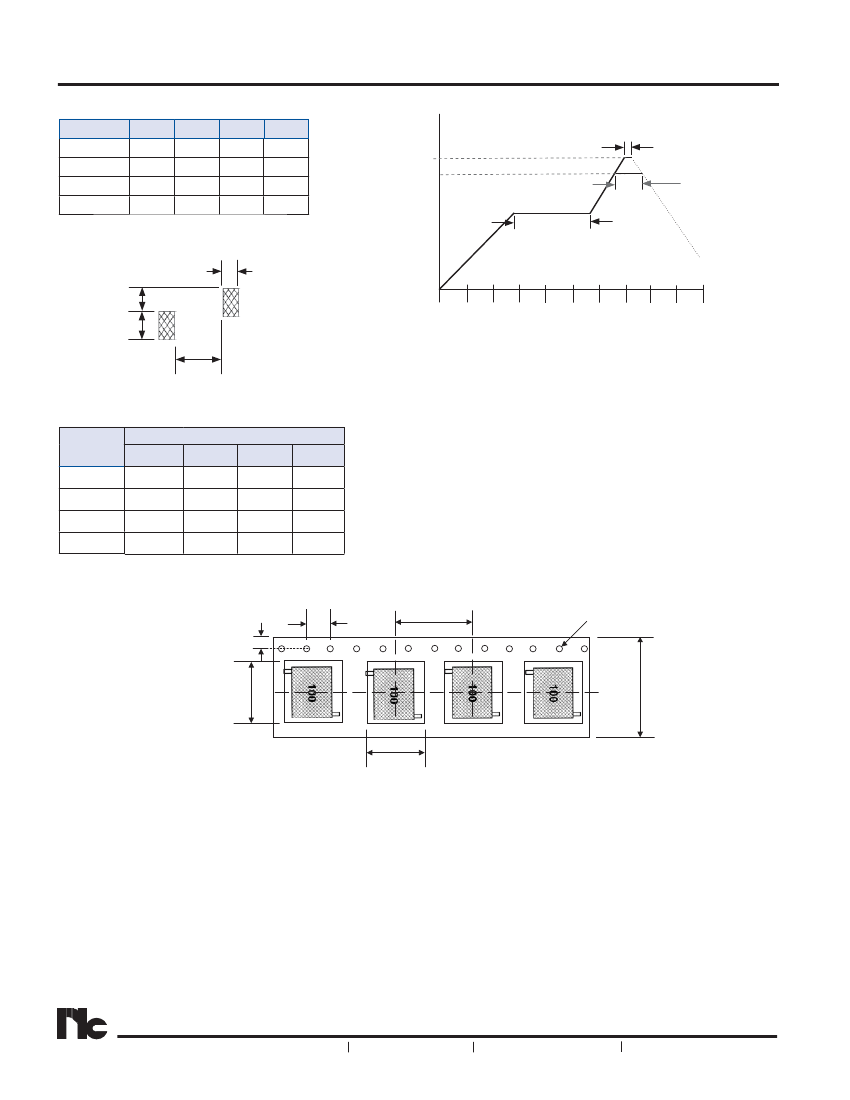

LAND PATTERN
TOP VIEW
BOTTOM VIEW
SIDE VIEW
END VIEW
PART NUMBER SYSTEM
NLA 0403 K 2N5 TR F
Series
RoHS compliant
Packaging: TR = Tape/Reel
Inductance Code (N=decimal point) in nano-henries
(Ex. 2N5 = 2.5nH, 18N=18nH, R10=100nH)
Tolerance Code (J=±5%, K=±10%)
Size Code: 0403, 0504, 0703 or 1006
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
1
Wound Air Core Inductors
NLA0403 SERIES
NIC
P/N
NLA0403K2N5TRF
NLA0403K5N0TRF
NLA0403J8N0TRF
NLA0403J12N5TRF
NLA0403J18N5TRF
'L'
Inductance
(nH)
2.5
5.0
8.0
12.5
18.5
Tolerance
±10%
±10%
±5%
±5%
±5%
NLA Series
Test
Freq.
SRF
MHz
(min.)
12500
6500
5000
3300
2500
DC
Resistance
(mΩ) Max.
1.1
1.8
2.6
3.4
3.9
Rated
DC Current
(A) Max.
4.0
4.0
4.0
4.0
4.0
VALUES AND SPECIFICATIONS
'Q'
Factor
(min.)
145
140
140
137
132
150MHz
Maximum temperature rise at maximum rated current is +15°C
NLA0504 SERIES
NIC
P/N
NLA0504J22NTRF
NLA0504J27NTRF
NLA0504J33NTRF
NLA0504J39NTRF
NLA0504J47NTRF
NLA0504J56NTRF
NLA0504J68NTRF
NLA0504J82NTRF
NLA0504JR10TRF
NLA0504JR12TRF
'L'
Inductance
(nH)
22
27
33
39
47
56
68
82
100
120
Tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
VALUES AND SPECIFICATIONS
'Q'
Factor
(min.)
100
100
100
100
100
100
100
100
100
100
Test
Freq.
SRF
MHz
(min.)
3200
2700
2500
2100
2100
1500
1500
1300
1200
1100
DC
Resistance
(mΩ) Max.
4.2
4.0
4.8
4.4
5.6
6.2
8.2
9.4
12.3
17.3
Rated
DC Current
(A) Max.
3.0
3.5
3.0
3.0
3.0
3.0
2.5
2.5
1.7
1.5
150MHz
Maximum temperature rise at maximum rated current is +15°C
NLA0703 SERIES
NIC
P/N
NLA0703J17N5TRF
NLA0703J22NTRF
NLA0703J28NTRF
NLA0703J35N5TRF
NLA0703J43NTRF
'L'
Inductance
(nH)
17.5
22
28
35.5
43
Tolerance
±5%
±5%
±5%
±5%
±5%
VALUES AND SPECIFICATIONS
'Q'
Factor
(min.)
100
102
105
112
106
Test
Freq.
SRF
MHz
(min.)
2200
2100
1800
1500
1200
DC
Resistance
(mΩ) Max.
4.5
5.2
6.0
6.8
7.9
Rated
DC Current
(A) Max.
4.0
4.0
4.0
4.0
4.0
150MHz
Maximum temperature rise at maximum rated current is +15°C
NLA1006 SERIES
NIC
P/N
NLA1006J90NTRF
NLA1006JR111TRF
NLA1006JR130TRF
NLA1006JR169TRF
NLA1006JR206TRF
NLA1006JR222TRF
NLA1006JR246TRF
NLA1006JR307TRF
NLA1006JR380TRF
NLA1006JR422TRF
NLA1006JR491TRF
NLA1006JR538TRF
'L'
Inductance
(nH)
90
111
130
169
206
222
246
307
380
422
491
538
Tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
VALUES AND SPECIFICATIONS
'Q'
Factor
(min.)
95
87
87
95
95
92
95
95
95
95
95
87
Test
Freq.
SRF
MHz
(min.)
1140
1020
900
875
800
730
685
660
590
540
535
490
DC
Resistance
(mΩ) Max.
15.0
15.0
20.0
25.0
30.0
35.0
35.0
35.0
50.0
60.0
65.0
90.0
Rated
DC Current
(A) Max.
3.5
3.5
3.0
3.0
3.0
3.0
3.0
3.0
2.5
2.5
2.0
2.0
50MHz
Maximum temperature rise at maximum rated current is +15°C
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
