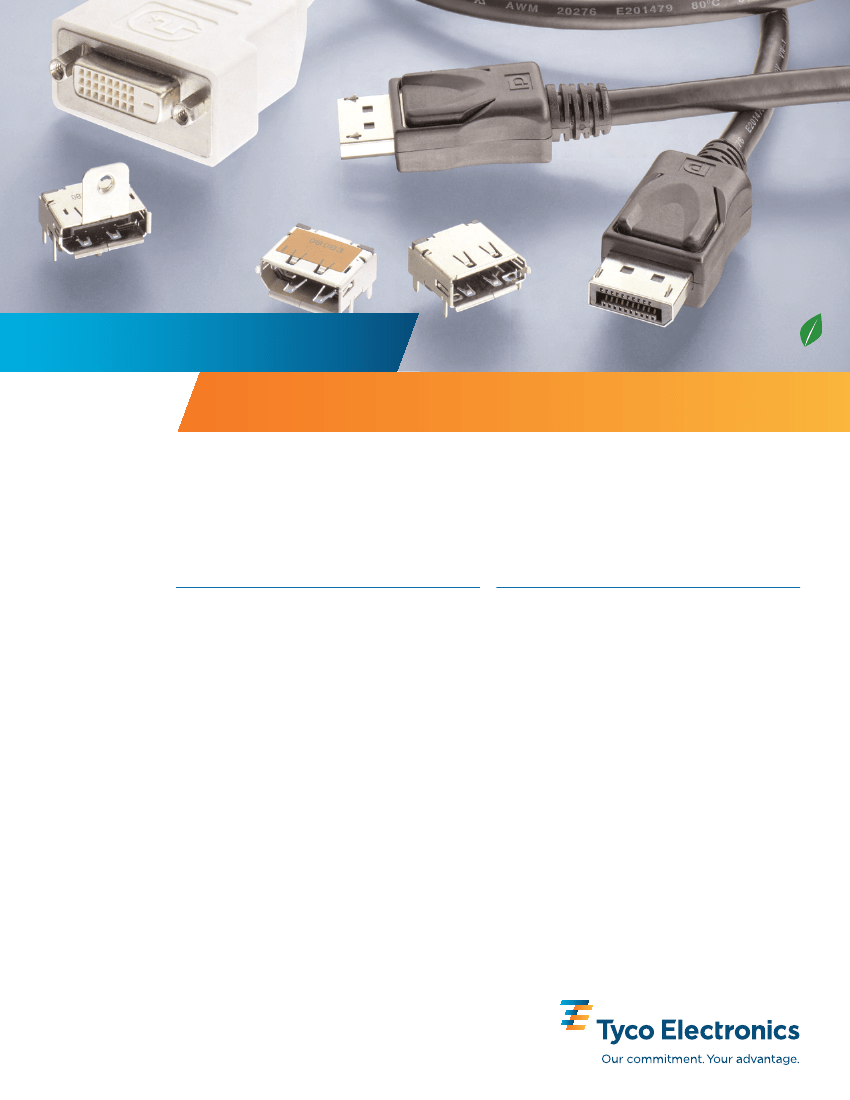

DESCRIPTION
DisplayPort is a universal interface specification
designed for internal and external system solu-
tions that reduce device complexity by signifi-
cantly improving performance for high bandwidth
audio and video data transfer over one cable.
The need for LVDS electronics is removed, which
allows for a significantly smaller form factor in
notebooks and LCD displays. DisplayPort con-
nectors are designed in conjunction with VESA
DisplayPort 1.1a standards to be used primarily
within the notebook and PC markets and are
considered, "The HDMI connector, of the PC
World."
APPLICATIONS
•
PCs
•
External display interconnects
– TV monitors
– Panels
– Set-Top Boxes
– Projectors
DVD players
Game consoles
Mobile Devices
Personal Video records
Optical disc players
•
•
•
•
•
Internet
http://tycoelectronics.com/products/DisplayPort
Products Designed for DisplayPort™ Standard
Page 2
KEY FEATURES
•
•
•
•
•
•
•
•
Future foundation for new display usages featuring higher color depths, display resolutions and fresh rates
User-friendly and cost effective
Smaller footprint takes up less PCB space yet provides scalable performance in terms of resolution
Reduces numbers of wires required
Supports embedded clock
Superior shielding against EMI
Replace DVI & VGA interfaces
Optional latching feature prevents longer cables from detaching
MECHANICAL
•
Ratings
– Voltage Rating: 40 vac (rms)
– Current Rating: Signal application only, 0.5 ampere maximum per contact
– Temperature Rating:-40°C to +85°C unless limited by cable or overmold
MATERIAL
•
Contact:
– Copper alloy: gold plating on contact area
– Tin plating on solder area all over nickel plating
•
Housing:
– Thermoplastic, black, UL94V-0
•
Shell:
– Copper alloy, Nickel plating or tin cover nickel plating
STANDANDARDS AND SPECIFICATION
•
•
•
•
Application Specification
Product Specification 108-78515
Test Report: 501-5912
Industry Standards: VESA DisplayPort 1.1a standards
Internet
http://tycoelectronics.com/products/DisplayPort
Products Designed for DisplayPort™ Standard
Page 3
RECEPTACLES

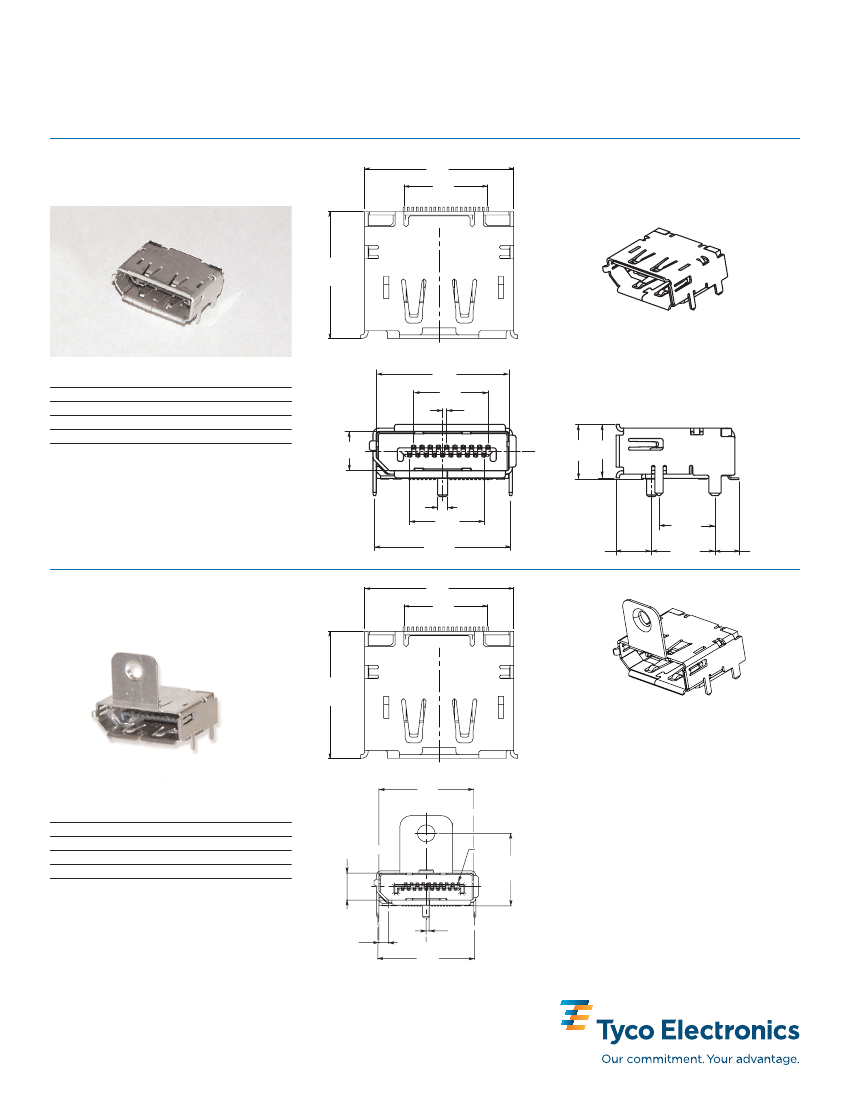

SMT Receptacle
without Flange, Thru Hole Legs
16.9
[0.67]
9.5
[0.37]
14.39
[0.57]
Part Number
Description
Tin
Nickel
16.1
[0.63]
9
[0.35]
Part Number
2013655-5
2013655-1
4.76
[0.19]
0.5
[0.02]
6.65 6.5
[0.26] [0.25]
9
[0.35]
16.51
[0.65]
ø1.2
[ø0.05]
6.78
[0.27]
4.3
[0.17]
7.68
[0.30]
2.90
[0.11]
SMT Receptacle
with Flange, Thru Hole Legs
16.9
[0.67]
9.5
[0.37]
14.39
[0.57]
16.1
[0.63]
Part Number
Description
Matte Tin
Nickel
Part Number
2040204-5
2040204-1
4.76
[0.19]
PIN?1
12.78
[0.50]
Internet
http://tycoelectronics.com/products/DisplayPort
1.64
[0.065]
0.5
[0.02]
16.65
[0.65]
Products Designed for DisplayPort™ Standard
Page 4
RECEPTACLES

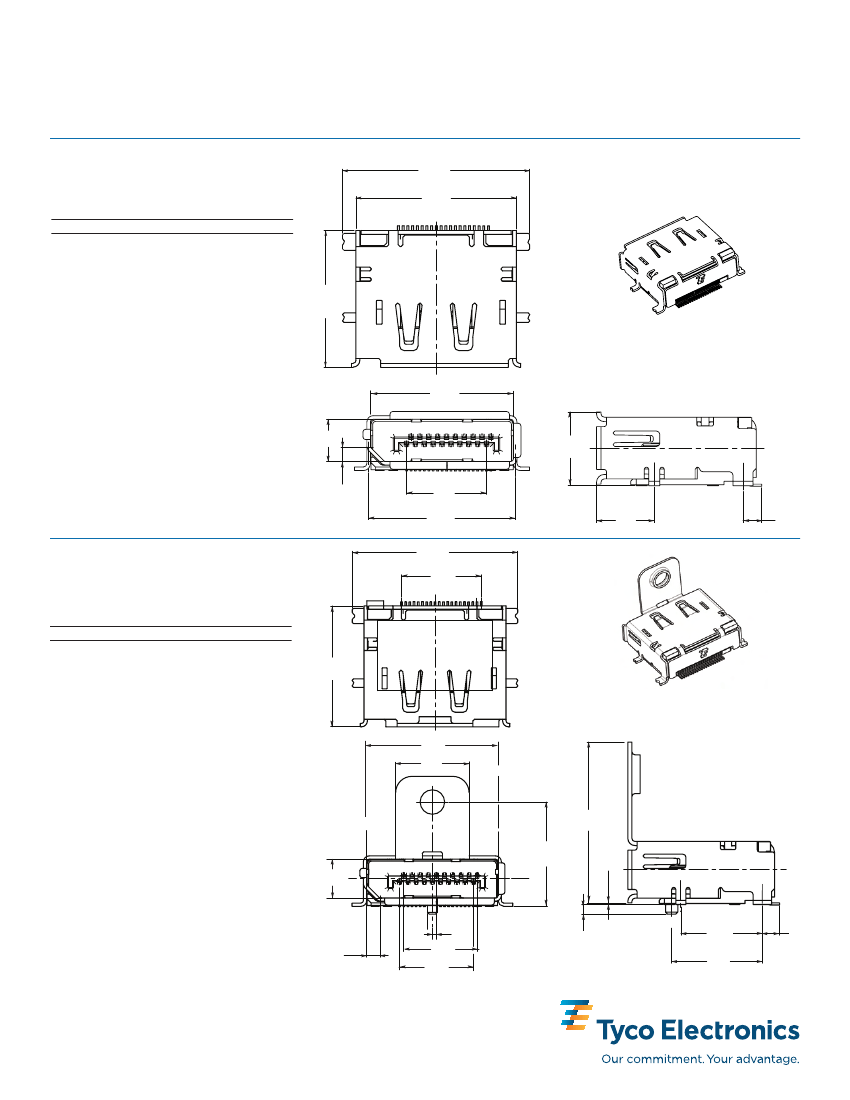

SMT Receptacle
without Flange, SMT Hold Downs
Part Number
2040388-5
19.7
[0.77]
16.9
[0.66]
14.39
[0.57]
16.1
[0.63]
4.76
[0.19]
6.65
[0.26]
1.64
[0.06]
9
[0.35]
16.5
[0.65]
5.2
[0.20]
1.69
[0.06]
SMT Receptacle
with Flange, SMT Hold Downs
19.7
[0.78]
9.5
[0.37]
Part Number:
2040247-5
14.39
[0.57]
16.1
[0.63]
9
[0.35]
15.78
[0.62]
12.78
[0.50]
4.76
[0.19]
0.15
[0.005]
Internet
http://tycoelectronics.com/products/DisplayPort
1.64
[0.65]
9
[0.35]
9
[0.35]
0.5
[0.02]
0.95
[0.04]
7.99
[0.31]
8.89
[0.35]
1.69
[0.07]
Products Designed for DisplayPort™ Standard
Page 5
RECEPTACLES

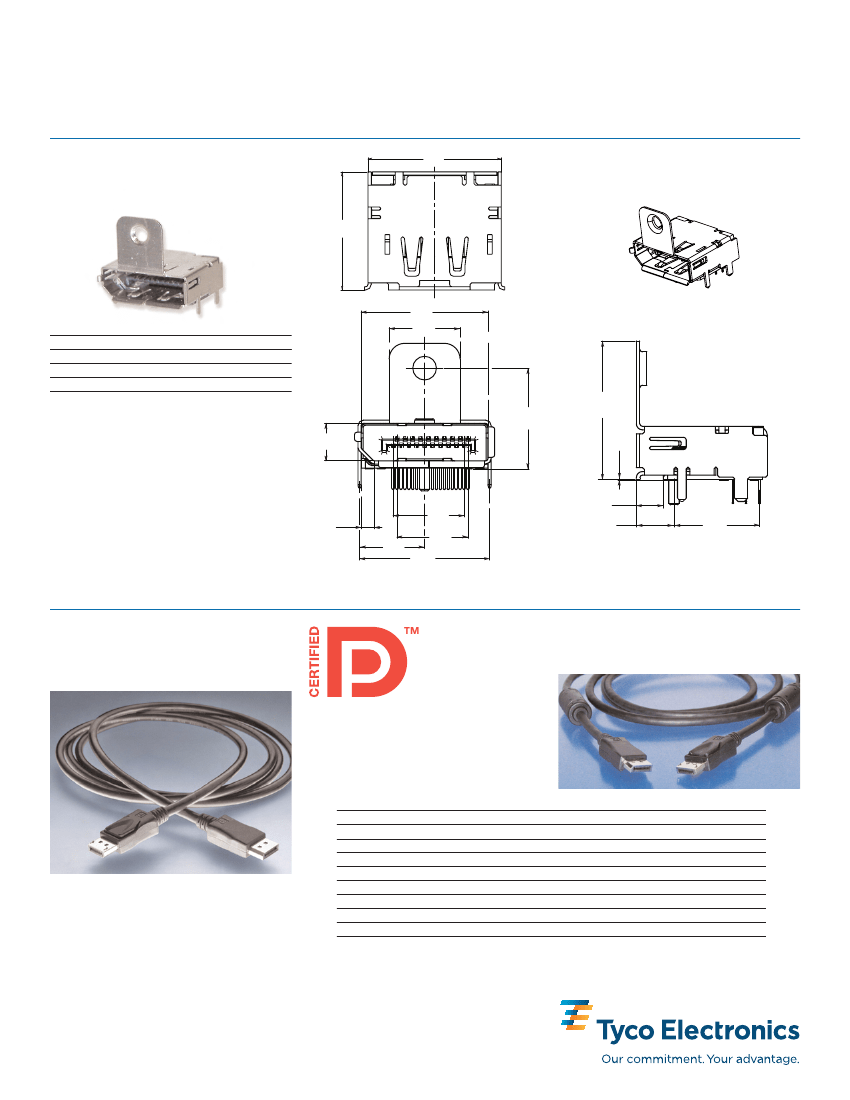

Receptacle
with Flange
14.98
[0.59]
16.9
[0.66]
16.1
[0.63]
9
[0.35]
Part Number
Description
Tin Nicke
Tin
Part Number
2040210-1
2040210-5
12.78
[0.50]
4.76
[0.19]
15.78
[0.63]
0.15
[0.006]
1.64
[0.06]
8.25
[0.32]
9
[0.35]
9
[0.35]
16.5
[0.65]
3.08
[0.12]
4.3
[0.17]
9.73
[0.38]
DisplayPort Cable Assembly
DisplayPort Cable Assembly
MT
Part Number
2040685-2
2069230-2
2006454-2
2006457-2
2040687-2
2040686-2
2006453-2
2006459-2
Length
2 meters
2 meters
2 meters
2 meters
2 meters
2 meters
2 meters
2 meters
DisplayPort Cable Assembly
(Shown with PVC Jacket, Latch,
and no
Ferrite Core)
(Shown with Halogen-Free Jacket,
Latch,
and Ferrite Core)
Description
PVC, With Latch, Without Ferrite Core
PVC, Without Latch, Without Ferrite Core
PVC, With Latch, With Ferrite Core
PVC, Without Latch, With Ferrite Core
Halogen-Free, With Latch, Without Ferrite Core
Halogen-Free, Without Latch, Without Ferrite Core
Halogen-Free, With Latch, With Ferrite Core
Halogen-Free, Without Latch, With Ferrite Core
Internet
http://tycoelectronics.com/products/DisplayPort
