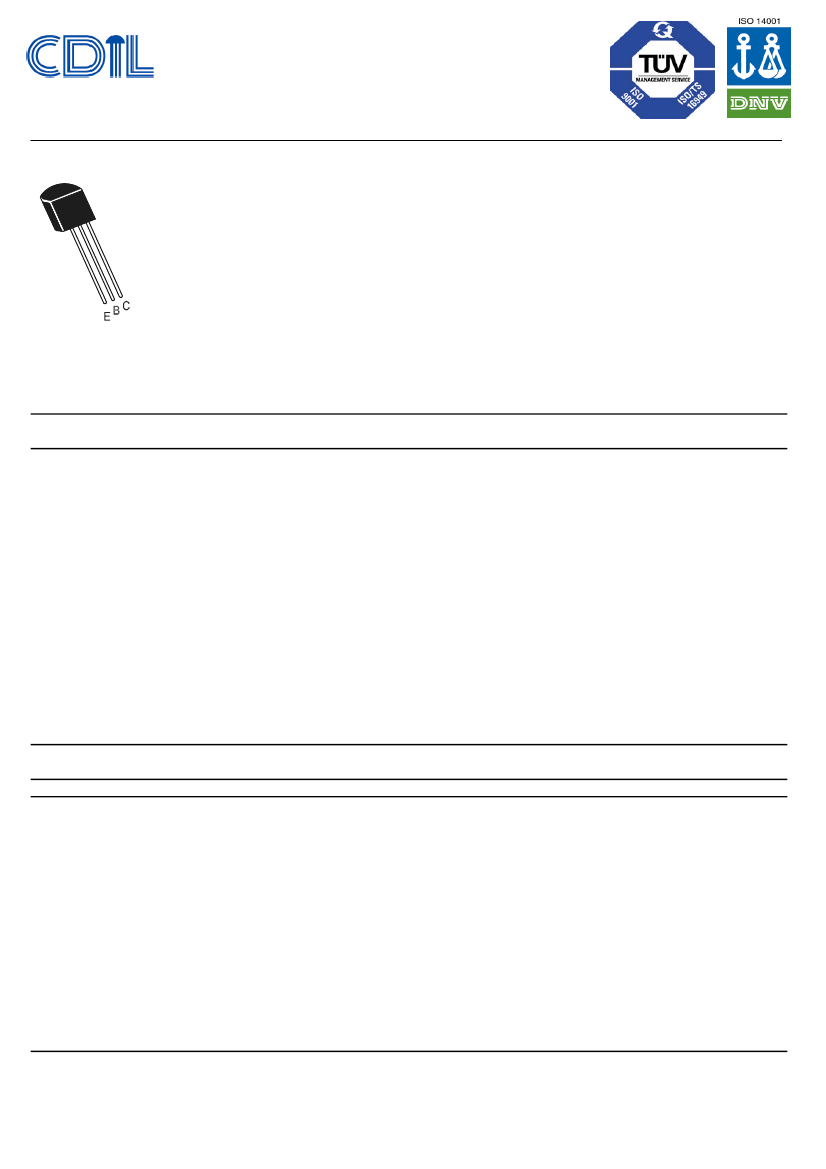

NPN SILICON PLANAR EPITAXIAL TRANSISTORS
2N6515, 2N6519
2N6516, 2N6520
2N6517
TO-92
Plastic Package
HIGH VOLTAGE TRANSISTORS
ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL
2N6515 2N6516 2N6517
2N6519 2N6520
V
CEO
250
300
350
Collector Emitter Voltage
V
CBO
Collector Base Voltage
250
300
350
V
EBO
NPN-------------------6------------------
Emitter Base Voltage
PNP-------------------5------------------
I
C
Collector Current Continuous
500
I
B
Base Current (Continuous)
250
Total Power Dissipation @ Ta=25ºC
Derate Above 25ºC
Operating And Storage Junction
Temperature Range
THERMAL RESISTANCE
Junction to ambient
Junction to case
P
D
T
stg
625
5.0
-55 to +150
UNIT
V
V
V
V
mA
mA
mW
mW/ºC
ºC
R
th(j-a)
R
th(j-c)
200
83.3
ºC/W
ºC/W
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL TEST CONDITION
Collector Emitter Breakdown Voltage
BV
CEO
* I
C
=1mA,I
B
=0
2N6515
2N6516, 6519
2N6517, 6520
MIN
250
300
350
MAX
UNIT
V
V
V
Collector Base Breakdown Voltage
2N6515
2N6516, 6519
2N6517, 6520
Emitter Base Breakdown Voltage
NPN
PNP
BV
CBO
I
C
=100µA,I
E
=0
250
300
350
BV
EBO
I
E
=10µA, I
C
=0
6
5
V
V
V
V
V
Continental Device India Limited
Data Sheet
Page 1 of 5
NPN SILICON PLANAR EPITAXIAL TRANSISTORS
2N6515, 2N6519
2N6516, 2N6520
2N6517
TO-92
Plastic Package
DESCRIPTION
Collector Cut off Current
2N6515
2N6516, 6519
2N6517, 6520
Emitter Cut off Current
NPN
PNP
DC Current Gain
SYMBOL TEST CONDITION
I
CBO
V
CB
=150V, I
E
=0
V
CE
=200V, I
E
=0
V
CE
=250V, I
E
=0
I
EBO
V
EB
=5V, I
C
=0
V
EB
=4V, I
C
= 0
h
FE
*
V
CE
=10V,I
C
=1mA
MIN
MAX
50
50
50
50
50
UNIT
nA
nA
nA
nA
nA
µA
2N6515
2N6516, 6519
2N6517, 6520
2N6515
2N6516, 6519
2N6517, 6520
2N6515
2N6516, 6519
2N6517, 6520
2N6515
2N6516, 6519
2N6517, 6520
2N6515
2N6516, 6519
2N6517, 6520
V
CE
=10V,I
C
=10mA
35
30
20
50
45
30
50
45
30
45
40
20
25
20
15
300
270
200
220
200
200
V
CE
=10V,I
C
=30mA
V
CE
=10V,I
C
=50mA
V
CE
=10V,I
C
=100mA
Base Emitter Saturation Voltage
V
BE(sat)
* I
C
=10mA,I
B
=1mA
I
C
=20mA,I
B
= 2mA
I
C
=30mA,I
B
= 3mA
V
CE(sat)
* I
C
=10mA,I
B
=1mA
I
C
=20mA,I
B
=2mA
I
C
=30mA,I
B
=3mA
I
C
=50mA,I
B
=5mA
V
BE
(on)* I
C
=100mA, V
CE
=10V
0.75
0.85
0.90
0.3
0.35
0.50
1.0
2.0
V
V
V
V
V
V
V
V
Collector Emitter Saturation Voltage
Base Emitter on Voltage
Continental Device India Limited
Data Sheet
Page 2 of 5
NPN SILICON PLANAR EPITAXIAL TRANSISTORS
2N6515, 2N6519
2N6516, 2N6520
2N6517
TO-92
Plastic Package
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION
SYMBOL TEST CONDITION
DYNAMIC CHARACTERISTICS
Transition Frequency
Collector Base Capacitance
Emitter Base Capacitance
NPN
PNP
Turn on Time
t
on
V
CC
=100V, V
BE
(off)=2.0V
I
C
=50mA, I
B1
=10mA
V
C
=100V, I
C
=50mA,
I
B1
=I
B2
=10mA
f
T
*
C
cb
C
eb
I
C
=10mA, V
CE
=20V
f=20MHz
V
CB
=20V,I
E
=0,f=1MHz
V
EB
=0.5V,f=1MHz,I
C
=0
MIN
MAX
UNIT
40
200
6.0
80
100
200
MHz
pF
pF
pF
µs
Turn Off Time
t
off
3.5
µs
*Pulse Condition: Width < 300µs, Duty Cycle < 2%.
Continental Device India Limited
Data Sheet
Page 3 of 5
2N6515, 2N6519
2N6516, 2N6520
2N6517
TO-92
Plastic Package

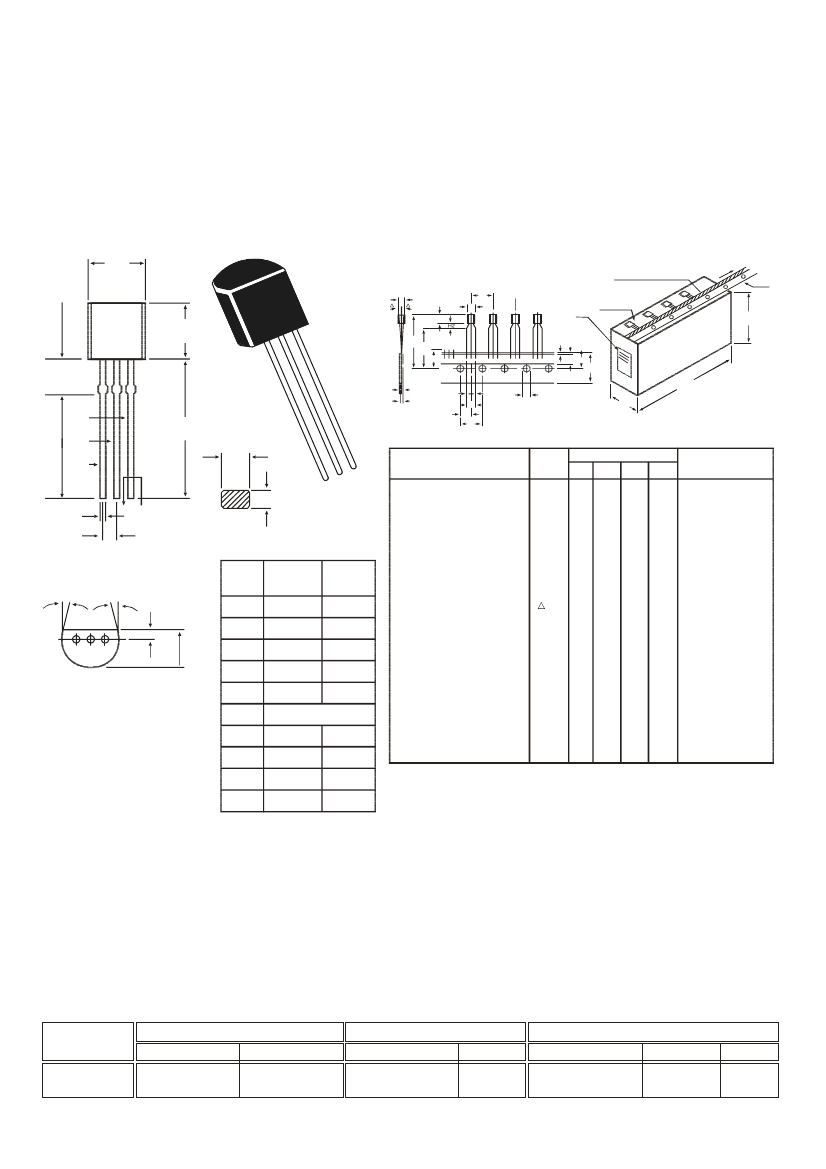

TO-92 Plastic Package
TO-92 Transistors on Tape and Ammo Pack
B
Dimension With 'L'
Ammo Pack Style
MECHANICAL DATA
T
P
h
A
A1
(p)
Adhesive Tape on Top Side
D
FEE
Carrier
Strip
Uncontrolled
h
LABEL
FLAT SIDE
183
A
H1
H0
L
W2
Wo
W1
W
L
t1
Solderability Ensured
t
F1
F
P2
Po
F2
Do
Beyond 'L'
K
1
2
3
D
G
A A
42
331
Flat Side of Transistor and
Adhesive Tape Visible
2000 pcs./Ammo Pack
All dimensions in mm unless specified otherwise
D
3
E
2
1
ITEM
BODY WIDTH
BODY HEIGHT
BODY THICKNESS
PITCH OF COMPONENT
FEED HOLE PITCH
FEED HOLE CENTRE TO
COMPONENT CENTRE
SYMBOL
A1
A
T
P
Po
P2
F
h
W
Wo
W1
W2
Ho
H1
L
Do
t
F2
H2
(P)
SEC AA
DIM
MIN.
4.32
4.45
3.18
0.41
MAX.
5.33
5.20
4.19
0.55
F
F
A
B
C
D
E
F
H
C
DISTANCE BETWEEN OUTER
LEADS
COMPONENT ALIGNMENT
TAPE WIDTH
HOLD-DOWN TAPE WIDTH
HOLE POSITION
HOLD-DOWN TAPE POSITION
LEAD WIRE CLINCH HEIGHT
COMPONENT HEIGHT
LENGTH OF SNIPPED LEADS
FEED HOLE DIAMETER
TOTAL TAPE THICKNESS
LEAD - TO - LEAD DISTANCEF1,
CLINCH HEIGHT
PULL - OUT FORCE
3 2 1
0.35
0.50
5 DEG
1.14
1.14
12.70
1.982
1.40
1.53
—
2.082
PIN CONFIGURATION
1. COLLECTOR
2. BASE
3. EMITTER
G
H
K
L
REMARKS
MIN. NOM. MAX. TOL .
4.0
4.8
5.2
4.8
4.2
3.9
12.7
±1
12.7
±0.3 CUMULATIVE PITCH
ERROR 1.0 mm/20
PITCH
6.35
±0.4 TO BE MEASURED AT
BOTTOM OF CLINCH
+0.6
5.08
-0.2
1
0
AT TOP OF BODY
18
±0.5
6
±0.2
9
+0.7
-0.5
0.5
±0.2
16
±0.5
23.25
11.0
4
±0.2
1.2
t1 0.3 - 0.6
2.54
+0.4
-0.1
3
6N
SPECIFICATION
All diminsions in mm.
NOTES
1. MAXIMUM ALIGNMENT DEVIATION BETWEEN LEADS NOT TO BE GREATER THAN 0.2 mm.
2. MAXIMUM NON-CUMULATIVE VARIATION BETWEEN TAPE FEED HOLES SHALL NOT EXCEED 1 mm IN 20
PITCHES.
3. HOLDDOWN TAPE NOT TO EXCEED BEYOND THE EDGE(S) OF CARRIER TAPE AND THERE SHALL BE NO
EXPOSURE OF ADHESIVE.
4. NO MORE THAN 3 CONSECUTIVE MISSING COMPONENTS ARE PERMITTED.
5. A TAPE TRAILER, HAVING AT LEAST THREE FEED HOLES ARE REQUIRED AFTER THE LAST COMPONENT.
6. SPLICES SHALL NOT INTERFERE WITH THE SPROCKET FEED HOLES.
Packing Detail
PACKAGE
TO-92 Bulk
TO-92 T&A
STANDARD PACK
Details
Net Weight/Qty
1K/polybag
200 gm/1K pcs
2K/ammo box
645 gm/2K pcs
INNER CARTON BOX
Size
Qty
3" x 7.5" x 7.5"
5K
12.5" x 8" x 1.8"
2K
Data Sheet
OUTER CARTON BOX
Size
Qty
Gr Wt
17" x 15" x 13.5"
80K
23 kgs
17" x 15" x 13.5"
32K
12.5 kgs
Page 4 of 5
Continental Device India Limited
Notes
2N6515, 2N6519
2N6516, 2N6520
2N6517
TO-92
Plastic Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies
or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any
CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not designed for
use in life saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete
Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do
so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150,
5141 1112
Fax + 91-11-2579 5290,
5141 1119
email@cdil.com
www.cdilsemi.com
