ESW-107-59-L-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ESW-107-59-L-D

ESW-107-59-L-D: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size555KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ESW-107-59-L-D Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

ESW-107-59-L-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1715453064
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	14 Position, .100" Elevated Socket Strip, Double Row
Samacsys Manufacturer	SAMTEC
Other features	LOW INSERTION FORCE
body width	0.195 inch
subject depth	0.635 inch
body length	0.72 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	ESW
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.28 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

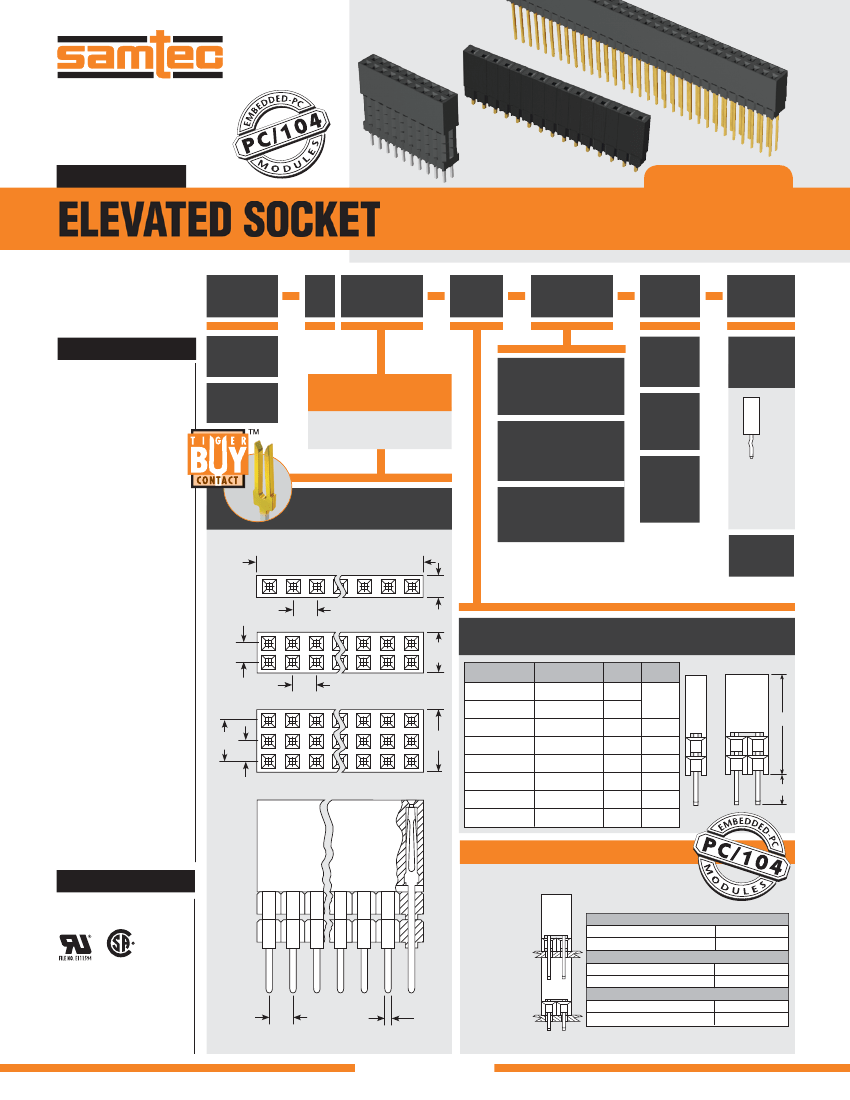

F-215

ESQ–132–14–G–D

ESQ–110–44–T–D

ESW–115–12–G–S

(2,54 mm) .100"

ESW, ESQ SERIES

ELEVATED SOCKET

Mates with:

TSW, MTSW, EW,

MTLW, TSS, ZSS, TSM,

DW, ZW, HW, TSSH, HTSS

TYPE

STRIP

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?ESW or

www.samtec.com?ESQ

Insulator Material:

Black Glass Filled Polyester

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating (ESW/TSW):

5.2 A per pin

(1 pin powered per row)

Current Rating (ESQ/TSW):

5.7 A per pin

(1 pin powered per row)

Voltage Rating:

550 VAC mated with

TSW or ESQ

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

Insertion Force:

(Single contact only)

Standard = 6 oz (1,67 N) avg.

((0,64 mm) .025" SQ pin);

ESW Low Inser tion Force=

3 oz (0,83 N) avg.

ESQ Low Insertion Force=

3.3 oz (0,92 N) avg.

Normal Force:

Standard = 125 grams (4,4 N)

Withdrawal Force:

(Single contact only)

Standard = 5 oz (1,39 N) avg.

((0,64 mm) .025" SQ pin);

ESW Low Inser tion Force=

2.6 oz (0,72 N) avg.

ESQ Low Insertion Force=

2.9 oz (0,81 N) avg.

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Lead-Free Solderable:

Wave only

ESW

= Solder Tail

–S

–L

ALSO AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

= 10µ" (0,25 µm)

Gold contact,

Matte Tin on tail

= Single

Row

–LL

= Locking

Lead

ESQ

= Square Tail

–D

= Double

Row

–G

= 20µ" (0.51 µm)

Gold contact,

Gold Flash on Balance

–T

= Triple

Row

(ESQ only)

01 thru 36

(2,54) .100 X No. of Positions + (0,51) .020

–T

= Matte Tin

(N/A w/LIF contact)

Two leads per

strip crimped.

N/A with single

row 1 or 2

positions.

–“XXX”

= Polarized

(2,41)

.095

–S

(2,54)

.100

–D

(2,54)

.100

(4,95)

.195

(2,54)

.100

Specify LEAD STYLE

from chart below.

LOW

STANDARD

INSERTION FORCE INSERTION FORCE

(2,29)

.090

(7,36)

.290

(4,83)

.190

(2,29)

.090

(12,19)

.480

(9,65)

.380

(7,11)

.280

(4,57)

.180

(11,05)

.435

(13,59)

.535

(16,13)

.635

(11,05)

.435

(13,59)

.535

(16,13)

.635

(18,67)

.735

– 12

– 37

– 38

– 48

– 58

– 39

– 49

– 59

– 69

108

– 13

(7,49)

.295

(5,08)

.200 (2,54)

.100

– 23

– 33

– 14

– 24

– 34

– 44

(ESQ

only)

–T

106

APPLICATIONS

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO: 090871_0_000

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

(2,54)

.100

TYP

ESW

(0,41) x (0,79)

.016 .031

ESQ

(0,64)

.025

Self g

Nestints

Socke

(ESQ Series)

PC/104

™

J1/P1 “Stackthrough” Connectors

Standard Insertion Force

ESQ-132-14-G-D

Low Insertion Force

ESQ-132-39-G-D

PC/104

™

J1 “Non-Stackthrough” Connectors

Standard Insertion Force

ESQ-132-12-G-D

Low Insertion Force

ESQ-132-37-G-D

PC/104

™

J2/P2 “Stackthrough” Connectors

Standard Insertion Force

ESQ-120-14-G-D

Low Insertion Force

ESQ-120-39-G-D

PC/104 is a trademark of the PC/104 Consortium.

WWW.SAMTEC.COM

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.
