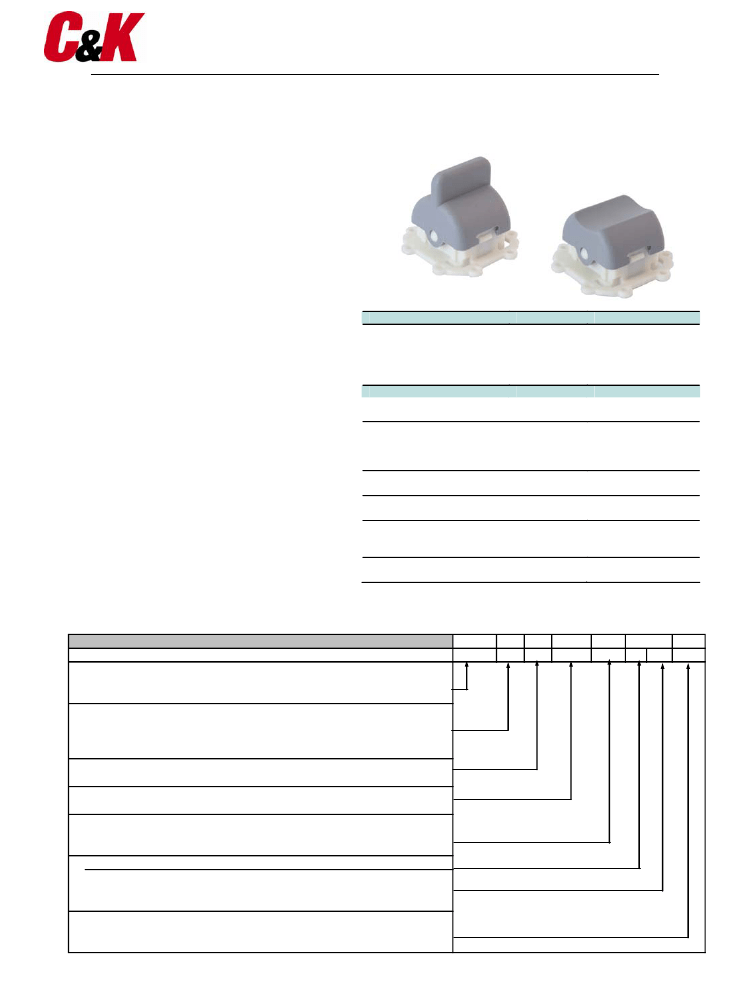

Switch Rocker – SR3
SR3
Switch Rocker –
SR 3 Switch Rockers were developed to
provide the reliability required in
demanding environmental conditions
such as multifunction grips, dashboards
or armrest controls for heavy duty
industrial applications.
The switching system is distinguished by
its high reliability with a life expectation of
at least one million operations.
The rocker modules have been designed
for the typical switching function in ‘off-
road’ machinery and other rough
enviroments.
Electrical Data
Switching current max.
Switch 1
Switch 2
S1: 7 mA (1K3 Ohm)
S2: 9 mA (680 Ohm)
Mechanical Data
Life
1 million cycles
Main Features
•
•
•
Life greater than 1 million cycles
Precise tactile feedback of switches
Protection Class IP65
K12 switch technology for high
reliability
Operating temperature
- Storage
- Working
Operating force
Vertical load maximum
Protection Level
- 40°C to 85°C
- 35°C to 70°C
5N
30 N
IP 65 (from above
when mounted)
± 12°
•
Rocker deflection angle
Ordering code
1
Type
2
Actuator Shape
Example
SR3 = switch rocker 3
S = varnished PC B
N = non varnished PC B
01 = long lever
02 = short lever
05 = thumb lever
GY = grey
5N/5N = 5 N left / 5N right
01 = switch 1 (S1) K12P BK 1 5N
switch 2 (S2) K12P BK 1 5N
1
SR3S
2
01
3
4
5
GY 5N/5N 01
R
6
00
7
M
3
Actuator Calour
4
Operation Force
5

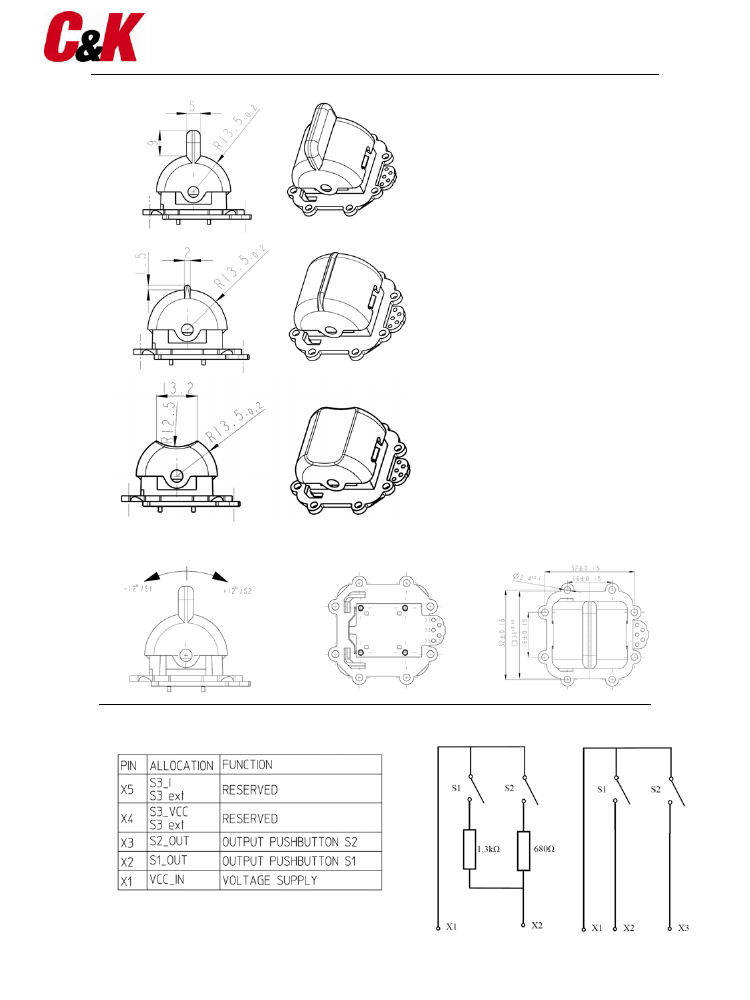

Switch assembly
R = resistor (Ohm)
6
Output
Output configuration
00 = 0 Ohm
01 = S1: 1K3 Ohm
S2: 680 Ohm
7
Mechanical function
M = left / right momentary
(center turn position)
M-SR3-0744
www.ck-components.com
