HA7-2620-2

Description
OP-AMP, 6000uV OFFSET-MAX, 100MHz BAND WIDTH, CDIP8, CERDIP-8
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size692KB,10 Pages
ManufacturerIntersil ( Renesas )
Websitehttp://www.intersil.com/cda/home/
Download Datasheet Parametric Compare View All

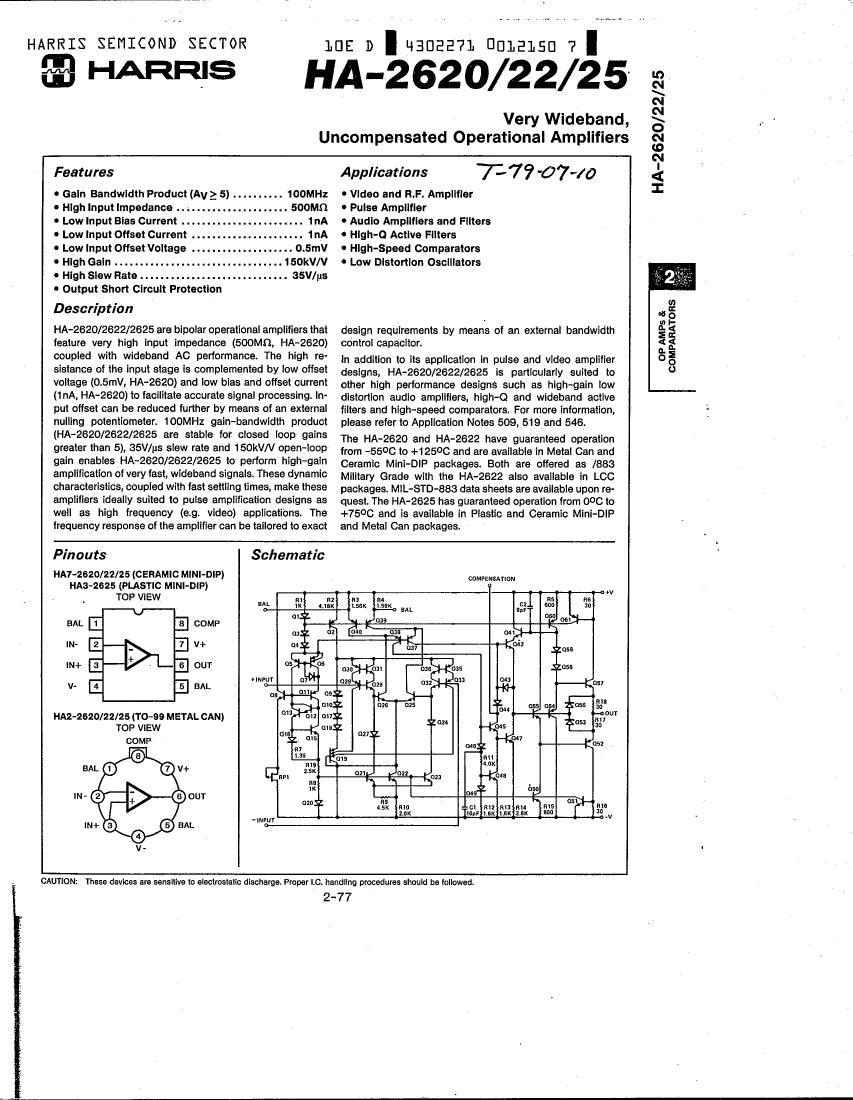

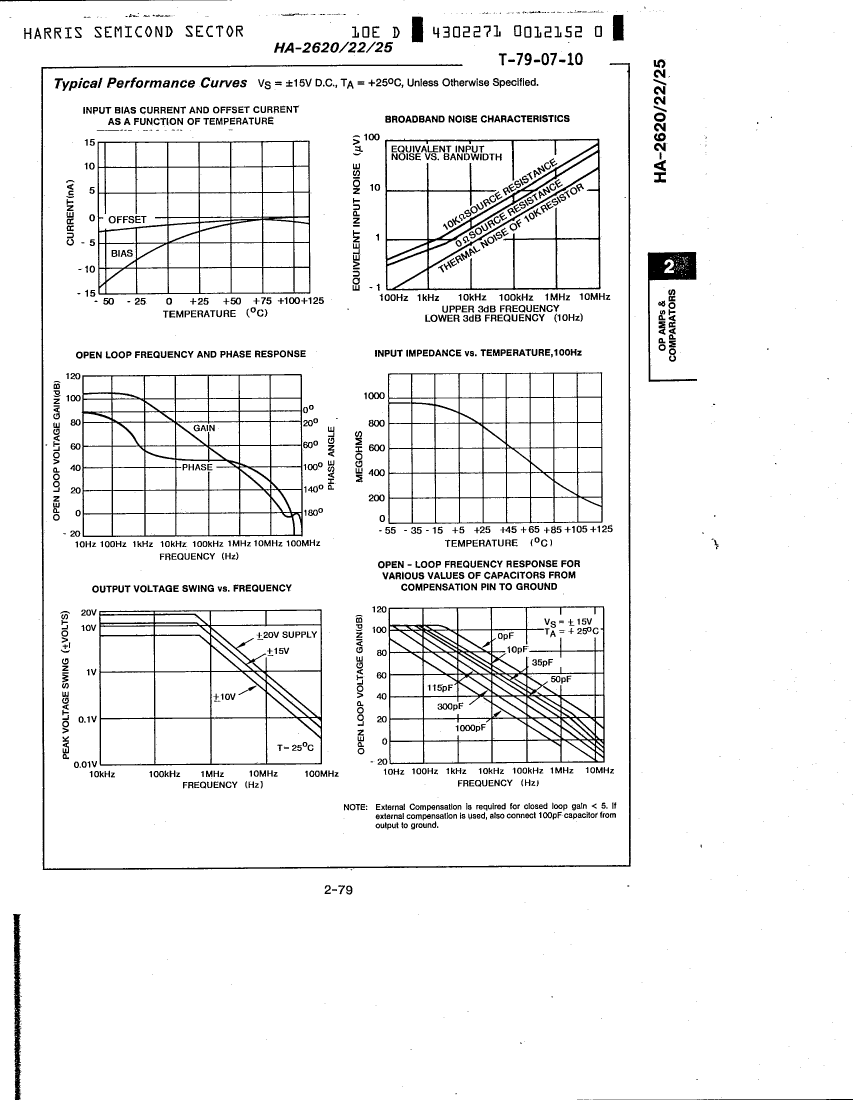

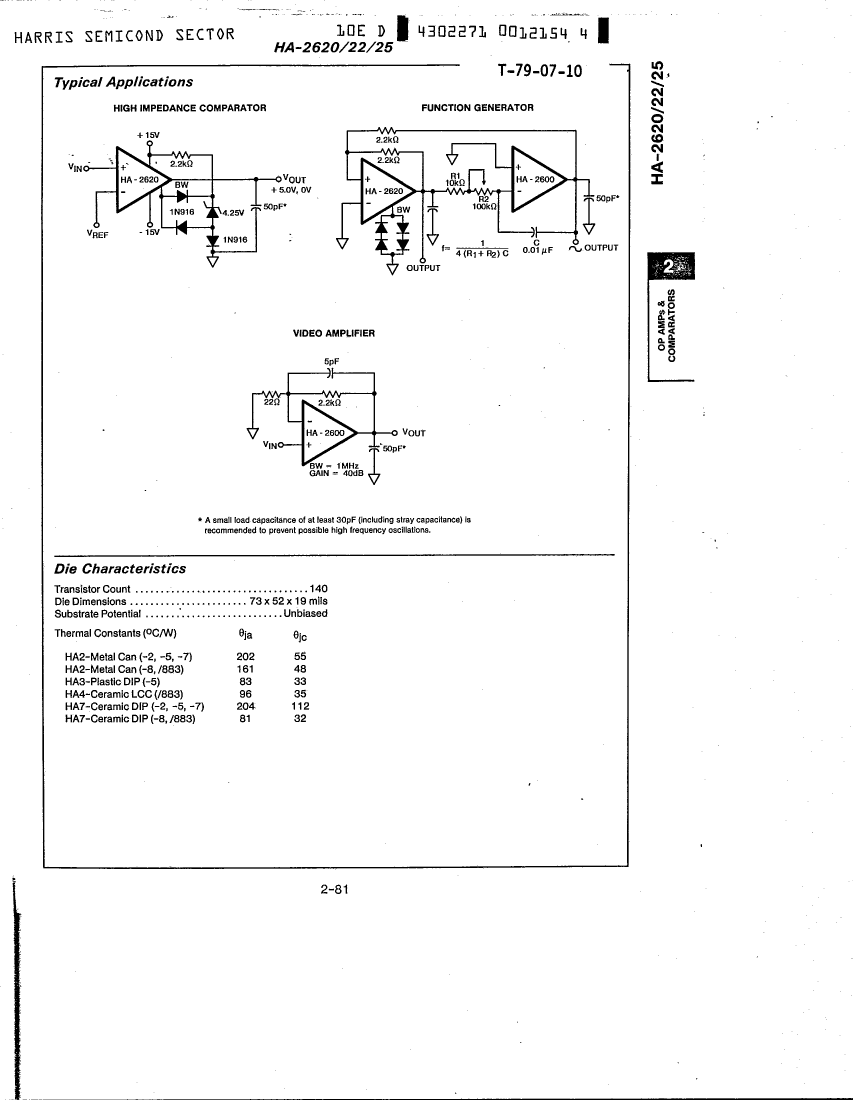

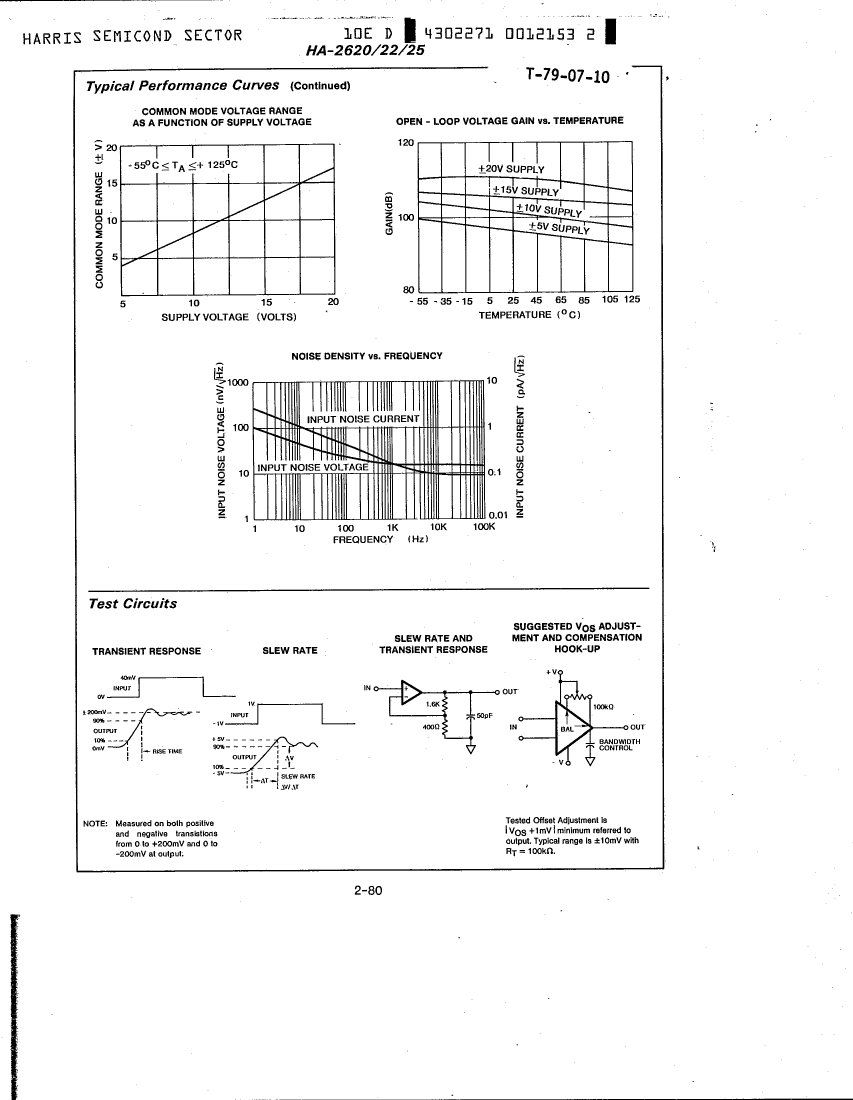

HA7-2620-2 Overview

OP-AMP, 6000uV OFFSET-MAX, 100MHz BAND WIDTH, CDIP8, CERDIP-8

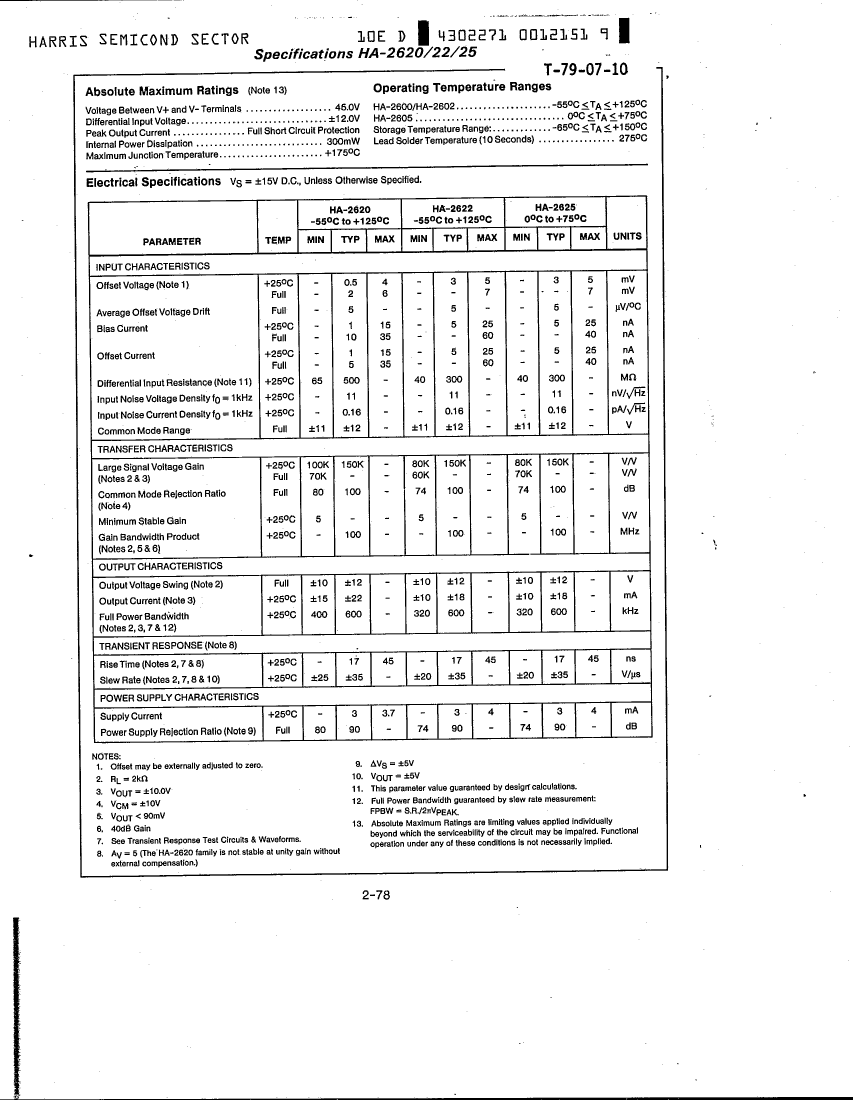

HA7-2620-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1912724187
Parts packaging codeDIP
package instructionDIP, DIP8,.3
Contacts8
Reach Compliance Codenot_compliant
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.035 µA
Maximum bias current (IIB) at 25C0.015 µA
Nominal Common Mode Rejection Ratio100 dB
frequency compensationYES (AVCL>=5)
Maximum input offset voltage6000 µV
JESD-30 codeR-GDIP-T8
JESD-609 codee0
low-dissonanceNO
Negative supply voltage upper limit-22.5 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply+-15 V
Certification statusNot Qualified
Maximum seat height5.08 mm
minimum slew rate25 V/us
Nominal slew rate35 V/us
Maximum slew rate3.7 mA
Supply voltage upper limit22.5 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal Uniform Gain Bandwidth100000 kHz
Minimum voltage gain70000
broadbandYES
width7.62 mm

HA7-2620-2 Related Products

HA7-2620-2 HA2-2620-1 HA0-2625-6 HA7-2620-8 HA2-2625-7 HA7-2625-7
Description OP-AMP, 6000uV OFFSET-MAX, 100MHz BAND WIDTH, CDIP8, CERDIP-8 HA2-2620-1 HA0-2625-6 HA7-2620-8 IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC
package instruction DIP, DIP8,.3 , CAN8,.2 , DIE OR CHIP DIP, DIP8,.3 , CAN8,.2 DIP, DIP8,.3
Reach Compliance Code not_compliant not_compliant unknown not_compliant not_compliant not_compliant
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C 0.015 µA 0.015 µA 0.025 µA 0.015 µA 0.025 µA 0.025 µA
frequency compensation YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5) YES (AVCL>=5)
Maximum input offset voltage 6000 µV 6000 µV 5000 µV 6000 µV 7000 µV 7000 µV
low-dissonance NO NO NO NO NO NO
Nominal Negative Supply Voltage (Vsup) -15 V -15 V -15 V -15 V -15 V -15 V
Number of functions 1 1 1 1 1 1
Maximum operating temperature 125 °C 200 °C 70 °C 125 °C 70 °C 70 °C
Encapsulate equivalent code DIP8,.3 CAN8,.2 DIE OR CHIP DIP8,.3 CAN8,.2 DIP8,.3
power supply +-15 V +-15 V +-15 V +-15 V +-15 V +-15 V
Nominal slew rate 35 V/us 35 V/us 35 V/us 35 V/us 35 V/us 35 V/us
Maximum slew rate 3.7 mA 3.7 mA 4 mA 3.7 mA 4 mA 4 mA
Supply voltage upper limit 22.5 V 22.5 V 22.5 V 22.5 V 22.5 V 22.5 V
Nominal supply voltage (Vsup) 15 V 15 V 15 V 15 V 15 V 15 V
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level MILITARY OTHER COMMERCIAL MILITARY COMMERCIAL COMMERCIAL
Nominal Uniform Gain Bandwidth 100000 kHz 100000 kHz 100000 kHz 100000 kHz 100000 kHz 100000 kHz
Minimum voltage gain 70000 70000 70000 70000 70000 70000
broadband YES YES YES YES YES YES
Is it Rohs certified? incompatible incompatible - incompatible incompatible incompatible
Objectid 1912724187 - - 1164769065 1164768985 1164769067
Parts packaging code DIP - - DIP BCY DIP
Contacts 8 - - 8 8 8
ECCN code EAR99 EAR99 EAR99 - EAR99 EAR99
JESD-30 code R-GDIP-T8 O-MBCY-W8 - R-XDIP-T8 O-MBCY-W8 R-XDIP-T8
JESD-609 code e0 e0 - e0 e0 e0
Number of terminals 8 8 - 8 8 8
Package body material CERAMIC, GLASS-SEALED METAL - CERAMIC METAL CERAMIC
Package shape RECTANGULAR ROUND - RECTANGULAR ROUND RECTANGULAR
Package form IN-LINE CYLINDRICAL - IN-LINE CYLINDRICAL IN-LINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified - -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE WIRE - THROUGH-HOLE WIRE THROUGH-HOLE
Terminal location DUAL BOTTOM - DUAL BOTTOM DUAL
