TSS644S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TSS644S

TSS644S: DescriptionKeypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,; CategoryMechanical and electronic products switch; File Size260KB，2 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TSS644S Overview

Keypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,

TSS644S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8295754828
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.118 inch
Actuator material	NYLON
Actuator stroke	0.254 mm
Actuator type	PUSHBUTTON
body width	6.1976 mm
body height	3.5052 mm
Body length or diameter	6.1976 mm
Casing diameter	0.138 inch
Nozzle length	0.031 inch
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	50000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	100000000 Ω
insulator material	NYLON
JESD-609 code	e4
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count
Solderability	REFLOW
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Terminal material	BRASS
Termination type	SOLDER

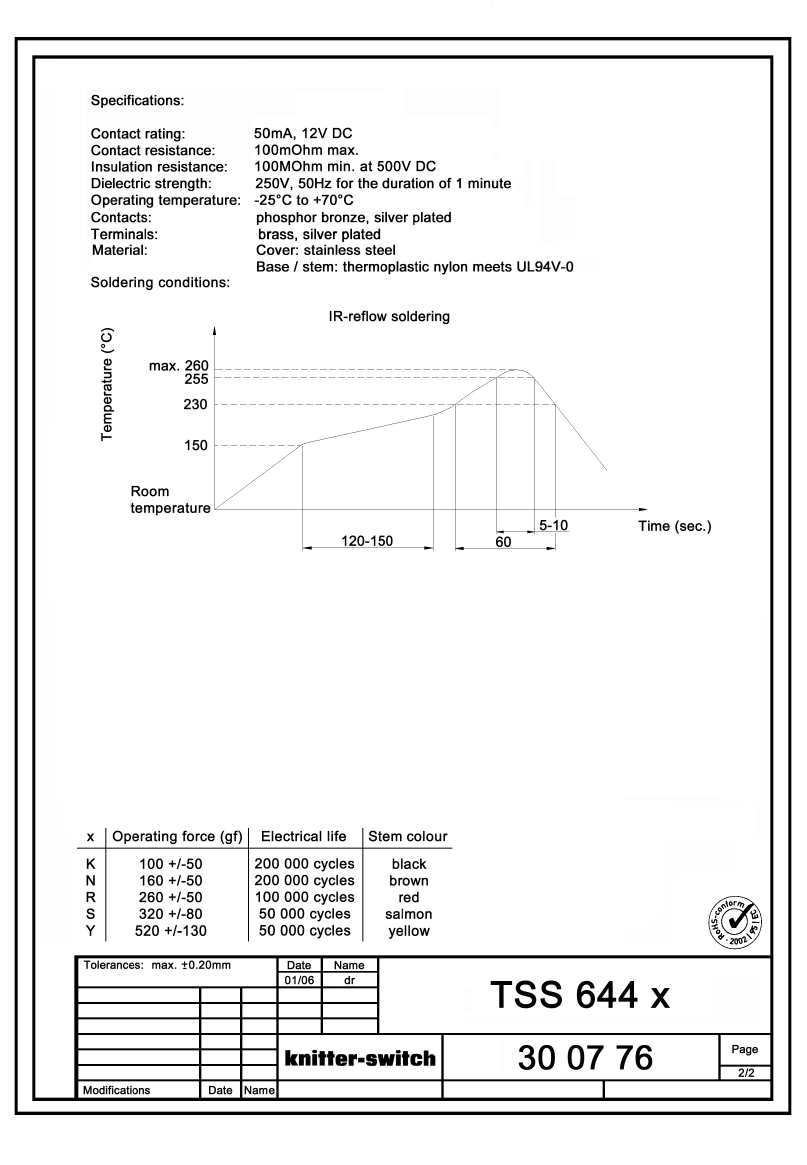

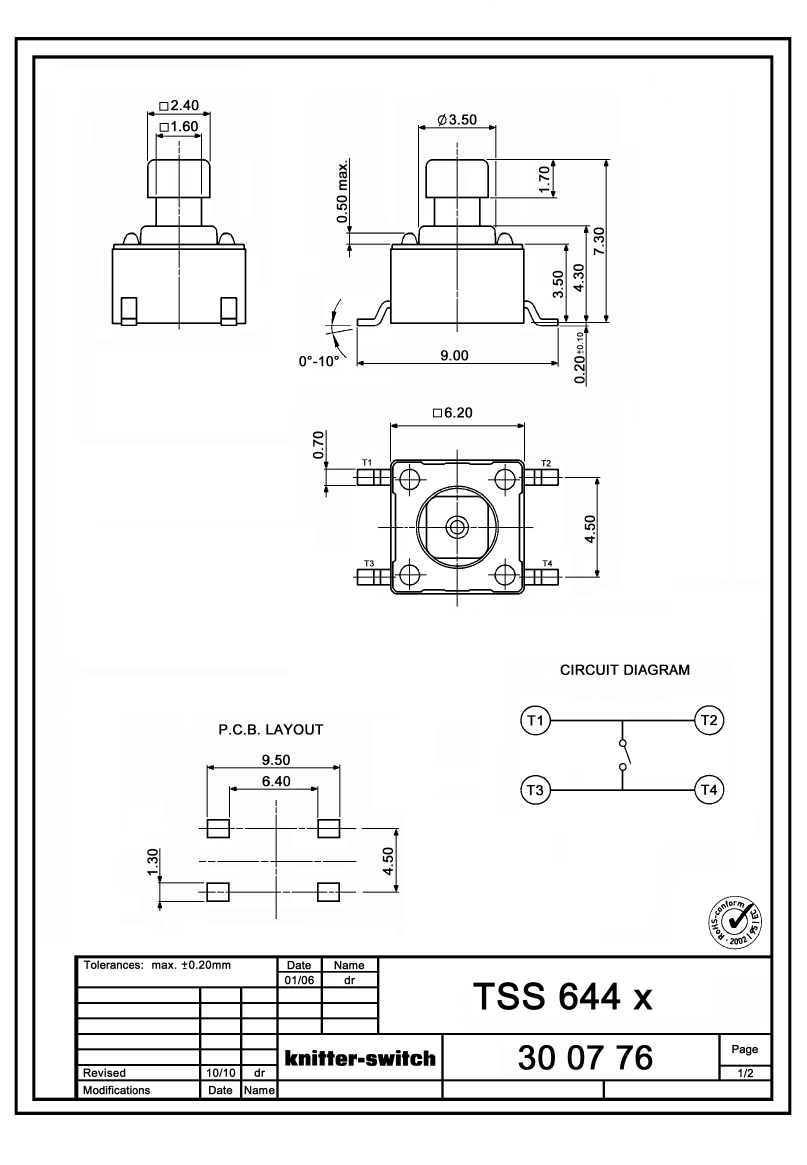

Preview

Download Datasheet

View All

TSS644S Related Products

	TSS644S	TSS644K	TSS644N	TSS644R	TSS644Y
Description	Keypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,	Keypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,	Keypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,	Keypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,	Keypad Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	8295754828	8295754832	8295754821	8295754812	8295754823
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Actuator material	NYLON	NYLON	NYLON	NYLON	NYLON
Actuator stroke	0.254 mm	0.254 mm	0.254 mm	0.254 mm	0.254 mm
Actuator type	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON
body width	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm
body height	3.5052 mm	3.5052 mm	3.5052 mm	3.5052 mm	3.5052 mm
Body length or diameter	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm	6.1976 mm
Casing diameter	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Nozzle length	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	SILVER	SILVER	SILVER	SILVER	SILVER
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC	0.05A@12VDC
Contact resistance	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ
Maximum contact voltage (DC)	12 V	12 V	12 V	12 V	12 V
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Electrical life	50000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	100000 Cycle(s)	50000 Cycle(s)
End contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	SILVER	SILVER	SILVER	SILVER	SILVER
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Solderability	REFLOW	REFLOW	REFLOW	REFLOW	REFLOW
surface mount	NO	NO	NO	NO	NO
Switch action	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL
switch function	SPST	SPST	SPST	SPST	SPST
Switch type	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Actuator color	-	BLACK	BROWN	RED	YELLOW
