SMD Transient Voltage Suppressor
TV30C5V0-G Thru. TV30C441-G
Working Peak Reverse Voltage: 5.0 to 440 Volts
Power Dissipation: 3000 Watts
RoHS Device
Features
-Ideally for surface mount applications.
-Easy pick and place.
-Plastic package has Underwriters Lab.
flammability classification 94V-0.
-Typical IR less than 1μA above 10V.
-Fast response time: typically less than 1nS for
uni-direction, less than 5nS for bi-direction,
from 0V to BV min.
-Use in sensitive electronic protection against
voltage transients induced by inductive load
switching and lighting on ICs, MOSFET, signal
lines of sensor units for consumer, computer,
industrial, automotive and telecommunication.
DO-214AB (SMC)
0.280(7.02)
0.260(6.52)
0.126(3.16)
0.22 (2.86)
0.245(6.15)
0.220(5.52)
0.320(8.02)
0.305(7.64)
0.012(0.30)
0.006(0.15)
0.103(2.59)
0.079(1.98)
0.060(1.51)
0.030(0.75)
0.008(0.20)
0.000(0.00)
Mechanical data
-Case: JEDEC DO-214AB, molded plastic.
-Terminals: solderable per MIL-STD-750,
method 2026.
-Polarity: Color band denotes cathode end.
-Approx. weight: 0.21 grams
Dimensions in inches and (millimeter)
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics
Peak power dissipation on 10/1000μS
waveform (Note 1)
Peak pulse current on 10/1000μS
waveform (Note 1)
Steady state power dissipation at T
L
=75 C
Peak forward surge current, 8.3ms single
half sine-wave superimposed on rated
load, uni-directional only (Note 2)
Maximum instantaneous forward voltage
at 100A for uni-directional only (Note 3)
Operating junction temperature
Storage temperature range
Notes:
O
Symbol
P
PP
Value
3000
Units
W
I
PP
See Next Table
A
P
D
6.0
W
I
FSM
300
A
V
F
T
J
T
STG
3.5/5.0
-55 to +150
-55 to +150
V
O
C
C
O
1. Non-repetitive current pulse, per Fig. 5 and derated above T
A
=25 C, per Fig. 1
2. Measured on 8.3 ms single half sine-wave or equivalent square wave,duty cycle=4 pulses per minute maximum.
3. V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
REV:F
O
QW-BTV04
Page 1
Comchip Technology CO., LTD.
SMD Transient Voltage Suppressor

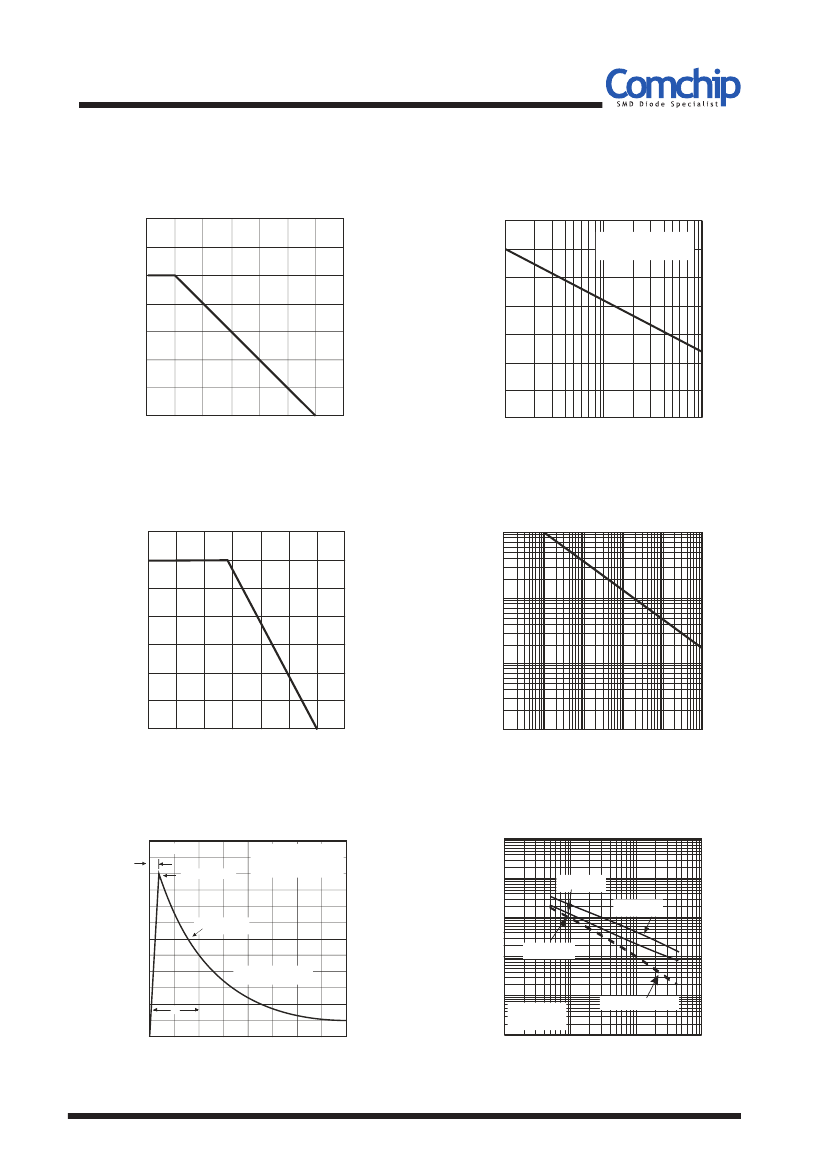

RATING AND CHARACTERISTIC CURVES (TV30C5V0-G Thru. TV30C441-G)
Fig.1 Pulse Derating Curve
140
120
350
300
Fig.2 Max. Non-Repetitive Surge Current
Peak Pulse Derating in Percentage of Peak
Power or Current, ( % )
8.3mS single half
sine-wave (JEDEC method)
T
J
=T
J
, max.
100
80
60
Peak Forward Current , (A)
250
200
150
100
200
0
40
20
0
0
25
50
75
100
125
O
150
175
1
10
100
Ambient Temperature,TA ( C )
Number of Cycles at 60Hz
Fig.3 Steady State Power Derating Curve
7
100
Fig.4 Peak Pulse Power Rating Curve
Steady Power Dissipation, (W)
6
5
4
3
2
1
0.1
0.1
Peak Power, ( KW )
10
1.0
0
0
25
50
75
100
125
O
150
175
1
10
100
1000
10000
Lead Temperature , TL ( C )
Pulse Width,t
d
(
μS
)
Fig.5 Pulse Waveform
120
t
r
=10μS
T
J
= 25
O
C
Pulse width (t
d
) is defined
as the point where the peak
current decay to 50% of I
PP
Fig.6 Typical Junction Capacitance
100000
100
Peak value I
PPM
Peak Pulse Current , ( % )
Junction Capacitance, (pF)
10000
Bi-directional
@zero bias
Uni-directional
@zero bias
Half value I
PP
/2
1000
50
10/1000μsec. Waveform
as defined by R.E.A.
100
Uni-directional
@V
RWM
10
T
J
=25 C
f=1.0MHz
O
Bi-directional @ V
RWM
t
d
10
0
0
1
2
3
4
1
1
10
100
1000
Time, (ms)
VBR, Reverse Breakdown Voltage (V)
REV:F
QW-BTV04
Comchip Technology CO., LTD.
Page 2
SMD Transient Voltage Suppressor
Electrical Characteristics (TV30C5V0-G Thru. TV30C441-G)
Part No.
TV30C161K(B)-G
TV30C161J(B)-G
TV30C171K(B)-G
TV30C171J(B)-G
TV30C181K(B)-G
TV30C181J(B)-G
TV30C191K(B)-G
TV30C191J(B)-G
TV30C201J(B)-G
TV30C221J(B)-G
TV30C251J(B)-G
TV30C301J(B)-G
TV30C351J(B)-G
TV30C401J(B)-G
TV30C441J(B)-G
Absolute Maximum Rating (T
A
=25
O
C)
I
FSM
V
RWM
V
BR
Min. V
BR
Max.
I
T
(V)
(V)
(V)
(mA) (A)@8.3mS
160.0
160.0
170.0
170.0
180.0
180.0
190.0
190.0
200.0
220.0
250.0
300.0
350.0
400.0
440.0
178.00
178.00
189.00
189.00
200.16
200.00
211.28
211.00
224.00
246.00
279.00
335.00
391.00
447.00
492.00
218.00
197.00
231.0
209.0
244.80
220.00
258.40
232.00
247.00
272.00
309.00
371.00
432.00
494.00
543.00
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
Electrical Characteristic (T
A
=25 C)
I
R
@V
RWM
Marking Code
Max V
C
(V)
287.0
259.0
304.0
275.0
322.2
291.6
340.1
307.8
324.0
356.0
405.0
486.0
567.0
648.0
713.0
O
I
PP
(A)
10.45
11.58
9.87
10.91
9.31
10.29
8.82
9.75
9.26
8.43
7.41
6.17
5.29
4.63
4.21
(uA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Uni
PHN
PHP
PHQ
PHR
PHS
PHT
PHU
PHV
PHW
PHX
PHZ
PJE
PJG
PJK
PJM
Bi
DHN
DHP
DHQ
DHR
DHS
DHT
DHU
DHV
DHW
DHX
DHZ
DJE
DJG
DJK
DJM
Note:
1) Suffix K denotes 10% tolerance devices, suffix J denotes 5% tolerance devices.
2) Suffix B after part number to specify Bi-directional devices.
3) For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double.
REV:F
QW-BTV04
Page 5
Comchip Technology CO., LTD.
