Compact Technology
UF3001G thru UF3007G
REVERSE VOLTAGE
- 50
to
1000
Volts
FORWARD CURRENT
- 3.0
Amperes
ULTRA FAST
GLASS PASSIVATED RECTIFIERS
FEATURES
Glass passivated chip
Ultra fast switching for high efficiency
Low reverse leakage current
Low forward voltage drop
High current capability
Easily cleaned with Freon, Alcohol, Chlorothene and
similar solvents
Plastic material has UL flammabitily classification 94V-0
A
DO-201AD
B
A
C
D
MECHANICAL DATA
Case : JEDEC DO-201AD molded plastic
Polarity : Color band denotes cathode
Weight : 0.04 ounces, 1.2 grams
Mounting position : Any
Dim.
A
DO-201AD
Min.
Max.
-
25.4
7.20
9.50
B
1.20
1.30
C
4.80
5.30
D
All Dimensions in millimeter
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
SYMBOL
UF3001G UF3002GUF3003GUF3004GUF3005GUF3006G UF3007G
UNIT
V
RRM
V
RMS
V
DC
50
35
50
100
70
100
200
140
200
400
280
400
3.0
125
600
420
600
800
560
800
1000
700
1000
V
V
V
A
@T
A
=
55 C
I
(AV)
I
FSM
V
F
I
R
T
RR
C
J
R
0JA
Peak Forward Surge Current
8.3ms single half sine-wave
super imposed on rated load(JEDEC Method)
Maximum forward Voltage at 3.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
A
1.0
1.3
5
100
50
30
25
-55 to +150
1.7
V
uA
@T
J
=25 C
@T
J
=100 C
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Typical Thermal Resistance (Note 3)
Storage / Operatiing Temperature Range
75
15
ns
pF
C/W
T
STG
,T
J
C
NOTES : 1.Test condition of T
RR
:I
F
=0.5A,I
R
=1.0A,I
RR
=0.25A..
2.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3.Thermal Resistance Junction to Ambient.
CTC0109
Ver.
1.0
1
of 2
UF3001G thru UF3007G
Compact Technology
UF3001G thru UF3007G

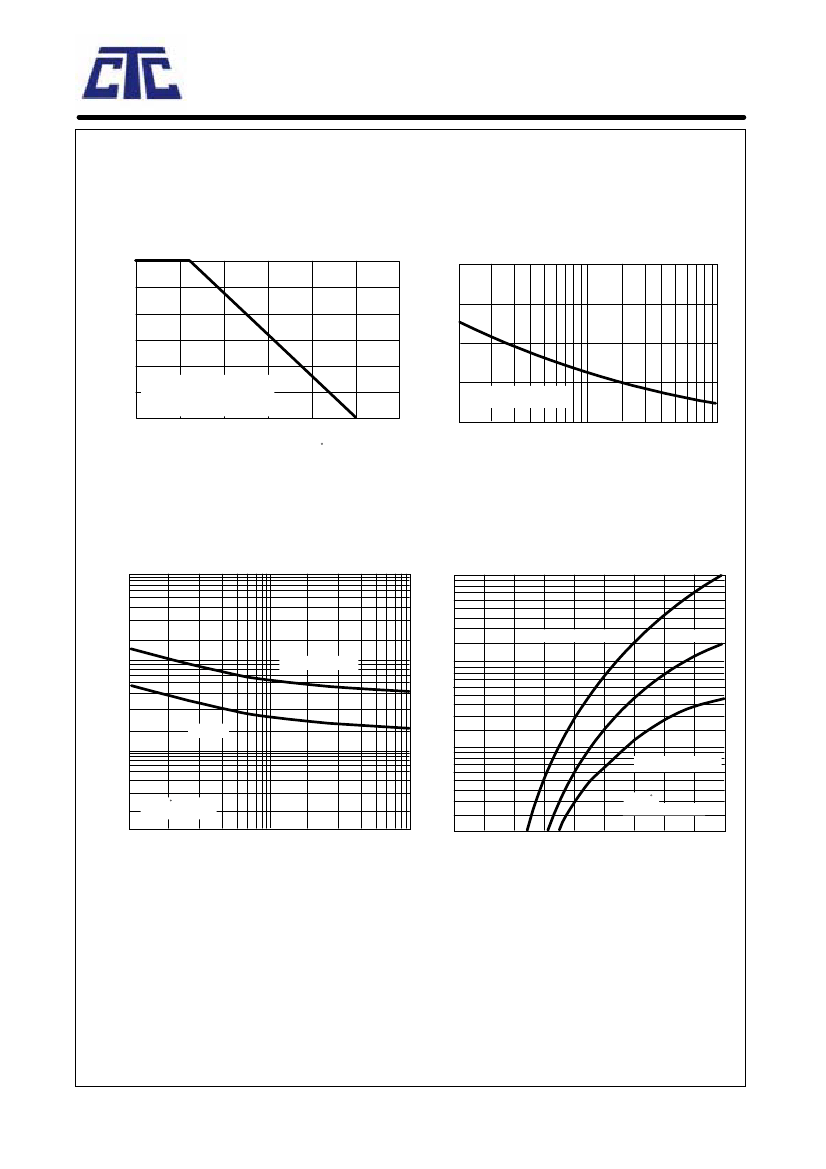

RATING AND CHARACTERISTIC CURVES
FIG.1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT
AMPERES
3.0
PEAK FORWARD SURGE CURRENT,
AMPERES
FIG.2 - MAXIMUM NON-REPETITIVE SURGE CURRENT
200
150
2.0
100
1.0
SINGLE PHASE HALF WAVE 60Hz
RESISTIVE OR INDUCTIVE LOAD
50
Single Half-Sine-Wave
(JEDEC METHOD)
0
25
50
75
100
125
150
175
0
1
2
5
10
20
50
100
AMBIENT TEMPERATURE , C
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL JUNCTION CAPACITANCE
1000
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS FORWARD CURRENT ,(A)
UF3001G to UF3004G
UF3005G
CAPACITANCE , (pF)
100
UF3001G - UF3004G
10
UF3005G
10
1.0
UF3006G & UF3007G
T
J
= 25 C, f = 1MHz
T
J
= 25 C
PULSE WIDTH 300us
1
1
4
10
100
0.1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
REVERSE VOLTAGE , VOLTS
INSTANTANEOUS FORWARD VOLTAGE , VOLTS
CTC0109
Ver.
1.0
2
of 2
UF3001G thru UF3007G
