Description
5G will increase the communication traffic exponentially. A 5G communication network requires high-speed
and wide-band, while keeping the noise level to a minimum. This can be achieved with a high frequency
low jitter reference clock for the communication equipment. Using the above XO, customers can input a high
frequency reference (up to 500 MHz) with extremely low phase jitter and power, from a fundamental mode
crystal to achieve excellent phase noise.

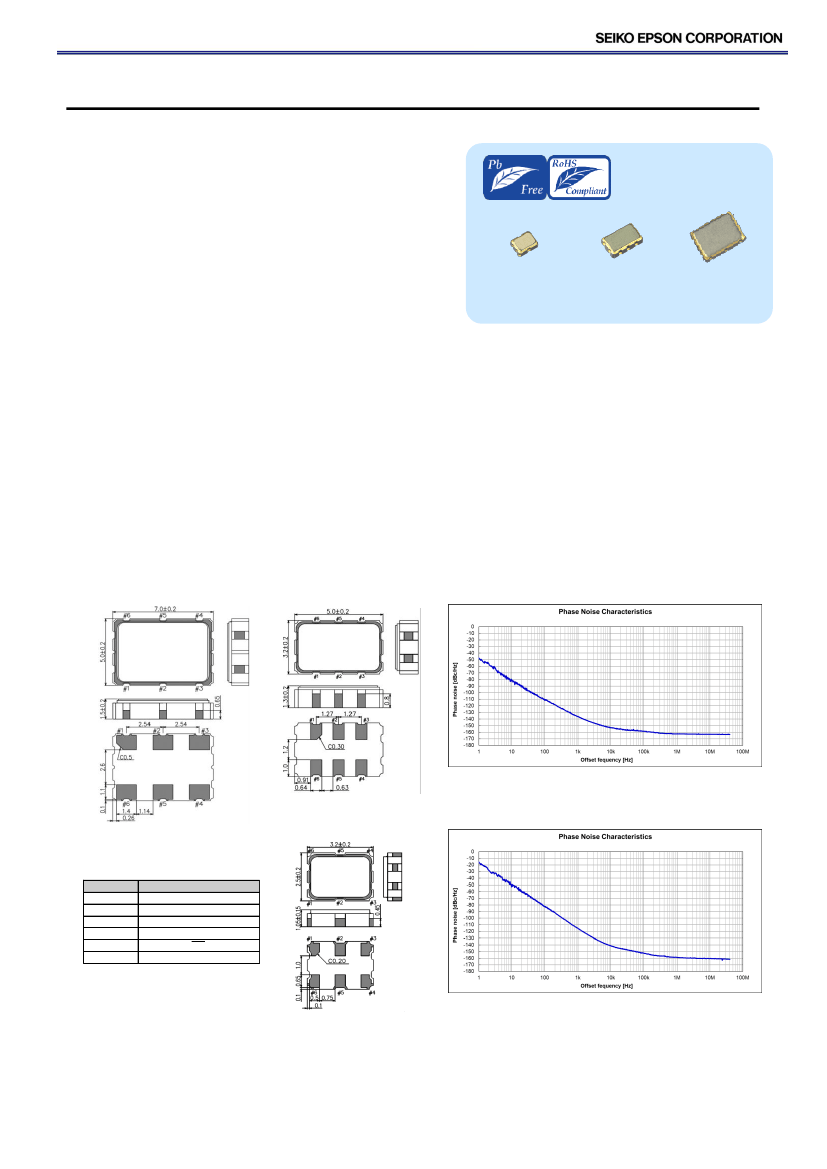

Outline Drawing and Terminal Assignment
SG7050EEN
SG5032EEN
Typical Performance
Phase Noise (fo = 156.25 MHz, V
CC
= 3.3 V)
Phase Jitter (12 kHz to 20 MHz): 50 fs Typ.
Phase Noise (fo = 491.52 MHz, V
CC
= 3.3 V)
SG3225EEN
Pin
1
2
3
4
5
6
Connection
OE
N.C. (Open or V
CC
)
GND
OUT
OUT
V
CC
Phase Jitter (12 kHz to 20 MHz): 20 fs Typ.
Page 1 / 21
Spec No : SGxxxxEEN_E_Ver1.11
[ 1 ] Product Number / Product Name
(1-1) Product Number
SG3225EEN: X1G005221xxxx00 (fo
≤
200 MHz)
SG3225EEN:
X1G005511xxxx00 (fo > 200 MHz)
SG5032EEN: X1G005531xxxx00 (fo > 200 MHz)
SG7050EEN: X1G005131xxxx00 (fo
≤
200 MHz)
SG7050EEN:
X1G005551xxxx00 (fo > 200 MHz)
(Please contact Epson for details)
(1-2) Product Name (Standard Form)
SG3225 E EN 156.250000MHz C D G A (⑤⑥: Unavailable code DH and DG, JH at fo > 200 MHz)
①
②
③
④⑤⑥⑦
④Supply
voltage
①Model
D 2.5 V Typ.
②Output
(E: LVPECL)
C 3.3 V Typ.
③Frequency
④Supply
voltage
⑤Frequency
tolerance
⑤Frequency
tolerance
D ±25 × 10
-6
⑥Operating
temperature
⑦Internal
identification code
J ±50 × 10
-6
L ±100 × 10
-6
("A" is default)
⑥Operating
temperature
G -40 ºC to +85 ºC
H -40 ºC to +105 ºC
Available code for
⑥Operating
temperature
⑤
f_tol [x 10
-6
]
L:
±100
J:
±50
⑥
T_use: G or H
⑥
T_use: G
⑥
T_use: G
③
fo [MHz]
500
D:±25
25
200
Please note that the available code for
⑥Operating
temperature (T_use) depends on
③Frequency
(fo)
and
⑤Frequency
tolerance (f_tol).
[ 2 ] Absolute Maximum Ratings
Parameter
Maximum supply voltage
Input voltage
Storage temperature range
Symbol
V
CC
Vin
T_stg
Min.
-0.5
-0.5
-0.5
-55
Specification
Typ.
Max.
-
4
-
5
V
CC
+ 0.5
-
-
125
Unit
V
V
V
ºC
Conditions
fo
≤
200 MHz
fo > 200 MHz
OE terminal
[ 3 ] Operating Range
Parameter
Supply voltage
Supply voltage
Operating temperature range
ECL load condition
Symbol
V
CC
GND
T_use
L_ECL
Min.
2.375
3.135
0.0
-40
-40
Specification
Typ.
2.5
3.3
0.0
+25
+25
50
Max.
2.625
3.465
0.0
+85
+105
Unit
V
V
V
ºC
ºC
Ω
Suffix: D
Suffix: C
Suffix: G
Suffix: H
Terminated to V
CC
- 2.0 V
Conditions
* Power supply startup time (0 %V
CC
→90
%V
CC
) should be more than 150 μs
* A 0.01 μF and a 0.1 μF bypass capacitor should be connected between V
CC
and GND pins located close to the device
Page 2 / 21
Spec No : SGxxxxEEN_E_Ver1.11

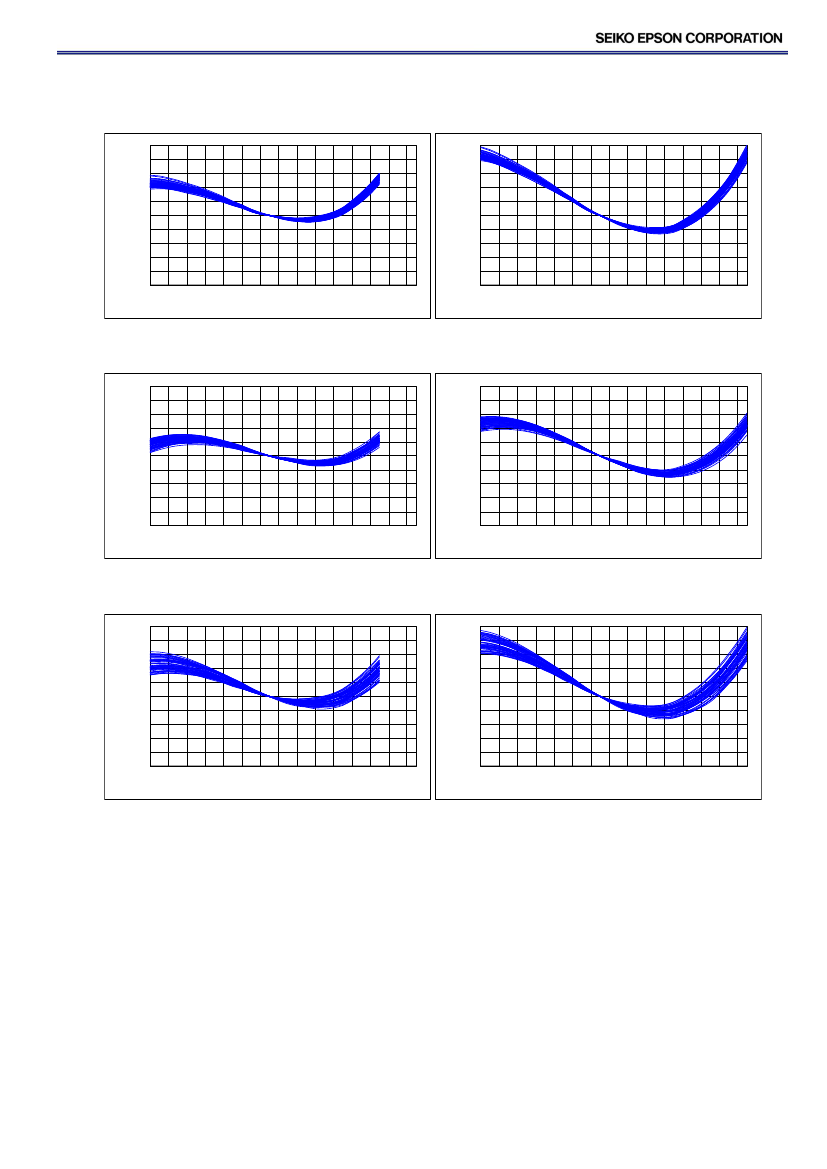

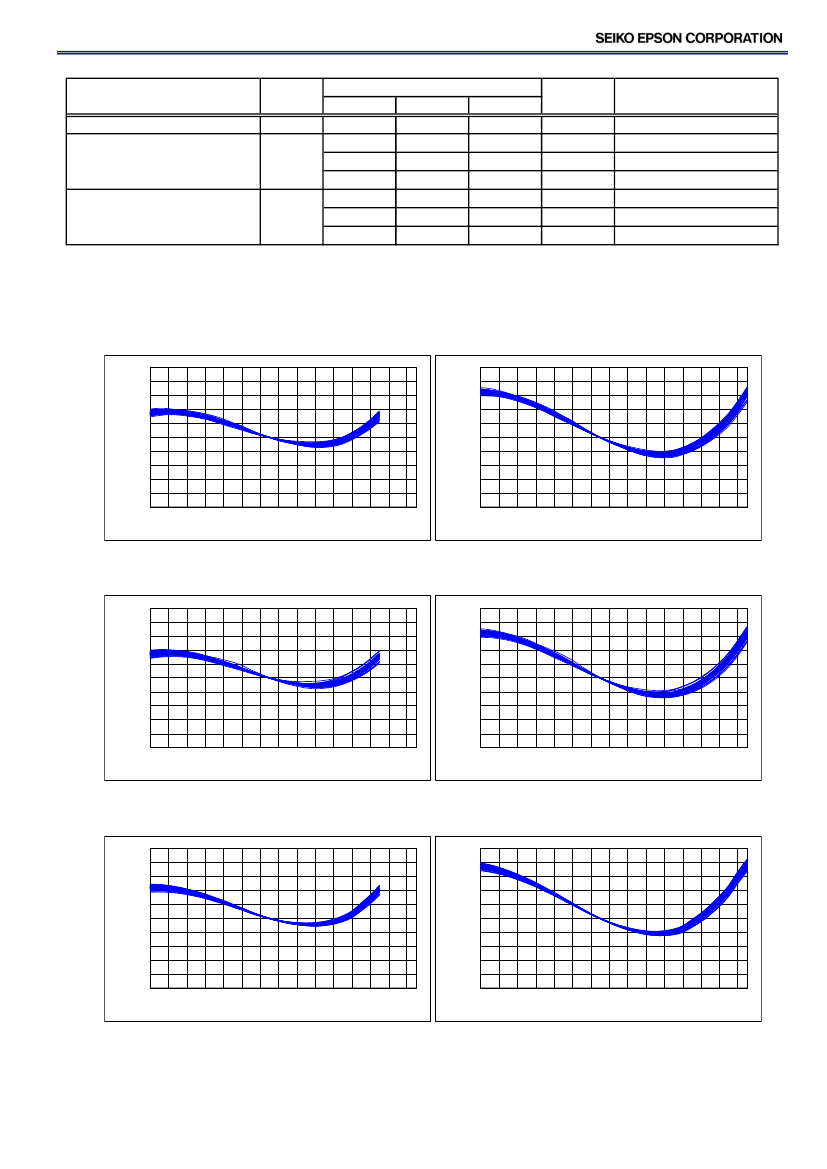

[ 4 ] Frequency Characteristics
Parameter
Output frequency *1
Symbol
fo
Min.
25
200
-25
Specification
Typ.
-
-
-
(Unless stated otherwise [ 3 ] Operating Range)
Max.
500
500
+25
Unit
MHz
MHz
×10
-6
Conditions
SG3225EEN / SG7050EEN
SG5032EEN
*2
Suffix: D
fo
≤
200 MHz, T_use: G
*3
Suffix: J
T_use: G
*3
Suffix: J
fo
≤
200 MHz, T_use: H
*3
Suffix: L
T_use: H
Frequency tolerance
f_tol
-50
-
+50
×10
-6
-100
-
+100
×10
-6
*1 Please contact Epson for available frequencies
*2 Frequency tolerance includes Initial frequency tolerance, Frequency / temperature characteristics, Frequency / voltage coefficient and aging (5 years, +25 ºC).
*3 Frequency tolerance includes Initial frequency tolerance, Frequency / temperature characteristics, Frequency / voltage coefficient and aging (10 years, +25 ºC).
