ILG-R-04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ILG-R-04

ILG-R-04: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

ILG-R-04 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle

ILG-R-04 Parametric

Parameter Name	Attribute value
Objectid	303820516
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.236 inch
subject depth	0.382 inch
body length	0.413 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulator color	ORANGE
insulator material	NYLON
Manufacturer's serial number	ILG-R
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

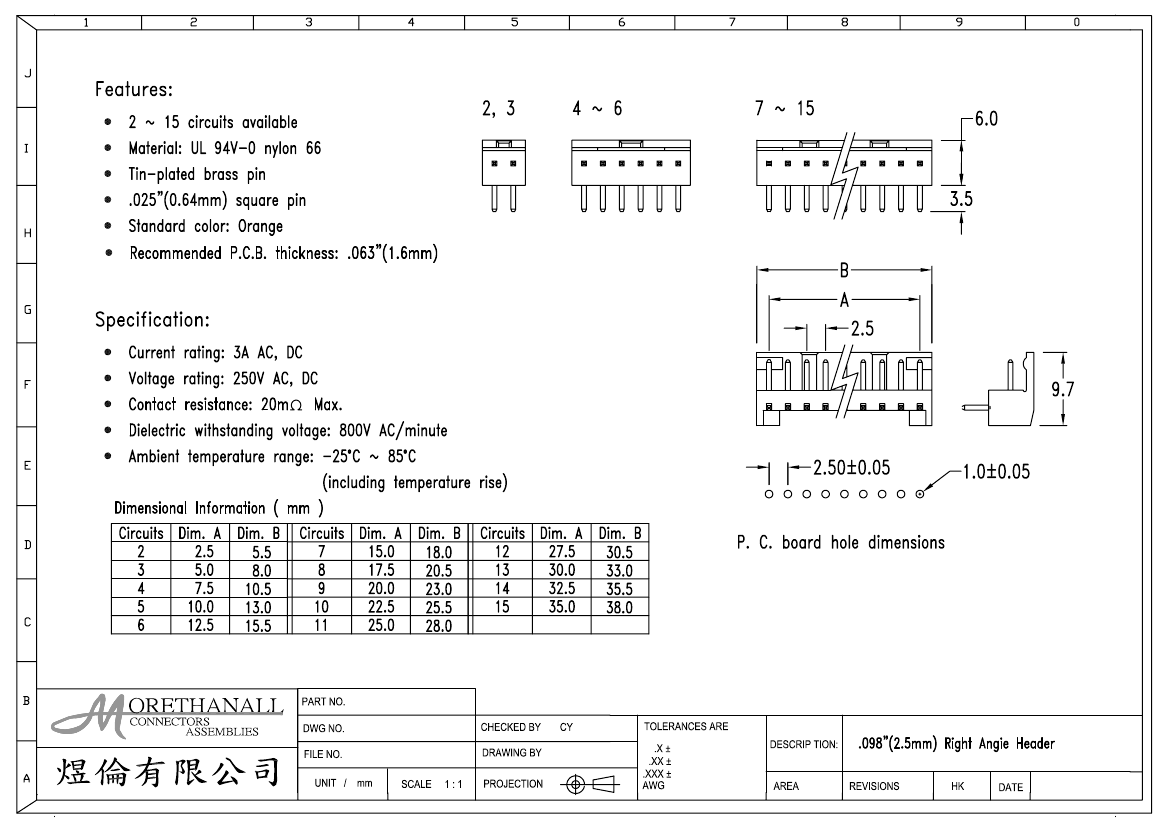

ILG-R-xx

0.25

0.15

ILG-R-04 Related Products

	ILG-R-04	ILG-R-12	ILG-R-15	ILG-R-02	ILG-R-11
Description	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Orange Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.382 inch	0.382 inch	0.382 inch	0.382 inch	0.382 inch
body length	0.413 inch	1.201 inch	1.496 inch	0.217 inch	1.102 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Insulator color	ORANGE	ORANGE	ORANGE	ORANGE	ORANGE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	ILG-R	ILG-R	ILG-R	ILG-R	ILG-R
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	12	15	2	11
Objectid	303820516	-	-	303820514	303820523
ECCN code	EAR99	-	-	EAR99	EAR99
