• Retention clips stabilize connector to the board
during wave soldering
• RoHS* compliant
Date Modified: December 11, 2006
TS-2054-03
Sheet 1 of 3
Physical
Insulation
Material:
Glass Filled PPS
Flammability:
UL 94V-0
Color:
Brown
Alignment Plate:
Glass Filled Nylon (Brown)
Contact
Material:
Phosphor Bronze
Plating
Underplating:
Nickel
Wiping Area:
Gold flash
Solder Tails:
Gold Flash
Retaining Clips:
Tin-Copper
Electrical
Current Rating:
0.5 A
650 V
AC
for 1 minute
Insulation Resistance:
10
3
Ω
at 500 V
DC
Withstanding Voltage:
Environmental
Temperature Rating:
-55°C to +85°C
Process Rating:
260°C (per J-STD-020C)
UL File No.: E68080
3
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Low Profile Socket
.050″ Vertical Stacking with and without Flanges
Socket with Flanges and Retention Clips
P50L Series

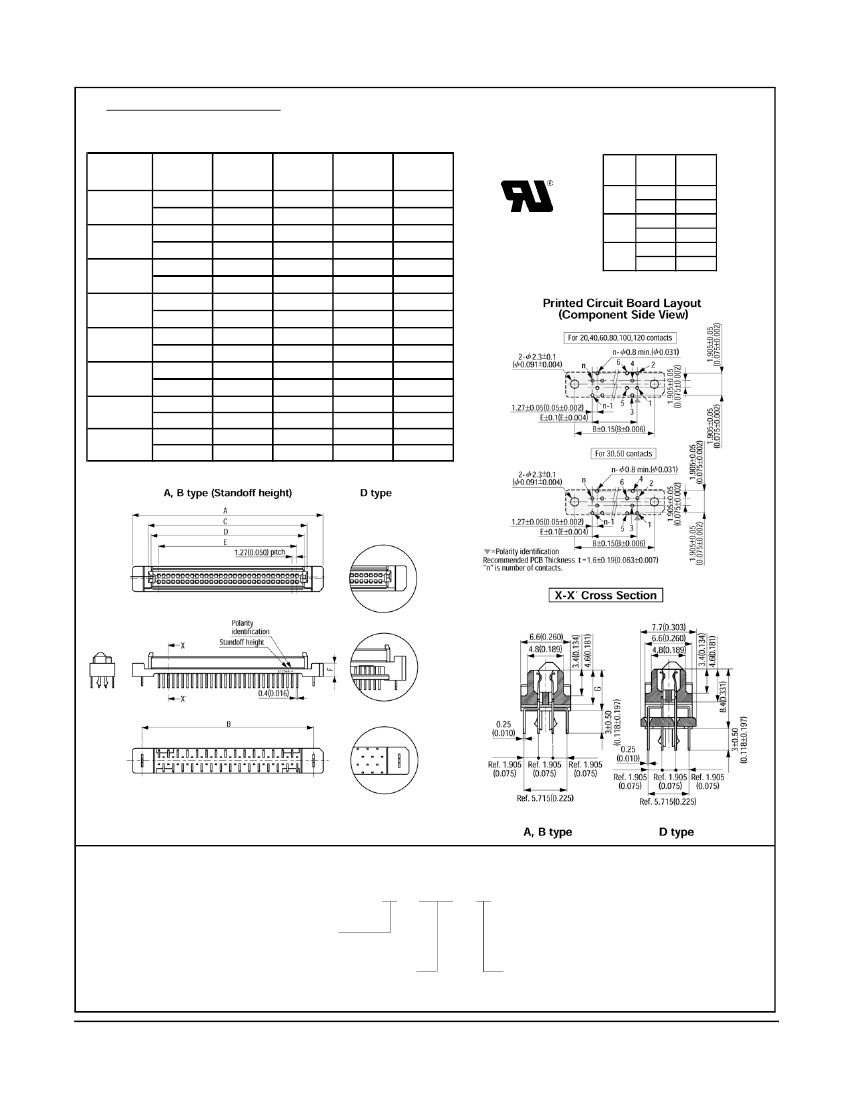

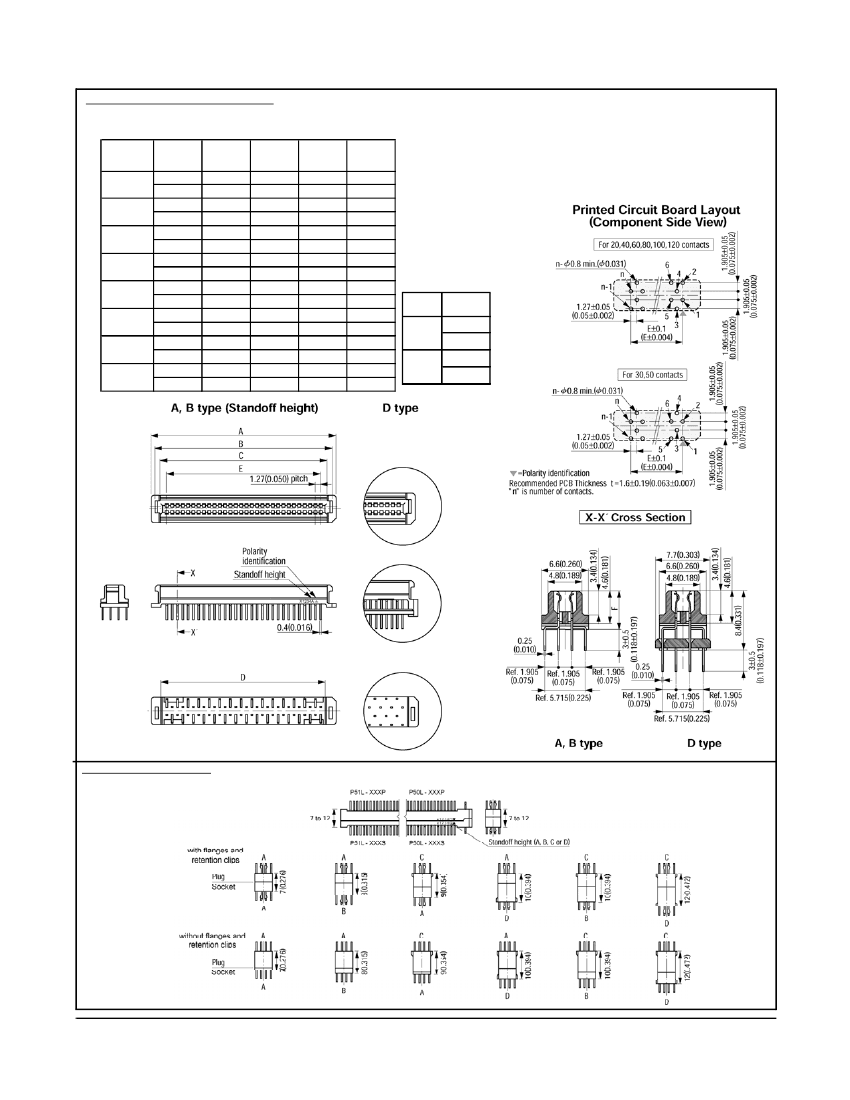

Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
120
A
25.43
[1.001]
31.78
[1.251]
38.13
[1.501]
44.48
[1.751]
50.83
[2.001]
63.53
[2.501]
76.23
[3.001]
88.93
[3.501]
B
20.32
[0.800]
26.67
[1.050]
33.02
[1.300]
39.37
[1.550]
45.72
[1.800]
58.42
[2.300]
71.12
[2.800]
83.82
[3.300]
C
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
D
15.43
[0.607]
21.78
[0.857]
28.13
[1.107]
34.48
[1.357]
40.83
[1.607]
53.53
[2.107]
66.23
[2.607]
78.93
[3.107]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
Type
A
B
D
F
3.50
[0.138]
4.50
[0.177]
6.50
[0.256]
G
5.40
[0.213]
6.40
[0.252]
NA
NA
Note:
Plugs/Sockets with flanges and retention clips are not interchangeable with
plugs/sockets without flanges and retention clips
Ordering Information
P5XL - XXXS - X - DA
0 = With Flanges and Retention Clips
1 = Without Flanges and Retention Clips
Contact Quantity
See Table
A = Type A
B = Type B
D = Type D
TS-2054-03
Sheet 2 of 3
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Low Profile Socket
.050″ Vertical Stacking with and without Flanges
Socket without Flanges and Retention Clips
P50L Series
Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
120
A
18.83
[0.741]
25.18
[0.991]
31.53
[1.241]
37.88
[1.491]
44.23
[1.741]
56.93
[2.241]
69.63
[2.741]
82.33
[3.241]
B
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
C
14.53
[0.572]
20.88
[0.822]
27.23
[1.072]
33.58
[1.322]
39.93
[1.572]
52.63
[2.072]
65.33
[2.572]
78.03
[3.072]
D
13.43
[0.529]
19.78
[0.779]
26.13
[1.029]
32.48
[1.279]
38.83
[1.529]
51.53
[2.029]
64.23
[2.529]
76.93
[3.029]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
Type
A
B
F
5.40
[0.213]
6.40
[0.252]
Stacked Mating Combinations
TS-2054-03
Sheet 3 of 3
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations
related to 3M’s products are based on information believed to be
reliable, but the accuracy or completeness is not guaranteed.
Before using this product, you must evaluate it and determine if it
is suitable for your intended application. You assume all risks and
liability associated with such use. Any statements related to the
product which are not contained in 3M’s current publications, or
any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing,
by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and
manufacture for a period of one (1) year from the time of
purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
If this product is defective within the warranty period
stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of
the 3M product.
Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential
loss or damage arising from this 3M product, regardless of
