BAT54C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Schottky diode> BAT54C

BAT54C: CategorySchottky diode; File Size532KB，4 Pages; ManufacturerJSMSEMI

Download Datasheet Parametric Compare View All

BAT54C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT54C	-	-	View	Buy Now

BAT54C Parametric

Parameter Name	Attribute value
Diode configuration	1 pair of common cathodes
DC reverse withstand voltage (Vr)	30V
Average rectified current (Io)	200mA
Forward voltage drop (Vf)	1V@100mA
Reverse current (Ir)	2μA@25V

Preview

Download Datasheet

View All

Small Signal Schottky Barrier diode

Features

Fast switching

Low turn-on voltage

PN junction guard ring for

transient and ESD protection

Avaiable in lead free version.

MSL 1

BAT54C

BAT54S

BAT54

BAT54A

BAT54/ BAT54A/ BAT54C/ BAT54S

Terminals: solderable per MIL-STD-202,

Method 208

Part Number

Package

Ordering Information

BAT54

BAT54A

BAT54C

BAT54S

Shipping

Marking Code

SOT-23

3000pcs / Tape & Reel

Parameter

Maximum Ratings

(@T

=25℃ unless otherwise specified)

Symbol

RRM

RWM

FRM

FSM

Limits

200

300

600

Unit

Forward Continuous Current

Repetitive Peak Forward Current

Forward surge current@tp<1s

Peak Repetitive Peak reverse voltage

Working Peak Reverse Voltage

DC Reverse Voltage

www.jsmsemi.com

Case: SOT-23

SOT-23

KL1

KL2

KL3

KL4

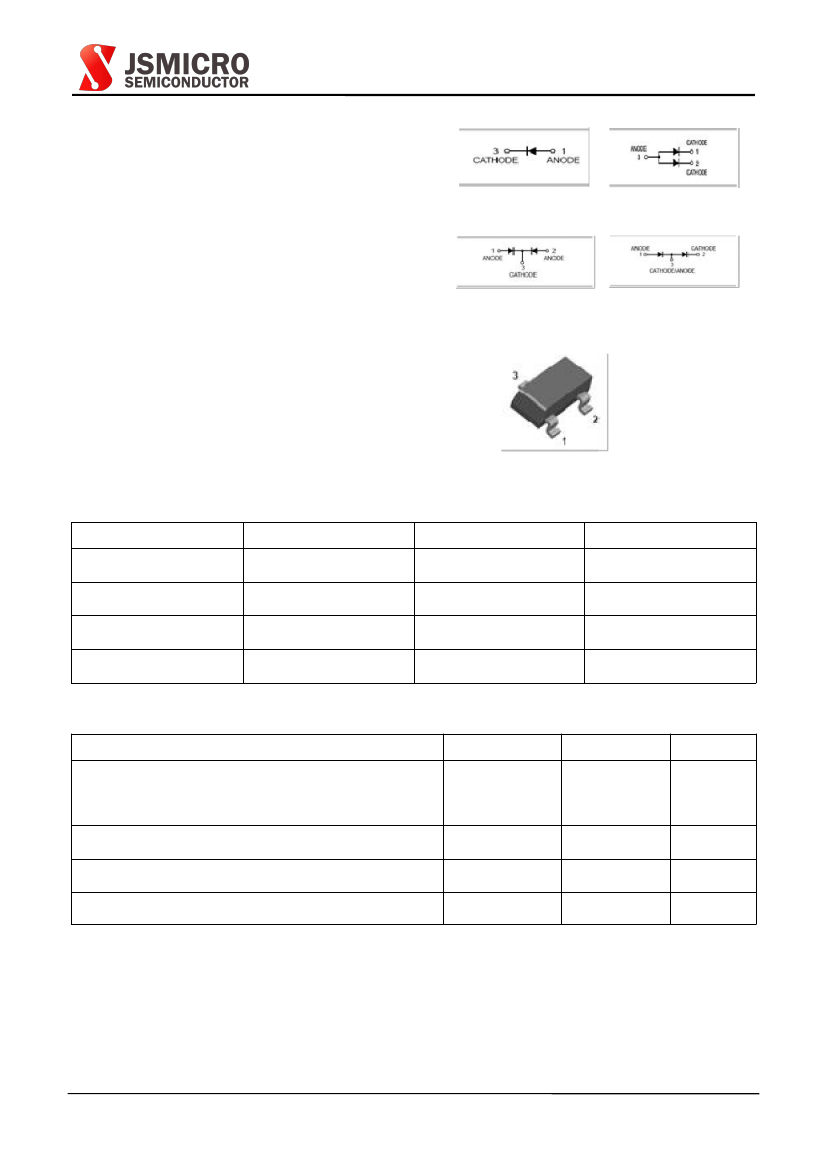

第１／４页

Mechanical Data
