1LA2C504: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size96KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

1LA2C504 Overview

Film Capacitor,

1LA2C504 Parametric

Parameter Name	Attribute value
Objectid	1707136387
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Capacitor type	FILM CAPACITOR
Number of terminals	2

1LA2C504 Preview

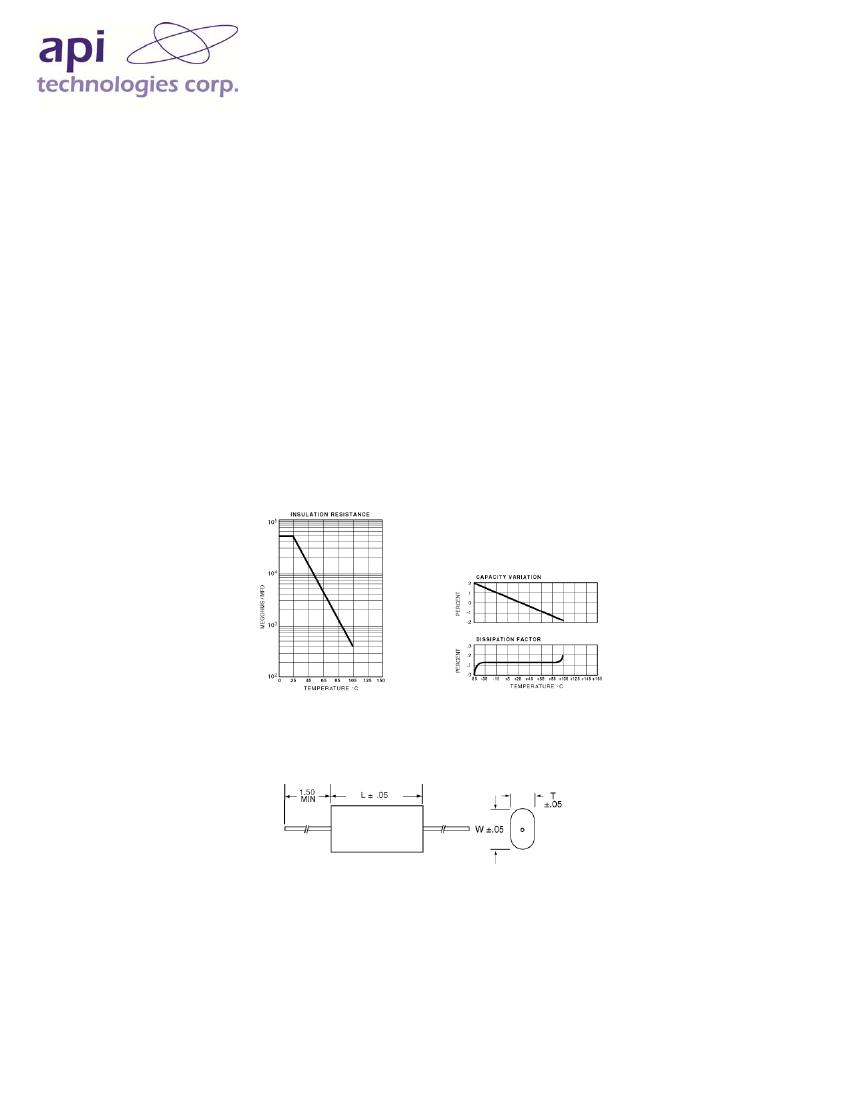

POLYPROPYLENE AND FOIL FILM CAPACITORS

RECTANGULAR – WRAP AND FILL – AXIAL LEADS

SPECIFICATIONS:

1. CAPACITY: TABULATED

2. TOLERANCE: SHALL BE INDICATED BY ONE OF THE FOLLOWINGING SUFFIXS; NONE

±20%, K ± 10%, J ± 5%, H±3%, G±2% AND F±1%

3. WORKING VOLTAGE: TABULATED

4. DISSIPATION FACTOR: LESS THAN 0.1% AT 1KHz AND 25°C

5. INSULATION RESISTANCE: SHALL EXCEED 250,000 MEG/MFD., AFTER TWO MINUTE

CHARGE AT THE RATED VOLATAGE AND 25°C, NEED NOT EXCEED 500,000 MEGOHMS

6. DIELECTRIC STRENGTH: SHALL WITHSTAND A SURGE OF 200% OF THE RATED

VOLTAGE FOR ONE MINUTE THRU A LIMITING RESISTANCE OF 1 – 5 OHM PER VOLT

7. TEMPERATURE RANGE: -55°C TO +85°C AT RATED VOLTAGE, TO 105°C, WITH 50%

VOLTAGE DERATING

8. CASE: POLYESTER PRESSURE TAPE WITH EPROXY ENDFILL

9. LEAD MATERIAL: TINNED COPPERWELD WIRE

1LA2 Series - Specifications

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

PART NUMBER KEY

EXAMPLE

1L

Code

Polypropylene

and Foil

A

Case Style

Wrap & Fill

2

Shape

Oval-

Rectangular

A

Voltage

A-50

B-100

C-200

E-400

G-600

104

Capacity

In Picofarads the

first 2 digits

indicate significant

rd

figures, the 3

indicates number

of zeroes to follow

K

Tolerance

± 20% = Bank

± 10% = K

± 5% = J

± 3% = H

± 2% = G

± 1% = F

Dimensions: (in.)

Part No.

1LA2-102

1LA2-122

1LA2-152

1LA2-182

1LA2-202

1LA2-222

1LA2-252

1LA2-272

1LA2-332

1LA2-392

1LA2-472

1LA2-502

1LA2-562

1LA2-682

1LA2-752

1LA2-822

1LA2-103

1LA2-123

1LA2-153

1LA2-183

1LA2-203

1LA2-223

1LA2-253

1LA2-273

1LA2-333

1LA2-393

1LA2-473

1LA2-503

1LA2-563

1LA2-683

1LA2-753

1LA2-823

1LA2-104

1LA2-124

1LA2-154

1LA2-184

1LA2-204

1LA2-224

1LA2-254

1LA2-274

1LA2-334

1LA2-394

1LA2-474

1LA2-504

1LA2-564

1LA2-684

1LA2-754

1LA2-824

1LA2-105

CAP

MFD

.0010

.0012

.0015

.0018

.0020

.0022

.0025

.0027

.0033

.0039

.0047

.0050

.0056

.0068

.0075

.0082

.010

.012

.015

.018

.020

.022

.025

.027

.033

.039

.047

.050

.056

.068

.075

.082

.10

.12

.15

.18

.20

.22

.25

.27

.33

.39

.47

.50

.56

.68

.75

.82

1.0

T

.12

.13

.14

.16

.15

.16

.17

.18

.1

.16

.18

.19

.20

.22

.19

.21

.23

.27

.26

.30

.32

.33

.31

.34

.37

.39

.41

.46

.41

.43

.48

100 V

W

.22

.23

.24

.26

.25

.26

.27

.28

.25

.26

.28

.29

.30

.32

.33

.27

.38

.42

.40

.44

.46

.48

.45

.48

.52

.54

.56

.60

.58

.60

.64

L

.48

.58

.71

.84

.98

1.25

1.50

T

.12

.14

.16

.14

.16

.17

.18

.20

.17

.19

.21

.23

.25

.26

.28

.25

.28

.31

.34

.38

.34

.36

.40

.43

.48

.50

.45

.50

.52

.54

.62

200 V

W

.22

.24

.26

.24

.26

.27

.28

.30

.27

.29

.31

.33

.35

.36

.38

.40

.45

.49

.53

.49

.51

.55

.58

.63

.65

.62

.68

.71

.73

.80

L

.48

.58

.71

.84

.98

1.25

1.50

T

.12

.13

.14

.16

.17

.14

.15

.16

.17

.20

.17

.19

.21

.23

.24

.26

.22

.24

.27

.29

.30

.29

.30

.32

.36

.40

.45

.40

.44

.45

.48

.50

.49

.54

.59

.63

.65

.68

.72

.80

400 V

W

.22

.23

.24

.27

.24

.25

.26

.28

.30

.27

.29

.32

.33

.34

.35

.37

.39

.42

.43

.44

.46

.47

.51

.54

.60

.57

.60

.62

.65

.66

.70

.76

.80

.82

.87

.89

.97

L

.48

.58

.71

.84

.98

1.25

1.50

1.75

T

.12

.15

.13

.14

.16

.17

.19

.20

.21

.18

.20

.22

.24

.28

.31

.27

.29

.30

.34

.33

.36

.38

.40

.44

.40

.44

.49

.56

.53

.58

.60

.64

.67

.73

.81

.86

.90

.92

.96

1.0

1.12

600 V

W

.22

.25

.23

.24

.26

.27

.29

.30

.31

.28

.30

.32

.34

.38

.41

.42

.44

.45

.49

.48

.51

.53

.55

.59

.58

.61

.66

.72

.70

.75

.77

.81

.84

.98

1.06

1.08

1.13

1.18

1.29

L

.48

.58

.71

.84

.98

1.25

1.50

1.75

2.0

PART LENGTH

.48 THRU .71

.84 THRU 1.25

1.50 THRU

WIRE LEADS

A.W.G.

#24

#22

#20

DIA.

.020

.025

.031

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
