FFSD-12-S-10.00-01-N-RW datasheet, PDF

Datasheet> All Categories > The connector> The connector> FFSD-12-S-10.00-01-N-RW

FFSD-12-S-10.00-01-N-RW: DescriptionBoard Connector; CategoryThe connector The connector; File Size347KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

FFSD-12-S-10.00-01-N-RW Overview

Board Connector

FFSD-12-S-10.00-01-N-RW Parametric

Parameter Name	Attribute value
Objectid	7009373832
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	24
UL Flammability Code	94V-0

FFSD-12-S-10.00-01-N-RW Preview

REVISION AO

DO NOT

SCALE FROM

THIS PRINT

NOTES:

1. HIDDEN LINES ARE USED TO SHOW POLARIZATION

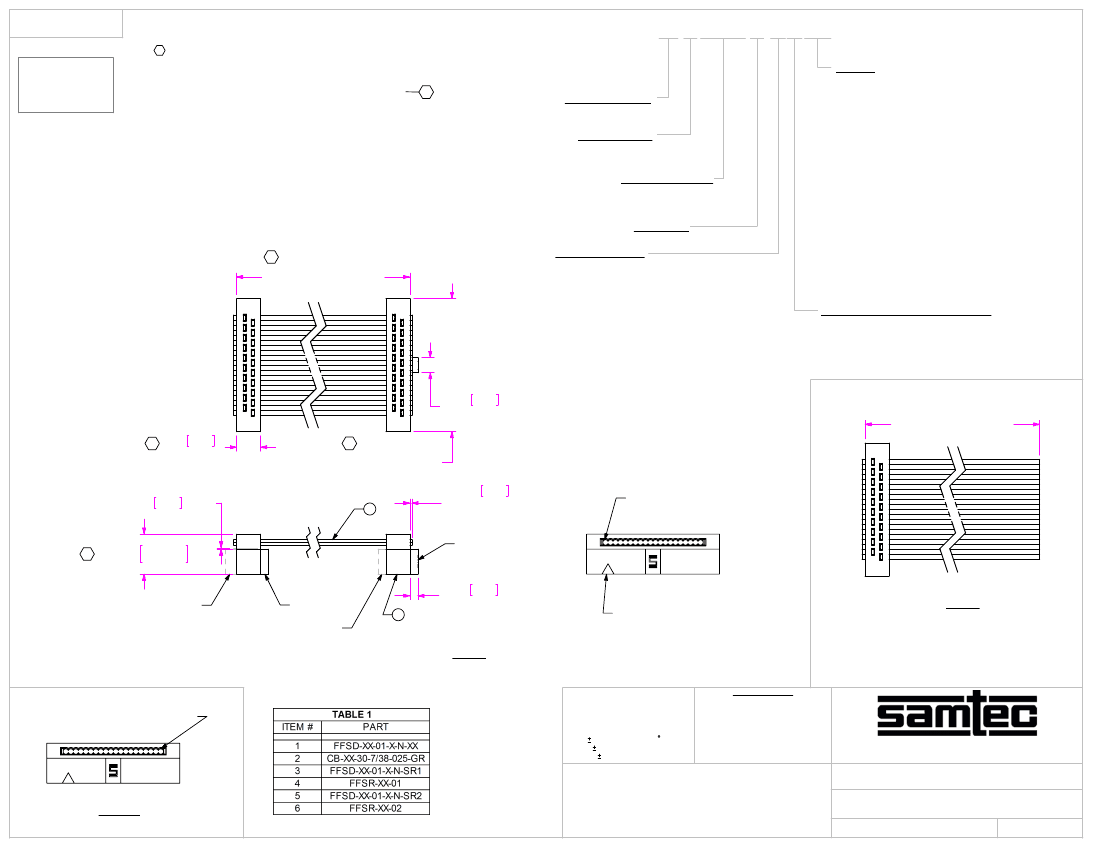

FFSD-XX-X-XX.XX-01-X-X-XXX

WHEN USING -N OPTION.

REPRESENTS A CRITICAL DIMENSION.

3. FFSD CABLE ASSEMBLIES ARE LEAD FREE.

4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED

FOR SHORTS AND OPENS.

5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 630V.

No OF POSITIONS

6. STRAIN RELIEF TO WITHSTAND 5LB[22N] STRAIGHT PULL.

-02 THRU -25

7. NOTE DELETED.

(PER ROW)

8. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS SHOULD NOT EXTEND

END ASSEMBLY

PAST THE CABLE INSULATION, EXTENDING LESS THAN 25% OF CABLE

THICKNESS ON CONSECUTIVE AND LESS THAN 50% OF CABLE THICKNESS

-S: SINGLE END

ON NON-CONSECUTIVE STRANDS IS CONSIDERED A PROCESS INDICATOR.

-D: DOUBLE END

9. REFERENCE FFSD-XX-XX-X-N-XXX FOR CONNECTOR ASSEMBLY

DIMENSIONS AND ITS REQUIREMENTS.

ASSEMBLY LENGTH

10. COLORED WIRE MUST MATCH FIRST POSITION INDICATOR

-D"XX", -R, -M & -O OPTION: 2.00[50.8] MINIMUM

ON THE FIRST CONNECTOR FOR ALL OPTIONS WITH THE

ALL OTHER OPTION: 1.00[25.4] MINIMUM

EXCEPTION OF -RW.

11. FOR LENGTHS LESS THAN 12.5", TOLERANCE SHALL BE +/-.125,

LEAD STYLE

ALL OTHER LENGTHS SHALL BE +/-1%.

XX.XX[XX.X x 25.4]±1%

(SEE NOTE 8 & 11)

PLATING OPTIONS

- LEAVE BLANK FOR STANDARD, USE C-67-L

-S: USE C-67-S

-F: USE C-67-F

OPTION

-RW: REVERSE WIRING

(NOT AVAILABLE WITH -RN1 OR -RN2)

-D"XX": DAISY CHAIN (MINIMUM 2.00[50.8],

1.00[25.4] INCREMENTS)

-R: REVERSED

(NOT AVAILABLE WITH -M OR -O)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-RN1: REVERSE POLARIZATION NOTCH

(NOT AVAILABLE WITH -RW OR -RN2)

-RN2: REVERSE POLARIZATION NOTCH

(NOT AVAILABLE WITH -RW OR -RN1)

-M: MIDDLE REVERSE

(NOT AVAILABLE WITH -R OR -O)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-O: OUTSIDE REVERSE

(NOT AVAILABLE WITH -R OR -M)

(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)

-SR: STRAIN RELIEF

(NOT AVAILABLE WITH -O, -M,

-R, OR -DXX)

(SOLD AS ASSEMBLIES ONLY)

STANDARD POLARIZATION NOTCH

-N: POLARIZATION NOTCH

(NOT AVAILABLE IN -02 THRU -04)

(LEAVE BLANK FOR -02, -03, -04)

.075 1.91

REF

.120 3.05

REF

(No OF POS x .050[1.27])

+ .165[4.19] REF

.010 0.25 MAX

CABLE OVERHANG

(SEE NOTE 8)

-N OPTION

RED WIRE TO SIDE

OF FIRST POS INDICATOR

XX.XX[XX.X x 25.4]±1%

(SEE NOTE 8 & 11)

.006 0.15 MAX

.200

- .003

5.08

- 0.08

+.006

+0.15

-RN1 OPTION

-N OPTION

-RN2 OPTION

.040 1.02

REF

NOTCH DENOTES

FIRST POSITION

(FFSD-10-S-XX.XX-01-X-N SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

FIG 2

(FFSD-10-D-XX.XX-01-X-N SHOWN)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

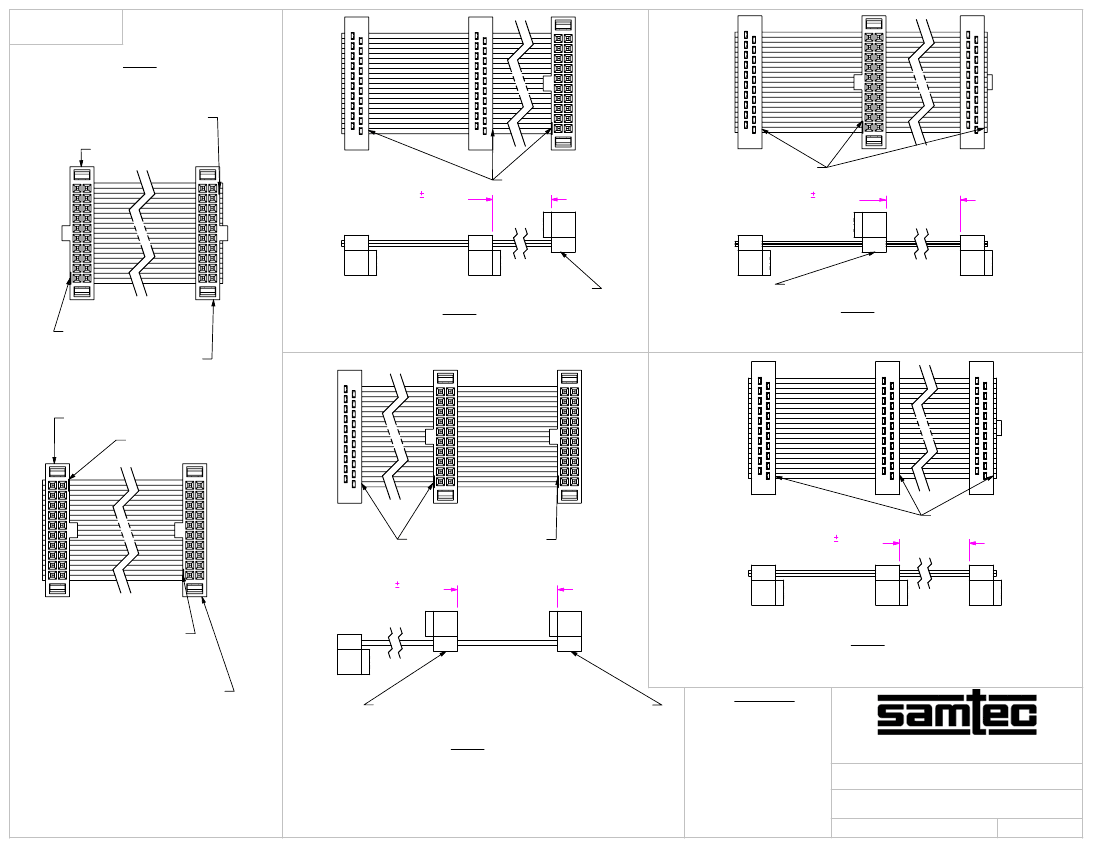

FIG 1

RED WIRE TO OPPOSITE

SIDE OF FIRST POS. INDICATOR

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

(FFSD-10-X-XX.XX-01-X-N-RW SHOWN)

FIG 11

F:\DWG\MISC\MKTG\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW

INSULATORS: PBT UL94V-0, COLOR: BLACK

CONTACT: BeCu

WIRE: 30 AWG, 7/38, TINNED, STRANDED WITH

GRAY PVC INSULATOR

PLATING: .000010 GOLD OVER .000050 NICKEL

REMAINDER: .000200 REF TIN OVER .000050 NICKEL

.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY

DWG. NO.

FFSD-XX-X-XX.XX-01-X-X-XXX

T NEWTON

02/15/2008

SHEET

BY:

REVISION AO

(FFSD-10-D-XX.XX-01-X-N-RN1 SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

FIRST POSITION INDICATOR

FIRST CONNECTOR

FIRST POSITION INDICATOR

XX.XX[XX.X x 25.4] .13[3.2]

(MIN 2")

FIRST POSITION INDICATOR

XX.XX[XX.X x 25.4] .13[3.2]

(MIN 2")

FIG 3

OUTSIDE CONNECTOR REVERSED WHEN DAISY CHAINED

MIDDLE CONNECTOR REVERSED WHEN DAISY CHAINED

FIRST POSITION INDICATOR

SECOND CONNECTOR

(FFSD-10-D-XX.XX-01-X-N-DXX-O SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)

FIG 4

(FFSD-10-D-XX.XX-01-X-N-DXX-M SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)

FIG 5

(FFSD-10-D-XX.XX-01-X-N-RN2 SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

FIRST CONNECTOR

FIRST POSITION INDICATOR

XX.XX[XX.X x 25.4] .13[3.2]

(MIN 2")

XX.XX[XX.X x 25.4] .13[3.2]

(MIN 2")

FIRST POSITION INDICATOR

(FFSD-10-D-XX.XX-01-X-N-DXX SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)

SECOND CONECTOR

FIG 7

NOTE:

-RN1 = REVERSE NOTCH ON 1ST CONNECTOR ONLY

( NOT AVAILABLE WITH -R OPTION)

-RN2 = REVERSE NOTCH ON 2ND CONNECTOR ONLY

(NOT AVAILABLE WITH -R OPTION)

(REVERSE NOTCH NOT AVAILABLE WITH -RW OR ANY

DAISY CHAIN OPTIONS)

BOTH CONNECTORS REVERSED WHEN DAISY CHAINED

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

(FFSD-10-D-XX.XX-01-X-N-DXX-R SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN)

(NOT AVAILABLE WITH -RN1 OR -RN2 OPTION)

(2.00[50.8] MINIMUM, 1.00[25.4] INCREMENTS)

FIG 6

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY

SHEET SCALE: 2:1

FFSD-XX-X-XX.XX-01-X-X-XXX

T NEWTON

02/15/2008

SHEET

F:\DWG\MISC\MKTG\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW

BY:

REVISION AO

(2-15 POS -SR ONLY FOR DOUBLE END)

(No OF POS x .050[1.27])

+ .315[8.00] REF

IN-PROCESS 1

XX.XX[XX.X x 25.4] + .4375[11.113]±.125[3.18]

.039 0.99

.335±.010 8.51±0.25

(XX.XX[XX.XX x 25.4] .13[3.2]

STRAIN RELIEF OPTION (POS 2-15 ONLY)

(FFSD-10-D-XX.XX-01-X-N-SR SHOWN)

(SAME AS FIG 1, DIFFERENT AS SHOWN

)

(2-15 POS -SR ONLY FOR DOUBLE END)

IN-PROCESS 2

FIG 9

(XX.XX[XX.XX x 25.4] ± .13[3.2])

IN-PROCESS 1

(16-25 POS -SR ONLY FOR DOUBLE END)

XX.XX[XX.XX x 25.4] +.4375[11.113] .125[3.18]

(16-25 POS -SR ONLY FOR DOUBLE END)

XX.XX[XX.XX x 25.4]

.13[3.2]

IN-PROCESS 2

.0228

+.002

0.58

+0.05

- .000

0.00

DETAIL 'A'

SCALE 8 : 1

(16-25 POS -SR ONLY FOR DOUBLE END)

IN-PROCESS 3

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

'A'

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

STRAIN RELIEF OPTION (POS 16-25 ONLY)

(FFSD-25-D-XX.XX-01-X-N-SR SHOWN)

(SAME AS FIG 9, DIFFERENT AS SHOWN)

SCALE 1 : 1

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

FIG 10

DO NOT SCALE DRAWING

.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY

SHEET SCALE: 2:1

FFSD-XX-X-XX.XX-01-X-X-XXX

T NEWTON

02/15/2008

SHEET

F:\DWG\MISC\MKTG\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW

BY:

REVISION AO

IN-PROCESS 1

(FFSD-XX-S-XX.XX-01-X-N-RW ONLY)

(16-25 POS -SR ONLY FOR SINGLE END)

IN-PROCESS 1

(XX.XX[XX.XX x 25.4] ± .125[3.18])

XX.XX[XX.XX x 25.4] +.4375[11.113] .125[3.18]

(16-25 POS -SR ONLY FOR SINGLE END)

(2-15 POS -SR ONLY FOR SINGLE END)

IN-PROCESS 2

IN-PROCESS 1

XX.XX[XX.XX x 25.4]

XX.XX[XX.X x 25.4] + .4375[11.113]±.125[3.18]

.125[3.18]

(2-15 POS -SR ONLY FOR SINGLE END)

IN-PROCESS 2

(16-25 POS -SR ONLY FOR SINGLE END)

IN-PROCESS 3

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

(XX.XX[XX.XX x 25.4] ± .125[3.18])

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DO NOT SCALE DRAWING

DESCRIPTION:

DWG. NO.

.050 x .050 DOUBLE ROW FEMALE IDC ASSEMBLY

SHEET SCALE: 2.5:1

FFSD-XX-X-XX.XX-01-X-X-XXX

T NEWTON 02/15/2008

SHEET

F:\DWG\MISC\MKTG\FFSD-XX-X-XX.XX-01-X-X-XXX-MKT.SLDDRW

BY:
